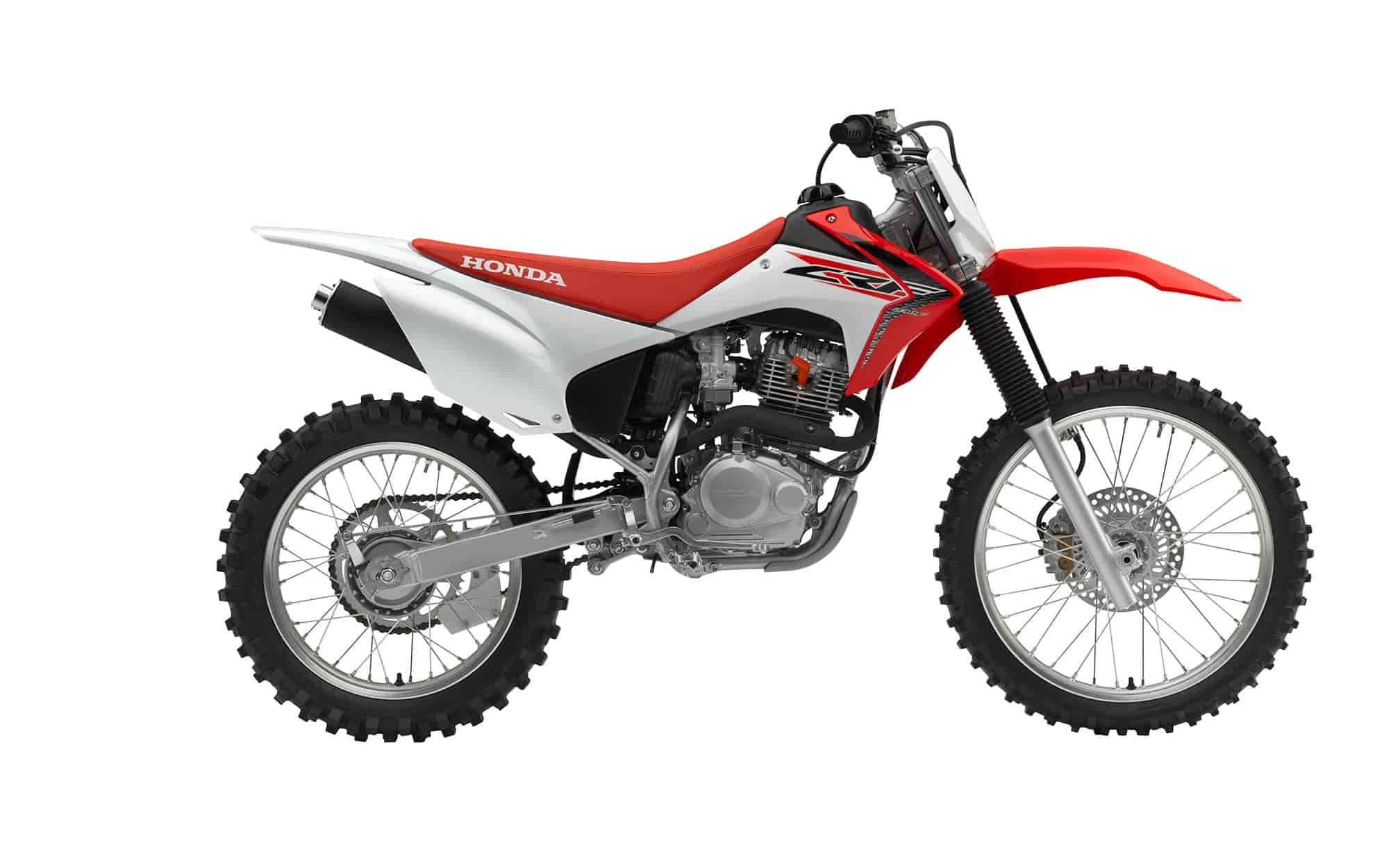

2016 Honda CRF230F Review

2016 Honda CRF230F on www.Totalmotorcycle.com

Ratchet Up The Fun Without Twisting A Wrench…

Throw your leg over the saddle of the CRF230F, push the electric starter and have a blast. You don’t have to worry about breaking down or excessive maintenance—with a minimum of care, you can jump on the CRF230F with its rigid bodywork, durable six-speed transmission and plush, long-travel suspension and leave the on-road world in the dust. With its overall size, sturdy frame and lightweight components, the CRF230F is just the right size for adults or larger teens who can’t wait to take on the twists and turns of the trail.

Number One In Four Strokes.

For years, Honda has made the best and most reliable four-stroke engines in the business, so you can enjoy nonstop fun out on the trail.

Don’t Kick. Just Push.

Sometimes you just want to get on your bike and get out there—that’s just what the CRF230F’s push-button electric starter helps you do.

2016 Graphics

A bold style means you’ll look extra sharp out on the trail.






2016 Honda CRF230F www.Totalmotorcycle.com Key Features

Honda Durability, Reliability And Quality

When it comes to dirtbikes, you don’t want a lot of extra weight. So the CRF230F features a lightweight semi-double-cradle, high-tensile steel frame, lightweight rear drum brake and lightweight aluminum crankcase. It’s also light on maintenance with a maintenance-free CD ignition, sealed battery, snail-type chain adjusters and a reusable, foam air filter for reduced maintenance costs.


2016 Honda CRF230F www.Totalmotorcycle.com Features and Benefits

Engine / Drivetrain

Increased durability

Heavy-duty O-ring-sealed chain for increased durability and reduced maintenance.


Smooth-shifting and versatile six-speed transmission.


Heavy-duty clutch with smooth, progressive engagement.

Maintenance-free ignition

Maintenance-free type CD ignition.

Easy starting

Electric starter for ease of starting.

Crisp throttle response

26 mm carburetor for crisp throttle response.


Dependable 223 cc single-cylinder air-cooled 4-stroke engine offers plenty of user-friendly power and torque, spread over a wide rpm range.

Chassis / Suspension

Lightweight rear brake

Lightweight reardrum brake.

Powerful front brake

Powerful 240 mm front disc brake.

Easy maintenance

Snail-type chain adjusters for easier maintenance.

Increased durability

Pro-Link rear suspension rides on needle bearings for smooth action and increased durability.

Excellent rear shocks

Heavy-duty Showa rear shock offers 230 mm (9.1 inches) of travel.

Protection from the elements

Fork boots help keep dirt and moisture away from fork seals.

Performance & appearance in suspension

37 mm leading-axle Showa front fork offers 241 mm (9.5 inches) of suspension travel.

Light but strong

Lightweight semi-double-cradle high-tensile steel frame.

Additional Features

Sleek style

CRF-R-inspired bodywork.


Keyed ignition switch.

Maintenance-free battery

Maintenance-free type sealed battery.

Grip comfort

Extra-wide cleated, folding, self-cleaning footpegs and brake pedal for more secure footing.


Front and rear steel sprockets for durability. High-quality handlebar with comfortable grips.

Reduced maintenance cost

Reusable foam air filter helps reduce maintenance costs.

Protected from tip-over

Folding shift lever reduces damage in a tip-over.

Long-range travel

Large 7-litre plastic fuel tank and thrifty 4-stroke engine for extended range.

Full rider movement

Motocross-style seat is low, comfortable, and allows full rider movement.


2016 Honda CRF230F – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4199 USD

Engine Type 223cc air-cooled single-cylinder four-stroke
Bore And Stroke 65.5mm x 66.2mm
Induction 26mm piston-valve carburetor
Ignition CD
Compression Ratio 9.0:1
Valve Train SOHC; two-valve

Transmission Six-speed
Final Drive #520 O-ring-sealed chain; 13T/50T

Front Suspension 37mm leading-axle Showa® fork; 9.5 inches travel
Rear Suspension Pro-Link® Showa single shock with spring-preload adjustability; 9.0 inches travel
Front Brake Single 240mm disc
Rear Brake Drum
Front Tire 80/100-21
Rear Tire 100/100-18

Rake 27.3° (Caster Angle)
Trail 112mm (4.4 inches)
Wheelbase 54.1 inches
Seat Height 34.1 inches
Curb Weight 249 pounds (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity 1.9 gallons, including 0.4-gallon reserve
Ground Clearance 11.7 inches

Model Id CRF230F
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red

Note Six Months, Transferable limited warranty. Extended coverage available with a Honda Protection Plan.
































2016 Honda CRF230F – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $4699 CDN

Engine & Drivetrain


Engine Type

Air-cooled single-cylinder four-stroke


223 cc

Bore & Stroke

65.5 mm x 66.2 mm

Compression Ratio


Valve Train

SOHC, 2 valves

Fuel Delivery

Single 26 mm piston-valve carb


Six-speed with manual clutch

Final Drive

#520 O-ring-sealed chain; 13T/50T

Chassis & Suspension


Front Suspension

37 mm leading-axle Showa fork; 241 mm (9.5 in.) travel

Rear Suspension

Pro-Link Showa single shock with spring preload adjustment; 230 mm (9.1 in.) travel

Dimensions & Additional Information



80/100 – 21 front; 100/100 – 18 rear


Front 240 mm disc with dual-piston caliper; rear drum

Ground Clearance

305 mm (12 in.)

Seat Height

878 mm (34.6 in.)


1,372 mm (54 in.)

Curb Weight

113 kg (249 lbs.) including required fluids and full tank of gas – ready to ride

Fuel Capacity

7 litres, including 1.3-litre reserve


Extreme Red


6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus





2016 Honda CRF230F – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)


Specifications, features, illustrations and equipment shown are believed to be correct – however, accuracy cannot be guaranteed. Honda Inc. reserves the right to make changes at any time, without notice or obligation, in colours, specifications, accessories, materials and models. Some vehicles are shown with optional equipment. Some vehicles shown are U.S., European and/or Canadian models.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
