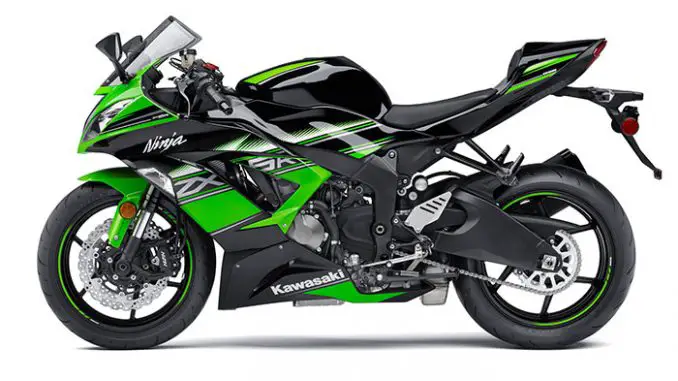

2016 Kawasaki Ninja ZX-6R ABS KRT Edition
2016 Kawasaki Ninja ZX-6R ABS KRT Edition

2016 Kawasaki Ninja ZX-6R ABS KRT Edition
2016 Kawasaki Ninja ZX-6R ABS KRT Edition

2016 Kawasaki Ninja ZX-6R ABS KRT Edition
2016 Kawasaki Ninja ZX-6R ABS KRT Edition

2016 Kawasaki Ninja ZX-6R ABS KRT Edition
2016 Kawasaki Ninja ZX-6R ABS KRT Edition

2016 Kawasaki Ninja ZX-6R ABS KRT Edition
2016 Kawasaki Ninja ZX-6R ABS KRT Edition



2016 Kawasaki Ninja ZX-6R ABS KRT Edition Review

2016 Kawasaki Ninja ZX-6R ABS KRT Edition on www.Totalmotorcycle.com

With the biggest engine in its class, the 636cc inline four-cylinder engine outperforms the competition….

Set Your Heart Racing

Now is the time to re-adjust your track and sport riding perceptions. Time to consider the benefits of lightweight, compact dimensions and amazing pulling power. Time for the Ninja ZX-6R 636, the “one-bike answer” to all your mid capacity sport riding needs… Now is the time to set your heart racing.

Championship technology comes to the middleweight class with the Ninja ZX-6R.

A New Kawasaki Racing Team Edition celebrates the dominance of the Ninja ZX-6R motorcycle on the racetrack

The current dominance of the Kawasaki Ninja ZX-6R motorcycle in both the FIM World Championship Supersport series and the European World Superstock 600 series is a clear indication that the Ninja ZX-6R motorcycle remains a major force to be reckoned with.

The race bikes are limited to a 599cc version of the famous Kawasaki inline four-cylinder engine, whereas the streetbikes sold in North America benefit from a long-stroke 636cc engine, giving the ZX-6R the ultimate advantage over its 600cc-class competition. The 2016 Ninja ZX-6R motorcycle, will be available in a special Kawasaki Racing Team (KRT) paint finish of Lime Green and Ebony.



2016 Kawasaki Ninja ZX-6R ABS KRT Edition www.Totalmotorcycle.com Key Features

•Selectable full and low engine power modes allow riders to adjust power delivery to riding conditions
•Three-mode KTRC traction control tuned to cover a wide-range of situations from advanced racetrack use, to normal street riding, to mixed/slippery conditions
•Showa Separate Function Fork Big Piston (SFF-BP) offers light weight, broad adjustability and smooth progressive damping
•F.C.C. clutch with assist and slipper functions offer light clutch pull and minimizes wheel chatter caused by aggressive downshifting
•Kawasaki Intelligent anti-lock Brake System (KIBS) ABS with monobloc calipers assist braking under certain conditions
•Special Kawasaki Racing Team (KRT) theme featuring Lime Green/Ebony bodywork


Pressed-aluminium perimeter frame

Race-developed perimeter frame is the key to the Ninja ZX-6R’s superb balance of flickable handling, mid-corner stability and an ability to change lines on command, coupled with excellent chassis feedback.


Ninja Styling

Design appears to flow from front to rear. Front cowl sharp nose, fairings minimalist design with large openings that provide increased airflow and new headlamps and LED tail-light contribute to to the New Ninja ZX-6R aggressive image.


Naturally aggressive ergonomics

Riding position ideal for sport riding offers intuitive fit that puts riders instantly at ease. Tank, seat and rear frame offer good contact with the bike for enhanced rider feedback. Seat is short front-to-back, allowing the rider to rest his tailbone on the rear seat step, further contributing to the excellent feedback the rider gets from the chassis.


636 cm3 liquid-cooled, 4-stroke In-line Four

The Advantage offered by the new Ninja ZX-6R’s 37cm3 displacement increase is significant for real world riding exhilaration. Enhanced performance across the rpm range is welcome when sport riding, both in the hills and on the racetrack. But increased low and mid-range torque also offers increased usability in everyday street-riding situations, like riding in stop-and-go traffic, or accelerating to pass another vehicle on the highway.





2016 Kawasaki Ninja ZX-6R ABS KRT Edition www.Totalmotorcycle.com Features and Benefits

ENGINE

The additional 37cc engine size results in much stronger low- and mid-range power, which is a significant asset for street riding, canyon carving and on-track authority. This performance advantage has been proven in the demanding arena of AMA Pro Road Racing, where the first revolutionary 636 blew away the competition’s 600s and won races against factory 750s on the track.

The latest 16-valve, long-stroke DOHC 636cc four-cylinder engine provides the riding experience demanded by the most discerning middleweight sportbike riders. Torque-rich and rev-happy, the supremely powerful engine easily makes the transition from city street commuting to the wide-open racetrack, making its broad performance available to every rider.

The increased performance developed by this larger capacity engine can be felt throughout the rev range, which is always appreciated for racing, but also provides a significant boost for everyday use. The larger engine means that low- to mid-range torque is significantly stronger compared to traditional 600cc bikes.

The intake and exhaust port shapes are also optimized to suit the enginedisplacement, helping to provide increased performance as well as improved throttle response. The DFI® (digital fuel injection) engine is another asset the rider can exploit. The system employs ultra-fine atomizing injectors to deliver a sub-60 micron fuel droplet size for optimum air-fuel mixing and maximum combustion efficiency, while precise mapping enhances throttle response and reduces emissions.

The result is a 636cc engine that delivers incredible drive out of corners, offers superior flexibility and precise throttle control. These virtues pay big dividends when making mid-corner power adjustments, stringing a set of curves together on a racetrack or simply clearing traffic on city streets.

TRANSMISSION

In keeping with its racing DNA, the Ninja ZX-6R motorcycle employs a cassette-type six-speed transmission to simplify gear ratio changes at the track. It also utilizes strong alloys and to provide excellent durability, making it the perfect match for the torquey 636cc engine.

The Ninja ZX-6R motorcycle has a high-tech FCC clutch with assist and slipper functions. The advanced slipper function allows quick, effortless downshifts when scrubbing-off speed for a corner, while also helping to minimize rear-wheel hop caused by excess back-torque.

The “assist” function acts like a servo mechanism to pull the clutch hub and operating plate together, compressing the clutch plates under load. This allows the total clutch spring count and tension to be reduced, resulting in less effort at the clutch lever, in turn producing less fatigue on a long ride or in city traffic.


Track-Ready Electronics

The Ninja ZX-6R motorcycle features the latest sportbike and racetrack technology. For example, it has a three-mode Kawasaki Traction Control system (KTRC). Three modes are available via a switch on the left handlebar: Mode 1 offers maximum racetrack performance, Mode 2 is ideal for sporty street performance, and Mode 3 helps to eliminate wheelspin in certain conditions. Riders can also turn the system off if they wish.

As a further riding aid, riders can select either “Full” or “Low” engine power modes via a switch on the left handlebar. The power modes allow quick adjustment to the power delivery to suit road or track conditions.

Full mode permits the engine’s full performance potential to be realized, while Low mode offers the same power output at low RPM, but begins to limit power as the revs rise into the mid-range. It restricts power to about 80 percent of the engine’s full potential at high RPM. Low mode also delivers a gentler throttle response.

High-Performance ABS Braking (optional)

Riders who purchase the 2016 Ninja ZX-6R ABS motorcycle will have the Kawasaki Intelligent anti-lock Brake System (KIBS). This “Intelligent” system employs a multi-sensing system that monitors a wide range of data from wheel speed sensors and the engine ECU. Monitored parameters include wheel speed, brake caliper pressure, engine RPM, throttle position, clutch actuation and gear selection. When the KIBS ABS ECU detects a potential brake lock-up situation, it is able to temporarily reduce brake-line pressure, helping the wheel to regain traction. Aside from ultra-quick response times, additional sport-riding benefits include rear-end lift suppression during hard braking, reduced brake-lever kickback during ABS activation, and enhanced rear brake control during downshifts.

The system uses the same Nissin “monobloc” radial-mount brake calipers and 310mm petal-type front rotors as the non-ABS version of the Ninja ZX-6R motorcycle. It also shares the same rear brake caliper and 220mm petal-type rotor.

SUSPENSION & CHASSIS

The Ninja ZX-6R motorcycle is equipped with the Showa Separate Function Fork – Big Piston (SFF-BP) to deliver next-generation suspension performance and refinement. The fork utilizes springs in both tubes, with adjustable spring preload in the left tube and adjustable compression and rebound damping in the right tube. All adjusters are located on the upper fork caps for convenient access. With smooth initial stroke action and excellent composure under braking, the fork has greater composure as it begins to compress, with reduced dive during hard braking. The SFF-BP is primarily tuned for canyon road use, but with simple tuning it will allow a high level of performance at the racetrack, and comfortable response in the city.

At the rear, the patented Kawasaki bottom-link Uni-Trak® suspension offers 5.3” of travel. There is a gas-charged shock with adjustable spring preload, 25-position rebound damping and stepless compression damping.

The lightweight twin-spar aluminum frame places the engine in the optimum position for superb handling and rider feedback. It features a 23.5-degree rake angle to quicken steering response, enhance maneuverability and help to provide clear communication to the rider from the front tire.

BODYWORK

The 2016 Kawasaki Ninja ZX-6R motorcycle features aggressive design elements for a characteristic appearance. The large openings in the fairing provide high airflow and heat dissipation, while the lower section and rear cowl contribute to the bike’s lightweight appearance.

A critical feature for sportbikes is the relationship among the seat, footpeg and handlebar. With the Ninja ZX-6R motorcycle, the handlebars are placed close to the rider and at an angle that promotes a comfortable riding position. The fuel tank is flared around its top edge to provide a large leg and knee contact area, further contributing to excellent chassis feedback. Together with a narrow lightweight aluminum rear sub-frame, the seat’s leading edge provides a slender sportbike riding position, as well as shorter reach to the pavement.

Multi-Function Display

The crisp LCD instrument panel includes an analog-style tachometer and a multi-function screen to enable the rider to select the information needed. Primary functions on the LCD panel include KTRC and Power Mode as well as an Economical Riding (ECO) indicator. Additional functions include a digital speedometer, odometer, dual trip meters, clock, instant and average fuel consumption, coolant temperature, as well as a gear indicator, traction control activity level, ABS indicator and low-fuel warning lights. A large gear-position indicator gives instant numerical gear confirmation.

MODELS

New for 2016, the Kawasaki Ninja ZX-6R and the Ninja ZX-6R ABS motorcycles are available in Lime Green / Ebony for the KRT Edition as well as Metallic Matte Carbon Gray / Ebony.

ACCESSORIES

There is a comprehensive range of Genuine Kawasaki Accessories available for the Ninja ZX-6R motorcycle. These include an adjustable Öhlins twin-tube steering damper as well as a color-matched cowl that replaces the rear seat to enhance the appearance of the motorcycle. There is a soft-top case for storage, tank and kneepads, as well as frame and axle slider.










2016 Kawasaki Ninja ZX-6R ABS KRT Edition – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12999 USD

Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement: 636cc
Bore x stroke: 67×45.1mm
Compression ratio: 12.9:1
Fuel injection: DFI® with four 38mm Keihin throttle bodies and oval sub-throttles
Ignition: TCBI with digital advance
Transmission: Six-speed
Final drive: Sealed chain
Rake / trail: 23.5 degrees / 4″
Frame type: Aluminum perimeter
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Wheelbase: 54.9″
Front suspension / wheel travel: 41mm inverted Showa SFF-BP fork with top-out springs, stepless compression and rebound damping, adjustable spring preload / 4.7″
Rear suspension / wheel travel: Bottom-link Uni-Trak® with gas-charged shock, stepless compression damping adjustment, 25-way adjustable rebound damping, fully adjustable spring preload / 5.3″
Front brakes: Dual 310mm petal rotors with dual radial-mount, Nissin four-piston, monobloc calipers and KIBS ABS
Rear brake: Single 220mm petal rotor with single-piston caliper and KIBS ABS
Overall length: 82.1″
Overall width: 27.8″
Overall height: 43.9″
Fuel capacity: 4.5 gallons
Ground Clearance 5.1″
Seat height: 32.7″
Curb weight: 427.8 lb
Color choices: Metallic Matte Carbon Gray / Ebony
Lime Green / Ebony KRT Edition
MSRP: $12,699 / $12,999 (KRT Edition)
Warranty: 12 Months
Kawasaki Protection Plus™ (optional): 12, 24, 36 or 48 months








2016 Kawasaki Ninja ZX-6R ABS KRT Edition – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Dealer for pricing in CDN

TBA






2016 Kawasaki Ninja ZX-6R ABS KRT Edition – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £9,149 Non-ABS; 10,149 ABS GBP (On The Road inc 20% Vat)

Engine
Engine type
Liquid-cooled, 4-stroke In-Line Four
Displacement
636 cm³
Bore x stroke
67.0 x 45.1 mm
Compression ratio
12.9:1
Valve/Induction system
DOHC, 16 valves
Fuel system
Fuel injection:ø38 mm x 4 (Keihin) with oval sub-throttles
Ignition
Digital
Starting
Electric
Lubrication
Forced lubrication, wet sump with oil cooler
Frame
Frame type
Twin spar, pressed-aluminium
Rake/Trail
23.5° / 101 mm
Wheel travel, front
120 mm
Wheel travel, rear
134 mm
Tyre, front
120/70ZR17M/C (58W)
Tyre, rear
180/55ZR17M/C (73W)
Steering angle, left / right
27° / 27°
Performance
Maximum power
96.4 kW {131 PS} / 13,500 rpm
Maximum power with RAM Air
101 kW {137 PS} / 13,500 rpm
Maximum torque
71 Nom {7.2 kgfom} / 11,500 rpm
Transmission
Transmission
6-speed, return, cassette
Final Drive
Sealed chain
Primary reduction ratio
1.900 (76/40)
Gear ratios: 1st
2.846 (37/13)
Gear ratios: 2nd
2.200 (33/15)
Gear ratios: 3rd
1.850 (37/20)
Gear ratios: 4th
1.600 (32/20)
Gear ratios: 5th
1.421 (27/19)
Gear ratios: 6th
1.300 (26/20)
Final reduction ratio
2.688 (43/16)
Clutch
Wet multi-disc, manual
Brakes
Brakes, front
Dual semi-floating 310 mm (x t5 mm) petal discs. Dual radial-mount, monobloc, opposed 4-piston, Nissin.
Brakes, rear
Single 220 mm (x t5 mm) petal disc. Caliper: Single-bore pin-slide, aluminium piston, Nissin.
Suspension
Suspension, front
41 mm inverted fork with top-out springs. Compression damping: Stepless. Rebound damping: Stepless. Spring preload: Fully adjustable.
Suspension, rear
Bottom-Link Uni-Trak with gas-charged shock. Compression damping: Stepless. Rebound damping: 25-way. Spring preload: Fully adjustable.
Dimensions
Dimensions (L x W x H)
2,085 mm x 705 mm x 1,115 mm
Wheelbase
1,395 mm
Ground Clearance
130 mm
Fuel capacity
17 litres
Seat height
830 mm
Curb Mass
192 kg /194 kg (ABS)



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
