2016 Yamaha FZ-07

Back to 2016 Yamaha Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

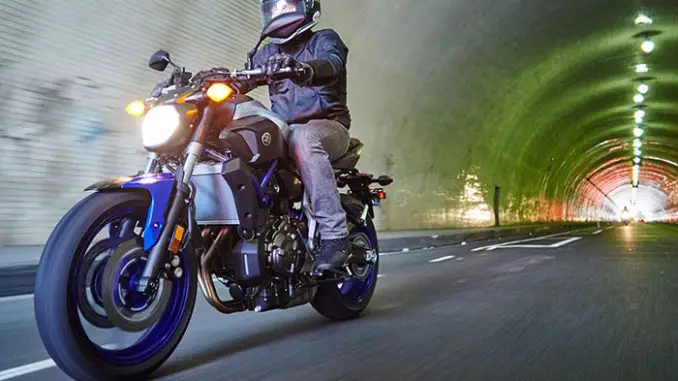

2016 Yamaha FZ-07
2016 Yamaha FZ-07

2016 Yamaha FZ-07
2016 Yamaha FZ-07

2016 Yamaha FZ-07
2016 Yamaha FZ-07

2016 Yamaha FZ-07
2016 Yamaha FZ-07

2016 Yamaha FZ-07
2016 Yamaha FZ-07



2016 Yamaha FZ-07 Review

2016 Yamaha FZ-07 on www.Totalmotorcycle.com

The ultimate sportbike for under $7K, the FZ-07 offers huge thrills and fun in a value packed light weight and nimble package….

IT ALL STARTS HERE ON THE NEW FZ-07

The ultimate sportbike for under $7K, the FZ-07 offers huge thrills and fun in a value packed light weight and nimble package.


Conquer Road

The FZ-07 is a motorcycle that brings fun, affordability and riding enjoyment back to the street. This versatile naked roadster offers deep engine torque and a comfortable riding position in a lightweight, easy to handle sports chassis. It’s the perfect machine for both new and experienced riders alike who are looking for outstanding value.


/// Power
Liquid-cooled, 689cc, inline twin has been designed to provide deep, powerful torque in the most frequently used rpm range (3,000 to 6,500 rpm). A single balancer shaft keeps things silky smooth, while the 6-speed transmission with overdrive 6th gear reduces engine rpms at highway speeds and enhances the engine’s character.

/// Control
The 38mm Mikuni throttle body fuel injection system combines with the 270 degree “Crossplane Concept” CP2 crankshaft to provide easy to use linear throttle response, providing the rider with the ability to control the FZ-07 at will.


/// Style
From the compact “diamond type” frame to the single 60/55 watt headlight to the naked roadster bodywork, the FZ-07’s styling highlights its super lightweight of only 180 kgs (397 lbs). The conventional handlebar design and upright riding position translates into all day riding comfort.



Yamaha FZ-07 is the MT-07 in Europe:

The MT-07 is designed to bring fun, affordability and enjoyment back to the street. And just about everything about this versatile naked bike – from its deep torque through to the agile chassis and outstanding economy – make it hard to resist for both newer and experienced riders.

The 689cc inline 2-cylinder engine benefits from our special ‘crossplane philosophy’ which enables it to develop linear torque for outstanding acceleration. And the MT-07 is also equipped with a compact and lightweight chassis for remarkable agility and easy handling.

MT-07 from Yamaha. There’s never been a better reason to rise up and ride.






2016 Yamaha FZ-07 www.Totalmotorcycle.com Key Features

Compact, Torque-Rich Engine
The FZ-07 features an all-new 689cc liquid-cooled, in-line twin cylinder, DOHC, 8-valve engine with fuel injection. This engine has a unique power character. It provides outstanding low- to mid-range torque with very linear throttle response, yet offers strong mid-high rpm pulling power as well. The engine develops up to 50 foot pounds of torque and is designed to maximize riding excitement in the real world.
•Crossplane Concept
This 2-cylinder engine features Yamaha’s “Crossplane Concept,” 270 degree crank that provides linear torque development in response to the rider’s throttle input. The FZ-07’s in-line 2-cylinder engine provides linear torque development, smooth torque characteristics and a strong feeling of acceleration in the low- to mid-rpm range along with pulling power that extends to the mid-upper rpm range. The CP2 engine is also light, slim and compact and offers an excellent level of rider/machine communication.
•Compact Frame Design
A new lightweight, diamond-type, backbone high tensile steel frame provides an optimized rigidity balance for light, agile handling and stability. The engine is a stressed member of the chassis, allowing a lighter, more compact main frame design.
•Sporty Chassis Dimensions
The wheelbase, seat height, fuel tank width, rake and other dimensions are all set to work with the qualities of the compact 2- cylinder engine to achieve a sporty, light and neutral handling character.
•Advanced Instruments
A newly designed lightweight, compact, full LCD instrument panel is adopted. The panel includes a digital bar-type tachometer display with gear position indicator, digital speedometer, odometer, dual trip meters, fuel gauge, fuel reserve trip meter, clock, instant and average fuel consumption and a range of warning and indicator lights.




2016 Yamaha FZ-07 www.Totalmotorcycle.com Features and Benefits

ENGINE:

Advanced 2-Cylinder Engine
The FZ-07 features an all-new 689cc liquid-cooled, in-line twin cylinder, DOHC, 8-valve engine with fuel injection. This engine has a unique power character. It provides outstanding low to mid-range torque with very linear throttle response, yet provides strong mid-high rpm pulling power as well. The engine develops up to 50 foot pounds of torque and is designed to maximize riding excitement in the real world.
•Crossplane Concept
This 2-cylinder engine features Yamaha’s “Crossplane Concept,” 270 degree crank that provides linear torque development in response to the rider’s throttle input. The FZ-07’s in-line 2-cylinder engine provides linear torque development, smooth torque characteristics and a strong feeling of acceleration in the low- to mid-rpm range along with pulling power that extends to the mid-upper rpm range. The CP2 engine is also light, slim and compact and offers an excellent level of rider/machine communication.
•Compact, Stacked Transmission
A new 6-speed transmission has also been adopted to match the new engine. The transmission “stacks” the input/output shafts to centralize mass and to keep the overall engine size shorter front-to-back, which optimizes engine placement in the frame for outstanding weight balance. The new transmission brings out more of the low- to midspeed torque and excellent response characteristics while reducing the need for frequent shifts
•Refined Fuel Injection
Electronic fuel injection system settings deliver a smooth throttle response to enhance around-town urban riding enjoyment. The system delivers outstanding torque in the low rpm range, excellent acceleration in the middle rpm range and strong rev characteristics in the upper rpm range.




CHASSIS/SUSPENSION:

Compact Frame Design
A new lightweight, diamond-type, backbone high-tensile-steel frame provides an optimized rigidity balance for light, agile handling and stability. The engine is a stressed member of the chassis, allowing a lighter, more compact main frame design.
•Balanced Ergonomics
The riding position on the FZ-07 is one of the most important features, offering balance between sporty handling and excellent rider comfort, thanks to its upright riding position.
•Sporty Chassis Dimensions
The wheelbase, seat height, fuel tank width, rake and other dimensions are all set to work with the qualities of the compact 2-cylinder engine to achieve a sporty, light and neutral handling character.
•Street-Focused Suspension
The front suspension is handled by a 41mm fork with 5.1 inches of travel that is tuned to provide a balance of great comfort on the streets.
•Horizontal Monocross® Shock
The rear suspension features an adjustable link-type Monocross shock that provides 5.1″ of rear travel. The shock is positioned below the seat and features an almost horizontal alignment. This unique positioning contributes to make the body design more compact and optimize component. The rear suspension includes spring preload adjustment, allowing the rider to tailor the settings to match rider weight or load.
•Powerful Braking
Front brakes consist of dual floating, wave-style 282mm discs with 4-pot opposed piston calipers. Rear braking is handled by a 245mm wave-style rear disc.
•Lightweight Wheels
Lightweight cast-aluminum 10-spoke cast aluminum wheels reduce unsprung weight for great handling and suspension performance. The 17-inch front wheel is fitted with a 120/70ZR-17 radial tire and the rear wheel sports a 180/55ZR-17 radial tire.



ADDITIONAL FEATURES:

Ergonomically Designed Fuel Tank
A slim 3.7 gallon fuel tank is both stylish and compact to provide excellent comfort and knee grip for rider confidence.
•Advanced Instrumentation
A newly designed lightweight, compact, full LCD instrument panel is adopted. The panel includes a digital bar-type tachometer display with gear position indicator, digital speedometer, odometer, dual trip meters, fuel gauge, fuel reserve trip meter, clock, instant and average fuel consumption and a range of warning and indicator lights.
•New-Style Switchgear
The electric starter button is an integrated slide-type button that also incorporates the engine cut-off switch for a modern, high quality appearance.







2016 Yamaha FZ-07 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $6,990 – Raven – Available from August 2015
$6,990 – Matte Silver – Available from August 2015

Engine
Engine Type
689cc liquid-cooled DOHC 4-stroke; 8 valves
Bore x Stroke
80.0mm x 68.6mm
Compression Ratio
11.5:1
Fuel Delivery
Yamaha Fuel Injection
Ignition
TCI: Transistor Controlled Ignition
Transmission
Constant mesh 6-speed; multiplate wet clutch
Final Drive
Chain

Chassis
Suspension / Front
41mm fork; 5.1-in travel
Suspension / Rear
Single shock, adjustable preload; 5.1-in travel
Brakes / Front
Dual hydraulic disc, 282mm
Brakes / Rear
Hydraulic disc, 245mm
Tires / Front
120/70ZR17
Tires / Rear
180/55ZR17


Dimensions
L x W x H
82.1 in x 29.3 in x 42.9 in
Seat Height
31.7 in
Wheelbase
55.1 in
Rake (Caster Angle)
24.8°
Trail
3.5 in
Ground Clearance
5.5 in
Fuel Capacity
3.7 gal
Fuel Economy
58 mpg
Wet Weight
397 lb


Warranty
1 Year (Limited Factory Warranty)



** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha.
Your actual mileage will vary depending on road conditions, how you ride and maintain your vehicle,
accessories, cargo and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.







2016 Yamaha FZ-07 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $7299 CDN

/// ENGINE
ENGINE
Liquid-cooled, DOHC, 8-valves (4-valves/cylinder), inline twin cylinder
DISPLACEMENT
689cc
BORE AND STROKE
80 x 68.6 mm
COMPRESSION RATIO
11.5:1
MAXIMUM TORQUE
6.9 kg-m (50 ft-lbs.) @ 6,500 rpm
FUEL DELIVERY
Mikuni 38 mm dual bore throttle body F.I.
ESTIMATED FUEL CONSUMPTION±
24.5 kpl / 69.2 mpg (Imp.)
LUBRICATION
Wet sump
IGNITION / STARTING
TCI / Electric
TRANSMISSION
6-speed
FINAL DRIVE
“O”-ring chain


/// CHASSIS
SUSPENSION (FRONT)
41mm fork
SUSPENSION (REAR)
Adjustable link Monocross
BRAKES (FRONT)
Dual 282mm discs / 4-piston calipers
BRAKES (REAR)
245mm disc / single piston caliper
TIRES (FRONT)
120/70ZR17
TIRES (REAR)
180/55ZR17

/// CRITICAL DATA
LENGTH
2,085mm (82.1″)
WIDTH
745mm (29.3″)
HEIGHT
1,090mm (42.9″)
WHEELBASE
1,400mm (55.1″)
RAKE / TRAIL
24.5° / 90mm
SEAT HEIGHT
805mm (31.7″)
FUEL CAPACITY
14 litres (3.1 imp. gallons)
WET WEIGHT
180 kg (397 lb.)
COLOUR(S)
Metallic Black
Matte Silver


Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.







2016 Yamaha FZ-07 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: See Dealer for pricing in GBP (On The Road inc 20% Vat)

Engine
Engine type 2-Cylinder, liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement 689 cm³
Bore x stroke 80.0 mm x 68.6 mm
Compression ratio 11.5 : 1
Maximum power 55.0 kW (74.8PS) @ 9,000 rpm
Limited power version 35.0 kW
Maximum Torque 68.0 Nm (6.9 kg-m) @ 6,500 rpm
Lubrication system Wet sump
Clutch Type Wet, Multiple Disc
Carburettor Fuel Injection
Ignition system TCI
Starter system Electric
Transmission system Constant Mesh, 6-speed
Final transmission Chain
Chassis
Frame Diamond
Front suspension system Telescopic forks
Front travel 130 mm
Caster Angle 24º 50
Trail 90 mm
Rear suspension system Swingarm, (Link type suspension)
Rear Travel 130 mm
Front brake Hydraulic dual disc, Ø 282 mm
Rear brake Hydraulic single disc, Ø 245 mm
Front tyre 120/70 ZR 17M/C(58W) (Tubeless)
Rear tyre 180/55 ZR 17M/C(73W) (Tubeless)
Dimensions
Overall length 2,085 mm
Overall width 745 mm
Overall height 1,090 mm
Seat height 805 mm
Wheel base 1,400 mm
Minimum ground clearance 140 mm
Wet weight (including full oil and fuel tank) 179 kg / ABS 182 kg
Fuel tank capacity 14 L
Oil tank capacity 3.0 L



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
