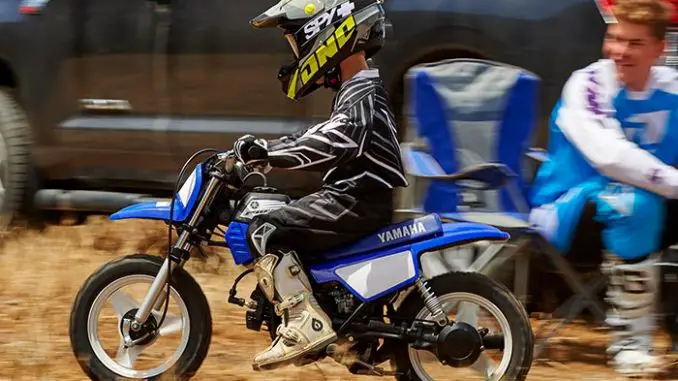

2016 Yamaha PW50
2016 Yamaha PW50

2016 Yamaha PW50
2016 Yamaha PW50

2016 Yamaha PW50
2016 Yamaha PW50

2016 Yamaha PW50
2016 Yamaha PW50



2016 Yamaha PW50 Review

2016 Yamaha PW50 on www.Totalmotorcycle.com

Features like adjustable throttle and fully automatic transmission ensure your child’s first riding experience will be all smiles…

THE 1ST CHOICE

More pros get their start on the PW50.

One of the industry’s best-selling mini-bikes, the PW50 is a fantastic entry-level bike designed to help young riders learn the ropes at an affordable price.

/// Engine
Air-cooled, 49cc, reed-valve, 2-stroke single is mildly tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.


/// Rider Confidence
Class-lowest 485mm (19.1″) seat height creates a handling-enhancing low centre of gravity and allows most riders to put both feet on the ground for added confidence.



2016 Yamaha PW50 www.Totalmotorcycle.com Key Features

•Rugged plastic bodywork resists damage in the event of a tip over.
•Plush, motocross-style seat provides ample comfort.
•Team Yamaha-inspired colours, graphics, front and side number plates create styling just like the bigger YZ series of off-roaders.
•Large, folding footpegs
•Premium-quality handgrips and levers are durable and comfortable.
•Easy-access handlebar-mounted choke lever.
•E10 compatible fuel system components


/// SAFETY FEATURES
•Heat shields on engine and exhaust protect young riders from hot components.
•Adjustable speed limiter screw on throttle housing restricts acceleration and top speed.
•Removable exhaust pipe restrictor allows parents to increase top speed as skills improve.
•Start/Run switch prevents unit from moving while in the start position.

IMPORTANT NOTE: Adult supervision and proper protective riding gear, including a helmet, are a must when a youngster is operating a PW50.





2016 Yamaha PW50 www.Totalmotorcycle.com Features and Benefits


/// Engine
•Air-cooled, 49cc, reed-valve, 2-stroke single is mildly tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.
•Reed-valve intake system smooths power delivery and widens the powerband.
•Single-speed fully automatic transmission means the rider simply twists the throttle to go. This allows a young rider to concentrate on the basics of riding without having to worry about clutching and shifting.
•Shaft drive system is virtually maintenance-free and comes fully enclosed for added protection and durability. There is no chain to worry about adjusting or lubricating.
•Exclusive Autolube Oil Injection System eliminates the need and hassle of fuel/oil premixing. This system precisely meters the exact amount of oil required by the engine.
•Washable foam air filter reduces tune-up costs.
•Maintenance-free CDI (capacitor discharge) ignition produces a hot spark for sure starts.
•Quiet, environmentally friendly exhaust will keep the neighbours smiling.
•Exhaust pipe has been routed away the from the rider to avoid accidental contact burns. Heat shields also protect young riders from hot components.


/// Chassis/Suspension
•Rugged steel backbone-type frame
•Class-lowest 485mm (19.1″) seat height creates a handling-enhancing low centre of gravity and allows most riders to put both feet on the ground for added confidence.
•22mm telescopic front fork with 60mm (2.4″) of travel smooths out the bumps.
•Dual rear shock suspension with 50mm (2″) of wheel travel delivers a confidence-inspiring ride over rough terrain.
•Front and rear drum brakes provide strong stopping power. Hand-operated brake levers are similar to those used on bicycles for familiarity.
•Durable, mag-style wheels means there’s no need to tighten or replace spokes. They are easy to clean too!
•Knobby tires provide good traction in the dirt.
•Specially designed one-piece rear fender, side panels and seat can be easily removed for cleaning or maintenance.








2016 Yamaha PW50 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $1,440 – Team Yamaha Blue/White – Available from September 2015

Engine Type 49cc air-cooled 2-stroke; reed-valve inducted
Bore x Stroke 40.0mm x 39.2mm
Compression Ratio 6.0:1
Fuel Delivery VM12 carburetor
Ignition CDI
Transmission Wet centrifugal automatic
Final Drive Shaft
Suspension / Front Telescopic fork; 2.4-in travel
Suspension / Rear Unit swingarm; 2.0-in travel
Brakes / Front Drum
Brakes / Rear Drum
Tires / Front 2.50-10-4PR
Tirres / Rear 2.50-10-4PR
L x W x H 49.0 in x 22.6 in x 28.1 in
Seat Height 19.1 in
Wheelbase 33.7 in
Rake (Caster Angle) 25.5°
Trail 2.0 in
Ground Clearance 4.1 in
Fuel Capacity .53 gal
Fuel Economy n/a
Wet Weight 86 lb
Warranty 90 Day (Limited Factory Warranty)
Color Team Yamaha Blue/White

** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha.
Your actual mileage will vary depending on road conditions, how you ride and maintain your vehicle,
accessories, cargo and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.







2016 Yamaha PW50 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $1399 CDN

/// ENGINE ?
ENGINE
Air-cooled, reed-valve, 2-stroke single
DISPLACEMENT
49cc
BORE AND STROKE
40 x 39.2mm
COMPRESSION RATIO
6.0:1
MAXIMUM TORQUE
0.36kg-m (2.6 ft-lb)@ 4,500 rpm
FUEL DELIVERY
Mikuni VM12SC
IGNITION / STARTING
CDI / Kick
TRANSMISSION
Single-speed automatic (no clutch)
FINAL DRIVE
Shaft
/// CHASSIS ?
SUSPENSION (FRONT)
22mm fork / 60mm (2.4″) wheel travel
SUSPENSION (REAR)
Unit swingarm / 50 mm (2″) wheel travel
BRAKES (FRONT)
Drum
BRAKES (REAR)
Drum
TIRES (FRONT)
2.50-10
TIRES (REAR)
2.50-10
/// CRITICAL DATA ?
LENGTH
1,245mm (49″)
WIDTH
575mm (22.6″)
HEIGHT
715mm (28.1″)
WHEELBASE
855mm (33.7″)
GROUND CLEARANCE
105mm (4.1″)
SEAT HEIGHT
485mm (19.1″)
FUEL CAPACITY
2 litres (0.4 imp. gallons)
WET WEIGHT
39kg (86 lb)
COLOUR(S)
Yamaha Blue


Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.







2016 Yamaha PW50 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: See Dealer for pricing in GBP (On The Road inc 20% Vat)

Model Not Available in Europe

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.
