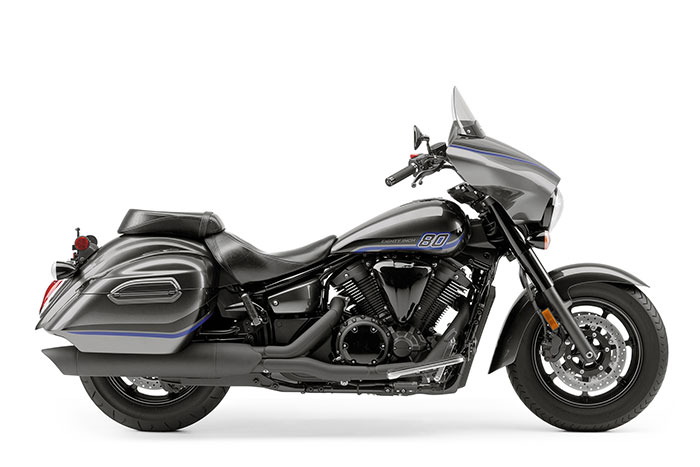

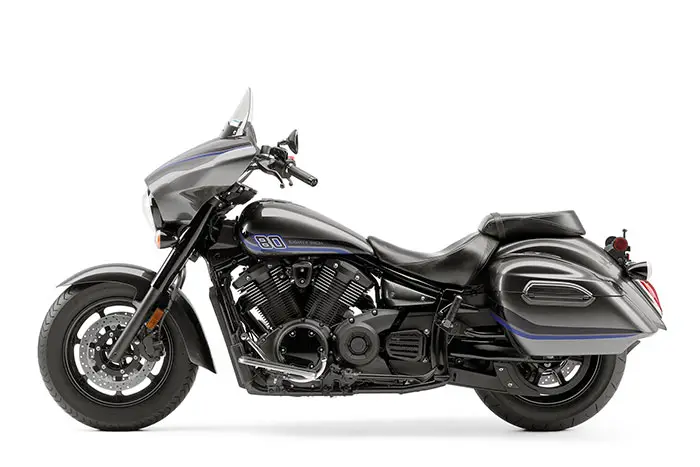

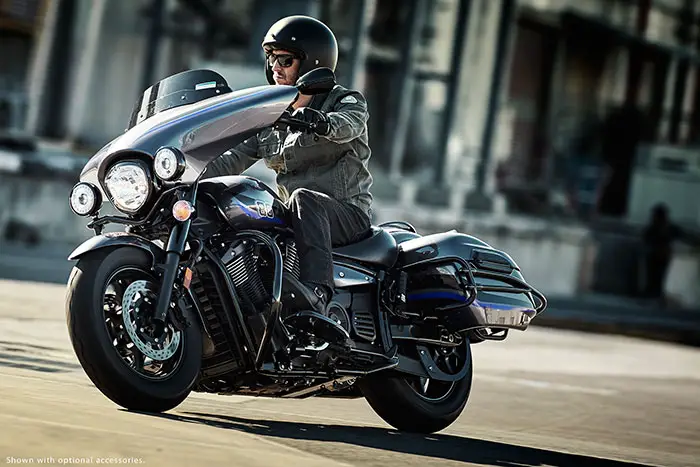

2016 Yamaha V-Star 1300 Deluxe

2016 Yamaha V-Star 1300 Deluxe

2016 Yamaha V-Star 1300 Deluxe

2016 Yamaha V-Star 1300 Deluxe

2016 Yamaha V-Star 1300 Deluxe

2016 Yamaha V-Star 1300 Deluxe Review

2016 Yamaha V-Star 1300 Deluxe on www.Totalmotorcycle.com

Fully-loaded. 80 cu in V-twin, fork mounted fairing w/integrated dash & audio system, iPod®/iPhone® compatible, Bluetooth® & much more…

MIDSIZE BAGGER

Fully-loaded V-twin bagger with fairing, integrated dash, modern audio system, and locking hard bags.



Note: The 2016 Yamaha V-Star 1300 Deluxe is called the 2016 Yamaha XV1900A in Europe

Fully dressed to make an impression.

Step on to a classically-styled cruising machine, gloriously designed to capture the beauty of the age of the open road, yet packed with impressive torque, handling and comfort.

Now available with a wind-deflecting fairing for super-cool looks and heightened riding comfort, this radical neo-streamliner cruiser comes with fat alloys, pull-back handlebars, and a sparkling engine exterior.

But this is no casual victory for form over function. Our Art of Engineering philosophy demands beauty and top performance in equal measure, and the XV1900ACFD’s air-cooled, 4-valve, 4-stroke, 2-cylinder V-type engine combined with a host of other technical flourishes, means you’ll get both.

2016 Yamaha V-Star 1300 Deluxe www.Totalmotorcycle.com Key Features

Full Coverage Fairing
With its stylish full coverage fairing, low profile light smoke windshield, color matched sidebags and blacked out components, the 2016 V Star 1300 Deluxe has an aggressive stance and a great look that’s sure to turn heads whether riding down the highway or parked at your favorite local event.
•Exceptional Features, Exceptional Value
The V Star 1300 Deluxe delivers exceptional value in the casual full-dress category, at a surprisingly low MSRP, making it the ideal choice for the midsize cruiser rider wanting high-end appearance and features.
•Protective Fairing System
The fork-mounted fairing offers riders great weather protection, dynamic style, and houses high performance neodymium dual speakers that provide outstanding sound when cruising down the road.
•Tunes for the Road
A fully integrated dash and audio system with iPod®/iPhone® compatibility. Riders can control their music on a control pod located on the left handlebar.
•Navigation Comes Standard
The V Star 1300 Deluxe is equipped with a rugged, waterproof Garmin® zumo® 665 GPS. Features include motorcycle-friendly navigation, including weather and traffic conditions (if subscribed to monthly service), lane assist, and 3D building view. XM® satellite radio (with subscription) and Bluetooth® wireless functionality.
•Factory Hard Luggage
Color-matched, lockable hard side bags have spacious room for long trips or commuting, and each has 7.6 gallons of volume
•Classic Cruiser Styling
Real steel fenders make V Star 1300 Deluxe ideal for customization.
•Ready to Customize
The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.



2016 Yamaha V-Star 1300 Deluxe www.Totalmotorcycle.com Features and Benefits

ENGINE:

Smooth, Powerful Engine
The 80-cubic (1304cc) liquid cooled SOHC 60° V-twin engine, with four valves per cylinder, 9.5:1 compression ratio and dual counterbalancers, delivers smooth power to the ground, while maintaining the classic big cruiser sound and pulse characteristics.
•Compact, Low Friction Cam Drive
To keep friction loss to a minimum and help the engine achieve the ideal performance characteristics, special compact roller-type rocker arms with needle bearings are used. These also reduce top-end weight for excellent mass centralization.
•High Performance Cylinder Heads
Four valves per cylinder (36mm intake, 32mm exhaust) provide optimum combustion efficiency. Roller rocker arms reduce friction for better performance and reduced wear.
•Advanced Cylinder Design
Ceramic-composite-plated cylinders provide excellent heat dissipation, high durability and reduced oil consumption.
•Forged Pistons
High-quality forged aluminum 100mm pistons have a lightweight, high-strength compact design that contributes to high performance and reduce vibration.
•Classic V-twin Sound
Forged connecting rods ride a single crankpin for true V-twin sound and power.
•Yamaha Fuel Injection
Sophisticated twin bore fuel injection is used on the V Star 1300 Tourer. Each cylinder is fed by its own injector spraying into twin 40mm throttle bodies, while the computer-controlled system provides a precise amount of fuel/air mixture to the engine for optimal performance in all conditions. The result is strong, smooth and seamless performance across the full range of engine rpm.
•Smooth Shifting Transmission
The 5-speed transmission has a smooth shifting feeling, and gear ratios spaced to let the rider take full advantage of the engine’s torque characteristics and enjoy comfortable riding while cruising down the boulevard or at highway speeds.
•Low Maintenance Belt Final Drive
The belt drive transfers power from the transmission to the wheel with authority. The belt system is clean, quiet and virtually maintenance-free and delivers a quicker, more impressive throttle response feeling than a shaft drive.
•Cleanly Styled Motor
The classic cylinder fin styling of an air-cooled engine with a sly cooling system that routes liquid through hidden hoses and internal engine passages for air-cooled looks and liquid-cooled performance. Oil filter is easy to get to but also tucked nearly out of sight for clean looks.



CHASSIS/SUSPENSION:

Smooth, Agile Chassis
Built on a double cradle steel frame, giving the bike a rigid base for nimble handling, while allowing enough frame flex to be comfortable on the open road. Mated with belt guards, the swingarm’s sleek design is integrated into the overall styling of the whole bike. This allows excellent road bump absorption for all-day comfort on the great wide open.
•Plush Suspension
Front forks feature big 41mm fork tubes with stainless covers that look great and the rear suspension is a bottom-link-type Monocross system with a gas charged single shock and adjustable spring preload. Settings are calibrated to deliver a plush ride that is increasingly firm as the suspension is compressed for good handling and comfort over bigger bumps in the road.
•Comfortable Saddle
The shape of the seat has been designed with a “dish” shape for great comfort, and it allows riders to touch the ground easily.
•Real Steel Fenders
Fenders are real steel, front and rear. That adds to the quality look and feel, and makes customization easier.
•Tour-Ready Fuel Capacity
The fuel tank is sculpted low and sleek for style and comfort, with a flush-fitting, aeronautical-style gas cap incorporated into the tank’s sleek design. The tank holds a generous 4.9 gallons of fuel, thanks to a remotely located sub tank that also houses the fuel pump, for plenty of traveling range on the open road.
•Stylish Cast Wheels
Seven-spoke aluminum wheels and matching rear pulley mount fat, 16-inch tires for a cool period look albeit with big contact patches on the road.
•Potent Triple Disc Brakes
Dual 298mm front and single rear disc brakes. Provides consistent and predictable stopping power for driving in traffic or out on the open highway.



ADDITIONAL FEATURES:

Full Coverage Fairing
The fork-mounted color matched fairing offers riders great weather protection, dynamic, sporty good looks, and houses dual high performance neodymium speakers that offer great sound when cruising down the road.
•Integrated Audio
A fully integrated dash and audio system with iPod®/iPhone® compatibility. Riders can control their music on a control pod located on the left handlebar.
•Navigation Comes Standard
The V Star 1300 Deluxe is equipped with a rugged, waterproof Garmin® zumo 665 GPS. Features include motorcycle-friendly navigation, including weather and traffic conditions (if subscribed to monthly service), lane assist, and 3D building view. XM® satellite radio (with subscription) and Bluetooth® wireless functionality.
•Factory Hard Luggage
Color match, lockable hard side bags have spacious room for long trips or commuting, and each has 7.6 gallons of volume.
•Star Fit and Finish
Star quality paint, chrome and detailing vie for attention wherever you look; fenders are steel not plastic. A 3D tank emblem design adorns the V Star 1300 Deluxe and evokes a modern-classic look.
•Complete Instrumentation
Retro-modern bar-mounted instrumentation contains analog speedometer along with LCD display; indicator lights for high beam, turn signal, low oil level, low fuel, coolant temperature, neutral—and engine diagnostic function.
•Comfortable Floorboards
Rider floorboards for comfort and room; heel/toe shifter makes moving through the five-speed gearbox a snap.

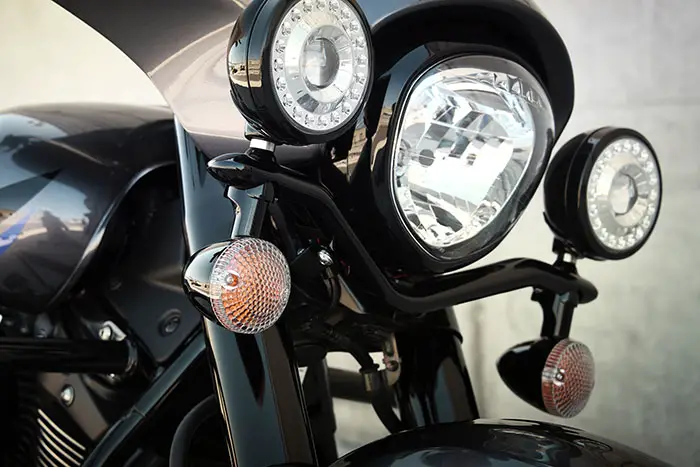

•Excellent Illumination
Bright multireflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look.
•Clean Running
02 sensor and catalyst reduce emissions.



---



2016 Yamaha V-Star 1300 Deluxe – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $14,090 – Charcoal Silver – Available from January 2016

Engine Type 80-cubic-inch (1304cc) liquid-cooled SOHC Vtwin;
8 valves
Bore x Stroke 100.0mm x 83.0mm
Compression Ratio 9.5:1
Fuel Delivery Electronic fuel injection
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed; multiplate wet clutch
Final Drive Belt
Suspension / Front 41mm telescopic fork; 5.3-in travel
Suspension / Rear Single shock; 4.3-in travel
Brakes / Front Dual hydraulic disc, 298mm
Brakes / Rear Hydraulic disc, 298mm
Tires / Front 130/90-16
Tires / Rear 170/70B-16
L x W x H 98.0 in x 41.2 in x 59.0 in
Seat Height 27.2 in
Wheelbase 66.5 in
Rake (Caster Angle) n/a
Trail n/a
Ground Clearance n/a
Fuel Capacity 4.9 gal
Fuel Economy 42 mpg
Wet Weight 717 lb
Warranty 1 Year (Limited Factory Warranty)
Color Charcoal Silver

** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha.
Your actual mileage will vary depending on road conditions, how you ride and maintain your vehicle,
accessories, cargo and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.



---



2016 Yamaha V-Star 1300 Deluxe – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $NA CDN

See 2016 Yamaha V-Star 1300 Deluxe SE

Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

---



2016 Yamaha V-Star 1300 Deluxe – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: See Dealer for pricing in GBP (On The Road inc 20% Vat)

Engine
Engine type 4-stroke, air-cooled, 4-valves, V-type 2-cylinder, OHV
Displacement 1,854cc
Bore x stroke 100.0 mm x 118.0 mm
Compression ratio 9.48 : 1
Maximum power 66.4 kW (90.3PS) @ 4,750 rpm
Maximum Torque 155.1 Nm (15.8 kg-m) @ 2,500 rpm
Lubrication system Dry sump
Clutch Type Wet, Multiple Disc
Carburettor Twin-bore Electronic Fuel Injection
Ignition system TCI
Starter system Electric
Transmission system Constant Mesh, 5-speed
Final transmission Belt
Chassis
Frame Aluminium, Double cradle
Front suspension system Telescopic forks, Ø 46 mm
Front travel 130 mm
Caster Angle 30º
Trail 152 mm
Rear suspension system Swingarm
Rear Travel 152 mm
Front brake Hydraulic dual disc, Ø 298 mm
Rear brake Single Disc, Ø 320 mm
Front tyre 130/70R18M/C 63H
Rear tyre 190/60R17M/C 78H
Dimensions
Overall length 2,580 mm
Overall width 1,055 mm
Overall height 1,514 mm
Seat height 705 mm
Wheel base 1,715 mm
Minimum ground clearance 155 mm
Wet weight (including full oil and fuel tank) 360 kg
Fuel tank capacity 16 litres
Oil tank capacity 5.2 litres
