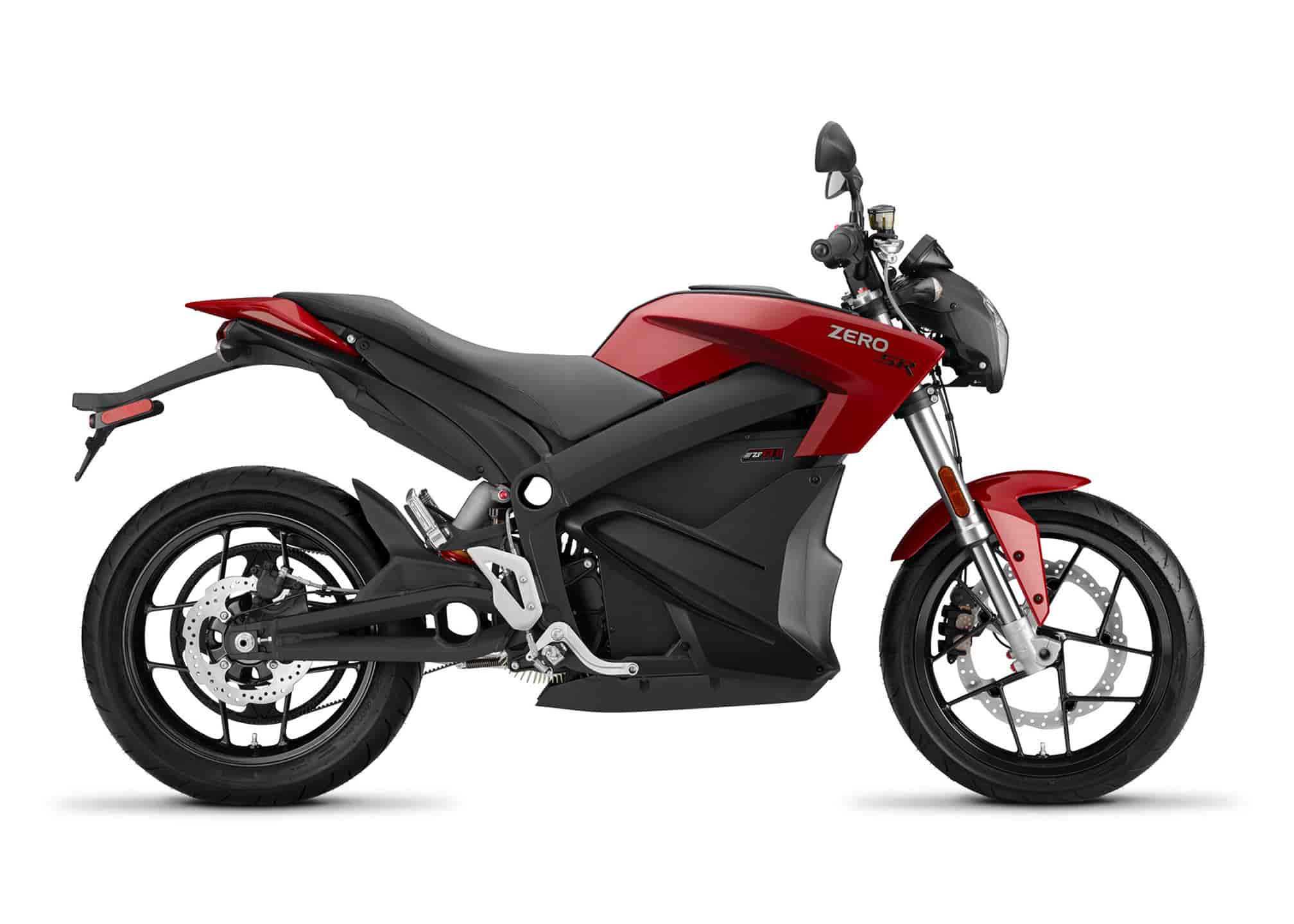

2016 Zero SR

2016 Zero SR

2016 Zero SR

2016 Zero SR

2016 Zero SR

2016 Zero SR Review

2016 Zero SR on www.Totalmotorcycle.com

Greater acceleration…

The Zero SR shares the same DNA as the Zero S but is built for riders who simply want to go faster and accelerate harder. Featuring a larger 660 amp motor controller, the Zero SR delivers 25% more power (67 hp) and 56% more torque 106 ft-lbs). To accommodate the increased output, its motor uses higher temperature magnets to ensure better performance during hard riding and extended periods at higher speeds.

With more torque than most 1000cc sport bikes, the Zero SR pulls hard off the line…and just keeps pulling. Launching from 0-60 mph in 3.3 seconds en route to a top speed over 100 mph, the Zero SR offers spirited riders an edge in competitive riding. From lap times at the local track day to sweeping the podium at the Pikes Peak International Hill Climb, the Zero SR is fundamentally changing the way electric motorcycles are perceived.

2016 Zero SR www.Totalmotorcycle.com Key Features

0-60 mph: 3.3 seconds, torque: 106 ft-lb



2016 Advancements

A New Driving Force.

By constantly advancing the state of the art, the Zero S and Zero SR not only eliminate gasoline from your daily commute or weekend adventure, they transform into a motorcycle that’s the closest thing to a magic carpet. For 2016, that magic carpet travels farther and can recharge three times faster.

At the heart of each Zero S ZF13.0 and Zero SR model is a new and innovative Z-Force® motor. Fundamentally redesigned, the interior permanent magnet (IPM) configuration produces power more efficiently, cools more rapidly and has greater thermal capabilities; significantly improving performance during hard riding and allowing higher sustained speeds.

To expand riding opportunities and provide access to the growing public charging infrastructure, Zero has effectively tripled charging speed with the new Charge Tank accessory. Leveraging the popular J1772 standard, the Charge Tank is designed to work with level 2 charging stations. ZF9.8 power packs can now be charged to 95% in about two hours, while the new higher capacity ZF13.0 takes about three hours.

New cell chemistry within the Z-Force® power pack stores more energy and operates more efficiently, resulting in a system that boasts the highest energy density in the electric vehicle industry. The power pack requires no routine maintenance and is backed by a 5-year/100,000 mile warranty.

As Zero continues to raise the bar on its highest performance models, proven technology makes electric motorcycles even easier to own. With its impressive power-to-weight ratio, the 2016 Zero S ZF9.8 delivers the thrill and convenience of electric at a new lower price.



Game Changing Z-Force® Power Pack

150+ Mi Range / 300,000+ Mi Lifetime

The Zero S and Zero SR feature advanced cell chemistry and battery management systems that provide greater capacity and range. Not only does the ZF13.0 power pack enable you to go up to 197 miles, it is also designed to last the life of the motorcycle. The result of cutting edge research and development, each cell in the power pack is individually controlled and monitored to ensure maximum health.

· Available in two configurations: ZF9.8 (121 mi) and ZF13.0 (161 mi)
· Compatible with the Power Tank accessory which adds 2.8 kWh of power pack capacity for a city range of up to 197 miles
· State-of-the-art 102 volt power pack configurations and cell chemistry · Cells last 2,500 full charge-discharge cycles before hitting 80% capacity, yielding as much as 362,000 miles on the original power pack
· Highest energy density in the electric vehicle industry yields significant range and performance advantages
· Elegant low resistance and highly robust cell interconnect technology

· Advanced battery management system with enhanced 24/7 cell monitoring
· Isolated power systems and 12 volt system for running accessories





2016 Zero SR www.Totalmotorcycle.com Features and Benefits

Power Tank Technology

Up to 197 Miles in the City

The Z-Force® Power Tank adds 2.8 kWh of power pack storage capacity to any 2014 or later Zero S or Zero SR. An optional accessory, the Power Tank can be added at any time during or after motorcycle purchase, bringing the maximum battery capacity to 15.9 kWh. With that much energy, you can travel up to 197 miles in the city or 98 miles on the highway at 70 mph.

· Extend the range of any 2014 or later Zero S or Zero SR model with an additional 2.8 kWh
· The Power Tank can be added at any time before or after purchase
· Can be installed quickly at Zero Motorcycles authorized dealerships
· Includes new bodywork in the tank section of the motorcycle
· Replaces the tank bag area of the motorcycle
· Not compatible with the Charge Tank accessory

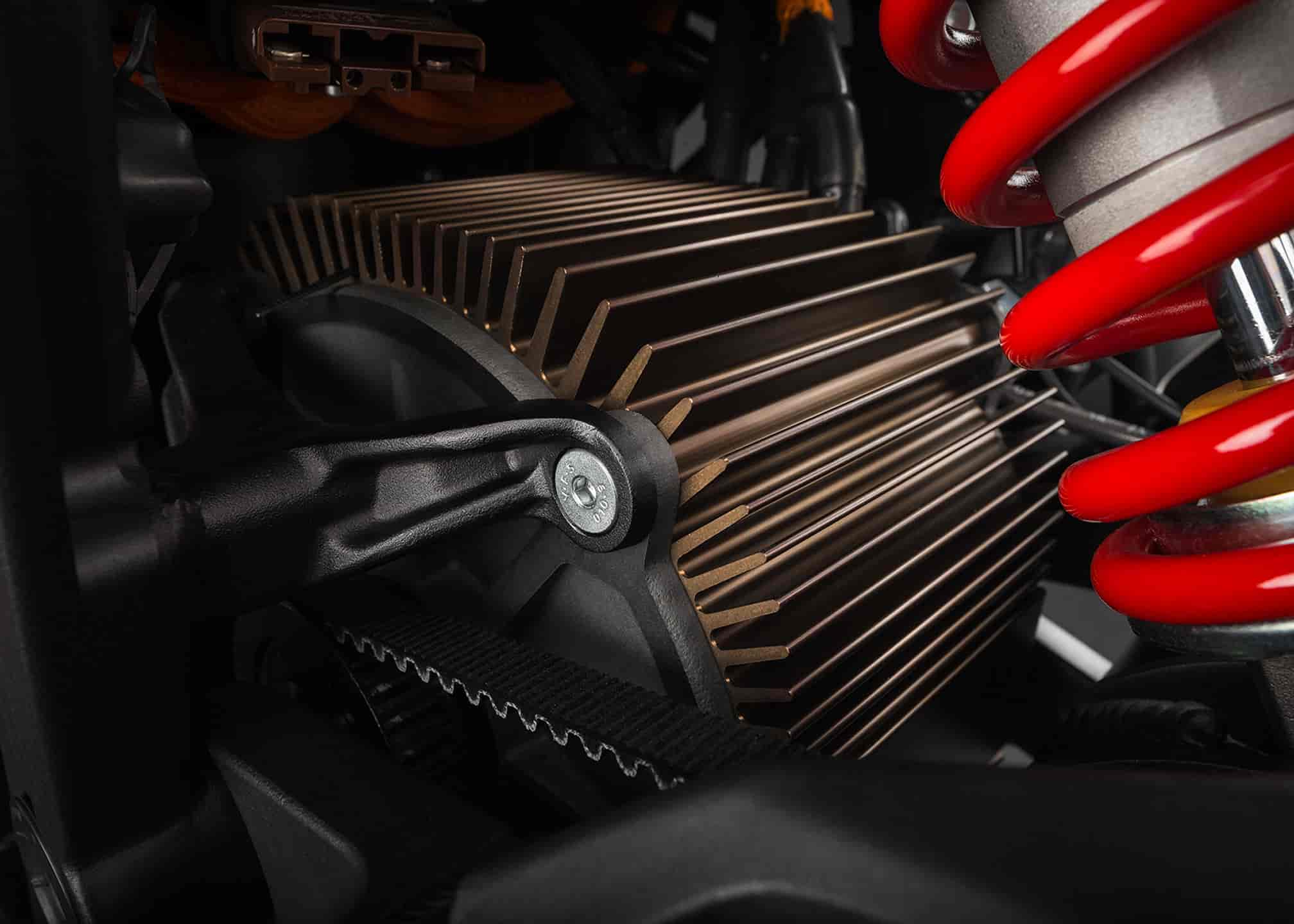

Revolutionary Z-Force® Motor

Up to 67 hp, 106 ft-lbs… and incredibly efficient

Zero Motorcycles designed the Z-Force® motor from the ground up to be compact, efficient and powerful. It delivers exhilarating acceleration to a top speed of 102 mph on the Zero SR. Completely air-cooled, the motor provides a fantastic riding experience, minus the need for any regular maintenance. When slowing down, the motor generates electricity that is channeled back into the power pack to help extend ride times.

· Designed from the ground up by Zero Motorcycles to be the world’s most efficient, powerful, compact, brushless and sealed air-cooled motor
· Interior permanent magnet (IPM) design on Zero S ZF13.0 and Zero SR increases efficiency, cools more rapidly, and has higher thermal capability
· Produces up to 67 hp and 106 ft-lbs of torque as configured in the Zero SR
· Requires no routine maintenance
· Operates with such high efficiency that it does not require any complex cooling system
· Quad-level regenerative system recharges the power pack when decelerating · Re-gen level is increased during brake application vs. “neutral” deceleration
· Both braking and “neutral” re-gen levels are set higher in Eco vs. Sport mode
· “Custom” mode performance profile can be set using the Zero Motorcycles App

· Zero SR model contains high temperature magnets for better performance at higher sustained top speeds



Zero S Electric Motorcycle Motor

Zero S Electric Motorcycle Frame

Frame and Bodywork

Great to look at. Even better to ride.

Aircraft grade aluminum is exclusively used in the construction of the twin spar frame. It is lightweight, strong and one of the main reasons that the motorcycles handle incredibly well. Designed to have a low center of gravity, the motorcycles are highly maneuverable and responsive. The refined appearance is completed with sleek bodywork with a contemporary, aggressive and naked look. The ‘tank’ section of the bodywork features an integrated storage compartment that is both lockable and removable. The tank section can also be replaced with the Power Tank accessory for greater range or the Charge Tank accessory for faster charging.

· Beautifully sculpted bodywork and chin fairing provides improved cooling of the powertrain
· Integrated, lockable and removable storage compartment
· Extremely rigid and lightweight black twin spar aircraft grade aluminum frame
· Designed to have a low center of gravity for better maneuverability and responsiveness
· Sleek headlight and LED tail light
· The headlight, dash, key switch and bodywork are refined to provide elegant instrumentation and a sleek front end aesthetic



Showa Suspension

The Magic Ride

Zero worked in close collaboration with Showa to develop suspension systems that provide excellent small bump compliance, predictable control of bigger impacts and exceptionally smooth action under all conditions. Torsional rigidity of the front end improves handling, and a hollow front axle reduces unsprung weight. Suspension settings are completely customizable to meet the demands of a wide variety of riders.

· Exceptionally smooth action for improved comfort and control
· Fully adjustable settings to meet the demands of a wide variety of riders
· Hollow front axle reduces unsprung weight
· Developed in close collaboration with Showa



Zero S Electric Motorcycle suspension

Zero S Electric Motorcycle Wheels and brakes

Bosch Anti-Lock Brake System (ABS)

Powerful. Precise. Control.

The Zero S and Zero SR feature an advanced Bosch anti-lock brake system (ABS) that improves control in a wide array of conditions and ensures the best braking performance, while a large 320 mm diameter carrier-less rotor increases stopping power.

· Advanced Bosch ABS is standard
· ABS can be switched on or off depending on rider preference
· Incredibly smooth actuation for greater control under extreme braking
· Large 320 mm diameter carrier-less front rotor increases stopping power
· Refined hydraulic ratios improve braking power and modulation
· Adjustable front brake lever for customizable ergonomics



Zero S Electric Motorcycle wheels and tires

Wheels and Tires

Rolling Forward

Pirelli tires are standard on the Zero S and Zero SR, providing great traction, excellent durability and road feel. The tires are mounted to stylish and durable cast alloy wheels.

· Stylish cast alloy wheels are equipped with a large carrier-less front rotor to reduce unsprung weight and increase stopping power
· The Zero S features high performance Pirelli Sport Demon tires combining excellent grip with long lasting mileage
· The Zero SR features softer compound Pirelli Diablo Rosso II tires for even greater traction



Zero S Electric Motorcycle Dashboard

Dash and Controls

Impressive information. Elegantly Displayed.

The dash is designed by Zero to quickly and accurately provide useful data on such information as state of charge, power output and your selected riding profile. You can toggle through three riding profiles, using the ergonomic right-hand switch gear, to better meet the needs of your ride: Sport, Eco, Custom. The dash screen features a cool blue backlit LCD display and integrates seamlessly into the front of the motorcycle. Want more information about the motorcycle while riding or at home· Try the Zero Motorcycles App.

· High contrast and blue backlit LCD screen features data that allows you to better understand your state of charge, see your current riding profile and view other useful riding information
· Ergonomic right-hand switch assembly with integrated switch to toggle on the fly between Sport, Eco and Custom riding modes
· Custom riding mode setting allows you to set your own performance profile (custom mode performance profile must be configured within the Zero Motorcycles App)
· High intensity headlight
· Keyed ignition switch and steering lock for improved security and peace of mind
· Beautifully designed and comfortable two-up seat



Zero S Electric Motorcycle App

Zero Motorcycles App

Get your Motorcycle Dialed

Using the Zero Motorcycles App, you can see detailed information about your motorcycle such as the time until charged, average watts per mile, total charge cycles and much more. When parked, the app allows you to set the custom riding mode’s performance profile by adjusting the parameters for top speed, maximum torque and maximum regenerative braking. While riding, your phone transforms into a customized dash that provides detailed real-time motorcycle information. Synced using Bluetooth, the app works on iPhone and Android mobile devices.





---



2016 Zero SR – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $15,995 ZERO SR zf13.0; $18,669 ZERO SR ZF13.0 +Power Tank USD

range ZERO SR zf13.0
City 161 miles (259 km)
Highway, 55 mph (89 km/h) 98 miles (158 km)
 » Combined 122 miles (196 km)
Highway, 70 mph (113 km/h) 81 miles (130 km)
 » Combined 108 miles (174 km)
Motor
Max torque 106 ft-lb (144 Nm)
Max power 67 hp (50 kW) @ 4,000 rpm
Top speed (max) 102 mph (164 km/h)
Top speed (sustained) 95 mph (153 km/h)
Acceleration, 0-60 mph (0-100 km/h) 3.3 seconds
Type Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor
Controller High efficiency, 660 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 362,000 miles (583,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 13.0 kWh
Nominal capacity 11.4 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With Charge Tank accessory 3.4 hours (100% charged) / 2.9 hours (95% charged)
 » With one accessory charger 5.2 hours (100% charged) / 4.7 hours (95% charged)
 » With max accessory chargers 2.6 hours (100% charged) / 2.1 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 30T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 6.25 in (159 mm)
Rear suspension travel 6.35 in (161 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 55.5 in (1,410 mm)
Seat height 31.8 in (807 mm)
Rake 24.0°
Trail 3.2 in (80 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 414 lb (188 kg)
Carrying capacity 361 lb (164 kg)
Economy
Equivalent fuel economy (city) 475 MPGe (0.50 l/100 km)
Equivalent fuel economy (highway) 240 MPGe (0.98 l/100 km)
Typical cost to recharge $1.46
Pricing
MSRP $15,995
(Does not include local shipping, applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/100,000 miles



range ZERO SR ZF13.0 +Power Tank
City 197 miles (317 km)
Highway, 55 mph (89 km/h) 120 miles (193 km)
 » Combined 149 miles (240 km)
Highway, 70 mph (113 km/h) 98 miles (158 km)
 » Combined 131 miles (211 km)
Motor
Max torque 106 ft-lb (144 Nm)
Max power 67 hp (50 kW) @ 4,000 rpm
Top speed (max) 102 mph (164 km/h)
Top speed (sustained) 95 mph (153 km/h)
Acceleration, 0-60 mph (0-100 km/h) 3.9 seconds
Type Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor
Controller High efficiency, 660 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 443,000 miles (713,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 15.9 kWh
Nominal capacity 14.0 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 10.8 hours (100% charged) / 10.3 hours (95% charged)
 » With Charge Tank accessory N/A
 » With one accessory charger 6.3 hours (100% charged) / 5.8 hours (95% charged)
 » With max accessory chargers 3.0 hours (100% charged) / 2.5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 30T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 6.25 in (159 mm)
Rear suspension travel 6.35 in (161 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 55.5 in (1,410 mm)
Seat height 31.8 in (807 mm)
Rake 24.0°
Trail 3.2 in (80 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 458 lb (208 kg)
Carrying capacity 317 lb (144 kg)
Economy
Equivalent fuel economy (city) 475 MPGe (0.50 l/100 km)
Equivalent fuel economy (highway) 240 MPGe (0.98 l/100 km)
Typical cost to recharge $1.78
Pricing
MSRP $18,669
(Does not include local shipping, applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/100,000 miles



---



2016 Zero SR – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $20,794 ZERO SR zf13.0; $24,270 ZERO SR ZF13.0 +Power Tank CDN

range ZERO SR zf13.0
City 161 miles (259 km)
Highway, 55 mph (89 km/h) 98 miles (158 km)
 » Combined 122 miles (196 km)
Highway, 70 mph (113 km/h) 81 miles (130 km)
 » Combined 108 miles (174 km)
Motor
Max torque 106 ft-lb (144 Nm)
Max power 67 hp (50 kW) @ 4,000 rpm
Top speed (max) 102 mph (164 km/h)
Top speed (sustained) 95 mph (153 km/h)
Acceleration, 0-60 mph (0-100 km/h) 3.3 seconds
Type Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor
Controller High efficiency, 660 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 362,000 miles (583,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 13.0 kWh
Nominal capacity 11.4 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With Charge Tank accessory 3.4 hours (100% charged) / 2.9 hours (95% charged)
 » With one accessory charger 5.2 hours (100% charged) / 4.7 hours (95% charged)
 » With max accessory chargers 2.6 hours (100% charged) / 2.1 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 30T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 6.25 in (159 mm)
Rear suspension travel 6.35 in (161 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 55.5 in (1,410 mm)
Seat height 31.8 in (807 mm)
Rake 24.0°
Trail 3.2 in (80 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 414 lb (188 kg)
Carrying capacity 361 lb (164 kg)
Economy
Equivalent fuel economy (city) 475 MPGe (0.50 l/100 km)
Equivalent fuel economy (highway) 240 MPGe (0.98 l/100 km)
Typical cost to recharge $1.46
Pricing
MSRP $20,794 CAD
(Does not include local shipping, PDI or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160,000 km



range ZERO SR ZF13.0 +Power Tank
City 197 miles (317 km)
Highway, 55 mph (89 km/h) 120 miles (193 km)
 » Combined 149 miles (240 km)
Highway, 70 mph (113 km/h) 98 miles (158 km)
 » Combined 131 miles (211 km)
Motor
Max torque 106 ft-lb (144 Nm)
Max power 67 hp (50 kW) @ 4,000 rpm
Top speed (max) 102 mph (164 km/h)
Top speed (sustained) 95 mph (153 km/h)
Acceleration, 0-60 mph (0-100 km/h) 3.9 seconds
Type Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor
Controller High efficiency, 660 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 443,000 miles (713,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 15.9 kWh
Nominal capacity 14.0 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 10.8 hours (100% charged) / 10.3 hours (95% charged)
 » With Charge Tank accessory N/A
 » With one accessory charger 6.3 hours (100% charged) / 5.8 hours (95% charged)
 » With max accessory chargers 3.0 hours (100% charged) / 2.5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 30T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 6.25 in (159 mm)
Rear suspension travel 6.35 in (161 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3.00 x 17
Rear wheel 3.50 x 17
Dimensions
Wheelbase 55.5 in (1,410 mm)
Seat height 31.8 in (807 mm)
Rake 24.0°
Trail 3.2 in (80 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 458 lb (208 kg)
Carrying capacity 317 lb (144 kg)
Economy
Equivalent fuel economy (city) 475 MPGe (0.50 l/100 km)
Equivalent fuel economy (highway) 240 MPGe (0.98 l/100 km)
Typical cost to recharge $1.78
Pricing
MSRP $24,270 CAD
(Does not include local shipping, PDI or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160,000 km

---

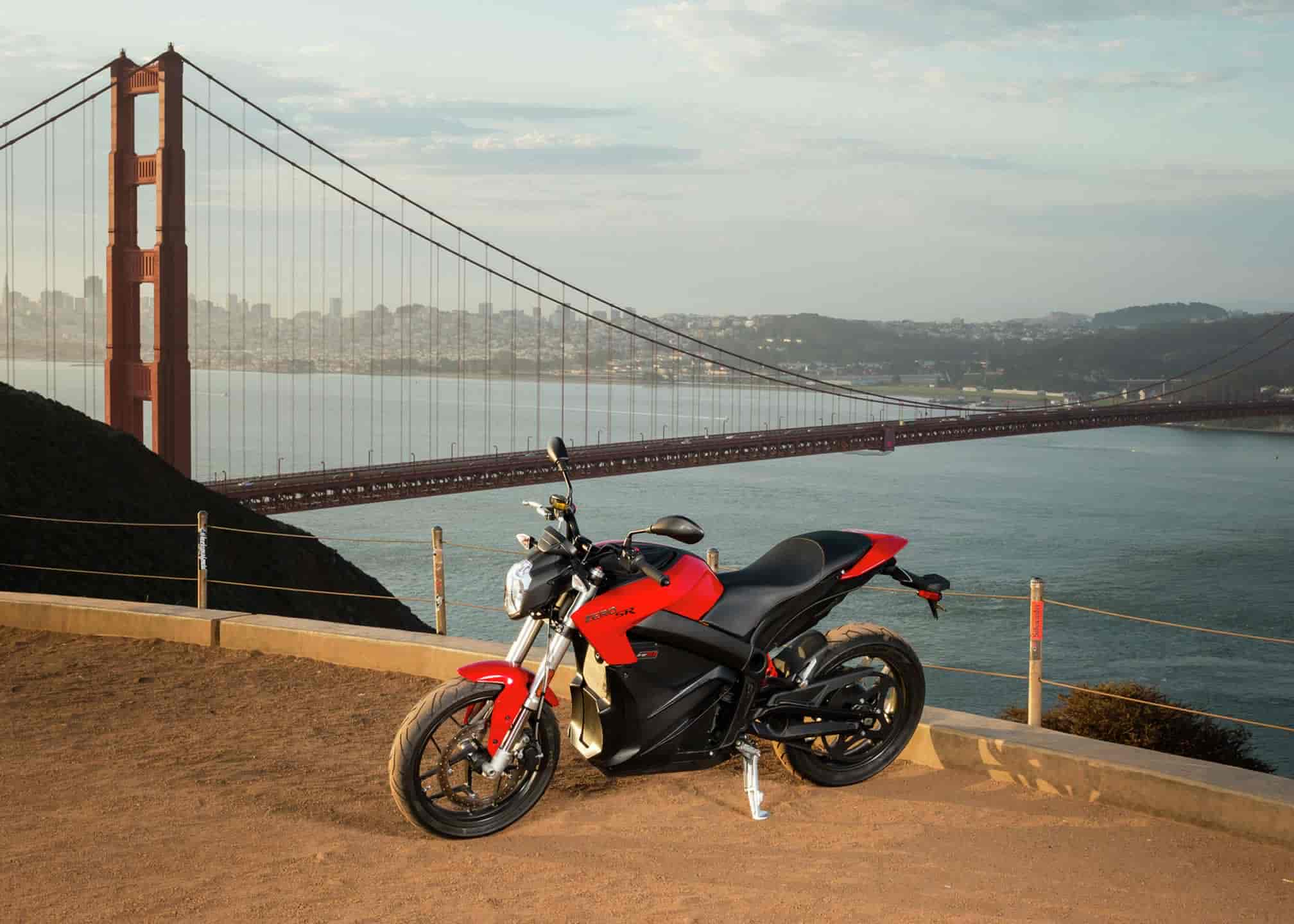

2016 Zero SR – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer GBP/EUR (On The Road inc 20% Vat)

range ZERO SR zf13.0
City 259 km
Highway, 89 km/h 158 km
 » Combined 196 km
Highway, 113 km/h 130 km
 » Combined 174 km
Motor
Max torque 144 Nm
Max power 67 hp (50 kW) @ 4.000 rpm
Licensing Requirement A2 Licence
Top speed (max) 164 km/h
Top speed (sustained) 153 km/h
Acceleration, 0-100 km/h 3,3 seconds
Type Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor
Controller High efficiency, 660 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 583.000 km
Power pack Z-Force® Li-Ion intelligent
Max capacity 13,0 kWh
Nominal capacity 11,4 kWh
Charger type 1,3 kW, integrated
Charge time (standard) 8,9 hours (100% charged) / 8,4 hours (95% charged)
 » With Charge Tank accessory 3,4 hours (100% charged) / 2,9 hours (95% charged)
 » With one accessory charger 5,2 hours (100% charged) / 4,7 hours (95% charged)
 » With max accessory chargers 2,6 hours (100% charged) / 2,1 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 30T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 159 mm
Rear suspension travel 161 mm
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3,00 x 17
Rear wheel 3,50 x 17
Dimensions
Wheelbase 1.410 mm
Seat height 807 mm
Rake 24,0°
Trail 80 mm
Weight
Frame 10,4 kg
Curb weight 188 kg
Carrying capacity 164 kg
Economy
Equivalent fuel economy (city) 0,50 l/100 km
Equivalent fuel economy (highway) 0,98 l/100 km
Typical cost to recharge 2,68 €
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160.000 km


range ZERO SR ZF13.0 +Power Tank
City 317 km
Highway, 89 km/h 193 km
 » Combined 240 km
Highway, 113 km/h 158 km
 » Combined 211 km
Motor
Max torque 144 Nm
Max power 67 hp (50 kW) @ 4.000 rpm
Licensing Requirement A2 Licence
Top speed (max) 164 km/h
Top speed (sustained) 153 km/h
Acceleration, 0-100 km/h 3,9 seconds
Type Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor
Controller High efficiency, 660 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 713.000 km
Power pack Z-Force® Li-Ion intelligent
Max capacity 15,9 kWh
Nominal capacity 14,0 kWh
Charger type 1,3 kW, integrated
Charge time (standard) 10,8 hours (100% charged) / 10,3 hours (95% charged)
 » With Charge Tank accessory N/A
 » With one accessory charger 6,3 hours (100% charged) / 5,8 hours (95% charged)
 » With max accessory chargers 3,0 hours (100% charged) / 2,5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 30T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 159 mm
Rear suspension travel 161 mm
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tire Pirelli Diablo Rosso II 110/70-17
Rear tire Pirelli Diablo Rosso II 140/70-17
Front wheel 3,00 x 17
Rear wheel 3,50 x 17
Dimensions
Wheelbase 1.410 mm
Seat height 807 mm
Rake 24,0°
Trail 80 mm
Weight
Frame 10,4 kg
Curb weight 208 kg
Carrying capacity 144 kg
Economy
Equivalent fuel economy (city) 0,50 l/100 km
Equivalent fuel economy (highway) 0,98 l/100 km
Typical cost to recharge 3,26 €
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160.000 km

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
