2019 Harley-Davidson Heritage Classic 114 Guide

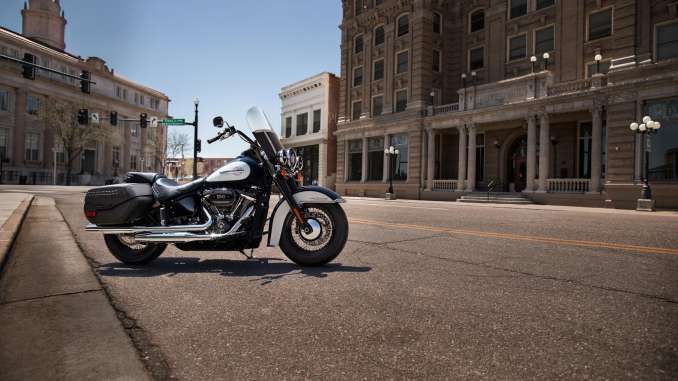

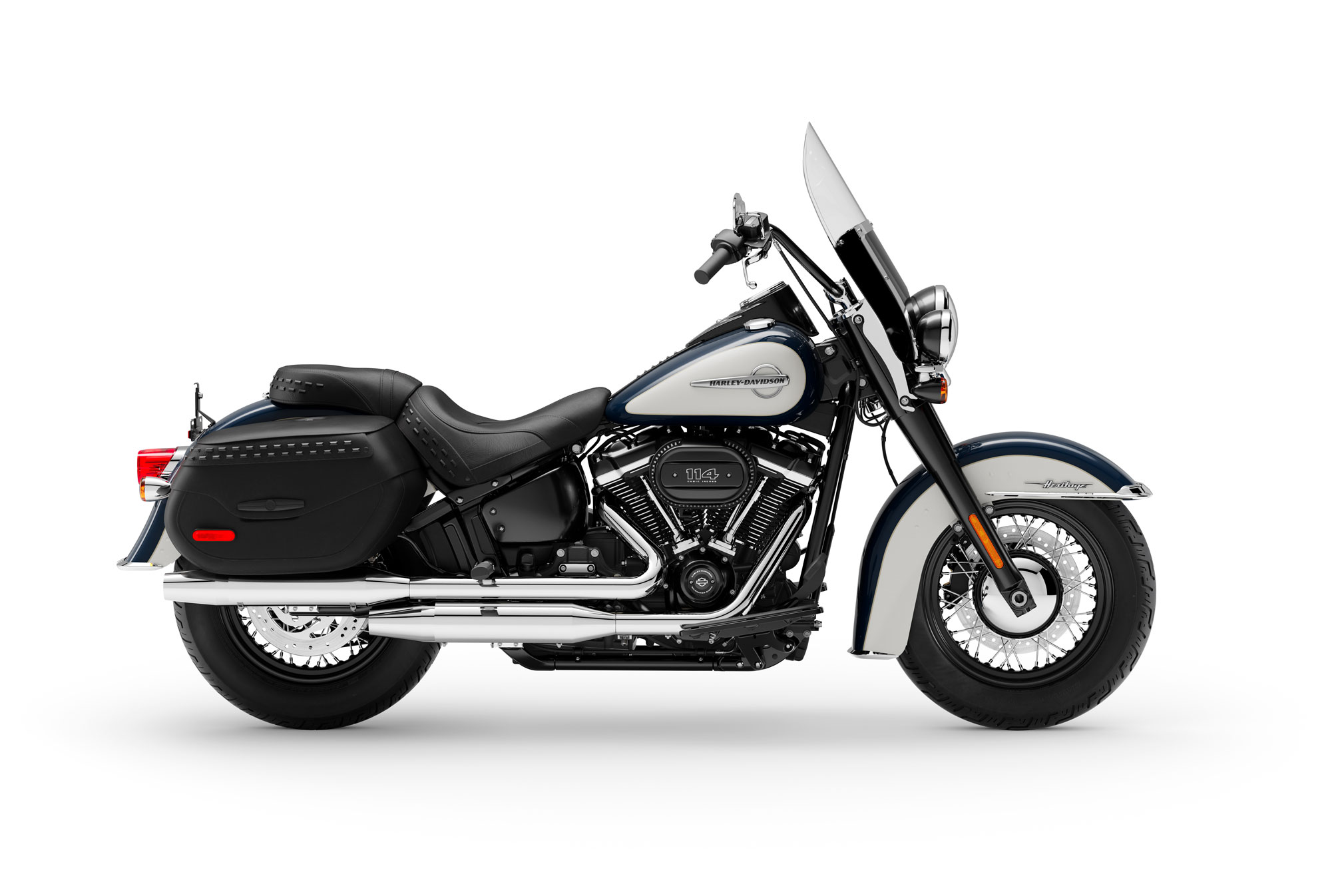

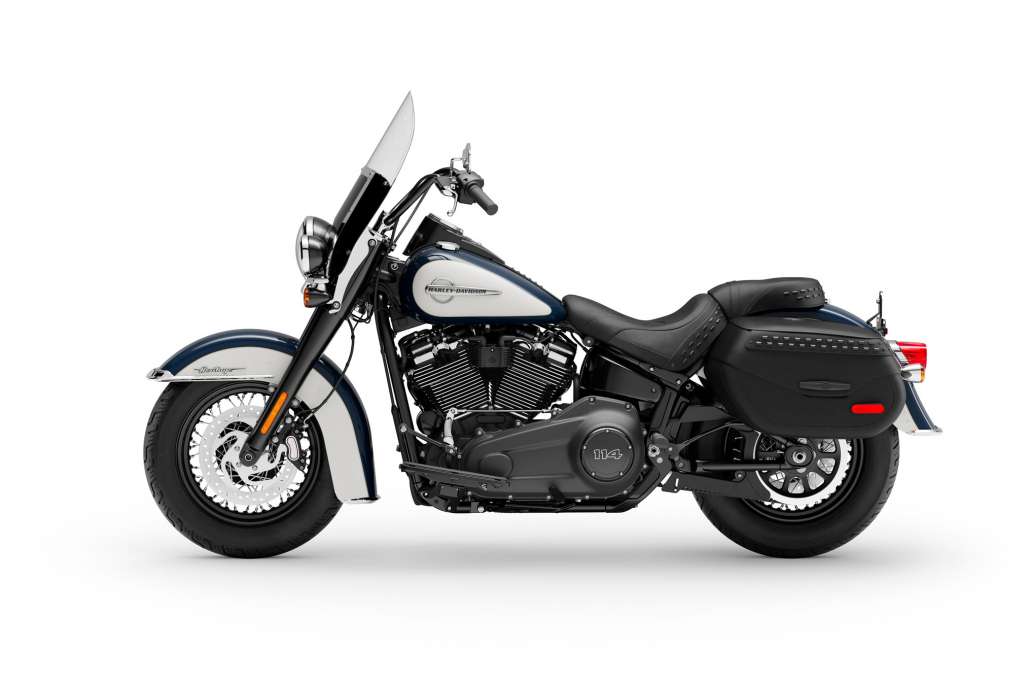

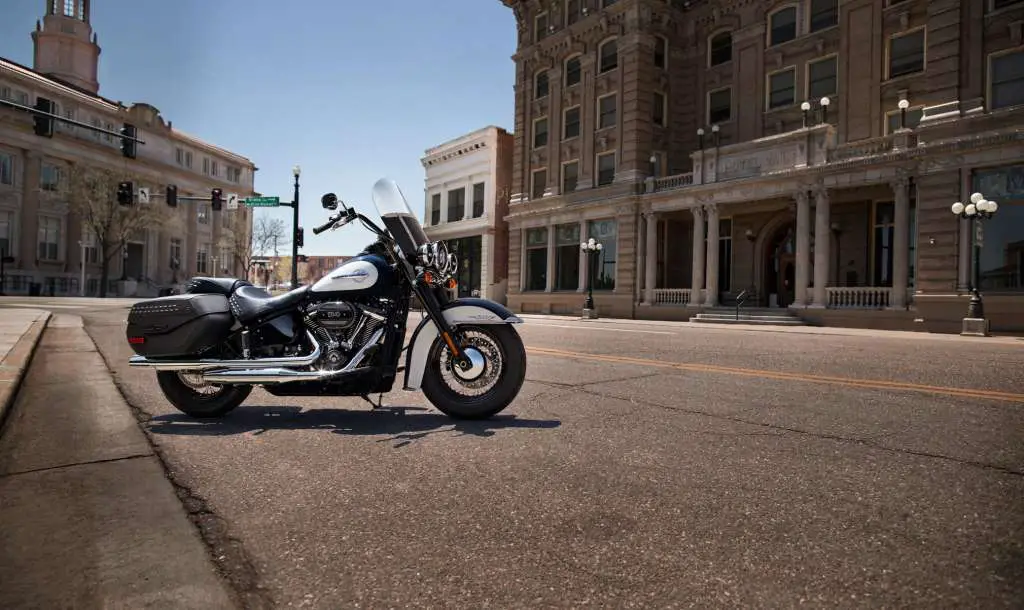

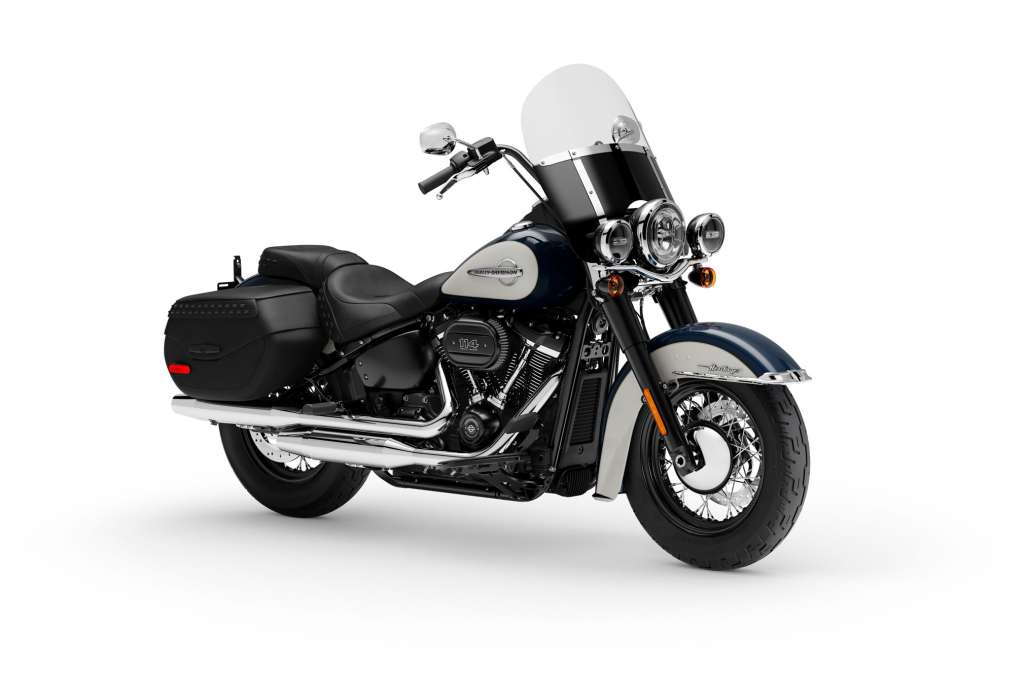

2019 Harley-Davidson Heritage Classic 114

2019 Harley-Davidson Heritage Classic 1142019 Harley-Davidson Heritage Classic 114 2019 Harley-Davidson Heritage Classic 114 2019 Harley-Davidson Heritage Classic 114

TRADITION IS GOOD, BUT A MILWAUKEE-EIGHT 114 IS BETTER.

2019 Harley-Davidson Heritage Classic 114:

The refined gloss-black finishes, modern edge and reinvigorated ride of the Heritage Classic takes nostalgia ripping into a new place. It starts with the performance of the Milwaukee-Eight® 114 engine and the re-invented Softail® frame and suspension. On top of that, it holds a look that drips with gangster-era style.

2019 HERITAGE CLASSIC

The dark style, modern edge and reinvigorated ride of the Heritage model take nostalgia ripping into a new place.

FROM THE SHADY SIDE OF THE FAMILY TREE







2019 Harley-Davidson Heritage Classic 114 Totalmotorcycle.com Key Features

SOFTAIL®

One look at the FXDR™ 114 is all it takes to see how far the Softail® family has come. It’s the latest in a new revolution of custom motorcycles we launched last year. With every Softail, you get a lighter frame, responsive new suspension, and the power of the Milwaukee-Eight® v-twin engine. In keeping with the custom tradition, each model has its own attitude and style. Ranging from the blacked-out nostalgia of the Heritage Classic to the futuristic edge of the Fat Bob® and FXDR 114 models. Find the one that fits your style. You’re in for one hell of a ride.

The FXDR™ 114 model combines the power of the Milwaukee-Eight® 114 engine with the latest Softail® frame and a cast aluminum swing arm rear suspension, breaking all-new ground for 2019.



Engine

  • Engine 1 Milwaukee-Eight® 114
  • Bore 4.016 in.
  • Stroke 4.5 in.
  • Displacement 1,868 cc (114 cu in)
  • Compression Ratio 10.5:1
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust 2-into-2 shorty dual; catalyst in muffler

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 119 ft-lb
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 27.3
  • Lean Angle, Left (deg.) 28.5
  • Fuel Economy Testing Method Estimated City/Hwy
  • Fuel Economy 5 47 mpg



2019 Harley-Davidson Heritage Classic 114 Totalmotorcycle.com Features and Benefits

Gauge on a 2019 Heritage Classic motorcycle
A Dark Classic with Modern Edge

Dripping with gangster-era style and vintage details. If Bonnie and Clyde rode a Harley® motorcycle, this would be the one.

2019 Harley-Davidson Heritage Classic 114 motorcycle Frame
Softail®Frame

The reinvented frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

2019 Heritage Classic motorcycle big twin 114 engine
Milwaukee-Eight® Big Twin 114 Engine

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.

Headlight on a 2019 Heritage Classic motorcycle
Signature LED Forward Lighting

Darkness-defying lighting that gives you great visibility at night.

Saddlebags on a 2019 Heritage Classic motorcycle
Lockable and Sealed Saddlebags

A sleek look on the outside and roomy on the inside with enough space to stash your riding essentials. The lids open with one touch.

Windscreen on a 2019 Heritage Classic motorcycle
Detachable Windscreen

Go from touring to cruising in a heartbeat. Leave the screen on for a clean envelope of air over the long haul. Or remove it in seconds for a completely new look and ride.

Front suspension on a 2019 Heritage Classic motorcycle
High Performance Front Suspension

Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock

Easily adjustable mono-shock rear suspension allows for dynamic cornering capability while preserving the hardtail look.







2019 Harley-Davidson Heritage Classic 114 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $20449 – $21399
USD
Canada MSRP Price: $25599 – $28099 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

Pricing6

  • Vivid Black $20,449
  • Color $20,849
  • Two-Tone $21,199
  • Custom Color $21,399
  • Two-Tone Custom Color $21,599
  • ABS Option Standard
  • Security System Option Standard
  • Cruise Control Option Standard
  • California Emissions $200
  • Freight $390

Engine

  • Engine 1 Milwaukee-Eight® 114
  • Bore 4.016 in.
  • Stroke 4.5 in.
  • Displacement 1,868 cc (114 cu in)
  • Compression Ratio 10.5:1
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust 2-into-2 shorty dual; catalyst in muffler

Dimensions

  • Length 95.1 in.
  • Seat Height, Laden 7 26.3 in.
  • Seat Height, Unladen 26.8 in.
  • Ground Clearance 4.7 in.
  • Rake (steering head) (deg) 30
  • Trail 5.5 in.
  • Wheelbase 64.2 in.
  • Tires, Front Specification 130/90B16,53H,BW
  • Tires, Rear Specification 150/80B16,77H,BW
  • Fuel Capacity 5 gal.
  • Oil Capacity (w/filter) 5 qt.
  • Weight, As Shipped 697 lb.
  • Weight, In Running Order 728 lb.
  • Luggage Capacity -Volume 1.5 cu ft

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 119 ft-lb
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 27.3
  • Lean Angle, Left (deg.) 28.5
  • Fuel Economy Testing Method Estimated City/Hwy
  • Fuel Economy 5 47 mpg

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.311
  • Gear Ratios (overall) 2nd 6.454
  • Gear Ratios (overall) 3rd 4.793
  • Gear Ratios (overall) 4th 3.882
  • Gear Ratios (overall) 5th 3.307
  • Gear Ratios (overall) 6th 2.79

Chassis

  • Wheels, Front Type 9 Gloss Black, Steel Laced
  • Wheels, Rear Type Gloss Black, Steel Laced
  • Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
  • Gauges 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
2019 Harley-Davidson Heritage Classic 114 – Totalmotorcycle.com Canada Specifications/Technical Details

Pricing6

  • Vivid Black $ 25,599
  • Colour $ 26,049
  • Two-Tone $ 26,449
  • Custom Colour $ 26,799
  • ABS Option Standard
  • Security System Option Standard
  • Cruise Control Option Standard
  • Two Tone Custom Color $ 28,099

Engine

  • Engine 1 Milwaukee-Eight™ 114
  • Bore 102 mm
  • Stroke 114 mm
  • Displacement 1,868 cc
  • Compression Ratio 10.5:1
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust 2-into-2 shorty dual; catalyst in muffler

Dimensions

  • Length 2,415 mm
  • Seat Height, Unladen 680 mm
  • Ground Clearance 120 mm
  • Rake (steering head) (deg) 30
  • Trail 140 mm
  • Wheelbase 1,630 mm
  • Tires, Front Specification 130/90B16,53H,BW
  • Tires, Rear Specification 150/80B16,77H,BW
  • Fuel Capacity 18.9 l
  • Oil Capacity (w/filter) 4.7 l
  • Weight, As Shipped 316 kg
  • Weight, In Running Order 330 kg
  • Luggage Capacity -Volume 0.043 m3

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 161 Nm
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 27.3
  • Lean Angle, Left (deg.) 28.5
  • Fuel Economy: Estimated City/Hwy 5 5 l/100 km

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.311
  • Gear Ratios (overall) 2nd 6.454
  • Gear Ratios (overall) 3rd 4.793
  • Gear Ratios (overall) 4th 3.882
  • Gear Ratios (overall) 5th 3.307
  • Gear Ratios (overall) 6th 2.79

Chassis

  • Wheels, Front Type 9 Gloss Black, Steel Laced
  • Wheels, Rear Type Gloss Black, Steel Laced
  • Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
  • Gauges 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
