2019 Kawasaki Ninja H2 SX Guide

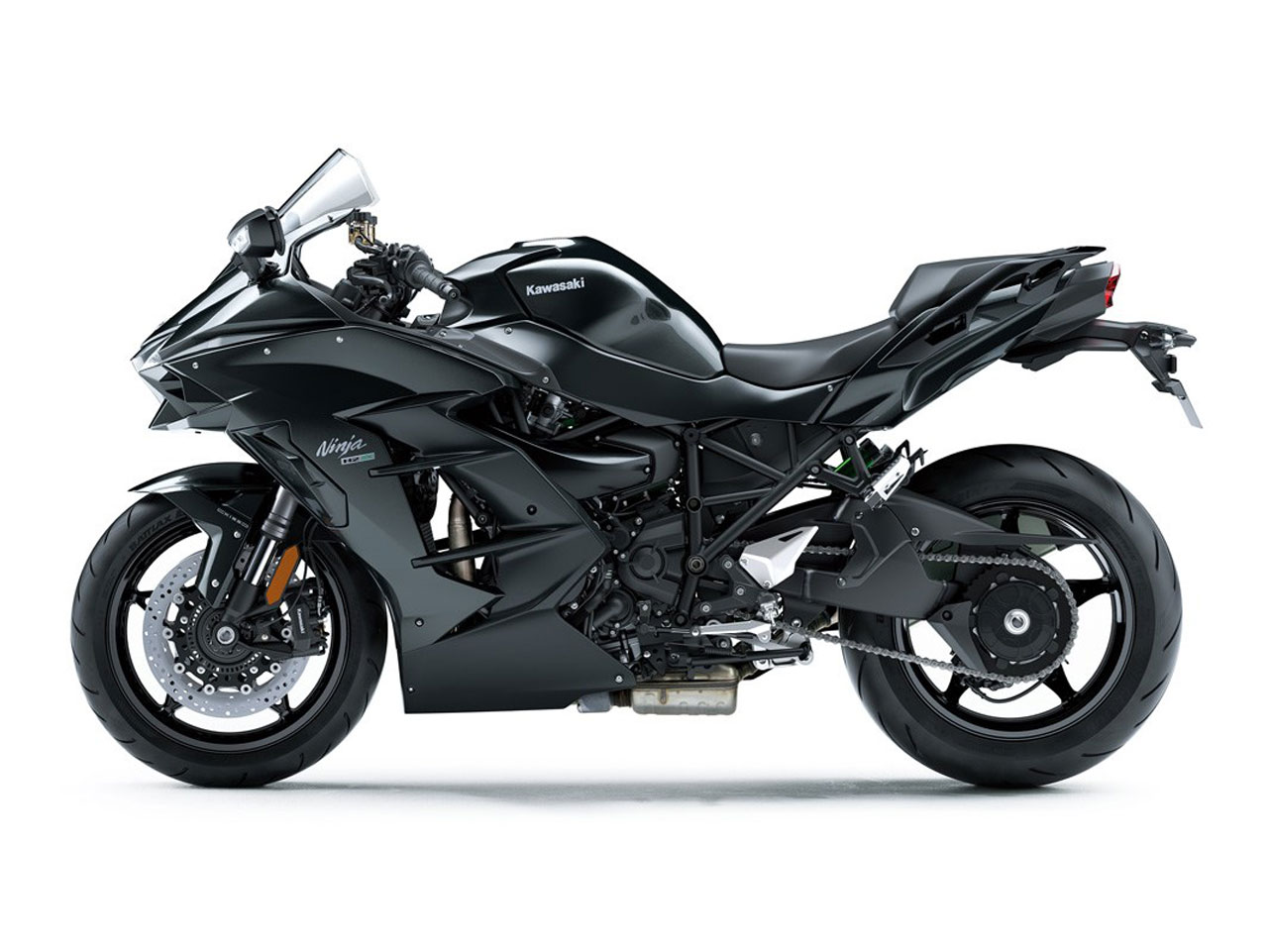

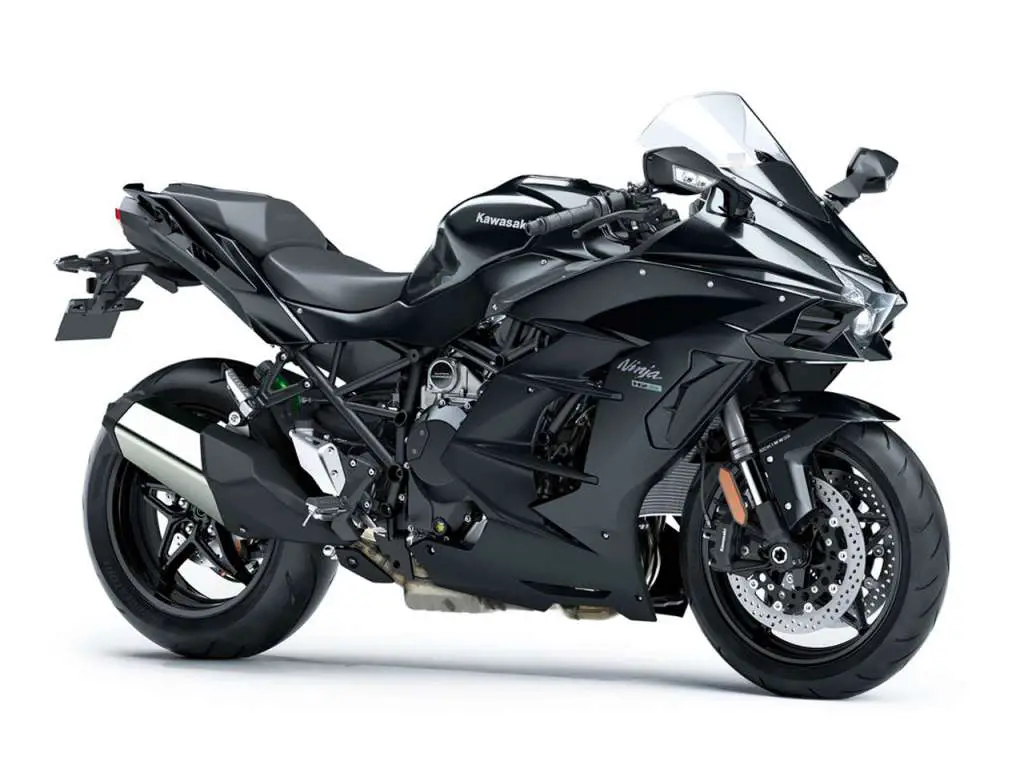

2019 Kawasaki Ninja H2 SX

2019 Kawasaki Ninja H2 SX 2019 Kawasaki Ninja H2 SX 2019 Kawasaki Ninja H2 SX 2019 Kawasaki Ninja H2 SX


2019 Kawasaki Ninja H2 SX:

With the third iteration of Kawasaki’s unique supercharged family, the H2 SX, Kawasaki brings the powerful sensory experience of a supercharged engine to sport touring. While none of the exhilarating forced induction performance feeling is missing, the Balanced Supercharged Engine is tuned for everyday street-riding situations and is joined with superior fuel economy.

While the Ninja H2™R was born from a pure pursuit of supercharged hypersport performance, the all-new Ninja H2 SX, developed from the same bloodline, is the ultimate production supercharged sportbike that combines the most desirable street qualities of hypersport, supersport and sport touring bikes. The balanced supercharged engine offers a versatile engine character that delivers both exhilarating supercharged acceleration and superb fuel economy. Aggressive body design, cast aluminum wheels and all-LED lighting are among the styling highlights that make the Ninja H2 SX stand apart as an icon of sport performance, luxury and style. Take your journey to a thrilling new level.






2019 Kawasaki Ninja H2 SX Totalmotorcycle.com Key Features
  • Electronic cruise control
  • Kawasaki Corner Management Function (KCMF)
  • High-tech instrumentation




2019 Kawasaki Ninja H2 SX Totalmotorcycle.com Features and Benefits
  • 998cc four-cylinder supercharged engine
  • Balanced supercharger
  • Advanced electronics
  • Touring capability
  • Clean-mount saddlebag system
  • Ample wind protection





2019 Kawasaki Ninja H2 SX – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $21999 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU






2019 Kawasaki Ninja H2 SX – Totalmotorcycle.com Canada Specifications/Technical Details


Displacement 998cc
Type 4-stroke, In-Line Four
Bore and stroke 76.0 x 55.0 mm
Cooling Liquid
Compression ratio 11.2:1
Valve system DOHC, 16 valves (4 valves per cylinder)
Fuel system Fuel injection: 40 mm x 4 with dual injection
Ignition Digital
Lubrication Forced lubrication (wet sump) with oil cooler


Front: type Dual semi-floating 320 mm discs
Front: calipers Dual radial-mount, monobloc, opposed 4-piston
Rear: type Single 250 mm petal disc
Rear: calipers 2-piston caliper


Overall length 2,135 mm
Overall width 775 mm
Overall height 1,205 mm
Wheelbase 1,480 mm
Ground clearance 130 mm (5.1 in.)
Seat height 835 mm
Curb mass** 256 kg
Fuel capacity 19 litres (4.2 gal.)


Transmission 6-speed, return dog-ring
Final drive Chain
Primary reduction ratio 1.480 (74/50)
Gear ratio: 1st 3.077 (40/13)
Gear ratio: 2nd 2.471 (42/17)
Gear ratio: 3rd 2.045 (45/22)
Gear ratio: 4th 1.727 (38/22)
Gear ratio: 5th 1.524 (32/21)
Gear ratio: 6th 1.348 (31/23)
Final reduction ratio 2.444 (44/18)
Clutch Wet multi-disc, manual


Type Trellis, high-tensile steel, with Swingarm Mounting Plate
Wheel travel: front 120 mm (4.7 in.)
Tire: front 120/70ZR17M/C (58W)
Wheel travel: rear 139 mm
Tire: rear 190/55ZR17M/C (75W)
Caster (rake) 24.7°
Trail 103 mm
Steering angle (left/right) 30° / 30°


Maximum Power 147 kW {200 PS} / 10,000 or 154 kW {210 PS} / 10,000 with RAM air
Maximum Torque 137.0 N.m {14.0 kgf.m} / 9,500


Suspension, front 43 mm inverted fork with rebound and compression damping and spring preload adjustability, and top-out springs
Suspension, rear New Uni-Trak, gas-charged shock with piggyback reservoir, compression and rebound damping adjustability, remote spring preload adjuster, and top-out spring


Warranty 12 months warranty



* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.




2019 Kawasaki Ninja H2 SX – Totalmotorcycle.com European Specifications/Technical Details




2019 Kawasaki Ninja H2 SX – Totalmotorcycle.com Australian Specifications/Technical Details





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
