2019 Yamaha PW50 Guide

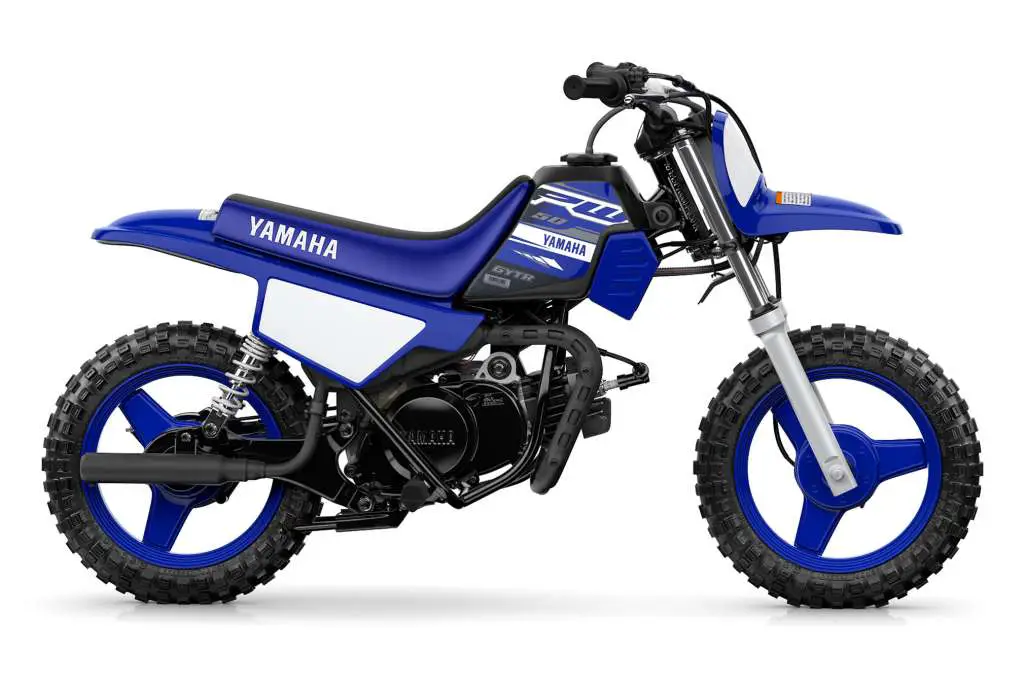

2019 Yamaha PW50

2019 Yamaha PW50 2019 Yamaha PW50 2019 Yamaha PW50 2019 Yamaha PW50

THE 1ST CHOICE.

2019 Yamaha PW50:

Features like adjustable throttle and fully automatic transmission ensure your child’s first riding experience will be all smiles.

One of the industry`s best-selling mini-bikes, the PW50 is a fantastic entry-level bike designed to help young riders learn the ropes at an affordable price.

When it comes to kids’ mini-bikes, Yamaha is the clear leader. With the PW50’s rider-friendly design it’s easy to see why this 50cc 2-stroke is a firm favourite with kids and parents. Safety features include an adjustable throttle which allows parents to limit top speed to suit the rider’s skill level – and the enclosed shaft drive reduces maintenance chores. And there’s no gear shifting to worry about, its zippy 50cc 2-stroke engine drives through a fully-automatic gearbox for simple ‘twist-and-go’ performance.

Off-road adventures begin here.

At just 39 kg, this lightweight and compact mini-bike is the ideal way for your child to have hours of fun while developing their riding skills.



///Engine

Air-cooled, 49cc, reed-valve, 2-stroke single is mildly tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.

///Rider Confidence

A class-lowest 485 mm (19.1″) seat height creates a handling-enhancing low centre of gravity and allows most riders to put both feet on the ground for added confidence.







2019 Yamaha PW50 Totalmotorcycle.com Key Features

Top Features

  • Fully Automatic Transmission
    Fully automatic transmission means no shifting required; the PW50 is a twist-and-go package.
  • Entry-Level Two-Stroke Motor
    Gutsy 49cc two-stroke is built to thrill without intimidating beginners.
  • Ultra-Low Seat Height
    A seat only 18.7 inches high makes the PW50 the ideal choice for the littlest rider in the group.
  • Adjustable Restrictor
    An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.
  • Low Maintenance Requirements
    Shaft final drive means no chain maintenance, while Yamaha’s exclusive autolube oil injection system eliminates the need for fuel/oil premixing.





2019 Yamaha PW50 Totalmotorcycle.com Features and Benefits
  • Entry-Level Two-Stroke Motor
    49cc air-cooled, case-reed-inducted, two-stroke single is tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.
  • Fully Automatic Transmission
    Single-speed automatic transmission means the rider simply twists the throttle and goes, allowing him/her to concentrate on the ride ahead.
  • Maintenance-Free Shaft Drive
    Class-exclusive shaft drive system is virtually maintenance-free and comes fully enclosed for added durability.
  • Convenient Oil Injection System
    Exclusive autolube oil injection system eliminates the need for fuel/oil premixing.
  • Ultra-Low Seat Height
    18.7-inch seat height allows most kids to put both feet down for added confidence.
  • Robust Front Suspension
    A large 26mm telescopic front fork with 2.4 inches of travel smooths out the bumps for responsive handling.
  • Dual Shocks
    Dual rear shocks with 2.0 inches of travel smooth the trail to deliver confidence-inspiring ride quality.
  • Maintenance-Free Mag Wheels
    Mag-style wheels mean there’s no need to tighten or replace spokes.
  • Enclosed Drum Brakes
    Front and rear drum brakes provide smooth, predictable stopping power.
  • Durable Knobby Tires
    10-inch front and rear knobby tires provide excellent traction and superior wear.
  • Quiet, Compact Exhaust
    Quiet exhaust pipe, complete with removable baffle, is routed away from the rider.
  • Simplified Servicing
    Rear fender, seat and side panel unit removes quickly for ease of maintenance.
  • Comfortable Saddle
    A thick seat enhances rider comfort.
  • Racy Styling
    Team Yamaha-inspired colors, graphics and front and side number plates create styling just like the bigger off-roaders.
  • Grippy Footpegs
    Large, folding foot pegs with rubber grips provide excellent footing.
  • Adjustable Restrictor
    An adjustable throttle stop screw lets the adult in charge gradually increase speed as skills improve.









2019 Yamaha PW50 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $1499 USD
Canada MSRP Price: $1799 CDN
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU

MSRP*

$1,499 – Team Yamaha Blue – Available from October 2018

Engine

Engine Type

49cc air-cooled 2-stroke; reed-valve induction

Bore x Stroke

40.0mm x 39.2mm

Compression Ratio

6.0:1

Fuel Delivery

VM12 carburetor

Ignition

CDI

Transmission

Wet centrifugal automatic

Final Drive

Shaft

Suspension / Front

26mm telescopic fork; 2.4-in travel

Suspension / Rear

Unit swingarm; 2.0-in travel

Brakes / Front

Drum

Brakes / Rear

Drum

Tires / Front

2.50-10-4PR

Tires / Rear

2.50-10-4PR

L x W x H

49.0 in x 24.0 in x 27.8 in

Seat Height

18.7 in

Wheelbase

33.7 in

Rake (Caster Angle)

25.5°

Trail

2.0 in

Maximum Ground Clearance

3.7 in

Fuel Capacity

0.5 gal

Wet Weight

90 lb

Warranty

90 Day (Limited Factory Warranty)



*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.









2019 Yamaha PW50 – Totalmotorcycle.com Canada Specifications/Technical Details
Engine
2-stroke, air-cooled, reed-valve, single
Displacement
49cc
Bore and Stroke
40 x 39.2mm
Compression Ratio
6.0:1
Maximum Torque
0.36kg-m (2.6 ft-lb)@ 4,500 rpm
Fuel Delivery
Mikuni VM12SC
Ignition / Starting
CDI / Kick
Transmission
Single-speed automatic (no clutch)
Final Drive
Shaft
Chassis
Suspension (Front)
22 mm fork / 60mm (2.4″) wheel travel
Suspension (Rear)
Unit swingarm / 50 mm (2″) wheel travel
Brakes (Front)
Drum
Brakes (Rear)
Drum
Tires (Front)
2.50-10
Tires (Rear)
2.50-10
Critical Data
Length
1,245 mm (49″)
Width
610 mm (24″)
Height
705 mm (27.8″)
Wheelbase
855 mm (33.7″)
Ground Clearance
95 mm (3.7″)
Seat Height
475 mm (18.7″)
Fuel Capacity
2 litres (0.4 imp. gallons)
Wet Weight
41 kg (90 lb)
Colour(s)
Yamaha Blue









2019 Yamaha PW50 – Totalmotorcycle.com European Specifications/Technical Details
  • Engine

Engine type

air-cooled, 2-stroke, Forward-inclined single cylinder, reed valve

Displacement

49cc

Bore x stroke

40.0 mm x 39.2 mm

Compression ratio

6.0 : 1

Maximum power

Maximum torque

Lubrication system

Yamaha Autolube

Clutch type

Wet, centrifugal automatic

Ignition system

CDI

Starter system

Kick

Final transmission

Shaft

Fuel system

Mikuni VM12/1

  • Chassis

Frame

Steel tube backbone

Front travel

60 mm

Caster angle

25º

Trail

50mm

Front suspension system

Telescopic forks

Rear suspension system

Unit Swing

Rear travel

50 mm

Front brake

Drum mm

Rear brake

Drum mm

Front tyre

2.50-10 4PR

Rear tyre

2.50-10 4PR

  • Dimensions

Overall length

1,245 mm

Overall width

575 mm

Overall height

715 mm

Seat height

485 mm

Wheel base

855 mm

Minimum ground clearance

105 mm

Wet weight (including full oil and fuel tank)

39 kg

Fuel tank capacity

2.0litres

Oil tank capacity

0.35litres









2019 Yamaha PW50 – Totalmotorcycle.com Australian Specifications/Technical Details









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
