2020 Kawasaki KLX140L Guide

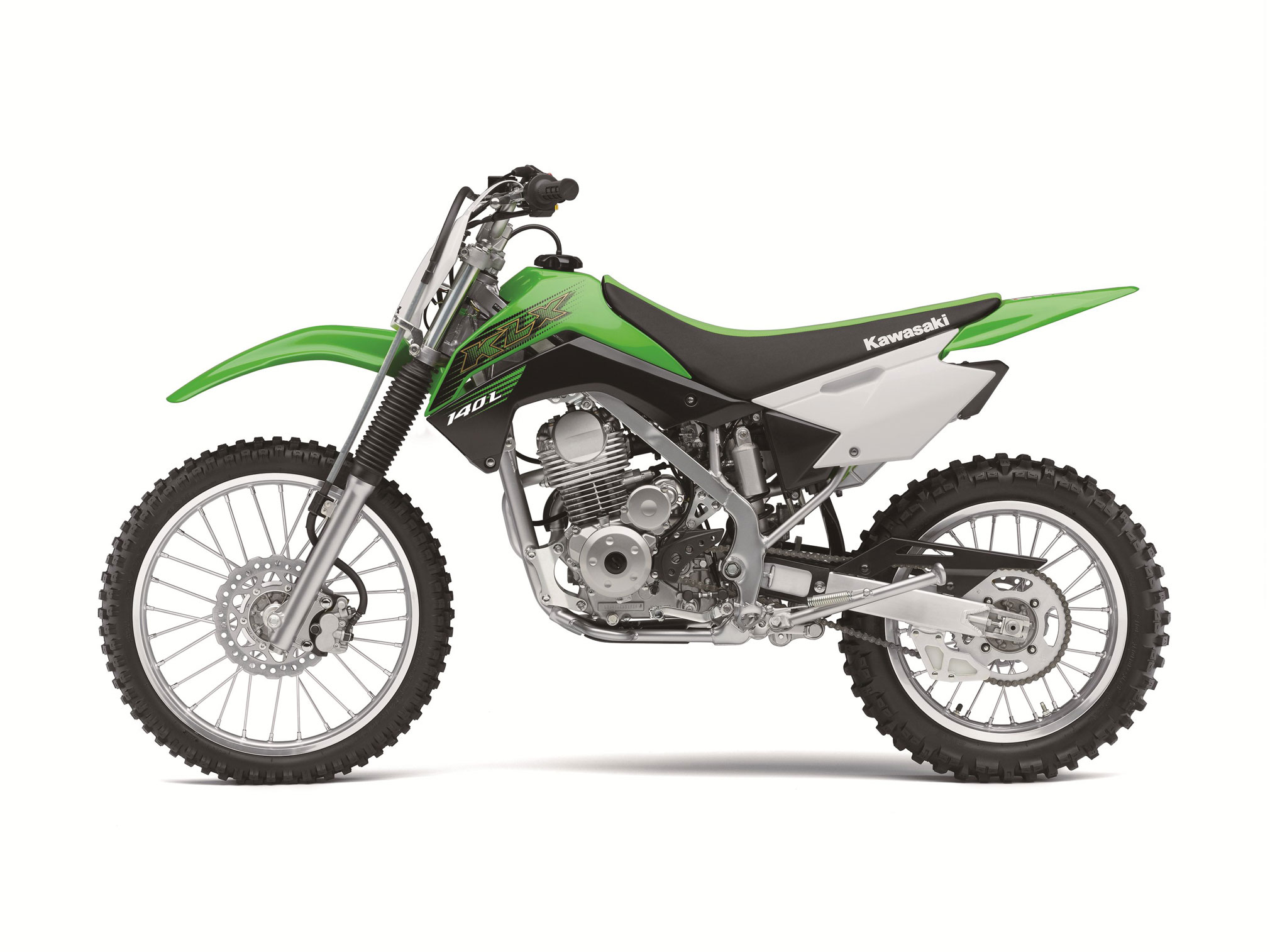

2020 Kawasaki KLX140L

2020 Kawasaki KLX140L2020 Kawasaki KLX140L 2020 Kawasaki KLX140L

MID SIZED 19″ FRONT & 16″ REAR WHEELS.

2020 Kawasaki KLX140L:

Off-road riders and mini-moto enthusiasts don’t have to settle for simple one-size machines with limited performance and cramped ergonomics. Kawasaki’s KLX140 has opened the door for a wider variety of riders in the small displacement off-road arena.





2020 Kawasaki KLX140L Totalmotorcycle.com Key Features

The Kawasaki KLX® family of off-road motorcycles are widely popular for their low maintenance, easy-to-ride character, and incredible capabilities while on trails. The five models consist of two engine configurations and are built to suit a variety of riders.

The KLX®250 dual-purpose motorcycle is built to take riders to new places. Borrowing notes from the KX™ line and Kawasaki’s racing heritage, this 2020 street legal, dual purpose motorcycle is designed to cut through the busy traffic of an inner city or climb up a back trail to see the city from a more beautiful view.

The KLX®140 motorcycle is available in three model variations, and is designed to provide a natural terrain experience with memories to last a lifetime. The powerful 144cc, four-stroke, air-cooled, single-cylinder engine features an electric starter and keyless ignition. Its broad and smooth high-revving 144cc engine utilizes a manual clutch and five-speed transmission to offer an efficient and user-friendly feel. The KLX140 uses a 17” front and 14” rear wheel, while the mid-sized KLX®140L motorcycle is equipped with a 19” front and 16” rear wheels to accommodate taller riders, providing extra ground clearance on the KLX140L. The KLX®140G comes equipped with full-size off-road wheels and tires, using a 21” front and 18” rear.

The KLX®110 is a great motorcycle for a new rider who is looking to experience dirt for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, four-stroke engine. The bigger KLX®110L motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110), longer suspension travel and an extra 1.9” of ground clearance and a four-speed transmission with a manual clutch.





2020 Kawasaki KLX140L Totalmotorcycle.com Features and Benefits
  • Larger wheels (19F, 16R) contribute to a taller seat height (31.5-inch) and higher 10.00-inch ground clearance
  • 1 inches of front and rear suspension travel





2020 Kawasaki KLX140L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3399 USD
Canada MSRP Price: $4149 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

Power

Engine

4-stroke, 1-cylinder, SOHC, air-cooled

Displacement

144cc

Bore x Stroke

58.0 x 54.4mm

Compression Ratio

9.5:1

Fuel System

Keihin PB20

Ignition

Digital DC-CDI

Transmission

5-speed with wet multi-disc manual clutch

Final Drive

Chain

Performance

Front Suspension / Wheel Travel

33mm telescopic fork/7.1 in

Rear Suspension / Wheel Travel

Uni-Trak® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping/7.1 in

Front Tire

70/100-19

Rear Tire

90/100-16

Front Brakes

Single 220mm petal disc with a dual-piston caliper

Rear Brakes

Single 186mm petal disc with single-piston caliper

Details

Frame Type

High-tensile steel, box-section perimeter

Rake/Trail

27°/3.8 in

Overall Length

74.6 in

Overall Width

31.1 in

Overall Height

42.3 in

Ground Clearance

10.0 in

Seat Height

31.5 in

Curb Weight

209.4 lb**

Fuel Capacity

1.5 gal

Wheelbase

50.6 in

Color Choices

Lime Green

Warranty

6 Months

Kawasaki Protection Plus™ (optional)

12, 24, or 36 months

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Read Owner’s Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.







2020 Kawasaki KLX140L – Totalmotorcycle.com  Canadian Specifications/Technical Details

Engine

Displacement144cc
Type4-stroke, Single
Bore and stroke58.0 x 54.4 mm
CoolingAir
Compression ratio9.5:1
Valve systemSOHC, 2 valves, screw type adjusters
Fuel systemKeihin PB20 carburetor
IgnitionDigital DC-CDI
LubricationForced lubrication (wet sump)
StartingElectric

Brakes

Front: typeSingle 220 mm petal disc
Front: calipersDual-piston caliper
Rear: typeSingle 186 mm petal disc
Rear: calipersSingle-piston caliper

Dimensions

Overall length1,895 mm (74.6 in.)
Overall width790 mm (31.1 in.)
Overall height1,075 mm (42.3 in.)
Wheelbase1,285 mm (50.6 in.)
Ground clearance255 mm (10.0 in.)
Seat height800 mm (31.5 in.)
Curb mass**95 kg (209.4 lbs.)
Fuel capacity5.8 litres (1.3 gal.)

Drivetrain

Transmission5-speed
Final driveChain
Primary reduction ratio2.880 (72/25)
Gear ratio: 1st2.667 (40/15)
Gear ratio: 2nd1.895 (36/19)
Gear ratio: 3rd1.474 (28/19)
Gear ratio: 4th1.182 (26/22)
Gear ratio: 5th1.000 (24/24)
Final reduction ratio3.923 (51/13)
ClutchWet multi-disc, manual, cable operation

Frame

TypeTubular double cradle, box section perimeter, high-tensile steel
Wheel travel: front180 mm (7.1 in.)
Tire: front70/100-19
Wheel travel: rear180 mm (7.1 in.)
Tire: rear90/100-16
Caster (rake)27°
Trail96 mm (3.8 in.)

Suspension

Suspension, front33 mm telescopic fork
Suspension, rearUni-Trak linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping

Details

Warranty6 months warranty







2020 Kawasaki KLX140L – Totalmotorcycle.com European Specifications/Technical Details







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
