2020 Kawasaki KLX300R Guide

2020 Kawasaki KLX300R

2020 Kawasaki KLX300R 2020 Kawasaki KLX300R 2020 Kawasaki KLX300R 2020 Kawasaki KLX300R 2020 Kawasaki KLX300R

THE ULTIMATE PLAY BIKE FOR SERIOUS OFF-ROAD FUN.

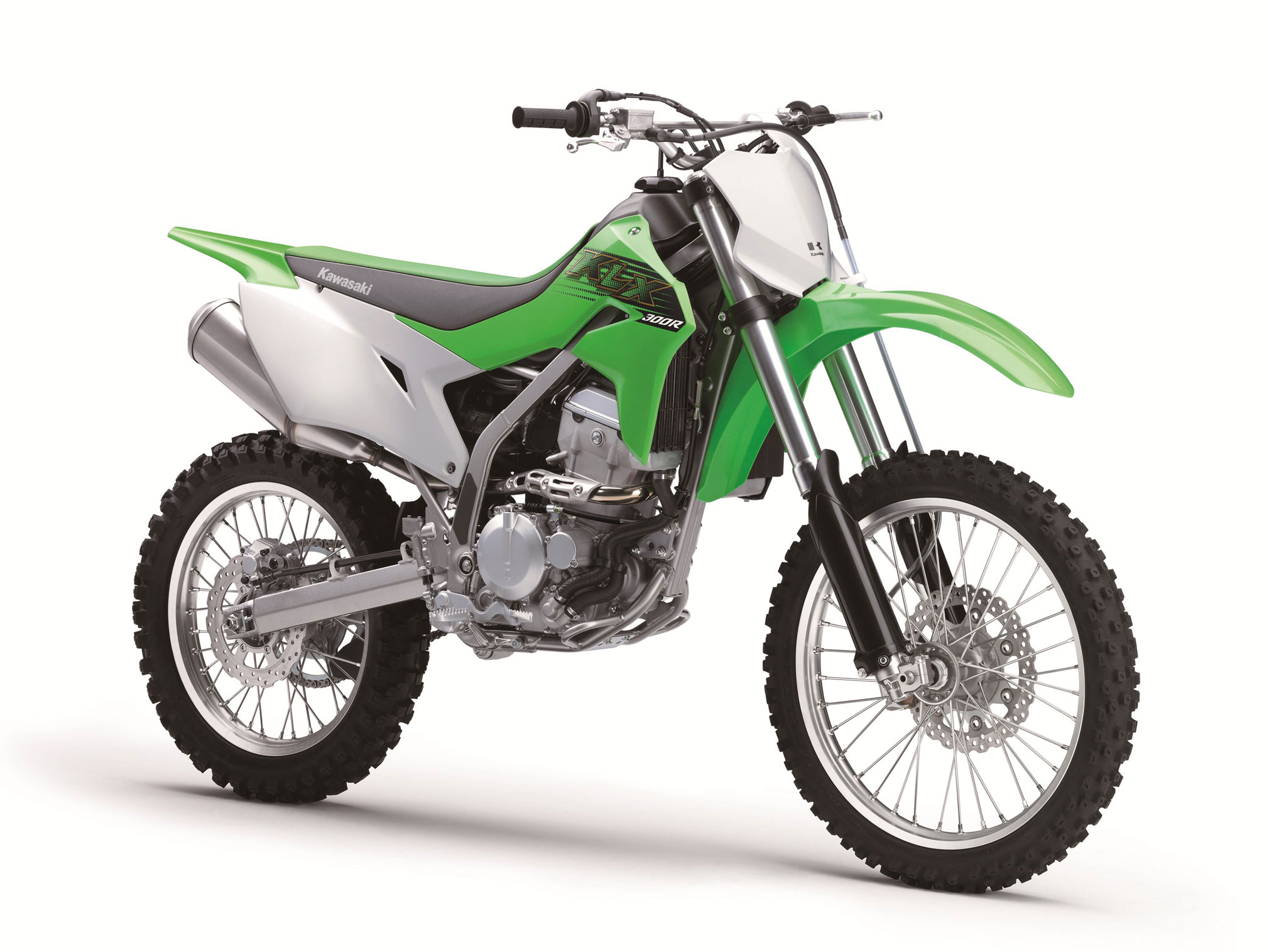

2020 Kawasaki KLX300R:

The all-new Kawasaki KLX®300R off-road motorcycle bridges the gap between a weekend play bike and a full race bike. As the leader of the KLX® lineup, the KLX300R combines the best of both engine and chassis performance to create the ultimate lightweight, fun off-road machine. Taking cues from the KX line and Kawasaki’s racing heritage, this 2020 off- road motorcycle has been designed to ensure that there is an affordable, capable, and durable motorcycle in the KLX lineup for every rider in the family to get out and attack the trail.

The KLX300R was designed and built to be a lightweight and easily maneuverable motorcycle for riders who aren’t looking for a full-time race machine. Utilizing a powerful, fuel-injected, liquid-cooled engine design along with the tried and true easy handling semi-double cradle frame design helps to keep the KLX300R compact, while the balance between the engine and frame results in optimal trail performance.

A smooth and powerful 292cc fuel-injected, liquid-cooled four-stroke engine and easy handling, semi-double cradle frame were designed with reliability and durability for trail riding. Full-size wheels, long-travel suspension, ample ground clearance and large diameter front and rear disc brakes all contribute to the off-road capability of the KLX300R motorcycle, as well as featuring KX-inspired styling and ergonomics for agile handling in a variety of conditions.



THE ULTIMATE PLAY BIKE FOR SERIOUS OFF-ROAD FUN

Kawasaki offers a machine that bridges the world between play bikes and racers.  The KLX300R delivers a significant step-up in both engine and chassis performance to bring a high level of off-road riding potential to riders looking for more power or racers looking for a machine better suited to recreational riding.





2020 Kawasaki KLX300R Totalmotorcycle.com Key Features
  • ALL-NEW 292 cc liquid-cooled four-stroke engine with DOHC and fuel-injection
  • ALL-NEW perimeter, high tensile steel frame
  • ALL-NEW long travel suspension
  • ALL-NEW large diameter wheels (21”/18”)





2020 Kawasaki KLX300R Totalmotorcycle.com Features and Benefits

ENGINE & TRANSMISSION

  • ALL-NEW 292 cc fuel-injected, liquid-cooled four-stroke engine
  • ALL-NEW electric start
  • ALL-NEW six speed transmission



The new liquid-cooled 4-stroke engine is fuel-injected, delivering a crisp response, quick-revving nature, and strong low-end torque. The engine has a bore and stroke of 78.0 x 61.2 mm, with a displacement of 292 cc. A four-valve DOHC cylinder head design provides maximum valve area for optimum flow. The pentroof combustion chamber yields an 11.1:1 compression ratio, while utilizing a lightweight piston, pin, and connecting rod allow power producing revs. Thanks to the use of an efficient cam design, a low reciprocating weight was achieved while also increasing efficiency at high rpm. Cam profiles and intake port design contribute to the smooth, quick-revving engine character.



The reliable and durable fuel injection system utilizes a 34 mm throttle body and a fine atomizing 10-hole injector, which delivers a precise response for optimal control. With fuel injection, fuel delivery is consistent regardless of outside air temperature or elevation. It also ensures excellent starting characteristics, whether the engine is hot or cold, and contributes to clean emissions. Together with fuel injection, electric start offers hassle-free starting at the push of a button.



Performance and durability were top of mind when designing the engine of the KLX300R motorcycle. Features like a piston skirt were designed to minimize contact with the cylinder wall, hard Nikasil plating on the cylinder bore, and wider connecting rod big-end bearings were utilized for increased reliability. Dual high-capacity radiators, similar to those used on KX motocross bikes, deliver superior cooling efficiency. The radiators are very slim and feature a tightly packed core and fin configuration for excellent heat dispersion. An all-stainless steel exhaust system with a honeycomb catalyzer, located in the silencer, keeps emissions clean. The silencer is fitted with a spark arrestor, which allows access to riding areas where required.



The smooth-shifting six-speed transmission offers a gear for different riding situations, and is particularly effective when riding on long straightaways. A short final gearing ratio of 50/14 complements the engine’s low-mid range focus, enabling riders to continue moving forward when navigating off-road trails.





CHASSIS

  • ALL-NEW high tensile steel perimeter frame and aluminium swingarm
  • ALL-NEW 43 mm inverted telescopic long travel fork
  • ALL-NEW Uni-Trak® long travel suspension



The frame of the KLX300R is a lightweight semi-double cradle frame, which has served as the base design for countless Kawasaki off-road machines. The latest evolution of this proven frame delivers the durability to handle hard off-road riding, while rigidity is optimized for trail riding.



The boxed tubular-section high-tensile steel perimeter frame creates a slim, lightweight package with a 26.9º rake and short wheelbase, which contributes to quick handling and optimized frame rigidity. Equipped with 12” of ground clearance, the KLX300R enables riders to more easily navigate the trail. A new, lightweight extruded aluminum swingarm contributes to the desired rigidity balance of the KLX300R, while the D-section arms add to the motorcycle’s good looks.



Long-travel suspension front and rear greatly contribute to the KLX300R’s ability to soak up bumps on the trail. A large, 43 mm inverted telescopic fork handles suspension duties up front, with 11.2” of travel to take on rougher terrain. The fork settings take advantage of the long travel, using a lower spring rate to allow damping to work over a wider stroke range, providing a very stable front end feeling.



At the rear, Uni-Trak® suspension configuration with 11.2” of wheel travel provides great holding ability and bump absorption, with settings that contribute to light, nimble handling. The single rear shock absorber with piggyback reservoir is adjustable for rebound and compression damping, as well as preload, allowing riders to set the bike up to best suit their preference and weight.





WHEELS & BRAKES

  • Large diameter wheels
  • Large diameter disc brakes
  • Large brake master cylinders
  • Dunlop MX52 tires



Full-size aluminum wheels, measuring 21” at the front and 18” at the rear, make it easy to navigate the trails, greatly contributing to trail-riding performance. The wheels are equipped with new Dunlop MX52 tires for optimal handling and traction.



A large diameter 270 mm front disc is gripped by a twin-piston caliper, utilizing the same size disc found on the full-size KX models, which offer strong, highly controllable braking. Slowing the rear is a large 240 mm disc, gripped by a single-piston caliper. Both front and rear brake master cylinders are based on tried and true pieces from the other models in the Kawasaki off-road lineup.





ERGONOMICS

  • ERGO-FIT® adjustable handle positions
  • KX-inspired ergonomics
  • Adjustable brake lever position



Similar to the Kawasaki KX™450 and KX™250, the all-new KLX300R features bodywork designed to facilitate easy rider movement. The slim design of the frame and bodywork help the rider grip the bike for increased control, while the KX-inspired seat design offers great freedom of movement for off-road riding. All of this is complemented by the ERGO-FIT® four-way adjustable handlebar components, allowing for a personalized fit during relaxed riding or when pushing hard on the trails. Thanks to the compact design of the KLX300R, a seat height of 36.4” was achieved. The seat uses a slip-resistant top surface to facilitate grip when seated and smooth sides for easy mobility. Brake lever position is also adjustable, offering riders the ability to set the position to suit their hand size and preference.





STYLING & INSTRUMENTATION

  • KX™-inspired styling



The KLX300R motorcycle takes its styling cues from Kawasaki’s KX motocross line-up, sharing several key styling elements with the KX250, giving the KLX300R an agile, aggressive image to match its trail-riding prowess. A 2.1 gallon fuel tank allows the good times to keep rolling over the course of a long day.



The motorcycle includes an ON/OFF button, power indicator lamp, low-fuel warning lamp, and FI warning lamp.





2020 Kawasaki KLX300R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $5499 USD
Canada MSRP Price: $5999 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

Power

Engine

4-stroke, 1-cylinder, DOHC, liquid-cooled

Displacement

292cc

Bore x Stroke

78.0 x 61.2mm

Compression Ratio

11.0:1

Fuel System

DFI w/34mm Throttle Body

Ignition

TCBI

Transmission

Six-speed with wet multi-disc manual clutch

Final Drive

Chain

Performance

Front Suspension / Wheel Travel

43mm Inverted telescopic fork/11.2 in

Rear Suspension / Wheel Travel

Uni-Trak® linkage system and single shock preload adjustability/11.2 in

Front Tire

80/100-21

Rear Tire

100/100-18

Front Brakes

Single 270mm petal disc with a dual-piston caliper

Rear Brakes

Single 240mm petal disc with single-piston caliper

Details

Frame Type

Tubular, Semi-Double Cradle

Rake/Trail

26.9°/4.3 in

Overall Length

83.5 in

Overall Width

32.5 in

Overall Height

49.2 in

Ground Clearance

12.0 in / 11.8 CA model

Seat Height

36.4 in

Curb Weight

282.2 lb / 286.6 lb. CA model**

Fuel Capacity

2.1 gal

Wheelbase

56.5 in

Color Choices

Lime Green

Warranty

6 Months

Kawasaki Protection Plus™ (optional)

12, 24, or 36 months

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner’s Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.





2020 Kawasaki KLX300R – Totalmotorcycle.com  Canadian Specifications/Technical Details

Engine

Displacement 292cc
Type 4-stroke, Single
Bore and stroke 78 x 61.2 mm
Cooling Liquid
Compression ratio 11.1:1
Valve system DOHC, 4 valves
Fuel system Fuel injection (34 x 1)
Ignition Keihin transistorised
Lubrication Forced lubrication (wet sump)
Starting Electric

Brakes

Front: type Single semi-floating 270 mm petal disc
Front: calipers Dual-piston caliper
Rear: type Single 240 mm petal disc
Rear: calipers Single-piston caliper

Dimensions

Overall length 2,120 mm
Overall width 825 mm
Overall height 1,250 mm
Wheelbase 1,435 mm
Ground clearance 315 mm
Seat height 925 mm
Curb mass** 128 kg
Fuel capacity 7.9 litres (1.7 gal.)

Drivetrain

Transmission 6-speed
Final drive Chain
Primary reduction ratio 2.800 (84/30)
Gear ratio: 1st 3.000 (30/10)
Gear ratio: 2nd 2.000 (30/15)
Gear ratio: 3rd 1.500 (27/18)
Gear ratio: 4th 1.250 (25/20)
Gear ratio: 5th 1.050 (21/20)
Gear ratio: 6th 0.952 (20/21)
Final reduction ratio 3.571 (50/14)
Clutch Wet multi-disc, manual

Frame

Type Perimeter, high-tensile steel
Wheel travel: front 285 mm
Tire: front 80/100-21 51M
Wheel travel: rear 285 mm
Tire: rear 100/100-18 59M
Caster (rake) 26.9°
Trail 109 mm

Suspension

Suspension, front 43 mm inverted telescopic fork with adjustable compression damping
Suspension, rear Uni Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable preload

Details

Warranty 6 months warranty







2020 Kawasaki KLX300R – Totalmotorcycle.com European Specifications/Technical Details







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
