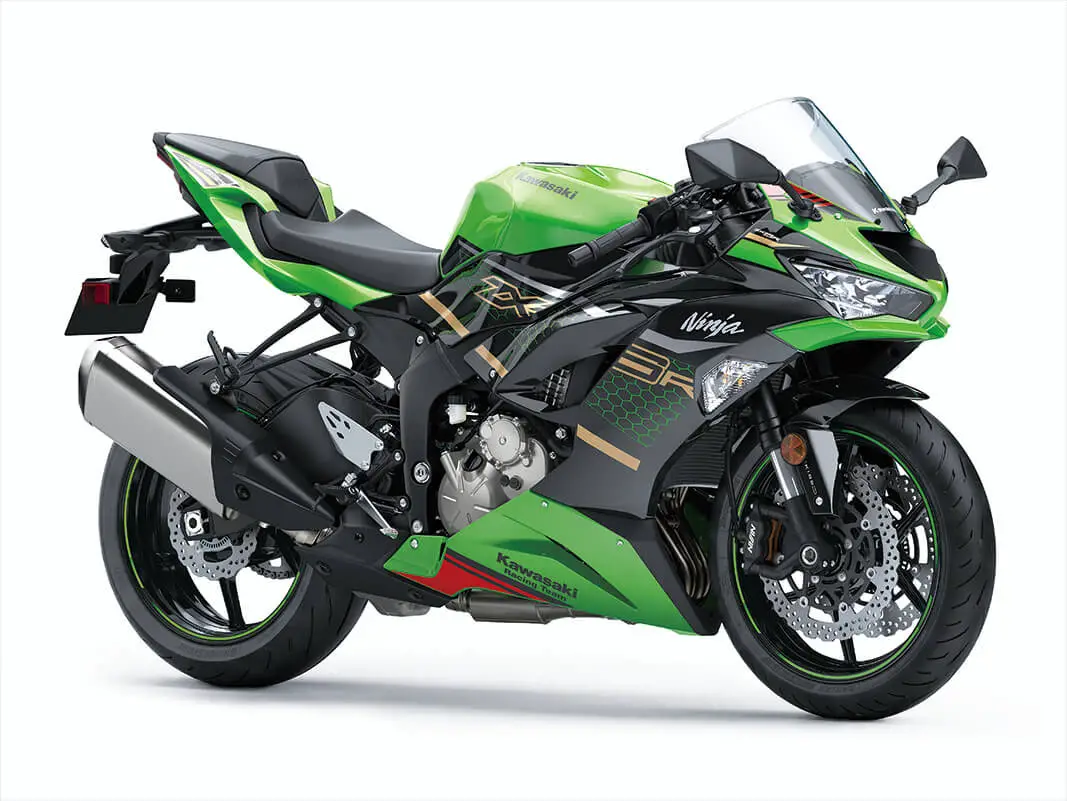

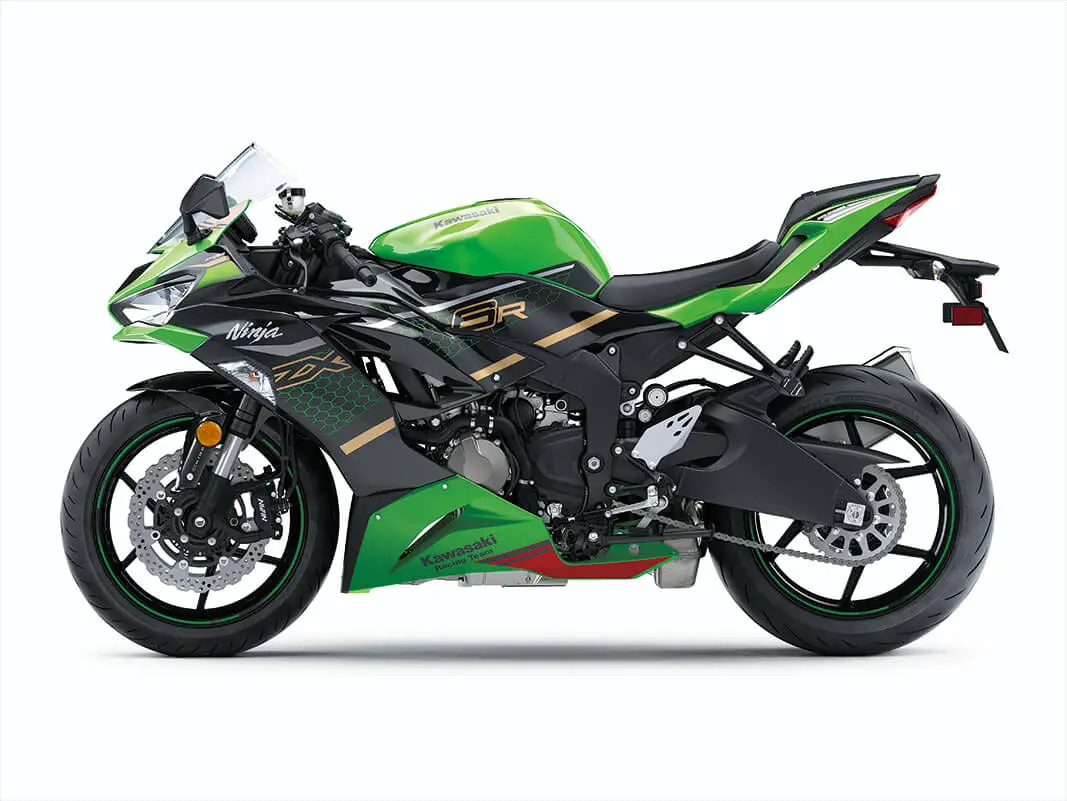

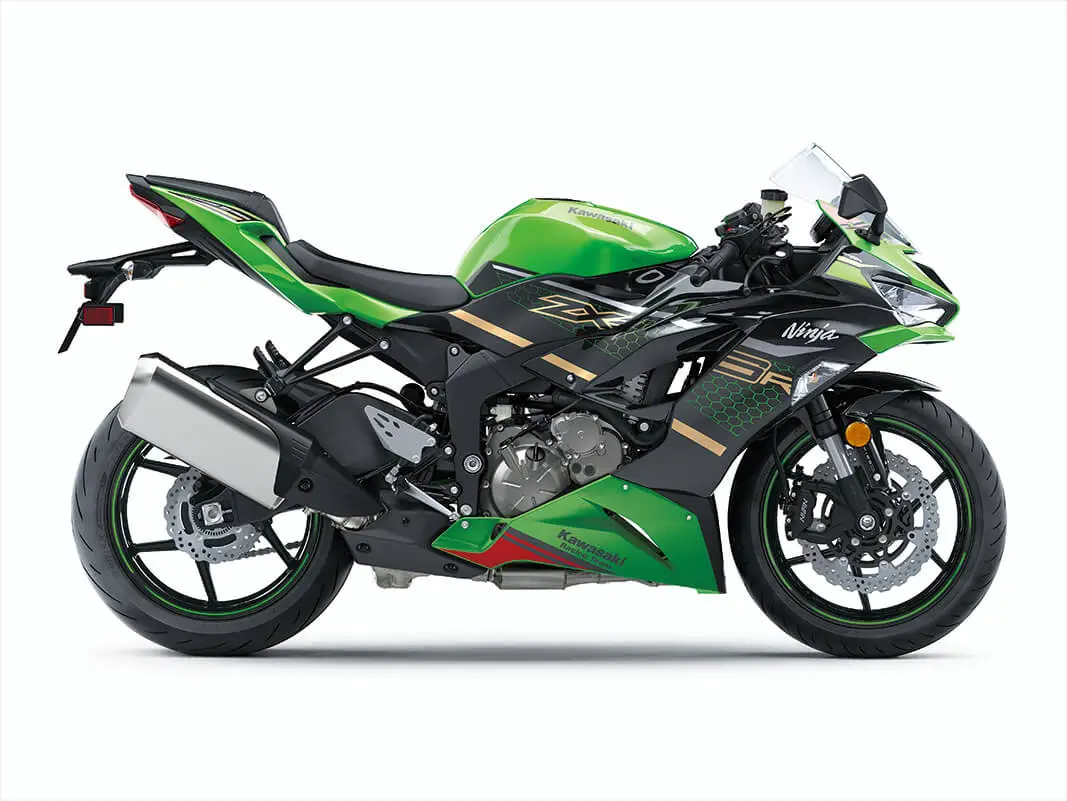

2020 Kawasaki Ninja ZX-6R ABS KRT Guide

2020 Kawasaki Ninja ZX-6R ABS KRT

2020 Kawasaki Ninja ZX-6R ABS KRT 2020 Kawasaki Ninja ZX-6R ABS KRT 2020 Kawasaki Ninja ZX-6R ABS KRT 2020 Kawasaki Ninja ZX-6R ABS KRT 2020 Kawasaki Ninja ZX-6R ABS KRT


2020 Kawasaki Ninja ZX-6R ABS KRT.

The 2020 Ninja ZX-6R brings the exhilaration of a race-born supersport engine to everyday street use. While ordinary supersport engines optimize performance for high rpm, the new Ninja ZX-6R provides explosive power in the low and mid range. This superior performance and readily available torque at all rpm results in significantly better engine response during street riding settings, such as in stop-and-go traffic, acceleration to pass other vehicles, or carving along winding roads. Complementing the already advanced rider support technology like 3-mode Kawasaki TRaction Control (KTRC), Power Mode selection and Kawasaki Intelligent Braking System (KIBS), Kawasaki Quick Shifter (KQS), allowing clutchless up-shifts, is now standard.

Loaded with high technology features like 3-Mode KTRC Traction Control, Power Mode selection and available KIBS ABS, the Ninja® ZX™-6R helps a wider range of riders to enjoy this machine’s serious sport riding performance on the circuit or the street. Plus the MSRP makes it the highest value in the mid-size sportbike class.



Kawasaki Intelligent anti-lock Brake System (KIBS)
Selectable power modes combined with Kawasaki TRaction Control (KTRC)
Class-leading SHOWA suspension
Assist & Slipper Clutch
Optimized ergonomics with 5-position adjustable clutch lever
Multi-function LCD screen
Pressed-aluminum perimeter frame
Exclusive Kawasaki Racing Team colors & graphics



2020 Kawasaki Ninja ZX-6R ABS KRT Totalmotorcycle.com Key Features




2020 Kawasaki Ninja ZX-6R ABS KRT Totalmotorcycle.com Features and Benefits


636cc Ultra-Compact, Low-Friction Engine

  • Long stroke engine offers increased performance over many other 600 class engines at all rpm, and especially in the low- to mid-range for better rideability on city streets.
  • All internal parts are designed to be strong yet small with ideal dimensional accuracy to reduce power-robbing friction.
  • Close cylinder pitch and compact crankcases result in a small, rigid engine. This compact engine also contributes significantly to the overall slim and compact chassis.
  • Short-skirt forged pistons, light piston pins and a compact connecting rod small end help reduce reciprocating weight for quick revs.

Mass Centralization

  • Tri-axis crankshaft and transmission shaft layout concentrates engine mass to idealize the engine’s center of gravity. This helps reduce pitching movement during braking to give the rider better chassis feedback. By reducing the amount of front/ rear weight transfer, the loads on the suspension and tires are reduced, providing more freedom when adjusting suspension settings.
  • Exhaust pre-chamber located beneath the engine helps centralize mass and allows the use of a smaller, lighter muffler.

Ram Air Induction(KP)

  • High-Volume airbox contributes to increased peak power and smooth power delivery.
  • Long intake funnels help boost low- to mid-range performance and power feeling.
  • Ram air duct is rigid and supports the instrument panel and mirror stays to eliminate brackets and reduce weight.
  • Central ram air duct produces a straight path to the airbox which reduces turbulence and increases pressure for maximum intake efficiency.


Digital Fuel Injection(KP)

  • Long throttle bodies increase the distance between the main and sub throttle valves for better throttle response.
  • 38mm Keihin throttle bodies with dual-throttle valves(KP) provide optimum performance and rideability. The sub-throttles, located before the main throttle valves in the throttle bore, are controlled by the ECU so that the DFI system has more precise throttle response, similar to a constant velocity carburetor.
  • Fine atomizing fuel injectors have increased volume and a revised spray pattern to optimize mixing with air for the increased displacement.
  • Short fuel pump with flat-bottom design prevents fuel warming in the bottom of the pump. Cooler fuel provides better combustion efficiency.

Stainless Steel Exhaust

  • All four stainless steel header pipes are connected by joint pipes for increased low- to mid-range torque.
  • Exhaust system helps boost low-end and mid-range power without sacrificing top-end. A pre-chamber under the engine centralizes weight, reduces exhaust noise and helps minimize muffler volume.
  • Single right-side muffler lowers the overall center of gravity and helps centralize mass. Triangular design provides correct volume to meet noise standards while allowing good lean angle and compact appearance.
  • A butterfly valve located at the entrance to the muffler is controlled by the ECU using rpm, throttle position and gear position to improve low-end response and help smooth overall power. Optimum exhaust tuning is attained at all engine speeds to prevent blowback that can occur with high overlapping valve timing. The valve also quiets the exhaust so a smaller, lighter muffler can be used.

Cassette Transmission

  • Final drive ratio emphasizes the engine’s strong low-end power.
  • Short first gear ratio makes it easy to move away from a stop.
  • 6-speed close-ratio transmission is removable as a cassette, providing quick access for making gearing changes.
  • Gear position sensor is also linked to the dash to provide instant information to the rider. The system is also compatible with semi-automatic, electronic shifters used by racers to facilitate clutchless shifting and help lower lap times.

Kawasaki Quick Shifter (KQS)

  • Contact-less potentiometer-type quick shifter that enables quick upshifts for seamless acceleration.
  • The system detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without using the clutch. (Clutch use recommended for downshifts.)


FCC Assist & Slipper Clutch(KP)

  • Using the rotational forces of the clutch hub and pressure plate, the clutch is forced together during acceleration (Assist function) so that fewer and lighter clutch springs can be used for a lighter feel at the lever. During high back-torque, such as when too low of gear is selected, the slipper function allows some clutch slippage to help prevent engine lock-up and stalling, and rear-wheel hop.
  • Use of a spring plate assembly in the clutch contributes to smoother clutch engagement and helps minimize clutch vibration (judder) noise.

Advanced Electronic Riding Aids

  • The Ninja ZX-6R features several of Kawasaki’s latest technological systems. Its traction control system is the same as found on the flagship Ninja ZX-14R. Combined with two selectable Power Modes, this offers riders eight combinations covering a wide range of riding situations. And, like the Ninja ZX-10R, available ABS models are equipped with KIBS, a highly advanced system design specifically for supersport models.

Kawasaki Traction Control System (KTRC)(KP)

  • 3-mode system combines the best features of Sport-KTRC from the Ninja ZX-10R and KTRC from the Concours® 14 to help provide maximum traction with some degree of slippage for sport riding and rider assurance by facilitating smooth riding on slippery surfaces.
  • Modes 1 and 2 control ignition timing like S-KTRC, which uses complex analysis to predict when traction conditions are about to become unfavorable and act before wheel slippage exceeds the range for optimal traction. Mode 3 has higher sensitivity and controls ignition timing, fuel and air for ultra- smooth operation.
  • The system distinguishes between smooth, power front wheel lifts and sudden lift, allowing smooth lift if acceptable acceleration is maintained.
  • A switch on the left handlebar switch housing gives the rider the option to turn the system off.

Power Mode

  • Allows riders to set power characteristics to suit riding conditions and style. Riders can choose between full power operation or low power, which is approximately 80 percent of full with a milder throttle response.

Rider-Responsive Chassis

  • Designed in conjuction with the suspension to provide a controlled, comfortable ride on streets and highways while allowing high cornering prowess for quick lap times on the track.
  • The frame and swingarm were developed with an ideal stiffness balance, so the Ninja ZX-6R responds instantly and precisely to the rider’s commands and provides excellent rider feedback.

Aluminum Perimeter Frame(KP)

  • Stiffness balance designed for superb handling.

Frame rigidity is optimized to help prevent road or track irregularities  from  upsetting the chassis. Working with  the  suspension, the frame helps provide a more planted ride and helps absorb impacts without upsetting handling.

  • Steep 23.5˚ degree rake angle for sharp handling and more feedback from the front tire.
  • Engine mount angle designed for precise turning and less effort leaning into a turn.
  • Engine mounting position at the rear of the cylinder head also compliments the frame’s stiffness balance.
  • Combination of pressed and cast aluminum components are welded to form the perimeter type frame. By combining cast and pressed pieces frame weight is kept to a minimum while still providing high strength and stability with responsive handling.
  • Two-piece die-cast aluminum sub-frame is light and narrow.



Showa – Big Piston Separate Function Inverted Fork(KP)

  • With springs in both legs, preload and damping functions are separated into the right and left fork tubes. Preload adjustment is made on the left side, compression and rebound damping on the right. All adjustment screws are at the top of the forks for easy access.
  • 37mm pistons produce high damping force for improved performance during heavy braking.
  • Suspension settings idealized for winding roads and city riding while maintaining high performance on the track as well.

Uni-Trak®  Rear Suspension(KP)

  • Uni-Trak lever ratios and shock damping settings offer a plush ride on the street and highway.
  • Cast aluminum swingarm has a perfect balance of  stiffness and flex and works with the frame’s stiffness balance to provide exceptional handling.
  • Showa rear shock features preload, compression and rebound damping adjustments as well as adjustable ride height.(KP)

High Performance Brake System

  • Radial mounted Nissin monobloc front brake calipers utilize integrated mounting points at both the top and bottom of each caliper, which makes the caliper more rigid for excellent brake feel and performance.
  • Monobloc caliper is machined from a single aluminum block that contributes to superb feel, increased heat dissipation and lighter weight.
  • 310mm front discs provide strong braking performance.
  • Radial pump front master cylinder provides excellent front brake feel and performance.
  • Nissin rear brake caliper with 30mm piston from the Ninja ZX-10R is light, resists fade and offers good control.

Available Kawasaki Intelligent anti-lock Brake     System (KIBS)(KP)

  • High-precision system with smooth feedback for added braking confidence during hard sport riding or emergencies.
  • The engine ECU communicates with the ABS ECU (which monitors wheel speed and front caliper hydraulic pressure) to provide highly precise brake pressure control. The high-precision control means brake performance is not reduced due to excessive pressure drops and there is a more consistent lever feel instead of sharp lever pulses with conventional ABS systems.


Ninja Styling

The Ninja ZX-6R combines elements of the Ninja ZX-10R with sharp and edgy lines to give the Ninja ZX-6R a distinct look.

  • Front cowl has a distinct look that makes the Ninja ZX-6R stand out from its competitors. It not only looks unique, but its low dimensions allow the rider a good view of the road ahead.
  • A pair of LED headlights enhance the appearance  and  each light features high and low beam plus a position lamp. The LEDs also provide increased brightness standard lights for better illumination at night.
  • Tail cowl has upswept lines and overlapping and interwoven sections to give it a sharp, unique appearance.
  • An LED taillight inspired by the Ninja ZX-10R adds a sophisticated look when the bike is seen from the rear.
  • Muffler finishing treatment and end cap add to new sporty appearance.
  • Heel guards contribute to the bike’s dynamic lines.


  • The shift indicator can be set between 5,000 and 16,000 rpm in 250 rpm increments.
  • Tachometer needle changes colors from white to pink to red to indicate upshift timing. When the engine speed is within 500 rpm of the selected shift point, the shift indicator flashes and the tach needle turns pink. When the shift point is reached, the shift indicator flashes rapidly and the needle turns red.


  • The seat complements the tail section and allows the rider to make easy contact with the rear seat step, which contributes feedback from the chassis.
  • The seat narrows at the front, contributing to the slim riding position and making it easier for the rider’s feet to reach the pavement.
  • Five-position adjustable clutch lever allows riders to tailor the lever position to suit their hand size.





2020 Kawasaki Ninja ZX-6R ABS KRT – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11,299 USD
Canada MSRP Price: $13,299 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

Engine 4-stroke, 4-cylinder, DOHC, 16-valve, liquid-cooled
Displacement 636cc
Bore x Stroke 67.0 x 45.1mm
Compression Ratio 12.9:1
Fuel System DFI® with 38mm Keihin throttle bodies (4) and oval sub-throttles
Ignition TCBI with digital advance
Transmission 6-speed, return shift
Final Drive Sealed chain
Electronic Rider Aids Kawasaki Traction Control (KTRC), Power Mode, Kawasaki Intelligent anti-lock Brake System (KIBS),
Kawasaki Quick Shifter (KQS) (upshift only)
Front Suspension / Wheel Travel 41mm inverted Showa SFF-BP fork with top-out springs, stepless compression and rebound damping,
adjustable spring preload/4.7 in
Rear Suspension / Wheel Travel Bottom-link Uni-Trak® with gas-charged shock, stepless compression damping adjustment, 25-way
adjustable rebound damping, fully adjustable spring preload/5.9 in
Front Tire 120/70 ZR17
Rear Tire 180/55 ZR17
Front Brakes Dual 310mm petal discs with dual radial-mounted Nissin 4-piston monobloc calipers and KIBS ABS
Rear Brakes Single 210mm petal discs with single-piston caliper and KIBS ABS
Frame Type Tubular, diamond frame
Rake/Trail 23.5°/4.0 in
Overall Length 79.7 in
Overall Width 28.0 in
Overall Height 43.3 in
Ground Clearance 5.1 in
Seat Height 32.7 in
Curb Weight 430.0 lb**
Fuel Capacity 4.5 gal
Wheelbase 55.1 in
Color Choices Lime Green/Ebony
Warranty 12 Month Limited Warranty
Kawasaki Protection Plus™ (optional) 12, 24, 36 or 48 months
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions
equipment adds approximately 2.2 lb.



2020 Kawasaki Ninja ZX-6R ABS KRT – Totalmotorcycle.com  Canadian Specifications/Technical Details


Displacement 636cc
Type 4-stroke, In-Line Four
Bore and stroke 67.0 x 45.1 mm
Cooling Liquid
Compression ratio 12.9:1
Valve system DOHC, 16 valves (4 valves per cylinder)
Fuel system Fuel Injection: 38mm x 4 with oval sub-throttles
Ignition Digital
Lubrication Forced lubrication, wet sump


Front: type Dual semi-floating 310 mm (x t5 mm) petal discs
Front: calipers Dual radial-mount, monobloc, opposed 4-piston, Nissin
Rear: type Single 220 mm (x t5 mm) petal disc
Rear: calipers Single-bore pin-slide, aluminium piston, Nissin


Overall length 2,025 mm
Overall width 710 mm
Overall height 1,100 mm
Wheelbase 1,400 mm
Ground clearance 130 mm
Seat height 830 mm
Curb mass** 195 kg
Fuel capacity 17 litres


Transmission 6-speed, return
Final drive Sealed chain
Primary reduction ratio 1.900 (76/40)
Gear ratio: 1st 2.846 (37/13)
Gear ratio: 2nd 2.200 (33/15)
Gear ratio: 3rd 1.850 (37/20)
Gear ratio: 4th 1.600 (32/20)
Gear ratio: 5th 1.421 (27/19)
Gear ratio: 6th 1.300 (26/20)
Final reduction ratio 2.867 (43/15)
Clutch Wet multi-disc, manual


Type Perimeter, pressed-aluminium
Wheel travel: front 120 mm
Tire: front 120/70ZR17M/C (58W)
Wheel travel: rear 151 mm
Tire: rear 180/55ZR17M/C (73W)
Caster (rake) 23.5°
Trail 101 mm
Steering angle (left/right) 27° / 27°


Maximum Power 100 kW {136 PS} / 13,500 rpm
Maximum Torque 71 N·m {7.2 kgƒ·m} / 11,000 rpm


Suspension, front 41 mm inverted fork (SFF-BP) with rebound and compression damping and spring preload adjustability, and top-out springs
Suspension, rear Bottom-Link Uni Trak, gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability


Warranty 12 months warranty





2020 Kawasaki Ninja ZX-6R ABS KRT – Totalmotorcycle.com European Specifications/Technical Details





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
