2020 Kawasaki Vulcan 900 Custom Guide

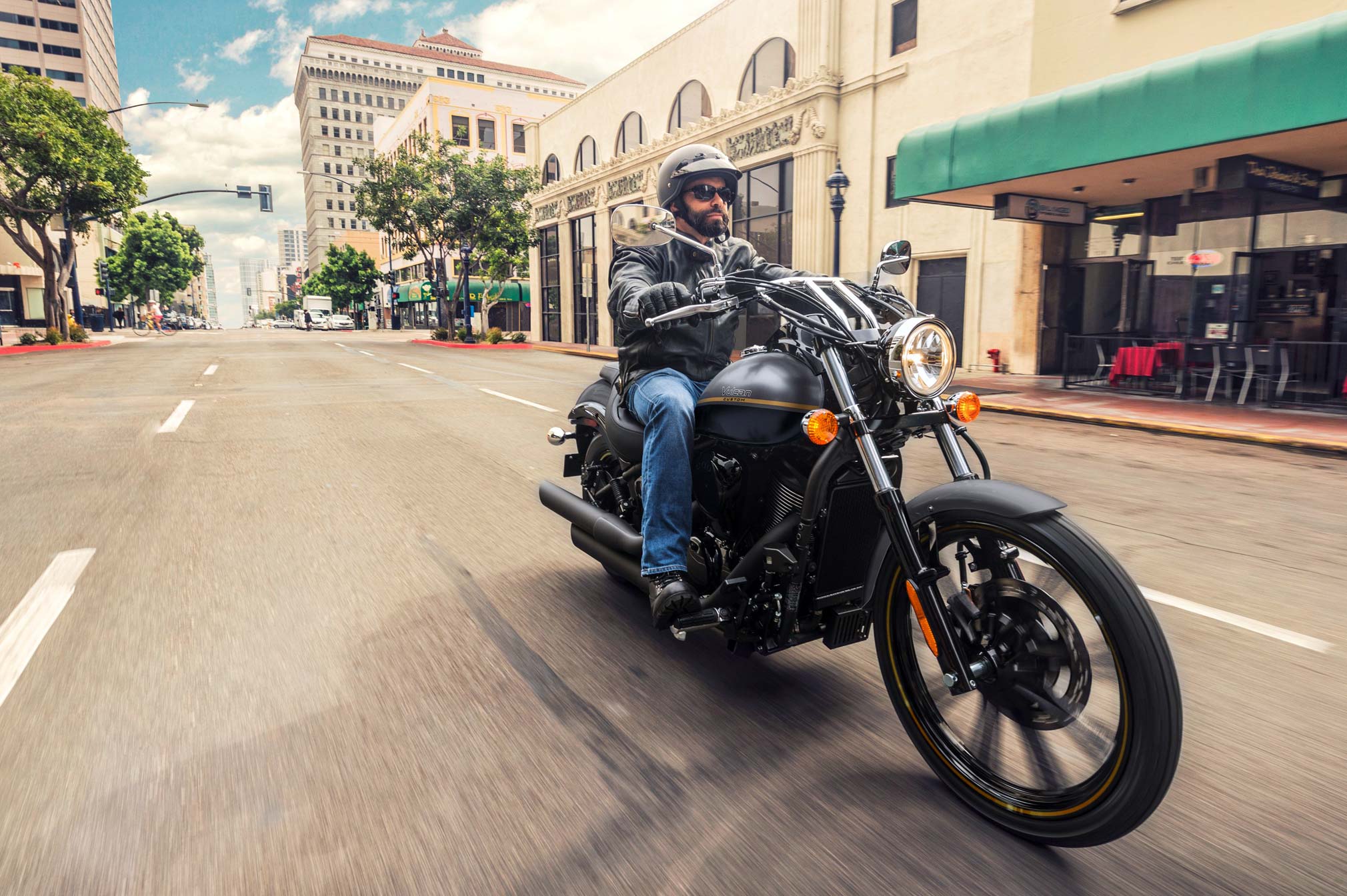

2020 Kawasaki Vulcan 900 Custom

2020 Kawasaki Vulcan 900 Custom 2020 Kawasaki Vulcan 900 Custom 2020 Kawasaki Vulcan 900 Custom 2020 Kawasaki Vulcan 900 Custom 2020 Kawasaki Vulcan 900 Custom

2020 Kawasaki Vulcan 900 Custom : BLACKED OUT DRAG STYLE.

2020 Kawasaki Vulcan 900 Custom.

The Vulcan 900 Custom is a factory built custom bike that really stands out from the crowd – it is the result of Kawasaki’s pursuit of the essence of a true custom motorcycle. A study in contrasts, its low-set rear, massive rear tire and solid disc wheel are juxtaposed against a clean and lightweight front end.

The Vulcan® 900 Custom shares all of the attributes of the Vulcan 900 Classic but features custom styling with 21-inch front tire, drag-style handlebar and blacked-out parts that help present a more aggressive appearance.

The Vulcan® 900 Custom cruiser’s styling exudes attitude, from its tall front tire to blacked-out mufflers. In addition, the low-slung gunfighter-type seat, massive rear tire, stylish front-end accentuated by a thin 21” cast wheel and meticulously sculpted bodywork are standout features. For 2020, the Vulcan 900 Custom motorcycle is available in Metallic Matte Graphite Gray/Metallic Flat Spark Black.

The 900cc V-twin powered Kawasaki Vulcan® 900 motorcycle has all the style and attitude of a one-of-a-kind build. From the detailed paint job to the intense exhaust, the Vulcan 900 is an artful expression of individuality. Enjoy the dynamic fusion of hand-built design and premium fit and finish of the Vulcan 900—a tantalizing combination that could only come from Kawasaki.

FEATURING:
FUEL-INJECTED 903cc V-TWIN ENGINE
LOW SEAT HEIGHT

ADDITIONAL VEHICLE FEATURES:
Wide drag bars and forward-mounted footpegs
Low center of gravity for easy handling
Custom styling with teardrop tank
Parallel slash cut pipes
Pinstripe wheels







2020 Kawasaki Vulcan 900 Custom Totalmotorcycle.com Key Features
  • STYLISH CAST WHEELS
  • LARGEST REAR TIRE IN CLASS
  • AGGRESSIVE FLAT HANDLEBAR AND FORWARD FOOTPEGS
  • BELT DRIVE
  • LOW SEAT HEIGHT WITH SPORTY GUNFIGHTER STYLING
  • BLACK PIPES, ENGINE CASES, AIR FILTER COVER AND WHEELS







2020 Kawasaki Vulcan 900 Custom Totalmotorcycle.com Features and Benefits

903cc V-Twin, SOHC Engine

  • Tuned to deliver lots of torque from low rpm.
  • Smooth and reliable.
  • Gear-driven balancer allows use of single pin crankshaft for that classic V-twin rumble without the heavy vibration.

Liquid and Air Cooling

  • Finned cylinders and heads combine with liquid cooling to provide exceptional thermal control.
  • Maintains consistent engine temperatures for long engine life and sustained power.
  • Automatic fan keeps things cool even in traffic.
  • Includes temperature warning light.

Rubber-Mounted Engine

  • Eliminates engine vibration at all speeds.

Positive Neutral Finder(KP)

  • Just lift the shift pedal from first gear at a stop to select neutral easily, every time.
  • Dual throttle valves(KP) provide optimum performance and rideability. The sub throttles, located behind the main throttle valve, are controlled by the ECU so that the DFI® system retains more precise throttle response, similar to a constant velocity carburetor.
  • Fine-atomizing fuel injectors produce a fine fuel mist for better acceleration, combustion and fuel consumption.

Kevlar-Reinforced Belt Drive

  • Lower unsprung weight than shaft drive to improve ride quality and suspension action.
  • More efficient so more power reaches the rear wheel, compared to shaft drive.
  • Cleaner and lower maintenance than chain drive.



FRAME

Double Cradle Frame

  • Large-diameter box section backbone is very rigid, allows use of a larger fuel tank, and helps contribute to high stability and lightweight handling at low speeds.
  • Triangular swingarm appears to be a hardtail design, but acts on a single shock hidden beneath the seat.
  • Long and low for minimal seat height, maximum visual impact.
  • Fork offset and frame geometry combine for light, low-effort handling at ultra-low speeds.
  • Long wheelbase adds to highway stability.
  • Ultra-low 27-inch seat height allows riders to easily plant both-feet on the ground at stops.
  • Laid-back riding comfort for two.

Front and Rear Disc Brakes

  • A 300mm front and 270mm rear disc have twin-piston calipers for some of the best stopping power in the class.
  • Designed by hand, the cast wheel’s 18 “spokes” are tapered and flanged in two directions for an exquisite custom appearance.
  • Narrow profile for that custom American chopper look.
  • 180mm rear tire mounted on a solid 15-inch cast wheel provides added stability while projecting a powerful image.

Wider tire than that found on most large-displacement cruisers.









2020 Kawasaki Vulcan 900 Custom – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8,499 USD
Canada MSRP Price: $10,199 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

POWER
Engine 4-stroke, 55° V-twin, 4 valves per cylinder, SOHC, liquid-cooled
Displacement 903cc/55.10 cu in
Bore x Stroke 88.0 x 74.2mm
Compression Ratio 9.5:1
Maximum Torque 58.2 lb-ft @ 3500 rpm
Fuel System DFI® 34mm throttle bodies (2), with sub-throttle valves
Ignition TCBI with digital advance
Transmission 5-speed with positive neutral finder
Final Drive Kevlar-reinforced belt
PERFORMANCE
Front Suspension / Wheel Travel 41mm hydraulic telescopic fork/5.9 in
Rear Suspension / Wheel Travel Uni-Trak® swingarm, 7-way adjustable spring preload/4.1 in
Front Tire 80/90×21
Rear Tire 180/70×15
Front Brakes Single 300mm hydraulic disc
Rear Brakes Single 270mm hydraulic disc
DETAILS
Frame Type Double cradle, high-tensile steel
Rake/Trail 33°/7.2 in
Overall Length 94.7 in
Overall Width 35.2 in
Overall Height 44.1 in
Ground Clearance 5.5 in
Seat Height 27.0 in
Curb Weight 610.8 lb**
Fuel Capacity 5.3 gal
Wheelbase 64.8 in
Color Choices Metallic Matte Graphite Gray/Metallic Flat Spark Black
Warranty 12 Month Limited Warranty
Kawasaki Protection Plus™ (optional) 12, 24, 36, or 48 months
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California
evaporative emissions equipment adds approximately 2.2 lb.







2020 Kawasaki Vulcan 900 Custom – Totalmotorcycle.com  Canadian Specifications/Technical Details

ENGINE

Displacement903cc
Type4-stroke, V-Twin
Bore and stroke88.0 x 74.2 mm
CoolingLiquid
Compression ratio9.5:1
Valve systemSOHC, 4 valves per cylinder
Fuel systemDigital fuel injection with dual 34 mm throttle bodies
IgnitionTCBI with digital advance
LubricationForced lubrication (wet sump)

BRAKES

Front: typeSingle 300 mm disc
Front: calipers2-piston calipers
Rear: typeSingle 270 mm hydraulic disc
Rear: calipers2-piston calipers

DIMENSIONS

Overall length2,405 mm (94.7 in.)
Overall width895 mm (35.2 in.)
Overall height1,120 mm (44.1 in.)
Wheelbase1,645 mm (64.8 in.)
Ground clearance140 mm (5.5 in.)
Seat height685 mm (27.0 in.)
Curb mass**277 kg (611 lbs.)
Fuel capacity20 liters (4.4 gal.)

DRIVETRAIN

Transmission5-speed, constant mesh, return shift
Final driveKevlar belt
Primary reduction ratio2.184 (83/38)
Gear ratio: 1st2.786 (39/14)
Gear ratio: 2nd1.889 (34/18)
Gear ratio: 3rd1.360 (34/25)
Gear ratio: 4th1.107 (31/28)
Gear ratio: 5th0.963 (26/27)
Final reduction ratio2.063 (66/32)
ClutchWet multi-disc, manual

FRAME

TypeDouble-cradle, high-tensile steel
Wheel travel: front150 mm (5.9 in.)
Tire: front80/90-21
Wheel travel: rear103 mm (4.1 in.)
Tire: rear180/70-15
Caster (rake)33°
Trail182 mm (7.1 in.)
Steering angle (left/right)36° / 36°

PERFORMANCE

Maximum Power37 kW {50.0 PS} @ 5,700 rpm
Maximum Torque78 N·m {8.0 kgƒ·m} @ 3,500 rpm

SUSPENSION

Suspension, front41 mm hydraulic telescopic fork
Suspension, rearUni-Trak with 7-way adjustable preload

DETAILS

Warranty12 months warranty









2020 Kawasaki Vulcan 900 Custom – Totalmotorcycle.com European Specifications/Technical Details









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
