2020 Yamaha PW50 Guide

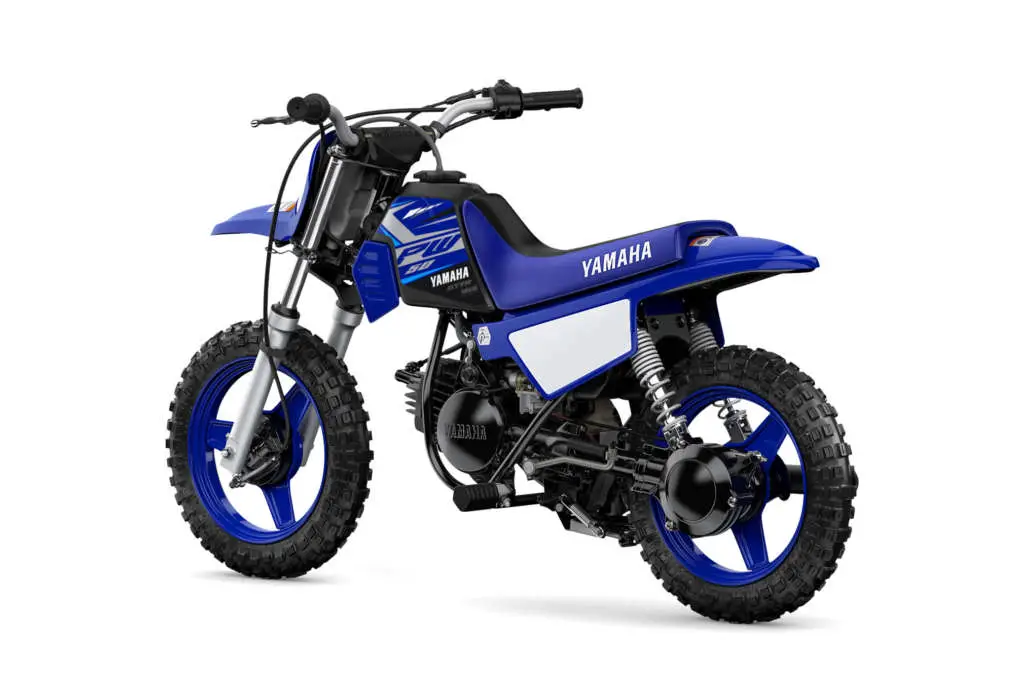

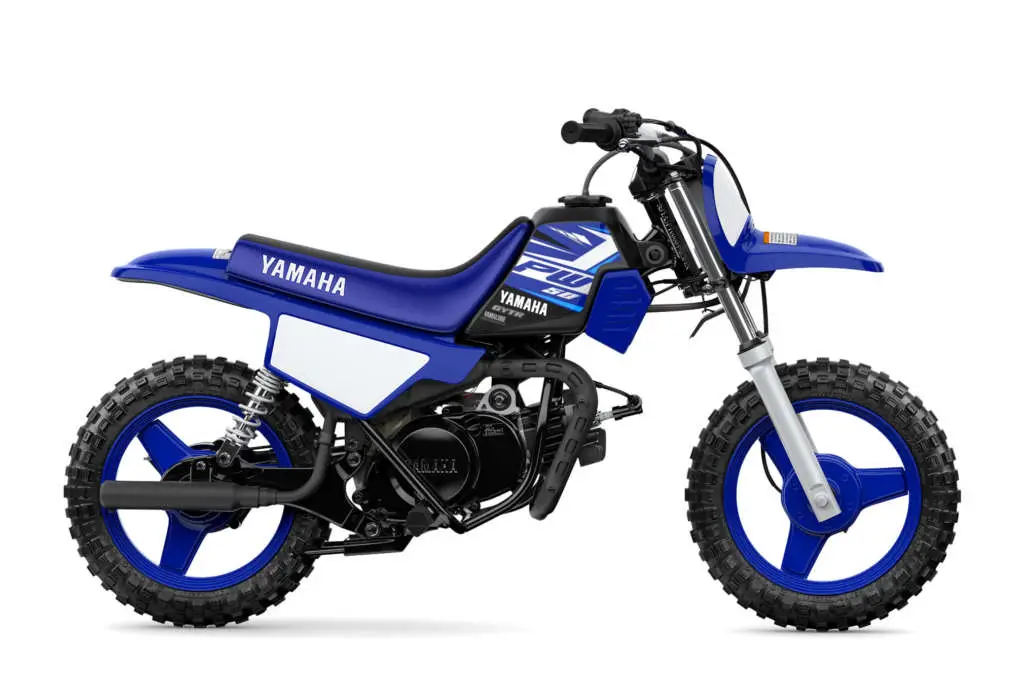

2020 Yamaha PW50

2020 Yamaha PW50 2020 Yamaha PW50 2020 Yamaha PW50

THE 1ST CHOICE.

2020 Yamaha PW50:

Features like adjustable throttle and fully automatic transmission ensure your child’s first riding experience will be all smiles.

One of the industry’s best-selling mini-bikes, the affordable PW50 is a fantastic entry-level youth bike that’s helped young riders learn the ropes of motorcycling for decades.

PW50
When it comes to kids’ mini-bikes, Yamaha is the clear leader. With the PW50’s rider-friendly design it’s easy to see why this 50cc 2-stroke is a firm favourite with kids and parents. Safety features include an adjustable throttle which allows parents to limit top speed to suit the rider’s skill level – and the enclosed shaft drive reduces maintenance chores. And there’s no gear shifting to worry about, its zippy 50cc 2-stroke engine drives through a fully-automatic gearbox for simple ‘twist-and-go’ performance.

Off-road adventures begin here.
At just 39 kg, this lightweight and compact mini-bike is the ideal way for your child to have hours of fun while developing their riding skills.

ENGINE
Air-cooled, 49 cc, reed-valve, 2-stroke single is mildly tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.

RIDER CONFIDENCE
A class-lowest 485 mm (19.1″) seat height creates a handling-enhancing low centre of gravity and allows most riders to put both feet on the ground for added confidence.





2020 Yamaha PW50 Totalmotorcycle.com Key Features
  • Separate 2-stroke oil tank for ease of use
  • 50cc 2-stroke engine with fully-automatic gearbox
  • Reliable shaft drive for reduced maintenance
  • Simple throttle limiter assures parental control
  • Lightweight handling and compact dimensions
  • Yamaha design, quality and reliability





2020 Yamaha PW50 Totalmotorcycle.com Features and Benefits

ENGINE

  • Air-cooled, 49 cc, reed-valve, 2-stroke single is mildly tuned to deliver predictable power that gently eases the new rider up the off-road learning curve.
  • Mikuni VM12SC carb
    • easy access handlebar / dash mounted choke lever
    • good fuel economy
    • crisp throttle response
  • Reed-valve intake system.
    • smooths power delivery
    • widens the power band
  • Single-speed fully automatic transmission.
    • twist the throttle and go!
    • allows young riders to concentrate on the basics of riding without worrying about clutching and shifting
  • Shaft drive system.
    • virtually maintenance-free
    • comes fully enclosed for added protection & durability
    • no chain to worry about adjusting or lubricating
  • Exclusive Autolube Oil Injection System.
    • eliminates the hassle of fuel/oil premixing
    • system precisely meters the exact amount of oil required by the engine
  • Easy-access, washable foam air filter reduces tune-up costs.
  • Maintenance-free capacitor discharge ignition (CDI).
    • produces a strong spark for fast starts
    • provides precise ignition timing/mapping for optimum engine performance at all rpm
  • Lightweight exhaust system with heat shields.
    • quiet design
    • exhaust pipe has been routed away the from the rider to avoid accidental contact burns
    • “cleanable” screen-type spark arrestor
    • heat shields protect young riders from hot components

CHASSIS/SUSPENSION

  • Rugged steel backbone-type frame
  • Class-lowest 485 mm (19.1″) seat height
    • creates a handling-enhancing low centre of gravity
    • allows most riders to put both feet on the ground for added confidence
  • 22 mm telescopic front fork with 60 mm (2.4″) of travel smooths out the bumps.
  • Dual rear shock suspension with 50 mm (2″) of wheel travel
  • Front and rear drum brakes
    • provide strong stopping power
    • hand-operated brake levers are similar to those used on bicycles for familiarity
  • Durable, mag-style wheels
    • no need to tighten or replace damaged spokes
    • easy to clean too!
  • Knobby tires
    • provide good traction in the dirt
  • Specially-designed, one-piece rear fender, side panels and seat.
    • easily removed for cleaning or maintenance
  • Rugged plastic body components.
    • resist damage in the event of a tip-over
    • YZ inspired front and side number plates for that big bike look
    • Team Yamaha-inspired colour and graphics

SAFETY FEATURES

    • Heat shields on engine and exhaust protect young riders from hot components.
    • Adjustable speed limiter screw on throttle housing restricts acceleration and top speed.
    • Removable exhaust pipe restrictor allows parents to increase top speed as skills improve.
    • Start/Run switch prevents unit from moving while in the start position.

IMPORTANT NOTE: Adult supervision and proper protective riding gear, including a helmet, are a must when a youngster is operating a PW50.





2020 Yamaha PW50 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $1,499 – Team Yamaha Blue
Canada MSRP Price: $1,799 CDN
Europe/UK MSRP Price: £See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU

Engine Type 49cc air-cooled 2-stroke; reed-valve induction
Bore x Stroke 40.0mm x 39.2mm
Compression Ratio 6.0:1
Fuel Delivery VM12 carburetor
Ignition CDI
Transmission Wet centrifugal automatic
Final Drive Shaft
Suspension / Front 26mm telescopic fork; 2.4-in travel
Suspension / Rear Unit swingarm; 2.0-in travel
Brakes / Front Drum
Brakes / Rear Drum
Tires / Front 2.50-10-4PR
Tires / Rear 2.50-10-4PR
L x W x H 49.0 in x 24.0 in x 27.8 in
Seat Height 18.7 in
Wheelbase 33.7 in
Rake (Caster Angle) 25.5°
Trail 2.0 in
Maximum Ground
Clearance
3.7 in
Fuel Capacity** 0.5 gal
Wet Weight*** 90 lb
Warranty 90 Day (Limited Factory Warranty)
Color Team Yamaha Blue

*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.





2020 Yamaha PW50 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
Engine
2-stroke, air-cooled, reed-valve, single
Displacement
49cc
Bore and Stroke
40 x 39.2mm
Compression Ratio
6.0:1
Maximum Torque
0.36kg-m (2.6 ft-lb)@ 4,500 rpm
Fuel Delivery
Mikuni VM12SC
Ignition / Starting
CDI / Kick
Transmission
Single-speed automatic (no clutch)
Final Drive
Shaft
CHASSIS
Suspension (Front)
26 mm fork / 60mm (2.4″) wheel travel
Suspension (Rear)
Unit swingarm / 50 mm (2″) wheel travel
Brakes (Front)
Drum
Brakes (Rear)
Drum
Tires (Front)
2.50-10 4PR
Tires (Rear)
2.50-10 4PR
CRITICAL DATA
Length
1,245 mm (49″)
Width
610 mm (24″)
Height
705 mm (27.8″)
Wheelbase
855 mm (33.7″)
Ground Clearance
95 mm (3.7″)
Seat Height
475 mm (18.7″)
Fuel Capacity
2 litres (0.4 imp. gallons)
Wet Weight
41 kg (90 lb)
Colour(s)
Yamaha Blue





2020 Yamaha PW50 – Totalmotorcycle.com European Specifications/Technical Details

Engine

Engine type
air-cooled, 2-stroke, Forward-inclined single cylinder, reed valve
Displacement
49cc
Bore x stroke
40.0 mm x 39.2 mm
Compression ratio
6.0 : 1
Maximum power
Maximum torque
Lubrication system
Yamaha Autolube
Clutch type
Wet, centrifugal automatic
Ignition system
CDI
Starter system
Kick
Final transmission
Shaft
Fuel system
Mikuni VM12/1

Chassis

Frame
Steel tube backbone
Front travel
60 mm
Caster angle
25º
Trail
50mm
Front suspension system
Telescopic forks
Rear suspension system
Unit Swing
Rear travel
50 mm
Front brake
Drum mm
Rear brake
Drum mm
Front tyre
2.50-10 4PR
Rear tyre
2.50-10 4PR

Dimensions

Overall length
1,245 mm
Overall width
575 mm
Overall height
715 mm
Seat height
485 mm
Wheel base
855 mm
Minimum ground clearance
105 mm
Wet weight (including full oil and fuel tank)
39 kg
Fuel tank capacity
2.0litres
Oil tank capacity
0.35litres







2020 Yamaha PW50 – Totalmotorcycle.com Australian Specifications/Technical Details



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
