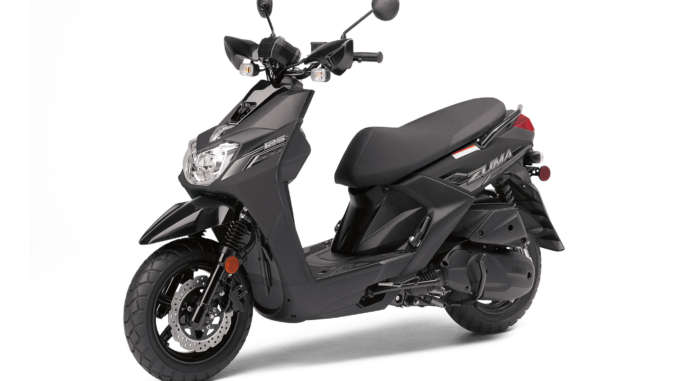

2020 Yamaha Zuma 125:
The definitive option in its class, with ultra‑modern rugged styling, fuel efficient power and big features in a compact package.
2020 Yamaha Zuma 125 Totalmotorcycle.com Key Features
Rugged, Modern Design
Beneath the sleek styling, the Zuma 125 is built around a strong steel frame with fat, aggressive tires on cast aluminum wheels, tough suspension, and protective off-road-style brush deflectors and fork tube boots. This scooter boasts capability on roads of all sorts, with plenty of attitude for your daily commute.
Potent Fuel Injected Engine
Powering the Zuma 125 is a compact 125cc 4-stroke engine with 4 valves, a 10:1 compression ratio, ceramic-composite cylinder liner, and electronic fuel injection—giving this scooter modern reliability and economical performance. With an amazing 103 mpg* and a 1.7- gallon fuel tank, you get plenty of range, too.
A fully-automatic V-belt transmission and push-button electric starting make the Zuma 125 super-convenient transportation. Standard center and side stands, along with a locking cover on the ignition switch, make it easy and secure to park, too.
Roomy, Step- Through Ergonomics
There’s room for two atop the Zuma 125’s seat, and lots of locking storage beneath it. The step-through floorboards making getting on and off a breeze, too.
2020 Yamaha Zuma 125 Totalmotorcycle.com Features and Benefits
Potent Fuel Injected Engine
Zuma 125’s fuel-injected, 125cc single cylinder, 4-stroke engine pumps out lots of power for its size, using an SOHC 4-valve head with 10:1 compression ratio and ceramic-composite cylinder plating. Fuel injection provides the optimal fuel mixture for varying conditions, andthat means easy cold starts, too.
Pushbutton electric starting makes the Zuma 125 super-convenient for transportation.
For reliability and easy maintenance, simple wet-sump lubrication is used. Forced air cooling system helps keep engine temperatures under control, even while idling at stoplights, for maximum efficiency and longer engine life.
Fully automatic, V-belt transmission with centrifugal clutch provides easy, twist-the-throttle-and-go operation with great off-the-line acceleration.
—Ready to Get Dirty
Oiled-paper type air filter helps trap dirt before it gets to your engine, even when riding on unpaved roads. The V-belt housing has its own off-road-style wet-foam air filter for durability.
Upswept muffler incorporates exhaust catalyst technology to reduce air pollution and meet emission regulations.
Hardy Steel Frame
Robust steel-tube frame is light but strong, and features a step-through design for easy mounting. A two-stage electrostatic painting process provides a durable, corrosion-resistant finish.
Telescopic fork features beefy outer tubes for strength, while fork boots help protect the large 33mm inner tubes from debris. The swingarm features twin rear shocks with a full 3.1 in of travel for riding comfort on the street and unpaved roads, too.
Generous Fuel Range
Fuel tank holds 1.7 gallons for plenty of cruising range. Fuel tank emissions system includes a charcoal canister to control gasoline evaporation and reduce air pollution.
—Heavy-Duty Tires and Wheels
Fat 120/70-12 front and 130/70-12 rear tires have an aggressive looking block pattern for great handling on unpaved roads and on the street. Tires run on lightweight five-spoke die-cast aluminum wheels.
—High Quality Braking
245mm hydraulic front disc and 200mm rear disc brakes provide plenty of stopping power, while the wave-type front rotor design adds cutting-edge style.
A plush and roomy riding position is ready for two, with a narrow seat design for easier flat-footing at stops, and plenty of leg space in front of the rider’s seat. Meanwhile, the passenger gets secure handholds that blend cleanly into the Zuma 125’s body design.
Aggressive Headlights and Styling
Two bright halogen headlights light the way, with the sculpted bodywork smoothly wrapping around the aggressive lighting design.
—Plenty of Storage
The underseat storage compartment’s cavernous 7.7-gallon capacity is roomy enough for a full-face helmet, while a cup holder and fold-out cargo hook on the dash makes it easy to bring it all with you.
—Modern Gauge Package
The Zuma 125’s stylish LCD meter features a fuel gauge as well as a full range of indicator lights.
—Secure and Convenient
Zuma 125 provides both a centerstand and side stand for parking convenience. For extra security when parked, the main switch is equipped with a keyhole lock cover. And the fuel filler is found just left of the ignition switch for easy refueling.
2020 Yamaha Zuma 125 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3,499 – Sandy Beige
Canada MSRP Price: $NA CDN
Europe/UK MSRP Price: £See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU
Engine Type 125cc forced air-cooled, 4-stroke SOHC single; 4
Bore x Stroke 52.4mm x 57.9mm
Compression Ratio 10.0:1
Fuel Delivery Fuel injection
Ignition Digital TCI: Transistor Controlled Ignition
Transmission V-Belt automatic
Suspension / Front Telescopic forks
Suspension / Rear Dual shocks
Brakes / Front Hydraulic disc, 245mm
Brakes / Rear Hydraulic disc, 200mm
Tires / Front 120/70-12
Tires / Rear 130/70-12
L x W x H 75.2 in x 30.1 in x 44.3 in
Seat Height 30.7 in
Wheelbase 51.4 in
Rake (Castor Angle) 27.0°
Trail 3.7 in
Fuel Capacity 1.7 gal
Fuel Economy** 103 mpg
Wet Weight*** 262 lb
Warranty 1 Year (Limited Factory Warranty)
Color Matte Black; Ultramarine Blue
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.
