2022 Indian FTR1200R Carbon Guide

2022 Indian FTR1200R Carbon

2022 Indian FTR1200R Carbon 2022 Indian FTR1200R Carbon 2022 Indian FTR1200R Carbon 2022 Indian FTR1200R Carbon 2022 Indian FTR1200R Carbon 2022 Indian FTR1200R Carbon

2022 Indian FTR1200R Carbon : AS PREMIUM AS IT GETS.

Introducing the 2022 Indian FTR1200R Carbon…

The FTR R Carbon boasts championship pedigree and premium street style.

The FTR R Carbon sits at the top as the premier model in the FTR lineup. In addition to the aforementioned features listed with the FTR S, the FTR R Carbon sets itself apart with carbon fiber tank covers, front fender and headlight nacelle, fully adjustable Öhlins gold front fork and gold piggyback shock, a black Akrapovic exhaust, premium seat cover, and numbered badging on the console.

All 2022 FTR models feature a retuned engine calibration that refines cold start performance, and delivers a smoother, more predictable throttle
response. Additionally, cylinder deactivation and refined heat channeling manages engine heat to keep riders more comfortable.

The FTR, FTR S, and FTR R Carbon models are outfitted with 17-inch cast aluminum wheels wrapped with Metzeler Sportec street tires – resulting
in precision handling in corners and nimble handling on the street. Smaller wheels, along with the bike’s front and rear suspension which offer 120mm of travel, contribute to a lower seat height by 1.4-inches – opening the door for more riders to throw a leg over the FTR. Additionally, the ProTaper handlebars were trimmed by 1.5-inches (40mm) to support the bike’s nimble handling and give riders more control.

Each FTR model packs a host of standard features that carry over from previous FTR iterations. An inverted front suspension tuned for the street,
along with radially mounted dual Brembo® brakes provide riders with exceptional control and superior stopping power, while cruise control contributes to a comfortable ride.

Indian Motorcycle Raises The Bar For Its Category

Defying FTR With Enhancements That Deliver The Ultimate Combination Of Style & Performance





2022 Indian FTR1200R Carbon Totalmotorcycle.com Key Features

INDIAN MOTORCYCLE RAISES THE BAR FOR ITS CATEGORY-DEFYING FTR WITH ENHANCEMENTS THAT DELIVER THE ULTIMATE COMBINATION OF STYLE & PERFORMANCE

 FTR Lineup Tuned for Optimal Street Performance with New 17-inch Wheels, Metzeler Sportec Tires & Lower Seat Height That Delivers World-Class Handling and Performance

Indian Motorcycle redefined what an American V-Twin can be with the introduction of its category-defying FTR platform in 2019. Now, America’s First Motorcycle Company is taking the beloved FTR platform to a whole new level with a host of enhancements to the 2022 FTR lineup. Born and evolved as the ultimate intersection of style and performance, the FTR updates include a thoughtfully refined engine, a suspension tuned for the street, and 17” tires and wheels; together delivering world-class performance while making the bike feel more compact and maneuverable.

“The FTR is unlike any other motorcycle in its ability to deliver superior performance while making a powerful statement of style and self-expression. The updates we’ve delivered further solidify that promise for even the most discerning riders,” said Mike Dougherty, President of Indian Motorcycle. “Indian Motorcycle has always pushed the bounds of motorcycling, innovated, and continuously improved and I think the new FTR is another great example of that.”

Amidst the ever-popular neo-retro segment, the FTR stands out thanks to its American heritage, iconic silhouette, and class-leading fit and finish.  In addition to style, the FTR delivers an unmatched feature set including a 4.3-inch digital touch screen display and a 1203cc liquid-cooled V-twin engine that produces 120 horsepower and 87 ft-lbs of torque.  With its perfect balance of style and performance the FTR lineup delivers a truly superior riding experience.

“The FTR has a totally unique feel, which riders of all experience levels love. Our aim was to preserve that DNA, while at the same enhance and refine the bike,” said Ben Lindaman, Product Director for Indian Motorcycle. “The end result is a stunning, one-of-a-kind motorcycle that oozes retro character but still begs you to twist the throttle and get after it.”

All new FTR models feature a retuned engine calibration that refines cold start performance, and delivers a smoother, more predictable throttle response.  Additional FTR lineup enhancements include the following:



FTR, FTR S & FTR R Carbon

The FTR, FTR S, and FTR R Carbon models are outfitted with 17-inch cast aluminium wheels wrapped with Metzeler Sportec street tires – resulting in precision handling in corners and nimble handling on the street. Smaller wheels, along with the bike’s front and rear suspension which offer 120mm of travel, contribute to a lower seat height by 1.4-inches – opening the door for more riders to throw a leg over the FTR. Additionally, the ProTaper handlebars were trimmed by 1.5-inches (40mm) to support the bike’s nimble handling and give riders more control.

Additional updates for the new FTR line further refine rider comfort. These three models offer fully adjustable front and rear suspension, a new feature added to the FTR base, as well as cylinder deactivation to manage engine heat when the motorcycle is idle.

Additionally, each FTR model packs a host of standard features that carry over from previous FTR iterations. An inverted front suspension tuned for the street, along with radially mounted dual Brembo brakes provide riders with exceptional control and superior stopping power, while cruise control contributes to a comfortable ride.



Accessories

An ideal platform for personalization, the FTR also receives an expanded offering of style, performance and comfort accessories. New style accessories include new tank pads available in black and clear, while a host of carbon fiber parts are now available, including chain guards, V-Covers, radiator guards and a 17-inch front fender. Riders can also upgrade their suspension with an Öhlins forks and shock kit, while riders looking to go the extra mile can add a rear rack bag, R Carbon Seat and a USB charging port.





2022 Indian FTR1200R Carbon Totalmotorcycle.com Features and Benefits

TOP NOTCH STYLING
Carbon fiber bodywork and numbered carbon badging constantly remind you just how exclusive your ride really is.

ADJUSTABLE ÖHLINS® SUSPENSION
Fully adjustable industry-leading Öhlins® forks and piggyback shocks let you customize the ride to perfectly fit your style.

PREMIUM SEAT
Top-of-the-line seat with paint matched subframe contributes to the striking fit and finish of the FTR R Carbon. You’ll get unmatched comfort–and emotion–every time you sit on it.

STREET DOMINATING PERFORMANCE
Incredible performance and handling, plus statement-making style to go along with it.

NIMBLE HANDLING
17 in wheels with Metzeler® Sportec® tires and street tuned suspension provide planted cornering, agility, and agile handling.

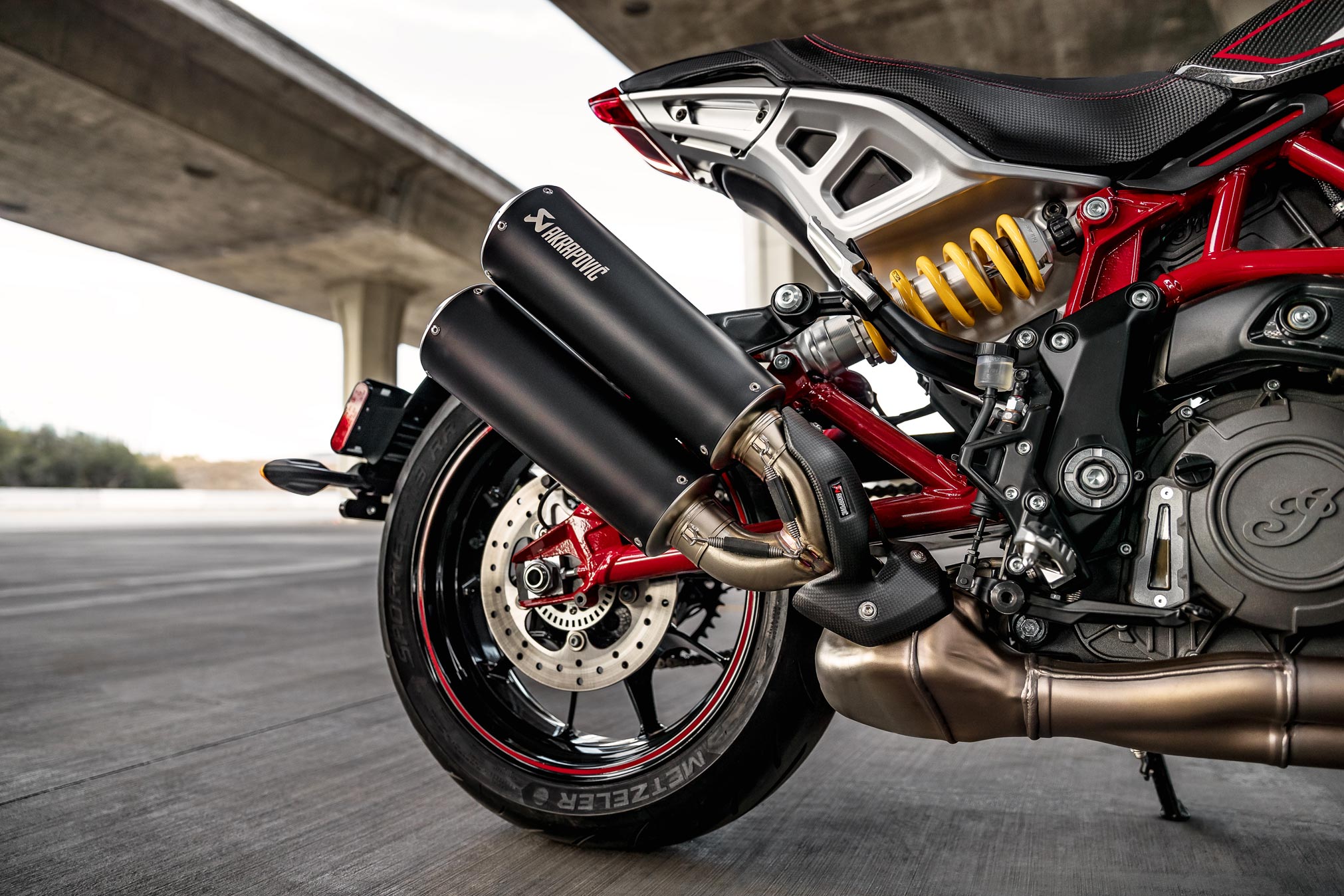

BLACKED-OUT AKRAPOVIC EXHAUST
Turn heads with a blacked-out Akrapovič® exhaust and fender to fender carbon fiber.

POISED FOR THRILLS
Class-leading 87 ft-lbs of torque and 120hp with smooth power delivery to push your heart to the back of your chest and your concerns to the back of your mind.

CONFIDENCE IN ALL CONDITIONS
Loaded with all the ride-enhancing technology you want and need.

RIDE MODES
Sport, Standard, and Rain modes with unique throttle maps and traction control intervention levels give you optimal performance for control in any condition.

RIDE COMMAND 4.3 IN TOUCHSCREEN
A 4.3 in customizable RIDE COMMAND LCD glove-touch screen with Bluetooth® lets you easily pair your mobile device and control your bike with the touch of your finger.

TAKE CONTROL
Ride confidently with lean-angle stability control, ABS with cornering pre-control, and wheelie control with rear lift mitigation. Rear Cylinder Deactivation and improved heat management ensure your thoughts are on the road, and not on staying cool.







2022 Indian FTR1200R Carbon – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ 16,999 USD
Canada MSRP Price: $ 19,999 CDN
Europe/UK MSRP Price: £ 15,599 GBP (On The Road inc 20% Vat)

Engine & Drivetrain
Bore x Stroke4.016 in x 2.898 in (102 mm x 73.6 mm)
Compression Ratio12.5:1
Displacement73 cu in (1203 cc)
Drive/Driven Clutch Assist & Slip, Multi-Plate
Electronic Fuel Injection System Closed Loop Fuel Injection / 60 mm Bore
Engine Type Liquid Cooled V-Twin
Exhaust Akrapovic® 2-1-2
Gear Ratio (1st)12.270 : 1
Gear Ratio (2nd)8.341 : 1
Gear Ratio (3rd)6.646 : 1
Gear Ratio (4th)5.639 : 1
Gear Ratio (5th)4.985 : 1
Gear Ratio (6th)4.278 : 1
Horsepower120 HP
Peak Torque87 ft-lb (117.9 Nm)
Peak Torque RPM6,000 rpm
Transmission/Final Drive2.647 : 1
Transmission/Primary Drive Gear Drive Wet Clutch
Dimensions
Fuel Capacity3.4 gal (12.9 L)
Ground Clearance6.5 in (17 cm)
GVWR948 lb (430 kg)
Lean Angle43°
Overall Height51 in (129.5 cm)
Overall Length87.5 in (2223 mm)
Overall Width32.7 in (830 mm)
Rake/Trail25.3° / 3.9 in ( 99.9 mm)
Seat Height30.7 in (780 mm)
Weight (Empty Tank / Full of Fuel)479 lbs (217 kg) / 513 lbs (232 kg)
Wheelbase60 in (1,524 mm)
Brakes
Front Brakes Brembo Dual 320mm t5 Rotor / 4 Piston Caliper
Rear Brakes Brembo Single 260mm t5 Rotor / 2 Piston Caliper
Tires / Wheels
Front Tire Metzeler Sportec 120/70ZR17 58W
Front Wheel Cast Black with Indy Red Pinstripe 17 in x 3.5 in
Rear Tire Metzeler Sportec 180/55ZR17 73W
Rear Wheel Cast Black with Indy Red Pinstripe 17 in x 5.5 in
Suspension
Front Fork Tube Diameter43 mm
Front Suspension Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork
Front Travel120 mm
Rear Suspension Ohlins Fully Adjustable Piggyback IFP
Rear Travel120 mm
Features
Color / Graphics Carbon Fiber
Factory Warranty2 Years, Unlimited Miles
Gauges N/A
Infotainment4.3″ Ride Command LCD Touchscreen w/ Bluetooth
Lights LED Headlight, Taillight, Turn Signals
Standard Equipment Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stabilitiy Control, Traction Control, Wheelie Control with Rear Lift Mitigation, USB Charge Port, Cruise Control)





2022 Indian FTR1200R Carbon – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain
Bore x Stroke4.016 in x 2.898 in (102 mm x 73.6 mm)
Compression Ratio12.5:1
Displacement73 cu in (1203 cc)
Drive/Driven Clutch Assist & Slip, Multi-Plate
Electronic Fuel Injection System Closed Loop Fuel Injection / 60 mm Bore
Engine Type Liquid Cooled V-Twin
Exhaust Akrapovic ® 2-1-2
Gear Ratio (1st)12.270 : 1
Gear Ratio (2nd)8.341 : 1
Gear Ratio (3rd)6.646 : 1
Gear Ratio (4th)5.639 : 1
Gear Ratio (5th)4.985 : 1
Gear Ratio (6th)4.278 : 1
Horsepower120 HP
Peak Torque87 ft-lb (117.9 Nm)
Peak Torque RPM6,000 rpm
Transmission/Final Drive2.647 : 1
Transmission/Primary Drive Gear Drive Wet Clutch
Dimensions
Fuel Capacity3.4 gal (12.9 L)
Ground Clearance6.5 in (17 cm)
GVWR948 lb (430 kg)
Lean Angle43°
Overall Height51 in (129.5 cm)
Overall Length87.5 in (2223 mm)
Overall Width32.7 in (830 mm)
Rake/Trail25.3° / 3.9 in ( 99.9 mm)
Seat Height (Laden)30.7 in (780 mm)
Weight (Empty Tank / Full of Fuel)479 lbs (217 kg) / 513 lbs (232 kg)
Wheelbase60 in (1,524 mm)
Brakes
Front Brakes Brembo Dual 320mm t5 Rotor / 4 Piston Caliper
Rear Brakes Brembo Single 260mm t5 Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires Metzeler Sportec 120/70ZR17 58W
Front Wheel Cast Black with Indy Red Pinstripe 17 in x 3.5 in
Rear Tires Metzeler Sportec 180/55ZR17 73W
Rear Wheel Cast Black with Indy Red Pinstripe 17 in x 5.5 in
Suspension
Front Fork Tube Diameter43 mm
Front Suspension Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork
Front Travel120 mm
Rear Suspension Ohlins Fully Adjustable Piggyback IFP
Rear Travel120 mm
Features
Color / Graphics Carbon Fiber
Factory Warranty2 Years, Unlimited Miles
Gauges N/A
Infotainment4.3″ Ride Command LCD Touchscreen w/ Bluetooth
Lights LED Headlight, Taillight, Turn Signals
Standard Equipment Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stability Control, Traction Control, Wheelie Control with Rear Lift Mitigation, USB Charge Port, Cruise Control)





2022 Indian FTR1200R Carbon – Totalmotorcycle.com Europe Specifications/Technical Details

Engine
Engine Type Liquid Cooled V-Twin
Displacement 1203 cc
Bore x Stroke 102 mm x 73.6 mm
Compression Ratio 12.5:1
Electronic Fuel Injection System Closed loop fuel injection / 60 mm bore
Performance
Peak Torque RPM 6000 rpm
Peak Torque 120 Nm
Drivetrain
Primary Drive Gear Drive Wet Clutch
Drive/Driven Clutch Assist & Slip, Multi-Plate
Final Drive 2.647:1
Gear Ratio (Overall)
1st 12.270 : 1
2nd 8.341 : 1
3rd 6.646 : 1
4th 5.639 : 1
5th 4.985 : 1
6th 4.278 : 1
Suspension
Suspension: Front – Type/Travel Ohlins Fully Adjustable Inverted Telescopic Cartridge Fork / 120mm
Suspension: Rear – Type/Travel Ohlins Fully Adjustable Piggyback IFP / 120mm
Chassis
Brakes/Front Brembo Dual 320mm t5 Rotor / 4 Piston Caliper
Brakes/Rear Brembo Single 260mm t5 Rotor / 2 Piston Caliper
Tires/Front Metzeler Sportec 120/70ZR17 58W
Tires/Rear Metzeler Sportec 180/55ZR17 73W
Wheels
Exhaust Akrapovic 2-into-1-into-2
Dimensions
Wheelbase 1525 mm
Seat Height 780 mm
Ground Clearance 165 mm
Overall Length 2223 mm
Overall Height 1295 mm
Overall Width 830 mm
Rake 25,3°
Trail 99.9 mm
Fuel Capacity 13.0L
GVWR 430kg
Weight (Empty tank / full of fuel) 217 kg / 232 kg
Features
Color / Graphics Carbon Fiber
Standard
Standard Equipment Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stability Control, Traction Control, Wheelie Control with Rear Lift Mitigation, USB Charge Port, Cruise Control)
Electrical
Gauges 4.3″ Ride Command LCD Touchscreen w/ Bluetooth
Ride Command®





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
