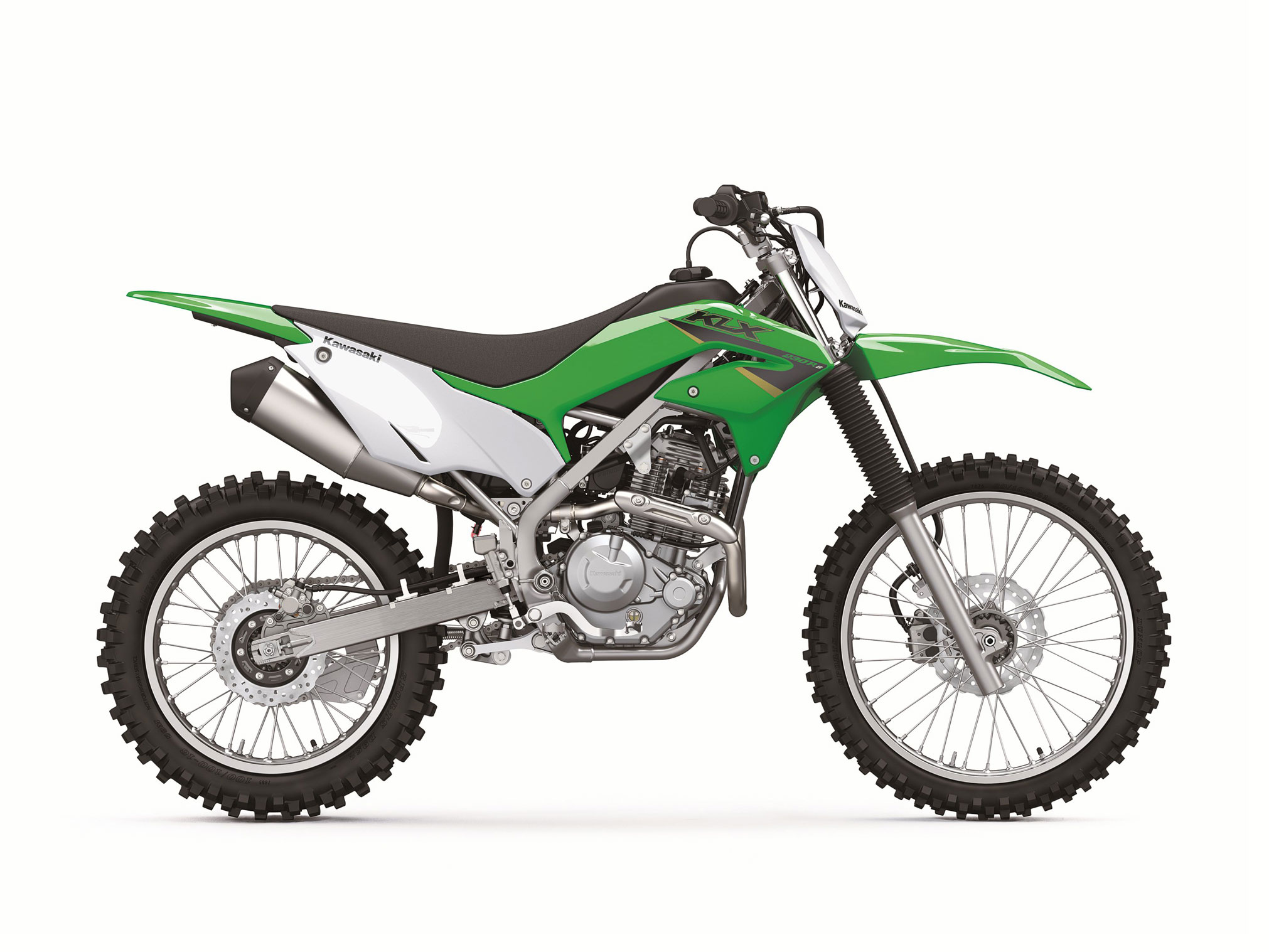

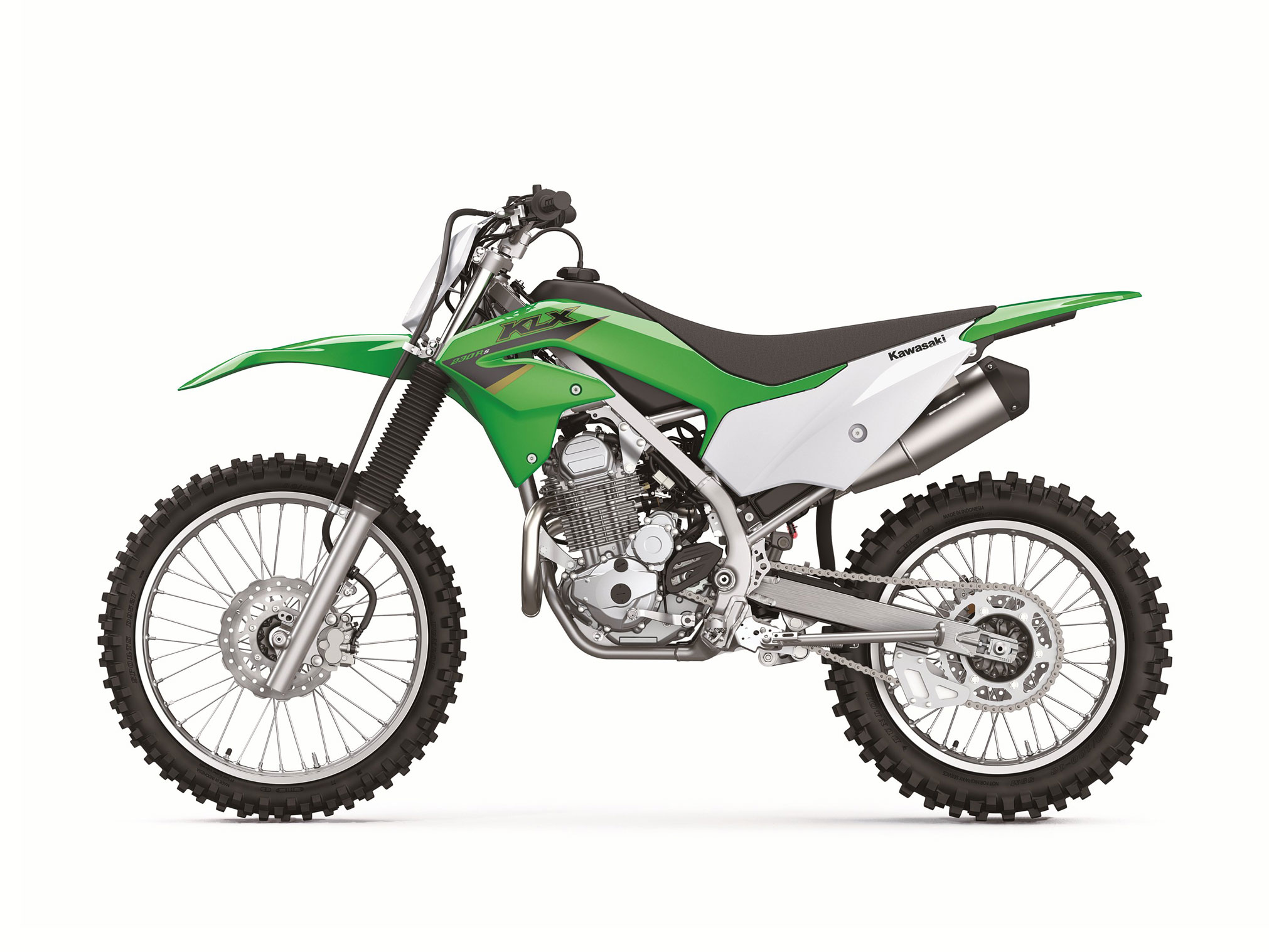

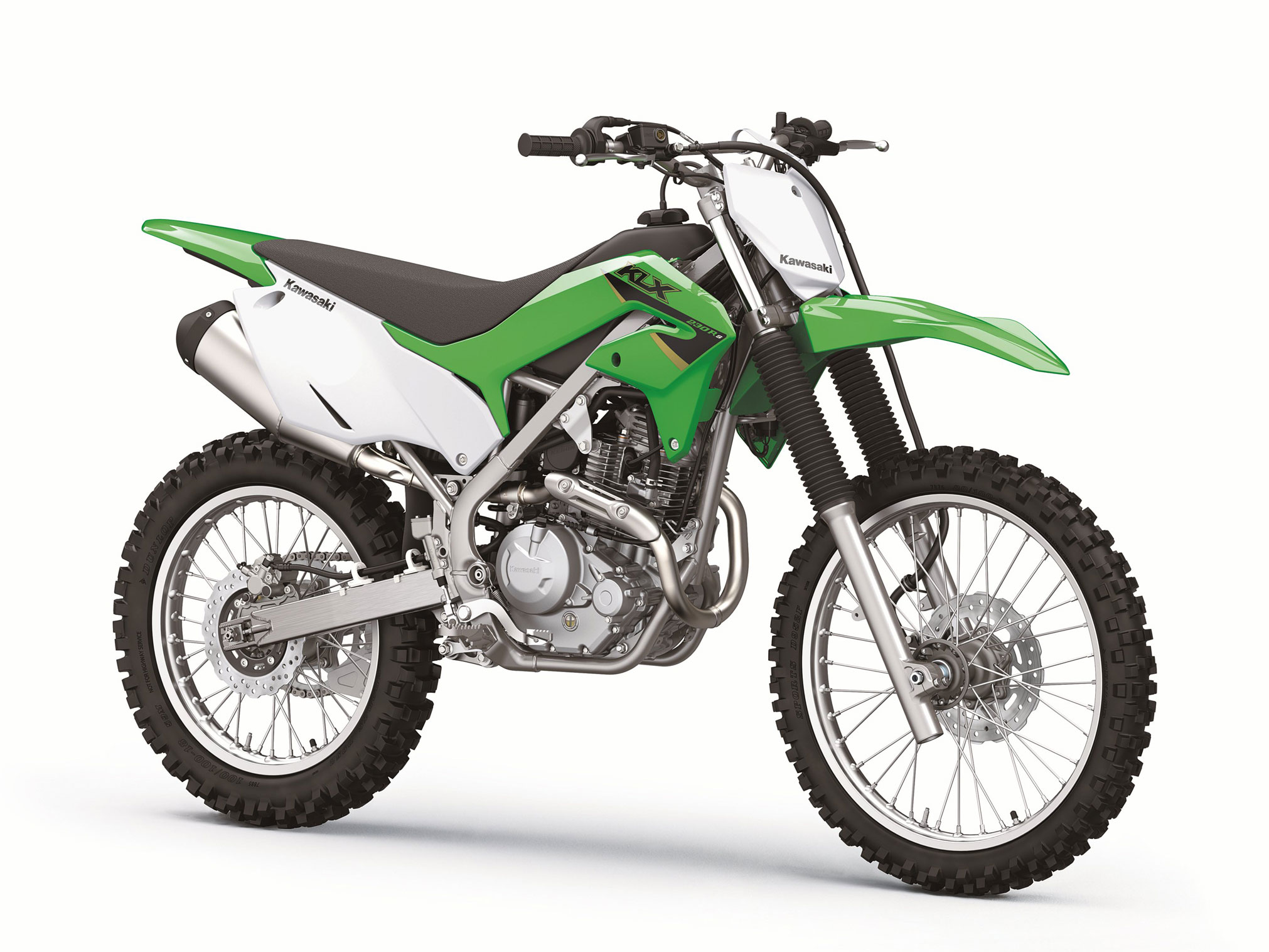

2022 Kawasaki KLX230RS: LOWER AND MODIFIED.
Introducing the 2022 Kawasaki KLX230RS…
The Kawasaki KLX230R and KLX230RS are full-size recreational trail bikes for off-road adventures. They share the same trail-focused engine and frame design as well as long travel suspension with ample ground clearance for enhanced off-road capability. The only difference between the two is that the KLX230RS has modified suspension that lowers overall seat height by one inch from the KLX230R. It’s just another way Kawasaki helps ensure that there is an affordable, capable, and durable motorcycle in the KLX lineup for every rider in the family to get out and enjoy off-road adventures.
The KLX230R off-road motorcycle is available in two model variations and has been purpose-built for serious fun in the dirt; with priority placed on both its engine and frame design. It was designed and built to be a lightweight and easily maneuverable motorcycle for a broad range of riders. A powerful 233cc fuel-injected, air-cooled four-stroke engine utilizes an electric starter and keyless ignition, and has been paired with a reliable, easy-to-use smooth-shifting six-speed transmission and manual clutch. The KLX230R comes equipped with full-size off-road wheels and tires, using a 21” front and 18” rear, and long travel suspension for optimal ground clearance. The shorter KLX230RS off-road motorcycle is ideal for riders who prioritize a lower seat height and ample ground clearance while offering a full-size recreational trail bike option. The KLX230RS features modified front and rear suspension that lowers overall seat height by one inch from the KLX230R.
2022 Kawasaki KLX230RS Totalmotorcycle.com Key Features
- 233cc FUEL-INJECTED FOUR-STROKE ENGINE
- LOW 35.4 INCH SEAT HEIGHT
- POWER FUEL-INJECTED, AIR-COOLED, FOUR-STROKE ENGINE
- ELECTRIC START
- STEEL PERIMETER FRAME
- LONG TRAVEL SUSPENSION
- FULL-SIZE WHEELS
- KX™-INSPIRED ERGONOMICS
- 50-STATE MODEL IS ELIGIBLE FOR CALIFORNIA “GREEN STICKER” REGISTRATION
- MOTOCROSS-INSPIRED ERGONOMICS AND STYLING
2022 Kawasaki KLX230RS Totalmotorcycle.com Features and Benefits
GET OUT AND PLAY
The Kawasaki KLX family of off-road motorcycles are widely popular with their easy-to-ride character, incredible capabilities while on trails and their low maintenance needs. The eight off-road models consist of four engine configurations and are built to suit a wide variety of riders.
2022 Kawasaki KLX230RS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4499 USD
Canada MSRP Price: $5099 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
Engine Type 4-Stroke, Air-Cooled, SOHC, 2-Valve Single
Displacement 233 cc
Bore & Stroke 67.0 x 66.0 mm
Compression Ratio 9.4:1
Fuel System DFI® with 32mm throttle body
Ignition TCBI with Electronic Advance
Transmission 6-Speed
Rake/Trail 26.5°/4.4 (KLX230R)/25.7°/4.3 (KLX230R S) in.
Front Wheel Travel 9.8 (KLX230R)/8.7 (KLX230R S) in.
Rear Wheel Travel 9.9 (KLX230R)/8.8 (KLX230R S) in.
Front Tire Size 80/100-21
Rear Tire Size 100/100-18
Front Suspension 37mm Telescopic Fork
Rear Suspension New Uni-Trak with Adjustable Preload
Wheelbase 53.5 (KLX230R)/53.1 (KLX230R S) in.
Front Brake Type 240mm Petal Disc
Rear Brake Type 220mm Petal Disc
Fuel Tank Capacity 1.7 (49-state)/2.0 (50-state) gal.
Ground Clearance 11.8 (KLX230R)/10.8 (KLX230R S) in.
Seat Height 36.4 (KLX230R)/35.4 (KLX230R S) in.
Curb Weight= 253.6 (49-state)/262.3 (50-state) lb.
Warranty 6 months
Kawasaki Protection Plus 12, 24 or 36 months
(Specifications subject to change without notice.) Ask about the Rider‘s of Kawasaki (ROK) and the Good Times™ Credit Plan.
Ask about Kawasaki’s Team Green™ amateur rider support program.
(KP) = See Kaw-Pedia section for more details.* = Changes from previous model year.
= = Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied).
2022 Kawasaki KLX230RS – Totalmotorcycle.com Canadian Specifications/Technical Details
POWER
Engine 233cc, air-cooled, 4-stroke, SOHC 2-valve single
Bore x Stroke 67.0 x 66.0 mm
Compression Ratio 9.4:1
Fuel System Fuel injection: ø32 mm x 1
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain
PERFORMANCE
Frame Perimeter, high-tensile steel
Front Suspension / Wheel Travel ø37 mm telescopic fork / 220 mm (8.7 in)
Rear Suspension / Wheel Travel New Uni Trak with adjustable spring preload / 223 mm (8.8 in)
Rake / Trail 25.7° / 108 mm
Steering Angle (L/R) 45° / 45°
Front Tire 80/100-21 51M
Rear Tire 100/100-18 59M
Front Brake Single ø240 mm petal disc with dual-piston caliper
Rear Brake ø220 mm petal disc with single-piston caliper
DETAILS
Dimensions (L x W x H) 2,035 x 840 x 1,175 mm (80.1 x 33.1 x 46.3 in)
Wheelbase 1,350 mm (53.1 in)
Road Clearance 275 mm (10.8 in)
Seat Height 900 mm (35.4 in)
Curb Mass** 115 kg (254 lb)
Fuel Capacity 6.6 litres
Warranty 6 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months
2022 Kawasaki KLX230RS – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
