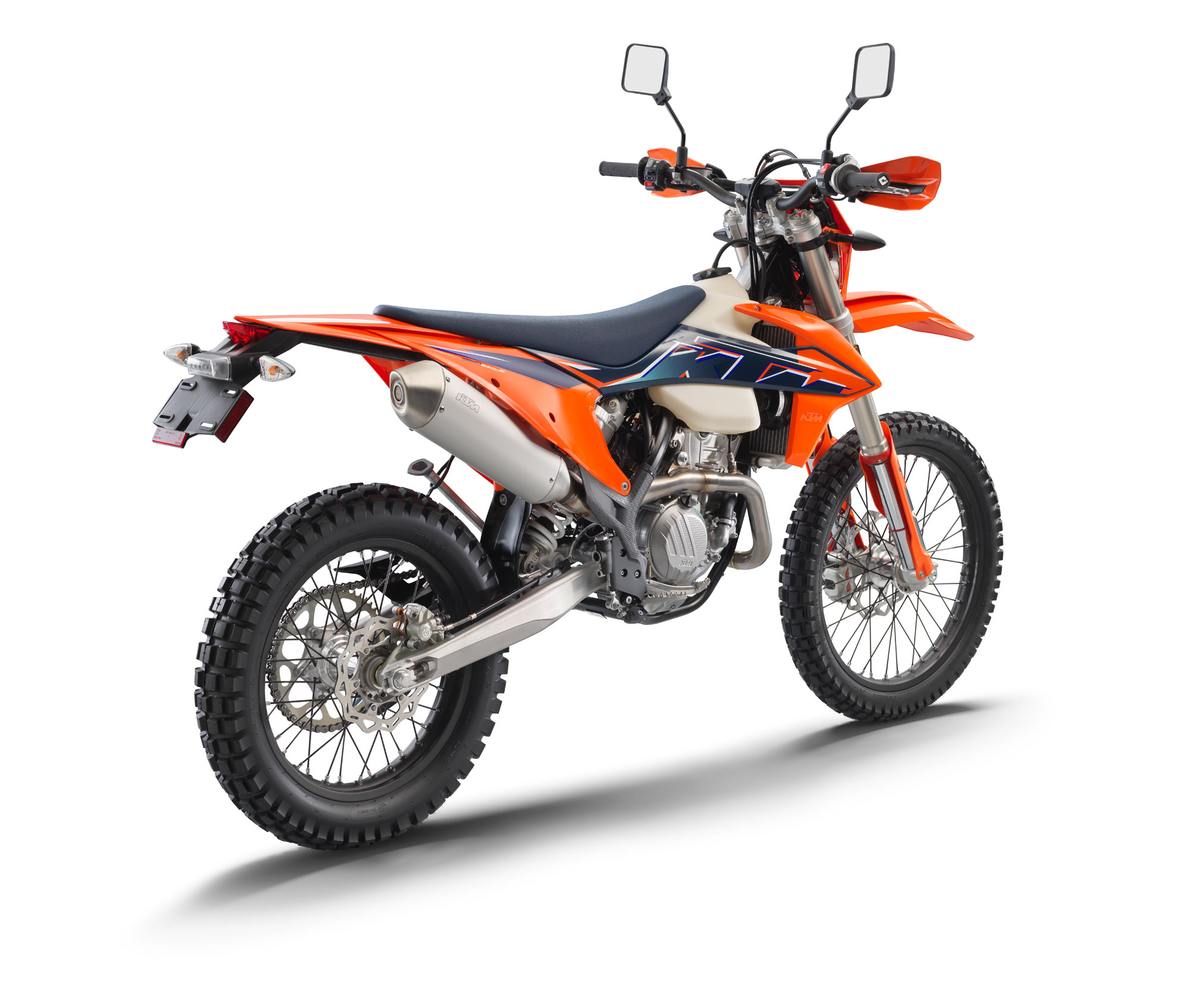

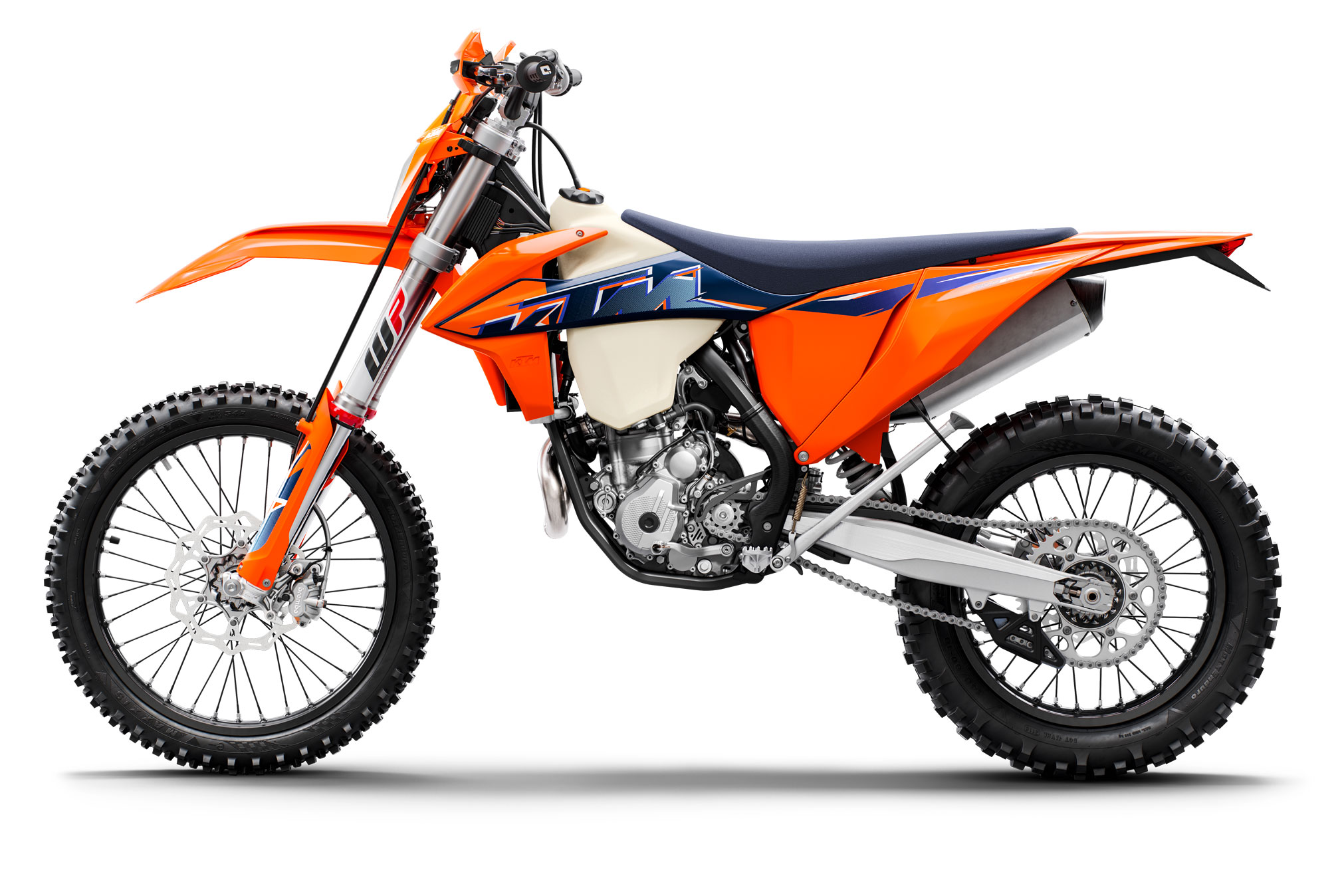

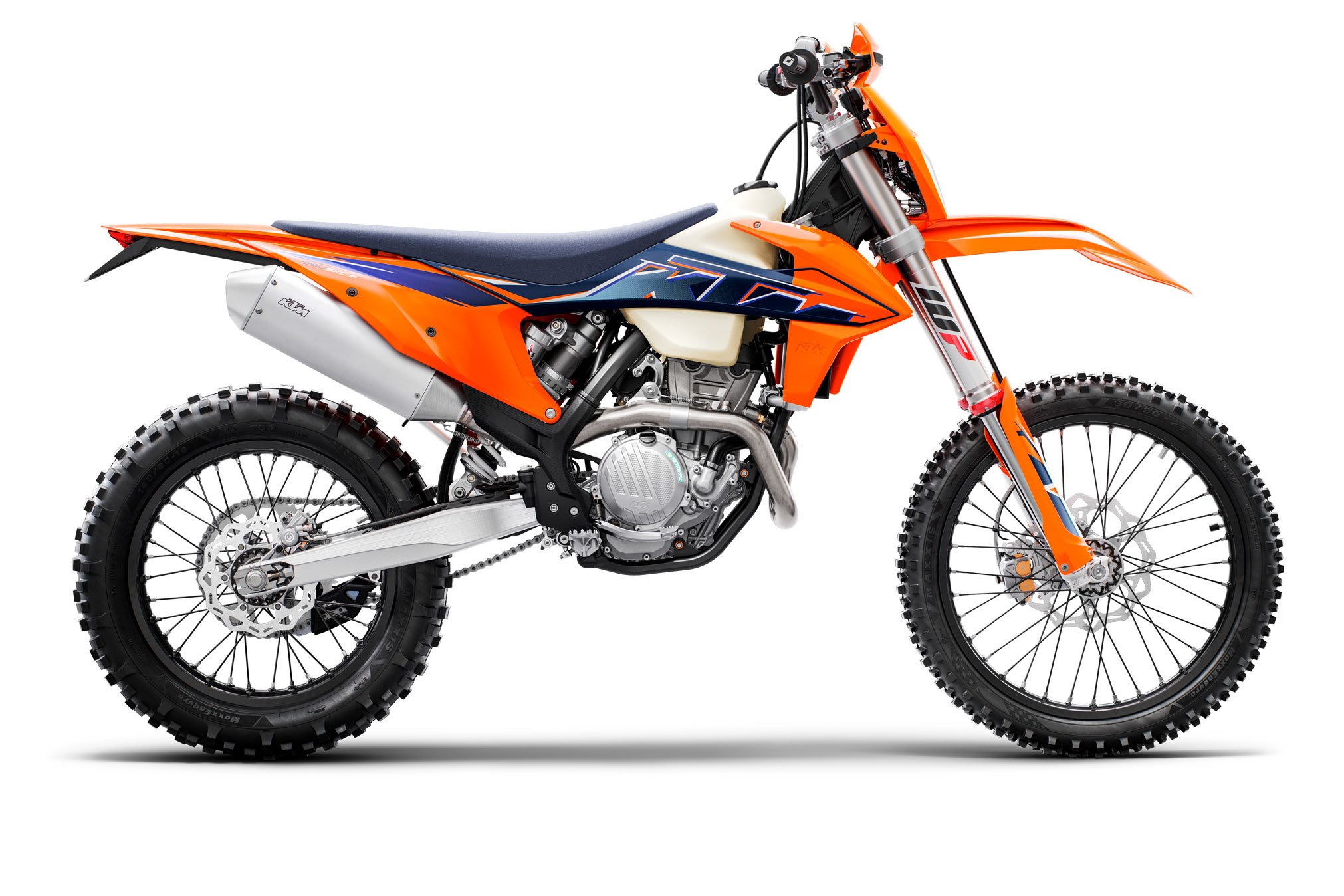

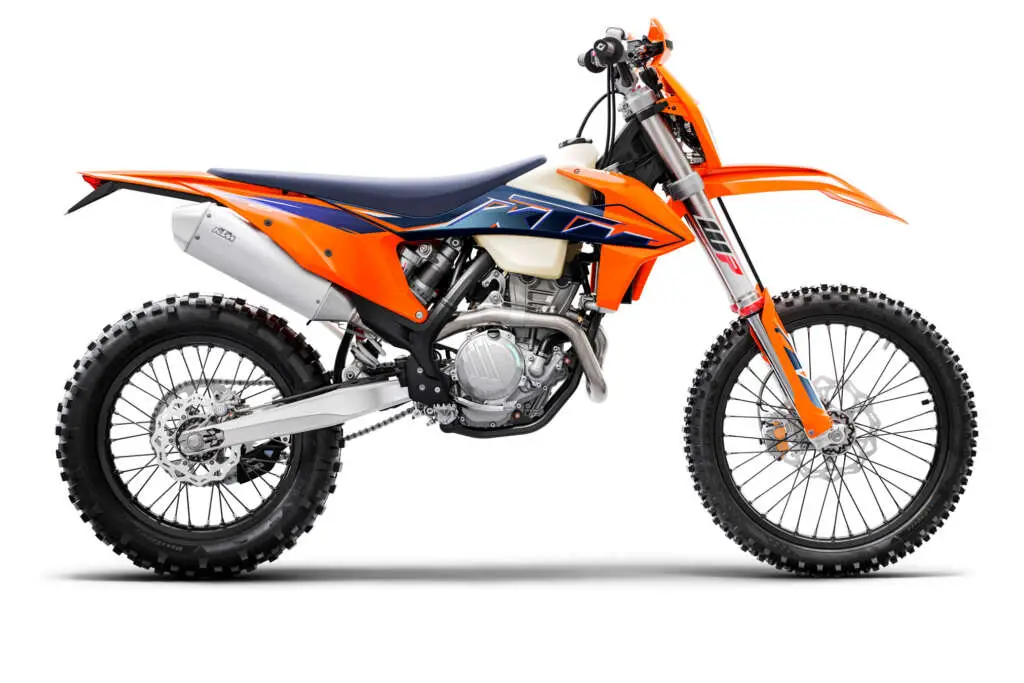

2022 KTM 350 EXC-F: PERFECT BALANCE.
Introducing the 2022 KTM 350 EXC-F…
The KTM 350 EXC-F is a dual-sport to be reckoned with thanks to its ultra-light chassis and torquey 350 cc engine with a 6-speed PANKL gearbox. Its potent combination of 250-like agility and 450-like power makes it the first choice of riders looking for a class-leadering dual-sport possessing sheer rideability and competitiveness across any terrain.
2022 KTM 350 EXC-F Totalmotorcycle.com Key Features
2022 KTM 350 EXC-F Totalmotorcycle.com Features and Benefits
Engine & Exhaust
The KTM 350 EXC-F engine is fitted with a compact DOHC cylinder head for optimal mass centralization while contributing to even better handling. The head configuration, with 2 overhead camshafts controlling the gas flow through the ports, promises outstanding, dual-sport specific engine characteristics. The DLC coated finger followers, as well as the lightweight valves they actuate (intake 36.3 mm, exhaust 29.1 mm), allow for higher engine speeds, a crucial factor in the 350’s dynamic performance.
The KTM 350 EXC-F’s crankshaft is located in an ideal position close to the center of gravity, contributing to easier handling. It utilizes a short connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. A plain big (bottom) end bearing with two force-fitted bearing shells runs directly on the crank pin. The engine’s pressurized lubrication system provides the necessary oil feed for this bearing.
Engine cases and covers
A lightweight engine case design allows for a very centralized shaft configuration while contributing to an efficient centralization of mass. Additionally, the engine covers feature a smart surface structure that reduces the wear caused by the rider’s boots, keeping them looking as fresh as the day it rolled off the production line, while reinforced clutch and engine covers mean the engine case is more robust.
The KTM 350 EXC-F features a robust 6-speed transmission made by PANKL Racing Systems. The gears are made of a strong, forged raw material, ensuring the highest durability and reliability level. All four-stroke engines are fitted with a gear sensor, giving the option of different engine characteristics for each gear.
Engine management system
The state-of-the-art Keihin Engine Management System, with electronic fuel injection, features a 42 mm throttle body with separate systems for cold starting and idle adjustment. The throttle cable mount also allows for easy access and a smooth routing of cables for crisp throttle response, every time.
Cylinder and piston
Inside the short 88 mm bore cylinder, is an extremely lightweight, forged bridged box-type piston made by CP. Despite its incredibly low weight, it has an extra rigid structure for enhanced durability. Thanks to its lightweight construction, the oscillating masses are low, giving the engine extremely lively characteristics. The compression ratio of 13.5:1 delivers an exceptional engine performance and reduces the risk of engine knocking.
The multifunctional side-mounted counter balance shaft masterfully balances all the oscillating forces, while also driving the water pump. It effectively keeps engine vibrations to a minimum, resulting in the smoothest ride even at the highest engine speeds.
The KTM 350 EXC-F is fitted with the extremely durable, KTM-developed DDS clutch (damped diaphragm steel), with a wear-free steel basket and heat-resistant clutch plates. It uses a diaphragm spring instead of the usual coil springs, which results in considerably easier clutch action. Additionally, the Brembo hydraulic system provides easy and precise clutch modulation throughout the entire operating temperature range.
The standard electric starter on the KTM 350 EXC-F uses a proven starter drive and a strong starter motor made by Mitsuba. As demonstrated time and time again, it provides quick and reliable starting, saving you precious time and energy when you need it most.
Keeping the engine cool when the going gets tough comes courtesy of a pair of radiators, mounted close to the center of gravity. These make use of CFD technology (Computational Fluid Dynamics) and clever coolant circuit routing, achieving optimum engine temperature for the highest performance, in all conditions. Above all, the delta distributor, integrated into the frame triangle, features a large center tube for highly efficient coolant flow, as well as radiator fans as standard on all 4-stroke models.
Packing a punch and delivering an unmistakable engine note, all 4-stroke KTM EXC models feature an easy-access two-piece header pipe that can be disassembled easily to allow access to the rear shock. An aluminum muffler sleeve has a short and compact profile.
Engineered to find the perfect balance of agility, weight, and power, the KTM 350 EXC-F’s fuel-injected DOHC engine is set to become a future legend. Its class-leading power delivery and lightweight give it an unbeatable power-to-weight ratio too. A long story short, this is the most perfectly balanced powerplant on the market.
The KTM 350 EXC-F features a one-piece aluminum swingarm, which is manufactured using a gravity die-cast production process. This results in exceptional strength at the lowest possible weight and the perfect flex behavior.
KTM uses lightweight, CNC-machined hubs and high-end GIANT rims on all EXC models. These guarantee maximum stability and the bare minimum weight, while aluminum spoke nipples feature an innovative design, which reduces the need to continuously tighten the spokes.
Putting the power to the ground is a set of Continental TKC 80 tires. These provide excellent grip across a variety of terrain, as well as self-cleaning knobs to ensure excellent traction on or off road.
For 2022, all KTM EXC models have received a suspension update, with a firmer factory setting focusing on performance and improved consistency across different terrains.
New slots in the outer fork tube mean the 48 mm diameter WP XPLOR upside-down forks feed more oil to the bushes and reduce friction and heat build-up. The fork springs have also been updated with a new polished surface finish to improve consistency and new valve dedign increases rebound damping performance. The forks retain their adjustability, with compression damping on the left and rebound on the right.
The race-proven and fully adjustable WP XPLOR shock absorber has received a re-tune, with factory settings making it firmer, and new conical bushing between the pistons to improve bottoming reserves. This has resulted in reduced fade and improved wear, taking the PDS rear suspension design even further in its quest for podiums.
When it comes to bringing this machine to stop, you’ll be happy to have high-tech Brembo brake calipers and lightweight wavy discs doing the business. These also take years of competitive racing into account, providing the perfect combination of ideal pad density and steel quality for longevity and consistent feel.
All KTM enduro models are fitted with lightweight polyethylene tank, with a ¼‐turn bayonet-style filler cap makes for quick and easy operation. The integrated fuel pump ensures a direct feed to the injectors, while a 90° connector provides protection against damage. The tank is also manufactured using see‐through plastic, riders are able to gauge fuel levels at a glance and on the go.
The easy-access airbox on the KTM 350 EXC-F ensures optimal flow dynamics, thanks to specially designed intake snorkels. This means air is force-fed into the motor, resulting in the perfect balance of power and throttle response. Keeping the air clean, is a large Twin-Air air filter fitted to a rigid cage for ideal placement at all times.
All KTM EXC models feature high-tech, lightweight Chromoly steel frames with race-derived geometry, optimal stiffness, and unparalleled feedback for the rider. This translates into a playful handling character, with remarkable stability at speed. The subframe is made of extra-light and ultra-stable aluminum profiles, weighing less than 900 grams providing rear fender stability and durability in the event of a loop out.
Ergonomics & Comfort
Sophisticated ´No-Dirt´ footpegs prevent clogging up the pegs, even when digging in deep ruts. The pegs on the Enduro models are 6 mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.
Go ahead, take a seat. The 2022 KTM 350 EXC-F’s seat is perfectly shaped to allow riders complete freedom of movement, but comfortable enough to maintain longer sessions in the saddle, and is covered in a grippy factory-inspired seat blue vinyl.
All KTM EXC models are equipped with the same high-strength aluminum tapered NEKEN handlebar. The handlebar allows for four different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left.
Bodywork & Graphics
Drawing inspiration from the RED BULL KTM FACTORY RACING TEAM, the 2022 KTM EXC range features a bold contrast of orange and blue tones, as well as a factory-inspired blue seat. These are applied using in-mold graphics, which feature greater friction and fade resistance, meaning your steed will look factory-fresh after even the toughest time spend on the trails.
Software & Electronics
Battery & wiring harness
All engines are fitted with the proven electric starter, which is a major benefit for any offroad activity. It is powered by a super lightweight 2 Ah lithium-ion starter battery, which provides safe, reliable starting. The wiring harness has most of the electrical components carefully positioned into a common area below the seat, making them easily accessible and reliable.
2022 KTM 350 EXC-F – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $11399 USD
Canada MSRP Price: $12849 CDN
Europe/UK MSRP Price: £ See Dealer (On The Road inc 20% Vat)
Starter Electric starter
Clutch Wet, DDS multi-disc clutch, Brembo hydraulics
EMS Keihin EMS
Design 1-cylinder, 4-stroke engine
Front brake disc diameter 260mm
Rear brake disc diameter 220mm
Front brake Disc brake
Rear brake Disc brake
Chain X-Ring 5/8 x 1/4″
Frame design Central double-cradle-type 25CrMo4 steel
Front suspension WP XPLOR-USD, Ø 48 mm
Rear suspension WP Xplor PDS shock absorber
Steering head angle 63.5°
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
