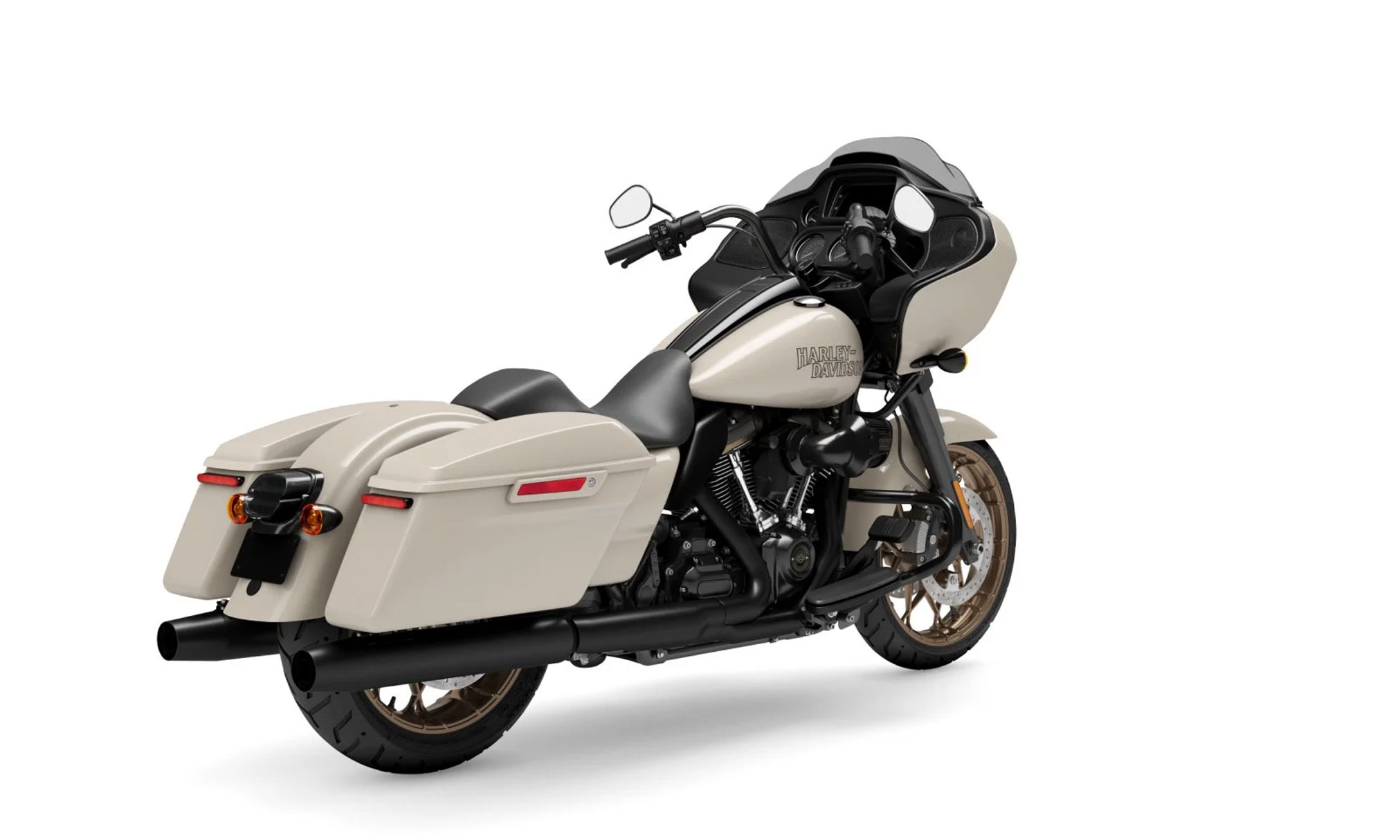

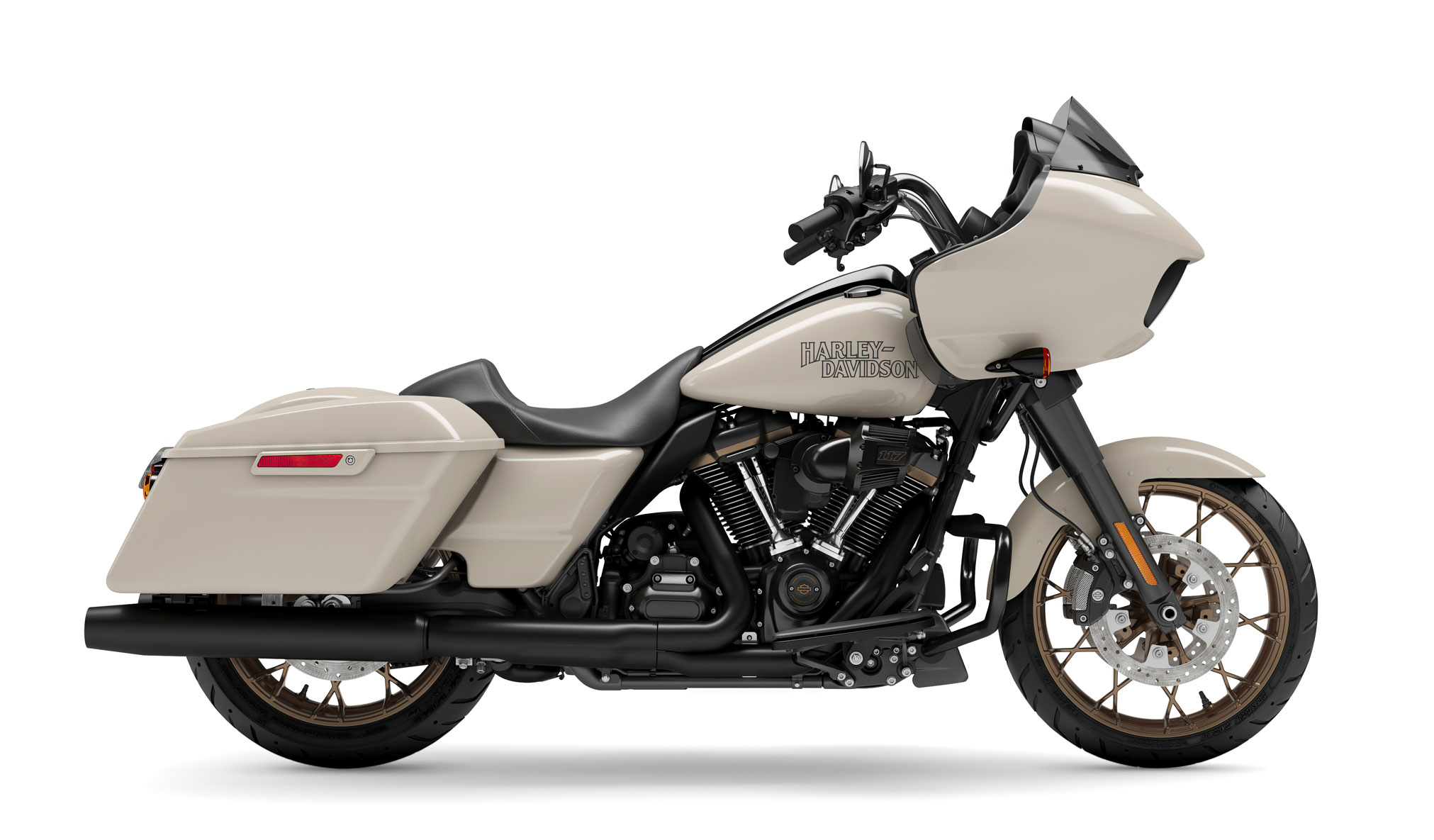

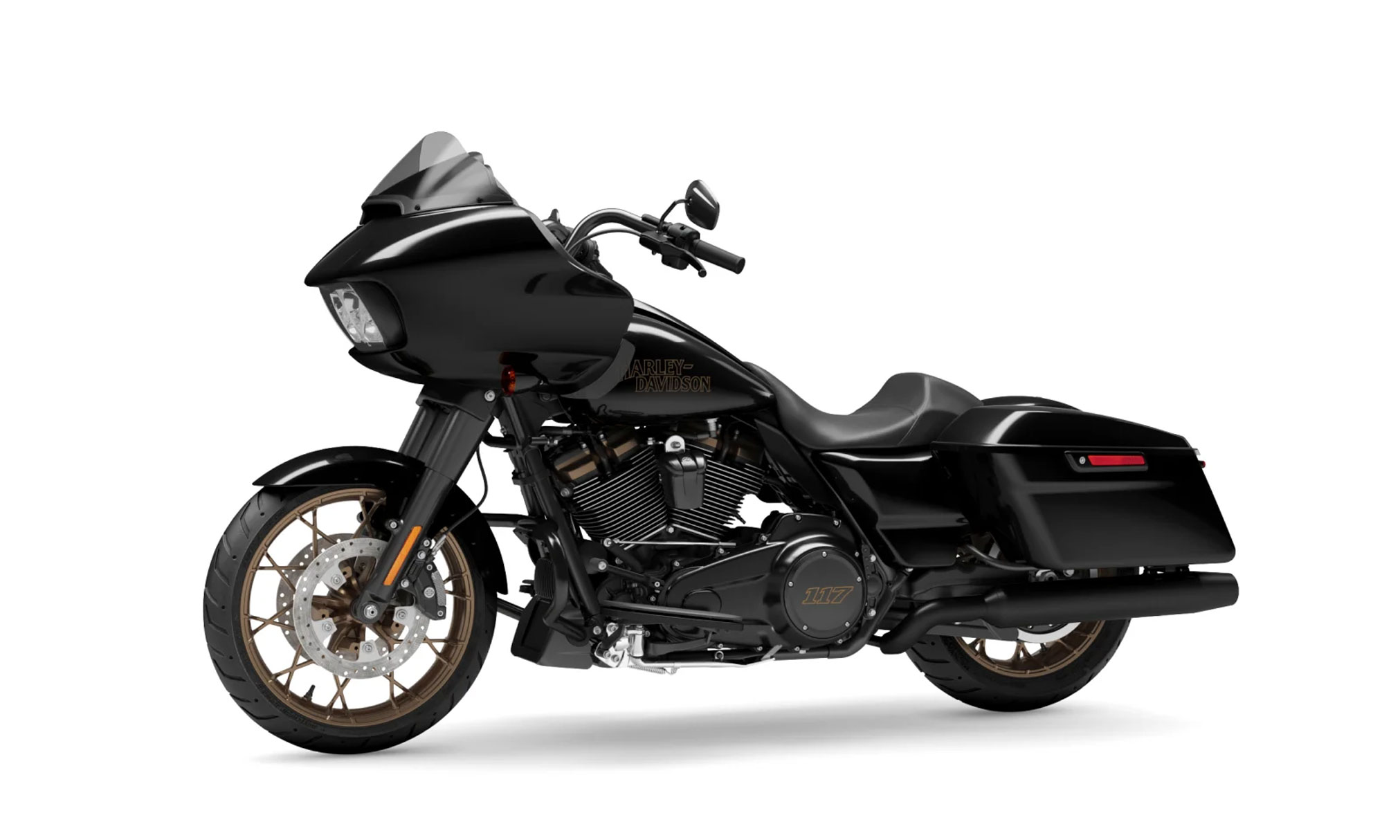

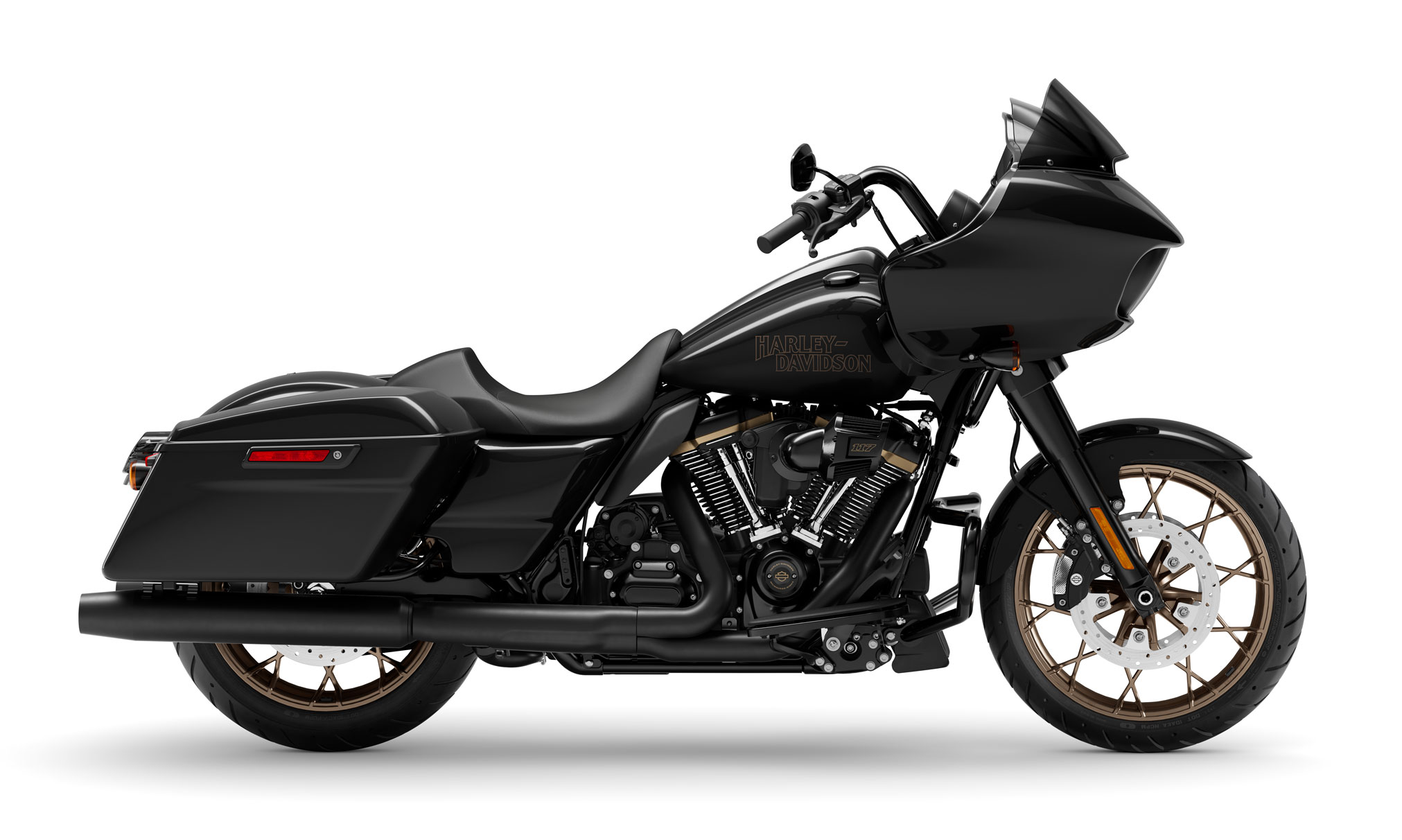

2023 Harley-Davidson Road Glide ST: UNBRIDLED SWAGGER.
Introducing the 2023 Harley-Davidson Road Glide ST…

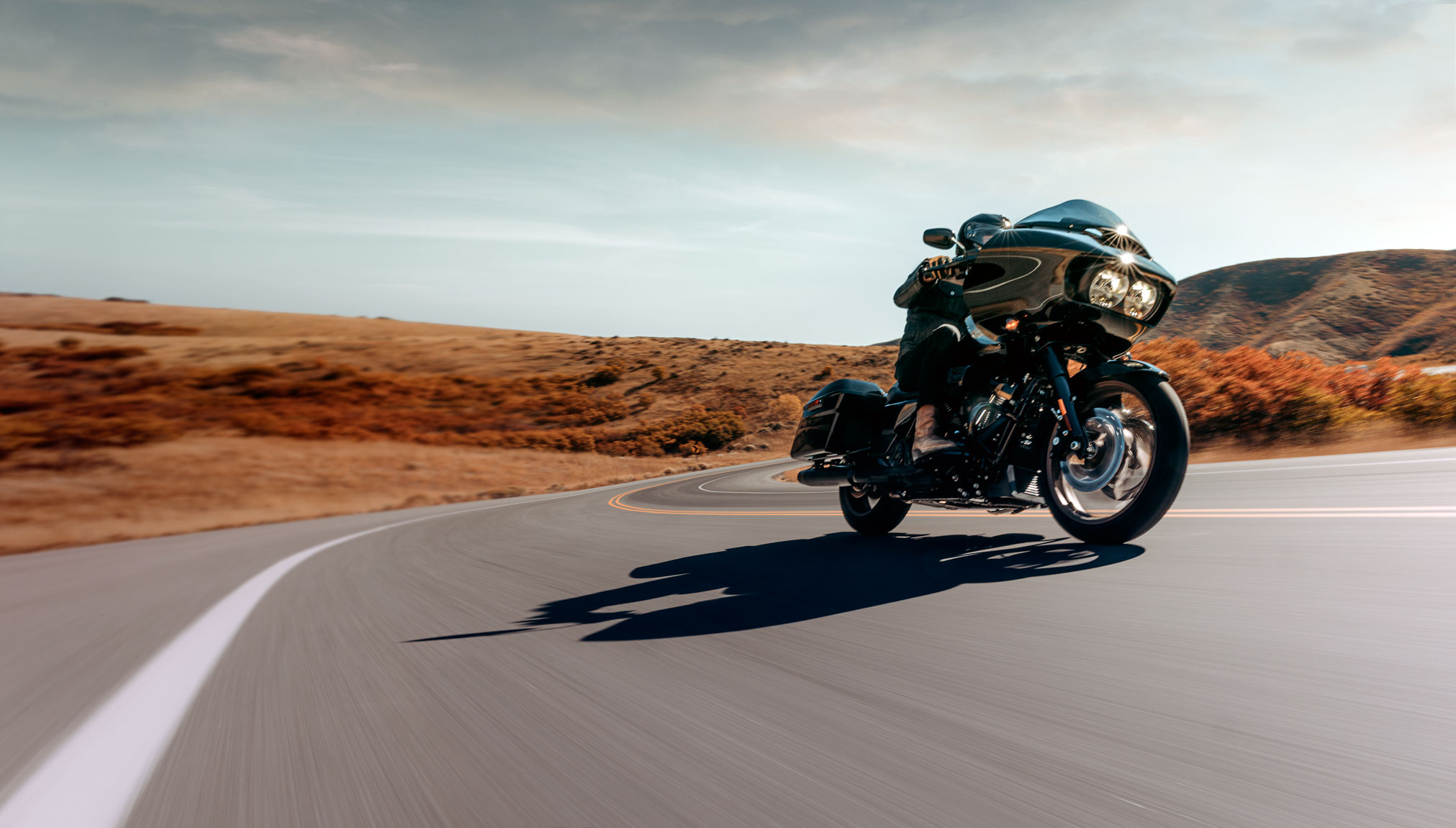

The sleek Road Glide ST model projects the attitude of the Screamin’ Eagle Factory championship winning bike and backs it up with the street-scorching power of the Milwaukee-Eight 117 powertrain. Undiminished rider comfort and the shark nose fixed fairing appeals to a rider who wants to make quick work of the open road.
King of baggers. Unbridled swagger. Breathtaking performance for miles.
A sleek performance bagger that projects more attitude than ever, backed up with the street-scorching power of the Milwaukee-Eight 117 powertrain.
2023 Harley-Davidson Road Glide ST Totalmotorcycle.com Key Features
- Upright riding position
- Floorboards
- Saddlebags
- Frame mounted fairing
- Infotainment
- Rider safety enhancements available
- Performance-hungry distance riders
- Enthusiasts seeking stand-out power and comfort
- Classic touring design with premium H-D features
2023 Harley-Davidson Road Glide ST Totalmotorcycle.com Features and Benefits
The category we’ve created from the ground up. Go the distance, in style. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson motorcycle.
The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

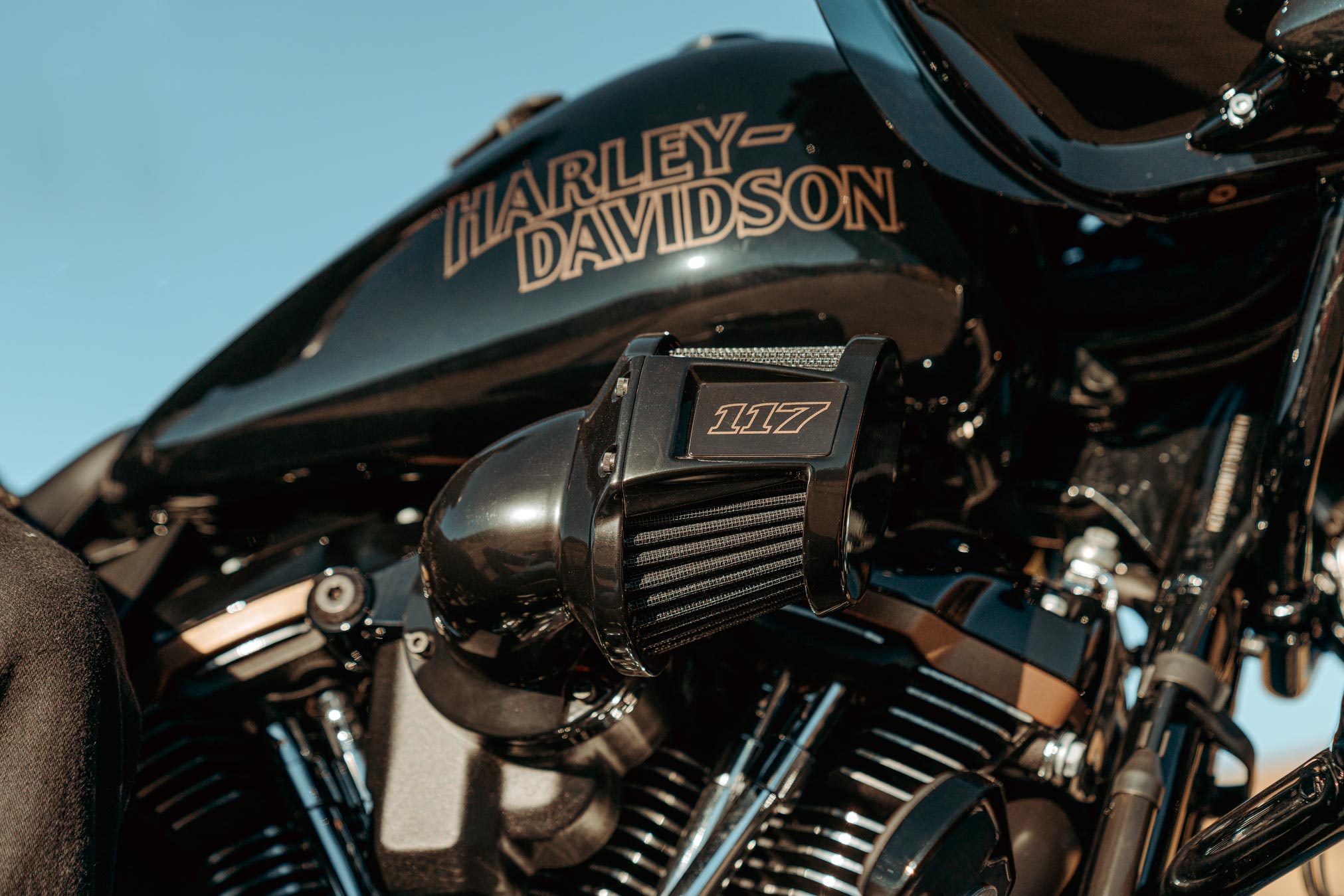

MILWAUKEE-EIGHT 117 V-TWIN
The pinnacle of torque and displacement with precision oil/air cooling, delivering 126 ft. lbs. of torque at 3750 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.
FIXED SHARKNOSE FAIRING
This frame-mounted fairing keeps the head buffeting at bay, with a design that is unmistakably Harley-Davidson.
BLACKED OUT EVERYTHING
Front end, controls, powertrain and exhaust. The only bright bits are pushrod tubes and tappet covers, and machined cylinder fins.
PREMIUM INFOTAINMENT
Boom! Box GTS infotainment system with color touch screen, two fairing-mount speakers and hidden radio antenna.
SPORT TOURING PROFILE
Standard saddlebags and raised suspension give you more room to lean.
Customization Packages
LONG-HAUL PACKAGE – CHROME
Add a seat and grips ready for any climate and the ability to quickly attach luggage and more with the chrome Long-Haul Package.
LONG-HAUL PACKAGE – BLACK
Add a seat and grips ready for any climate and the ability to quickly attach luggage and more with the black Long-Haul Package.
EMPIRE PACKAGE – BLACK
With the Black Empire Custom Package from H-D Genuine Parts & Accessories, get he perfect balance of bagger performance and style for the rider who wants a little extra of both.
EMPIRE PACKAGE – MACHINE CUT
With the Machine Cut Empire Custom Package from H-D Genuine Parts & Accessories, get he perfect balance of bagger performance and style for the rider who wants a little extra of both.
2023 Harley-Davidson Road Glide ST – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $29,999 to $30,749 USD
Canada MSRP Price: $37,799 to $38,749 CDN
Europe/UK MSRP Price: £29,895 to £30,335 GBP (On The Road inc 20% Vat)
DIMENSIONS
LENGTH
94.7 in.
SEAT HEIGHT, LADEN 7
26.7 in.
GROUND CLEARANCE
5.5 in.
RAKE
26
TRAIL
6.7 in.
WHEELBASE
64 in.
TIRES, FRONT SPECIFICATION
130/60B19 61H
TIRES, REAR SPECIFICATION
BW 180/55B18 80H
TIRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and rear
FUEL CAPACITY
6 gal.
OIL CAPACITY (W/FILTER)
5.2 qt.
WEIGHT, AS SHIPPED
806 lb.
WEIGHT, IN RUNNING ORDER
842 lb.
LUGGAGE CAPACITY -VOLUME
2.3 cu ft
ENGINE
ENGINE 1
Milwaukee-Eight 117
BORE
4.075 in.
STROKE
4.5 in.
DISPLACEMENT
117 cu in
COMPRESSION RATIO
10.2:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
Dual, with crossover
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 2
127 ft-lb
ENGINE TORQUE (RPM)
3750
LEAN ANGLE, RIGHT (DEG.)
32
LEAN ANGLE, LEFT (DEG.)
31
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 5
41 mpg
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.593
GEAR RATIOS (OVERALL) 2ND
6.65
GEAR RATIOS (OVERALL) 3RD
4.938
GEAR RATIOS (OVERALL) 4TH
4
GEAR RATIOS (OVERALL) 5TH
3.407
GEAR RATIOS (OVERALL) 6TH
2.875
CHASSIS
FRONT FORK
49mm Dual Bending Valve
REAR SHOCKS
Premium standard height hand-adjustable rear suspension
WHEELS, FRONT TYPE 9
Bronze Prodigy
WHEELS, REAR TYPE 9
Bronze Prodigy
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
32 mm, 4-piston fixed front and rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS 8
LED 40-watt, 1,060 lumen low beam, 60-watt, 1560 lumen high beam, 8W/28W Tail/Stop, Front Signal Lights and Rear Turn Signals
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
6.5 in.
WATTS PER CHANNEL
25
SPEAKERS
2
SPEAKER SIZE
5.25 inch standard
HEADSET SPECIFICATIONS (IF EQUIPPED)
16-64 ohms
AM
Standard
FM
Standard
WEATHER BAND (WB)
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – P&A Upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
HILL HOLD CONTROL (HHC)
Optional
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Optional
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Optional
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Optional
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Optional
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)
Optional
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional fuel systems may vary by country.
-
See motorcycle owner’s manual for complete details.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
-
Measurement reflects 180 lb. (81.7 kg) operator weight.
-
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
-
Standard and optional wheels may vary by country and region.
2023 Harley-Davidson Road Glide ST – Totalmotorcycle.com Canada Specifications/Technical Details
DIMENSIONS
LENGTH
2,405 mm
SEAT HEIGHT, UNLADEN
715 mm
GROUND CLEARANCE
140 mm
RAKE
26
TRAIL
170 mm
WHEELBASE
1,625 mm
TIRES, FRONT SPECIFICATION
130/60B19 61H
TIRES, REAR SPECIFICATION
BW 180/55B18 80H
TIRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and rear
FUEL CAPACITY
22.7 l
OIL CAPACITY (W/FILTER)
4.9 l
WEIGHT, AS SHIPPED
366 kg
WEIGHT, IN RUNNING ORDER
382 kg
LUGGAGE CAPACITY -VOLUME
0.064 m3
ENGINE
ENGINE 2
Milwaukee-Eight 117
BORE
103.5 mm
STROKE
114.3 mm
DISPLACEMENT
1,923 cc
COMPRESSION RATIO
10.2:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
Dual, with crossover
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 3
169 Nm
ENGINE TORQUE (RPM)
3500
HORSEPOWER
102 HP / 76 kW @ 4750 rpm
LEAN ANGLE, RIGHT (DEG.)
32
LEAN ANGLE, LEFT (DEG.)
31
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 7
5.7 l/100 km
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.593
GEAR RATIOS (OVERALL) 2ND
6.65
GEAR RATIOS (OVERALL) 3RD
4.938
GEAR RATIOS (OVERALL) 4TH
4
GEAR RATIOS (OVERALL) 5TH
3.407
GEAR RATIOS (OVERALL) 6TH
2.875
CHASSIS
FRONT FORK
49mm Dual Bending Valve
REAR SHOCKS
Premium standard height hand-adjustable rear suspension
WHEELS, FRONT TYPE 4
Bronze Prodigy
WHEELS, REAR TYPE 4
Bronze Prodigy
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
32 mm, 4-piston fixed front and rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS
LED 40-watt, 1,060 lumen low beam, 60-watt, 1560 lumen high beam, 8W/28W Tail/Stop, Front Signal Lights and Rear Turn Signals
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
165 mm
WATTS PER CHANNEL
25
SPEAKERS
2
SPEAKER SIZE
5.25 inch standard
HEADSET SPECIFICATIONS (IF EQUIPPED)
16-64 ohms
AM
Standard
FM
Standard
WEATHER BAND (WB)
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – Parts & Accessories upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
HILL HOLD CONTROL (HHC)
Included
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Included
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Included
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)
Included
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
-
As measured using the MIC City and MIC Combined (115 km/h) tests.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
2023 Harley-Davidson Road Glide ST – Totalmotorcycle.com Europe Specifications/Technical Details
DIMENSIONS
LENGTH
2,405 mm
SEAT HEIGHT, UNLADEN
715 mm
GROUND CLEARANCE
140 mm
RAKE
26
TRAIL
170 mm
WHEELBASE
1,625 mm
TYRES, FRONT SPECIFICATION
130/60B19 61H
TYRES, REAR SPECIFICATION
BW 180/55B18 80H
TYRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and rear
FUEL CAPACITY
22.7 l
OIL CAPACITY (W/FILTER)
4.9 l
WEIGHT, AS SHIPPED
366 kg
WEIGHT, IN RUNNING ORDER
382 kg
LUGGAGE CAPACITY -VOLUME
0.064 m3
ENGINE
ENGINE 2
Milwaukee-Eight 117
BORE
103.5 mm
STROKE
114.3 mm
DISPLACEMENT
1,923 cc
COMPRESSION RATIO
10.2:1
FUEL SYSTEM
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
Dual, with crossover
PERFORMANCE
ENGINE TORQUE TESTING METHOD
EC 134/2014
ENGINE TORQUE 3
168 Nm
ENGINE TORQUE (RPM)
3500
HORSEPOWER
103 HP / 77 kW @ 5450 rpm
LEAN ANGLE, RIGHT (DEG.)
32
LEAN ANGLE, LEFT (DEG.)
31
FUEL ECONOMY TESTING METHOD
EU 134/2014
FUEL ECONOMY
6.1 l/100 km
CO2 EMISSIONS TESTING METHOD
EU 134/2014
CO2 EMISSIONS
142 g/km CO2
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
9.593
GEAR RATIOS (OVERALL) 2ND
6.65
GEAR RATIOS (OVERALL) 3RD
4.938
GEAR RATIOS (OVERALL) 4TH
4
GEAR RATIOS (OVERALL) 5TH
3.407
GEAR RATIOS (OVERALL) 6TH
2.875
CHASSIS
FRONT FORK
49mm Dual Bending Valve
REAR SHOCKS
Premium standard height hand-adjustable rear suspension
WHEELS, FRONT TYPE 4
Bronze Prodigy
WHEELS, REAR TYPE 4
Bronze Prodigy
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
32 mm, 4-piston fixed front and rear
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS
LED 40-watt, 1,060 lumen low beam, 60-watt, 1560 lumen high beam, 8W/28W Tail/Stop, Front Signal Lights and Rear Turn Signals
GAUGES
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
165 mm
WATTS PER CHANNEL
25
SPEAKERS
2
SPEAKER SIZE
5.25 inch standard
HEADSET SPECIFICATIONS (IF EQUIPPED)
16-64 ohms
AM
Standard
FM
Standard
WEATHER BAND (WB)
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – P&A Upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
HILL HOLD CONTROL (HHC)
Included
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Included
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Included
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)
Included
-
All prices shown are suggested retail prices only.
Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.
Please speak with the dealership team for further details and to obtain a final on the road price.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
