2023 Harley-Davidson Softail Standard Guide

Contents: Review – Key Features – Features & Benefits – Specifications

Contents: Review – Key Features – Features & Benefits – Specifications

2023 Harley-Davidson Softail Standard: MILES OF SMILES.

Introducing the 2023 Harley-Davidson Softail Standard…

The new Softail Standard motorcycle offers the essential Harley-Davidson cruiser experience: A lean Bobber profile steeped in attitude, the dynamic performance of the Harley-Davidson Softail chassis, and the unrelenting power of the Milwaukee-Eight V-Twin powertrain. Featuring classic Vivid Black paint and highlighted with gleaming chrome and polished finishes, the Softail Standard model is a Harley-Davidson motorcycle presented in its most elemental form.

Stripped-down. Loaded with soul. Standard essentials by design. Raw, stripped-down bobber style. A blank canvas for customization.

2023 Harley-Davidson Softail Standard Totalmotorcycle.com Key Features

• Upright riding position
• Mid-mount foot controls
• Low
• Artists and customizers in love with the old-school look
• City cruising or light touring with a low-slung stance
• Milwaukee-Eight 107 V-Twin engine and easy-reach bars

2023 Harley-Davidson Softail Standard Totalmotorcycle.com Features and Benefits

Authentic heritage meets modern technology for power, style, and the unadulterated riding experience – around town or along country roads.

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

MILWAUKEE-EIGHT 107
A powerful, smooth-running V-Twin engine with crisp throttle response and that familiar Harley sound.

SOFTAIL FRAME
The frame retains the classic Softail lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

ADJUSTABLE REAR MONO SHOCK
Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.

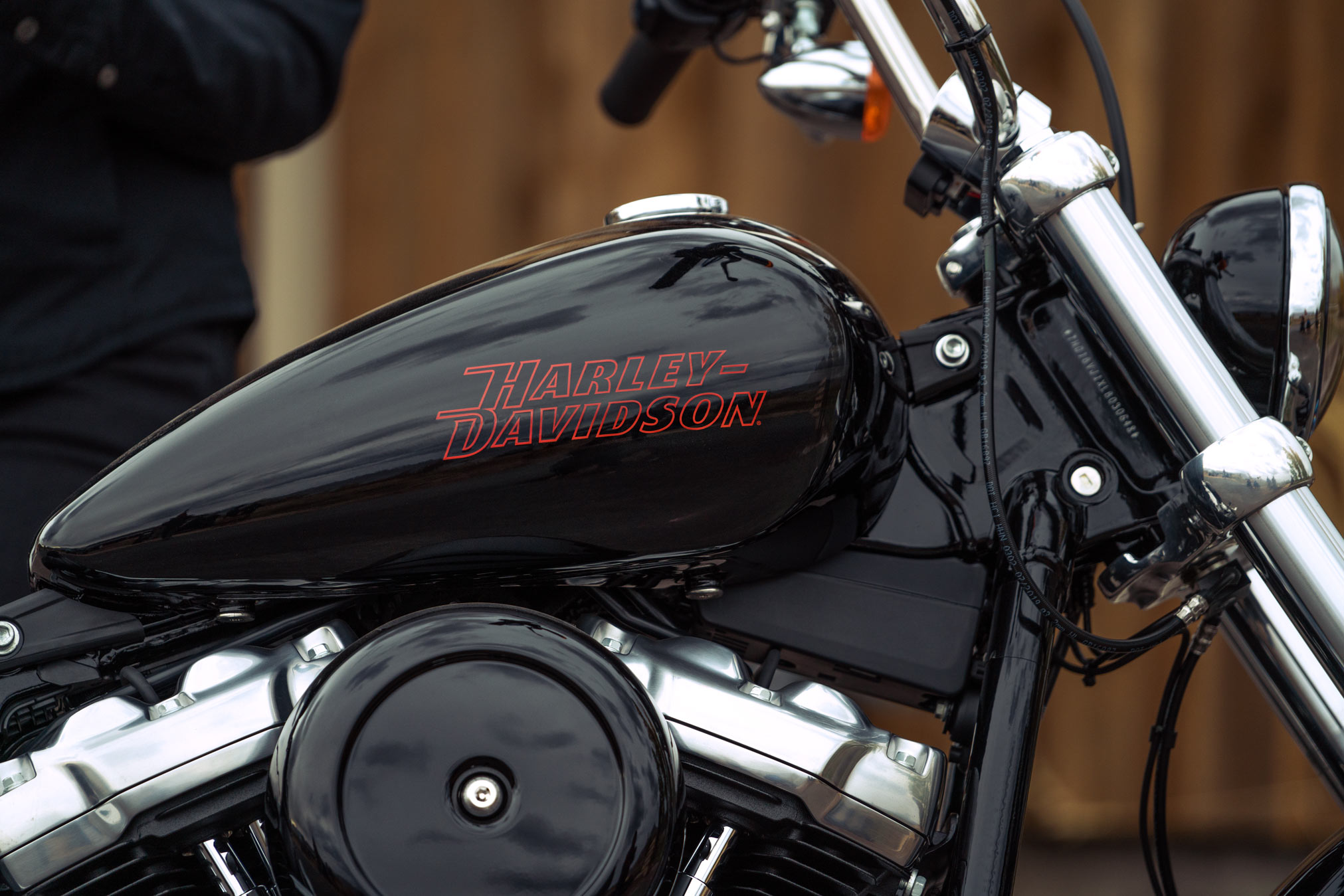

TANK
Featuring a 2023 waterslide tank graphic.

DAYMAKER SIGNATURE LED FORWARD LIGHTING
Powerful beam of natural color white light cuts through the night and is easy on the eyes.

2023 Harley-Davidson Softail Standard – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $14,399 USD
Canada MSRP Price: $17,599 CDN
Europe/UK MSRP Price: £15,995 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

91.3 in.

SEAT HEIGHT, LADEN ⁷

25.8 in.

GROUND CLEARANCE

4.9 in.

RAKE

30

TRAIL

6.2 in.

WHEELBASE

64.2 in.

TIRES, FRONT SPECIFICATION

100/90B19,57H,BW

TIRES, REAR SPECIFICATION

150/80B16,77H,BW

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

3.5 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

642 lb.

WEIGHT, IN RUNNING ORDER

655 lb.

ENGINE

ENGINE ¹

Milwaukee-Eight 107

BORE

3.937 in.

STROKE

4.374 in.

DISPLACEMENT

107 cu in

COMPRESSION RATIO

10.0:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

110 ft-lb

ENGINE TORQUE (RPM)

3000

LEAN ANGLE, RIGHT (DEG.)

28.5

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

47 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

WHEELS, FRONT TYPE ⁹

Silver, Annihilator cast aluminum

WHEELS, REAR TYPE ⁹

Silver, Annihilator cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED, Low Beam, High Beam & Signature Position Lamp, Incandescent Bullets

GAUGES

2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Softail Standard – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,320 mm

SEAT HEIGHT, UNLADEN

680 mm

GROUND CLEARANCE

125 mm

RAKE

30

TRAIL

157 mm

WHEELBASE

1,630 mm

TIRES, FRONT SPECIFICATION

100/90B19,57H,BW

TIRES, REAR SPECIFICATION

150/80B16,77H,BW

TIRE, TYPE

Dunlop^™ Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

13.2 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

291 kg

WEIGHT, IN RUNNING ORDER

297 kg

ENGINE

ENGINE ²

Milwaukee-Eight^™ 107

BORE

100 mm

STROKE

111.1 mm

DISPLACEMENT

1,745 cc

COMPRESSION RATIO

10.0:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

149 Nm

ENGINE TORQUE (RPM)

3000

HORSEPOWER

87 HP / 65 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

28.5

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

WHEELS, FRONT TYPE ⁴

Silver, Annihilator cast aluminum

WHEELS, REAR TYPE ⁴

Silver, Annihilator cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

All LED, Low Beam, High Beam & Signature Position Lamp, Bullet-style, multi-function LED stop/tail/turn signals, Incandescent Bullets

GAUGES

2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Softail Standard – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,320 mm

SEAT HEIGHT, UNLADEN

680 mm

GROUND CLEARANCE

125 mm

RAKE

30

TRAIL

157 mm

WHEELBASE

1,630 mm

TYRES, FRONT SPECIFICATION

100/90B19,57H,BW

TYRES, REAR SPECIFICATION

150/80B16,77H,BW

TYRE, TYPE

Dunlop^™ Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

13.2 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

291 kg

WEIGHT, IN RUNNING ORDER

297 kg

ENGINE

ENGINE ²

Milwaukee-Eight^™ 107

BORE

100 mm

STROKE

111.1 mm

DISPLACEMENT

1,745 cc

COMPRESSION RATIO

10.0:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shotgun; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

144 Nm

ENGINE TORQUE (RPM)

3250

HORSEPOWER

86 HP / 64 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

28.5

LEAN ANGLE, LEFT (DEG.)

28.5

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

128 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

WHEELS, FRONT TYPE ⁴

Silver, Annihilator cast aluminum

WHEELS, REAR TYPE ⁴

Silver, Annihilator cast aluminum

BRAKES, TYPE

Solid, uniform expansion rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED, Low Beam, High Beam & Signature Position Lamp, Incandescent Bullets

GAUGES

2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
