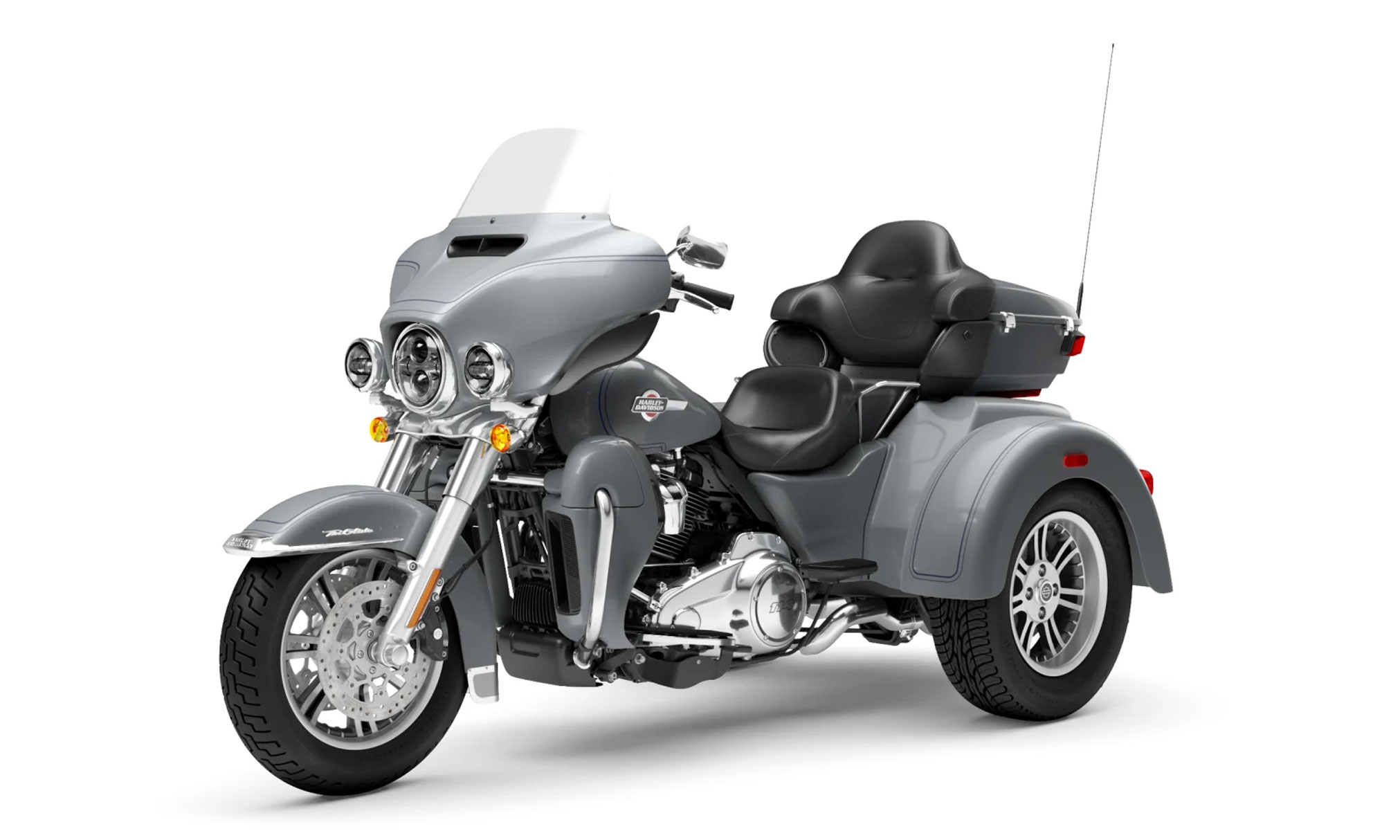

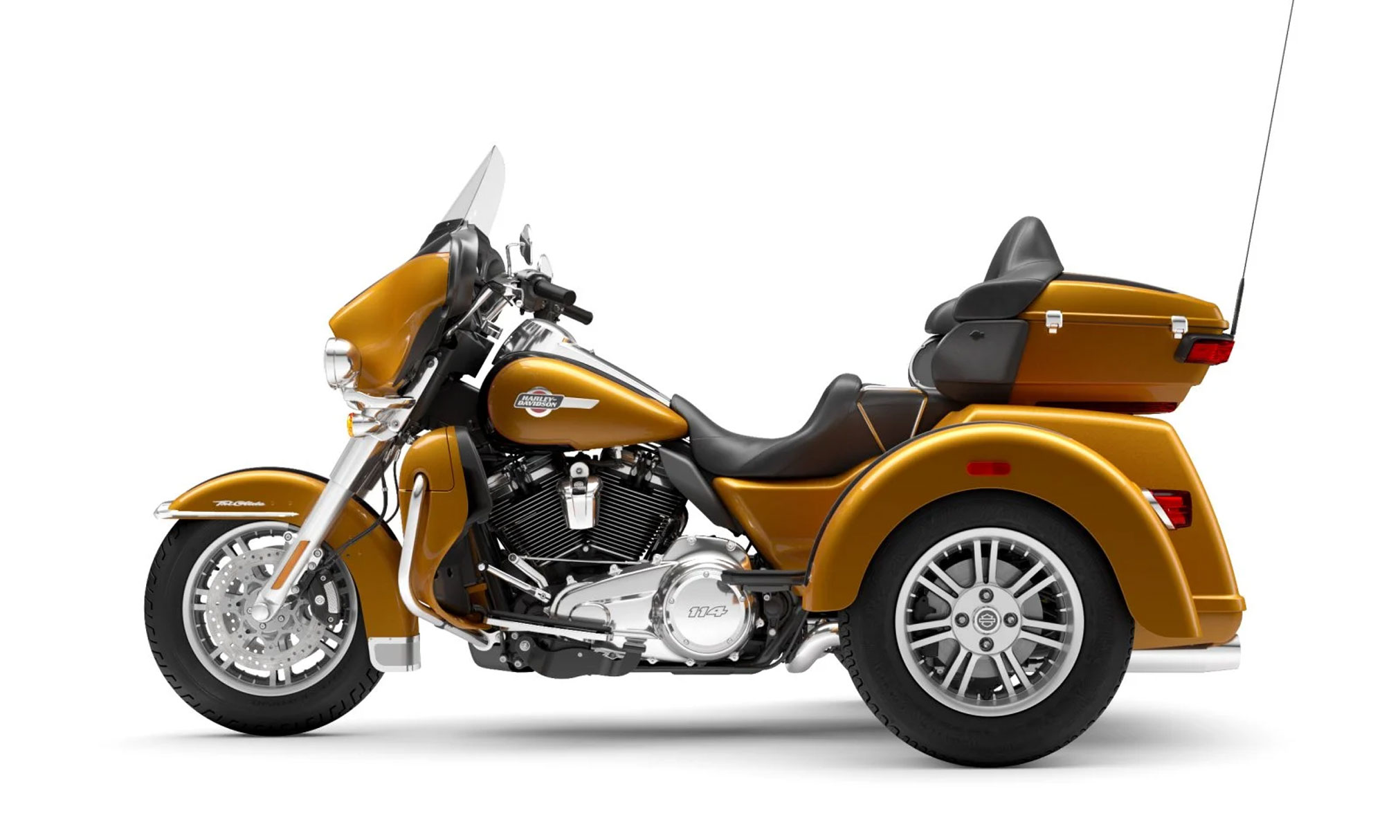

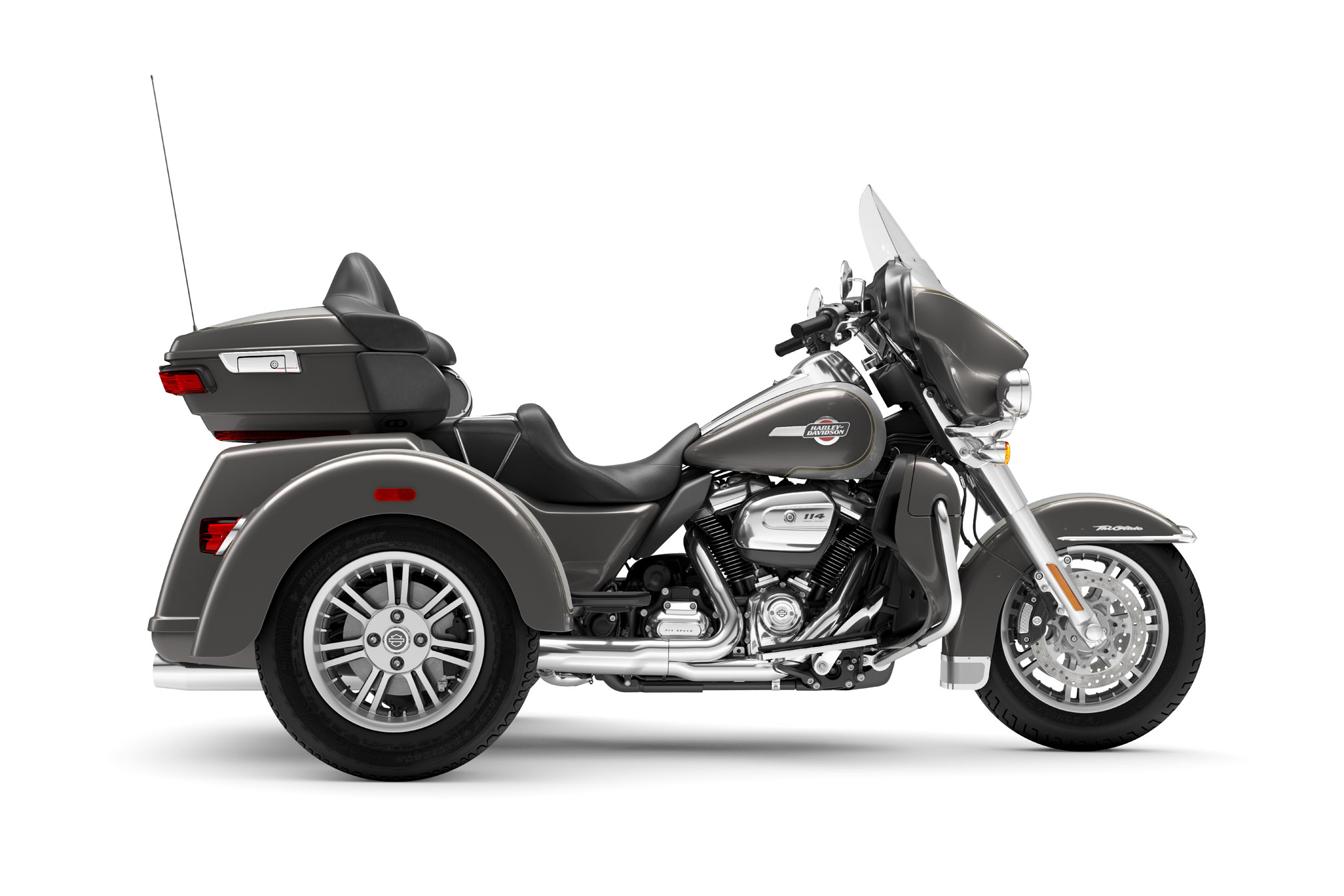

2023 Harley-Davidson Tri Glide Ultra: REDEFINED TOURING.
Introducing the 2023 Harley-Davidson Tri Glide Ultra…
Now riders have the confidence that comes from all-new traction control on the Tri Glide Ultra. It sends power where riders need it to help maintain control. It also has Milwaukee-Eight 114 power, Reflex linked brakes with ABS, an all-new 4-speaker BOOM! GTS infotainment system, electronic cruise control and 6.8 cubic feet of storage space.
Fully loaded and uninhibited. Electric reverse puts complete control at your fingertips. Redefine your idea of touring power and long-haul riding comfort.
A long-haul touring trike with all the torque, style, premium infotainment and cargo space three wheels can hold.
2023 Harley-Davidson Tri Glide Ultra Totalmotorcycle.com Key Features
- Upright riding position
- Floorboards
- Passenger seat with backrest
- Trunk
- Fork mounted fairing
- Infotainment
- Rider safety enhancements available
- Riders seeking a one-of-a-kind 3-wheel touring experience
- Bold styling with premium paint and Tomahawk wheels
- Twin-Cooled Milwaukee-Eight 114 engine and premium tech
2023 Harley-Davidson Tri Glide Ultra Totalmotorcycle.com Features and Benefits
Trike: Roll with confidence, comfort, and head-turning custom style on three wheels.
The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.
TWIN-COOLED MILWAUKEE-EIGHT 114
120 ft. lbs. of torque and 42 mpg for passing power and endless horizons.
6-SPEED CRUISE DRIVE TRANSMISSION
Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.
SADDLE UP IN COMFORT
The ultimate in two-up comfort for riders and passengers looking to log miles and experience new adventures.
BATWING FAIRING & SPLITSTEAM AIR VENT
Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front.

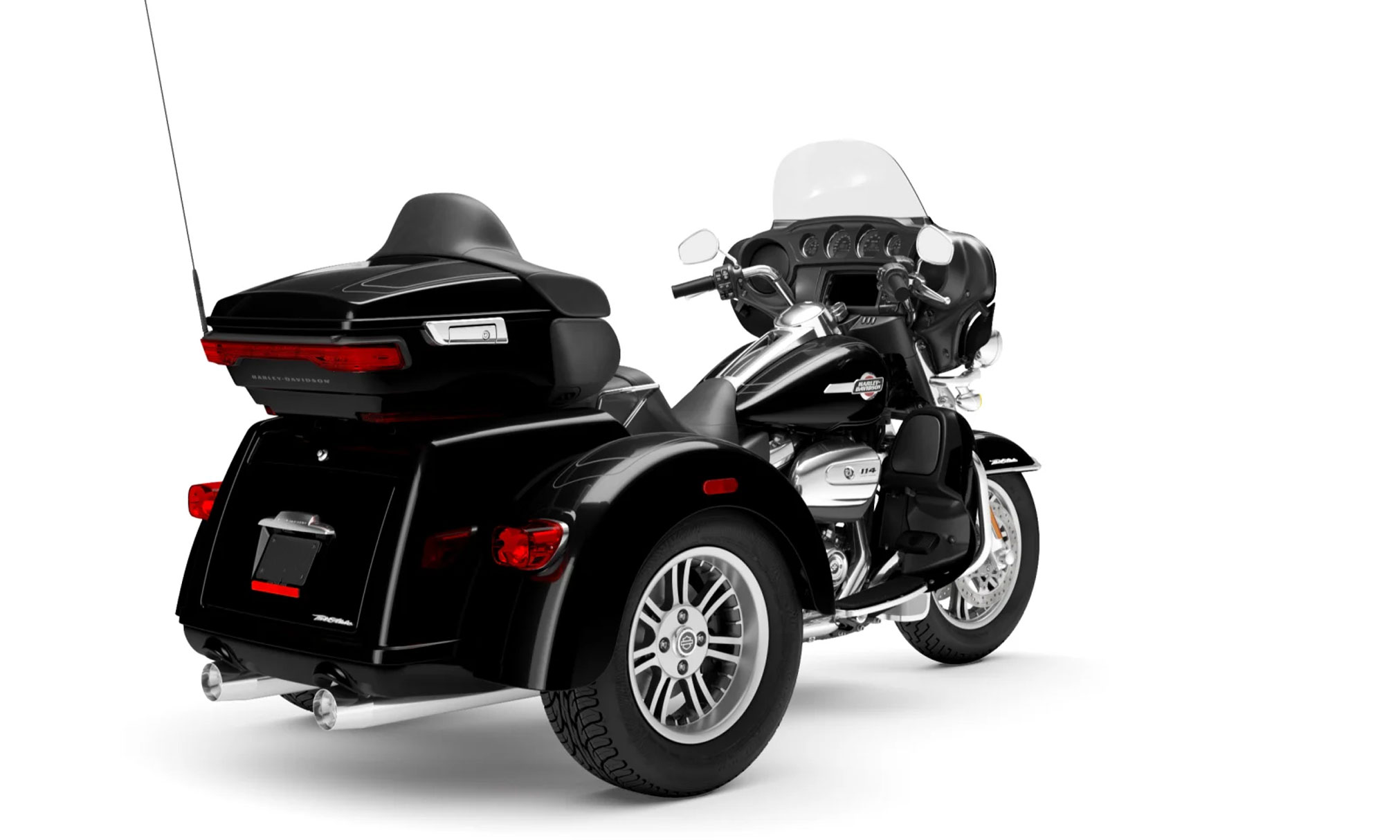

TRUNK AND KING TOUR-PAK STORAGE
Turn any ride into a weekend trip. The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak luggage carrier adds an additional 2.4 cubic feet storage capacity, combined giving you 6.8 cubic feet of storage.
2023 Harley-Davidson Tri Glide Ultra – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $36,499 to $41,299 USD
Canada MSRP Price: $44,699 to $52,499 CDN
Europe/UK MSRP Price: £38,795 to £51,495 GBP (On The Road inc 20% Vat)
DIMENSIONS
LENGTH
105.1 in.
SEAT HEIGHT, LADEN 7
27.1 in.
GROUND CLEARANCE
4.9 in.
RAKE
26
TRAIL
3.94 in.
WHEELBASE
65.7 in.
TIRES, FRONT SPECIFICATION
MT90B16 72H
TIRES, REAR SPECIFICATION
P205/65R15 92T
TIRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear
FUEL CAPACITY
6 gal.
OIL CAPACITY (W/FILTER)
5 qt.
WEIGHT, AS SHIPPED
1,204 lb.
WEIGHT, IN RUNNING ORDER
1,243 lb.
LUGGAGE CAPACITY -VOLUME
6.8 cu ft
ENGINE
ENGINE 1
Twin-Cooled Milwaukee-Eight 114
BORE
4.016 in.
STROKE
4.5 in.
DISPLACEMENT
114 cu in
COMPRESSION RATIO
10.5:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2-1-2 dual exhaust with tapered mufflers
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 2
121 ft-lb
ENGINE TORQUE (RPM)
3250
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 5
42 mpg
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
10.534
GEAR RATIOS (OVERALL) 2ND
7.302
GEAR RATIOS (OVERALL) 3RD
5.423
GEAR RATIOS (OVERALL) 4TH
4.392
GEAR RATIOS (OVERALL) 5TH
3.741
GEAR RATIOS (OVERALL) 6TH
3.157
CHASSIS
FRONT FORK
49mm dual bending valve
REAR SHOCKS
Hand-adjustable emulsion rear suspension
WHEELS, FRONT TYPE 9
Black, 7-spoke Cast Aluminum
WHEELS, REAR TYPE 9
Black, 7-spoke Cast Aluminum
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS 8
All LED, low beam, high beam and signature position lamp, Incandescent tail/stop, front signal lights and rear turn signals
GAUGES
Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
6.5 in.
WATTS PER CHANNEL
25
SPEAKERS
4
SPEAKER SIZE
5.25 inch/6.5 inch P&A Upgrade
HEADSET SPECIFICATIONS (IF EQUIPPED)
16 – 64 ohms
AM
Standard
FM
Standard
WEATHER BAND (WB)
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – P&A Upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
RIDER/PASSENGER INTERCOM
Standard
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
TRACTION CONTROL SYSTEM (TCS)
Included
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)
Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Included
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Included
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional fuel systems may vary by country.
-
See motorcycle owner’s manual for complete details.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
-
Measurement reflects 180 lb. (81.7 kg) operator weight.
-
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
-
Standard and optional wheels may vary by country and region.
2023 Harley-Davidson Tri Glide Ultra – Totalmotorcycle.com Canada Specifications/Technical Details
DIMENSIONS
LENGTH
2,670 mm
SEAT HEIGHT, UNLADEN
735 mm
GROUND CLEARANCE
125 mm
RAKE
26
TRAIL
100 mm
WHEELBASE
1,670 mm
TIRES, FRONT SPECIFICATION
MT90B16 72H
TIRES, REAR SPECIFICATION
P205/65R15 92T
TIRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear
FUEL CAPACITY
22.7 l
OIL CAPACITY (W/FILTER)
4.7 l
WEIGHT, AS SHIPPED
544 kg
WEIGHT, IN RUNNING ORDER
561 kg
LUGGAGE CAPACITY -VOLUME
0.19 m3
ENGINE
ENGINE 2
Twin-Cooled Milwaukee-Eight 114
BORE
102 mm
STROKE
114.3 mm
DISPLACEMENT
1,868 cc
COMPRESSION RATIO
10.5:1
FUEL SYSTEM 3
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2-1-2 dual exhaust with tapered mufflers
PERFORMANCE
ENGINE TORQUE TESTING METHOD
J1349
ENGINE TORQUE 3
163 Nm
ENGINE TORQUE (RPM)
2500
HORSEPOWER
93 HP / 69 kW @ 5020 rpm
FUEL ECONOMY TESTING METHOD
Estimated City/Hwy
FUEL ECONOMY 7
5.6 l/100 km
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
10.534
GEAR RATIOS (OVERALL) 2ND
7.302
GEAR RATIOS (OVERALL) 3RD
5.423
GEAR RATIOS (OVERALL) 4TH
4.392
GEAR RATIOS (OVERALL) 5TH
3.741
GEAR RATIOS (OVERALL) 6TH
3.157
CHASSIS
FRONT FORK
49mm dual bending valve
REAR SHOCKS
Hand-adjustable emulsion rear suspension
WHEELS, FRONT TYPE 4
Black, 7-spoke Cast Aluminum
WHEELS, REAR TYPE 4
Black, 7-spoke Cast Aluminum
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS
LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, Incandescent
GAUGES
Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
165 mm
WATTS PER CHANNEL
25
SPEAKERS
4
SPEAKER SIZE
5.25 inch/6.5 inch P&A Upgrade
HEADSET SPECIFICATIONS (IF EQUIPPED)
16 – 64 ohms
AM
Standard
FM
Standard
WEATHER BAND (WB)
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – Parts & Accessories upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
RIDER/PASSENGER INTERCOM
Standard
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
TRACTION CONTROL SYSTEM (TCS)
Included
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)
Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Included
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Included
-
Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
-
As measured using the MIC City and MIC Combined (115 km/h) tests.
-
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
2023 Harley-Davidson Tri Glide Ultra – Totalmotorcycle.com Europe Specifications/Technical Details
DIMENSIONS
LENGTH
2,670 mm
SEAT HEIGHT, UNLADEN
735 mm
GROUND CLEARANCE
125 mm
RAKE
26
TRAIL
100 mm
WHEELBASE
1,670 mm
TYRES, FRONT SPECIFICATION
MT90B16 72H
TYRES, REAR SPECIFICATION
P205/65R15 92T
TYRE, TYPE
Dunlop Harley-Davidson Series, bias blackwall front and radial blackwall rear
FUEL CAPACITY
22.7 l
OIL CAPACITY (W/FILTER)
4.7 l
WEIGHT, AS SHIPPED
544 kg
WEIGHT, IN RUNNING ORDER
561 kg
LUGGAGE CAPACITY -VOLUME
0.19 m3
ENGINE
ENGINE 2
Twin-Cooled Milwaukee-Eight 114
BORE
102 mm
STROKE
114.3 mm
DISPLACEMENT
1,868 cc
COMPRESSION RATIO
10.5:1
FUEL SYSTEM
Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST
2-1-2 dual exhaust with tapered mufflers
PERFORMANCE
ENGINE TORQUE TESTING METHOD
EC 134/2014
ENGINE TORQUE 3
159 Nm
ENGINE TORQUE (RPM)
3000
HORSEPOWER
87 HP / 65 kW @ 5020 rpm
FUEL ECONOMY TESTING METHOD
EU 134/2014
FUEL ECONOMY
6.8 l/100 km
CO2 EMISSIONS TESTING METHOD
EU 134/2014
CO2 EMISSIONS
158 g/km CO2
DRIVE TRAIN
PRIMARY DRIVE
Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST
10.534
GEAR RATIOS (OVERALL) 2ND
7.302
GEAR RATIOS (OVERALL) 3RD
5.423
GEAR RATIOS (OVERALL) 4TH
4.392
GEAR RATIOS (OVERALL) 5TH
3.741
GEAR RATIOS (OVERALL) 6TH
3.157
CHASSIS
FRONT FORK
49mm dual bending valve
REAR SHOCKS
Hand-adjustable emulsion rear suspension
WHEELS, FRONT TYPE 4
Black, 7-spoke Cast Aluminum
WHEELS, REAR TYPE 4
Black, 7-spoke Cast Aluminum
BRAKES, TYPE
Dual floating rotors (front), fixed rotor (rear)
BRAKES, CALIPER TYPE
Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
ELECTRIC
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS
All LED, low beam, high beam and signature position lamp, Incandescent tail/stop, front signal lights and rear turn signals
GAUGES
Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
INFOTAINMENT
INFOTAINMENT SYSTEM
Boom! Box GTS
TYPE
Full Color TFT
SCREEN SIZE
165 mm
WATTS PER CHANNEL
25
SPEAKERS
4
SPEAKER SIZE
5.25 inch/6.5 inch P&A Upgrade
HEADSET SPECIFICATIONS (IF EQUIPPED)
16 – 64 ohms
AM
Standard
FM
Standard
SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION
Supported
SIRIUSXM PRESETS
20 – P&A Upgrade (USA & Canada only)
LANGUAGES
English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE – VIA BLUETOOTH
Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY
Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION
Phone dependent
TEXT-TO-SPEECH (TTS) LANGUAGES
Phone dependent
RIDER/PASSENGER INTERCOM
Standard
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)
Standard
USB
USB/MTP/iPod/iPhone
BLUETOOTH
Phone/Media Supported
RIDER SAFETY ENHANCEMENTS
ANTI-LOCK BRAKE SYSTEM (ABS)
Included
ELECTRONIC LINKED BRAKING (ELB)
Included
TRACTION CONTROL SYSTEM (TCS)
Included
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)
Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)
Included
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)
Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)
Included
-
All prices shown are suggested retail prices only.
Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.
Please speak with the dealership team for further details and to obtain a final on the road price.
-
Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
-
Values shown are nominal. Performance may vary by country and region.
-
Standard and optional wheels may vary by country and region.
-
Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
