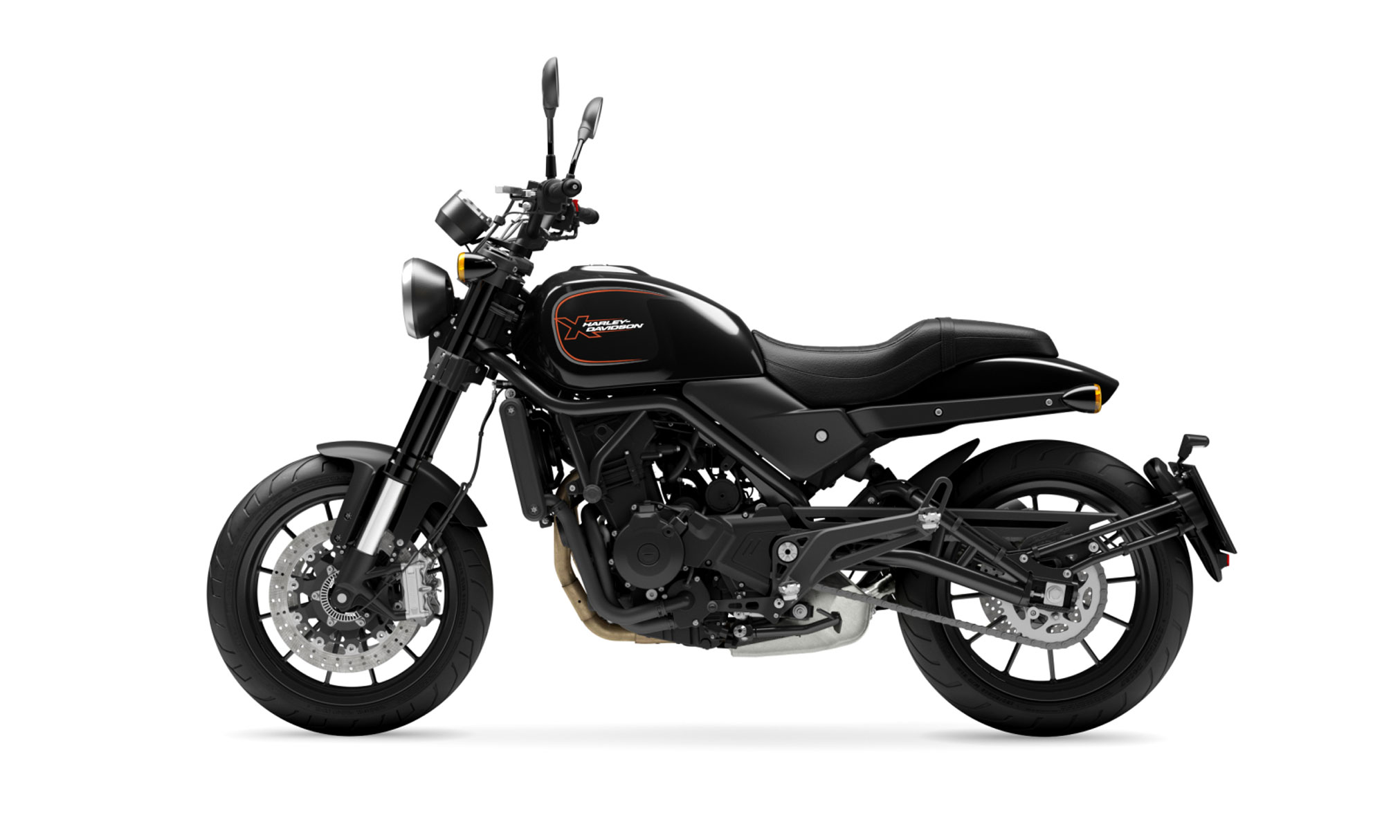

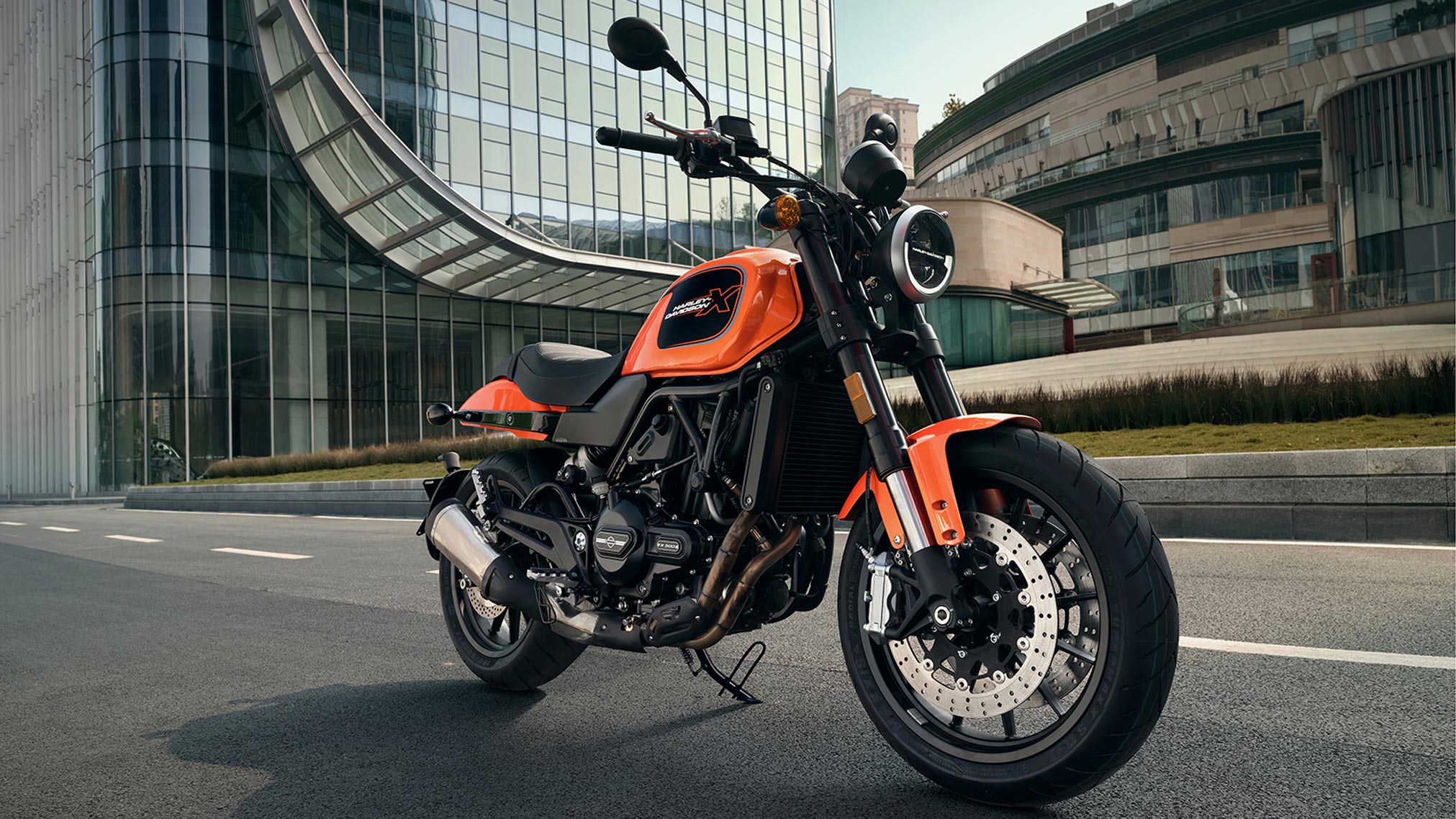

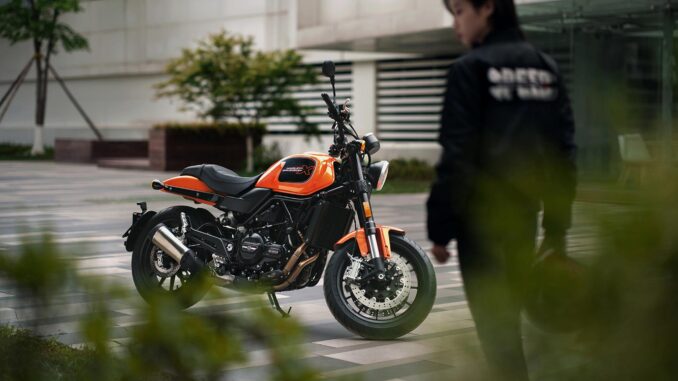

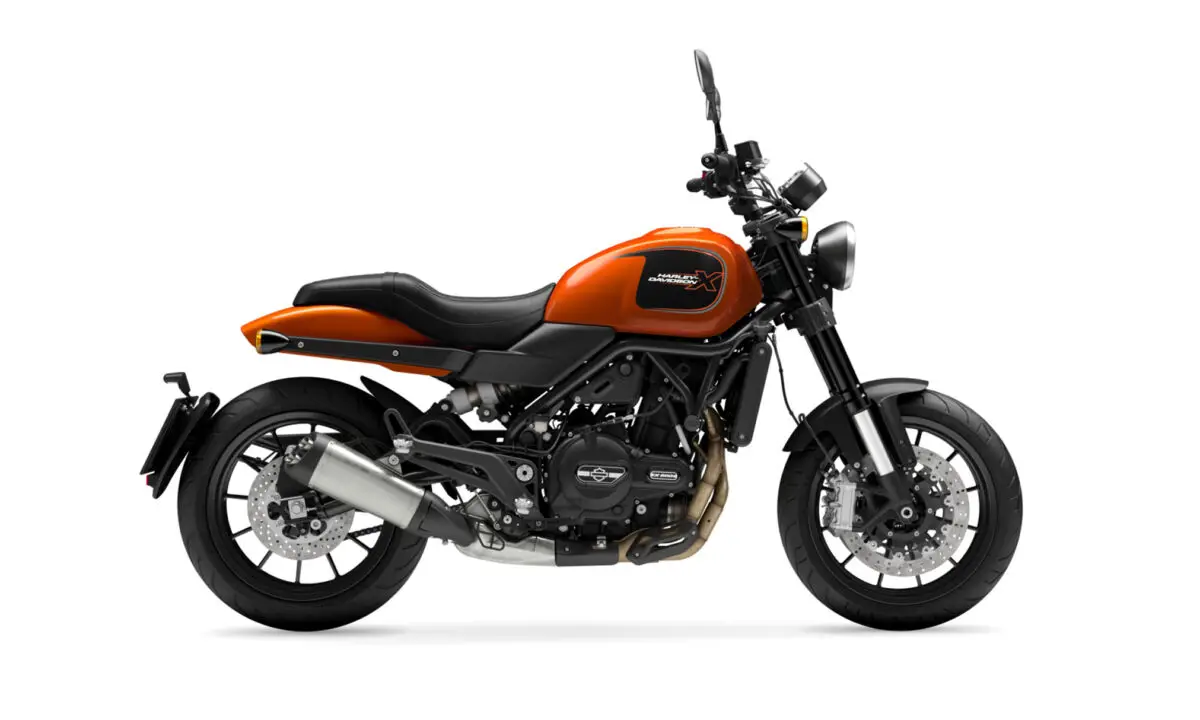

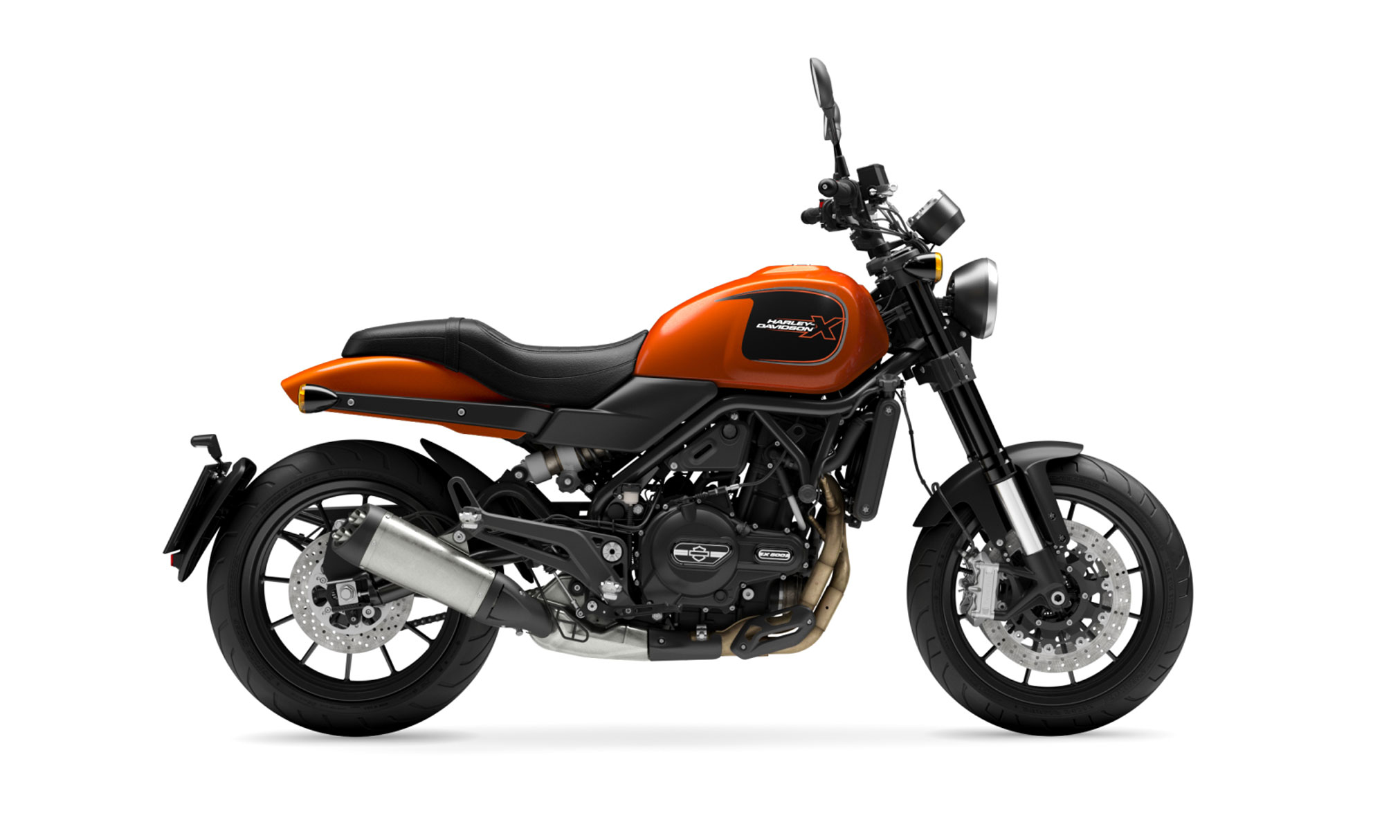

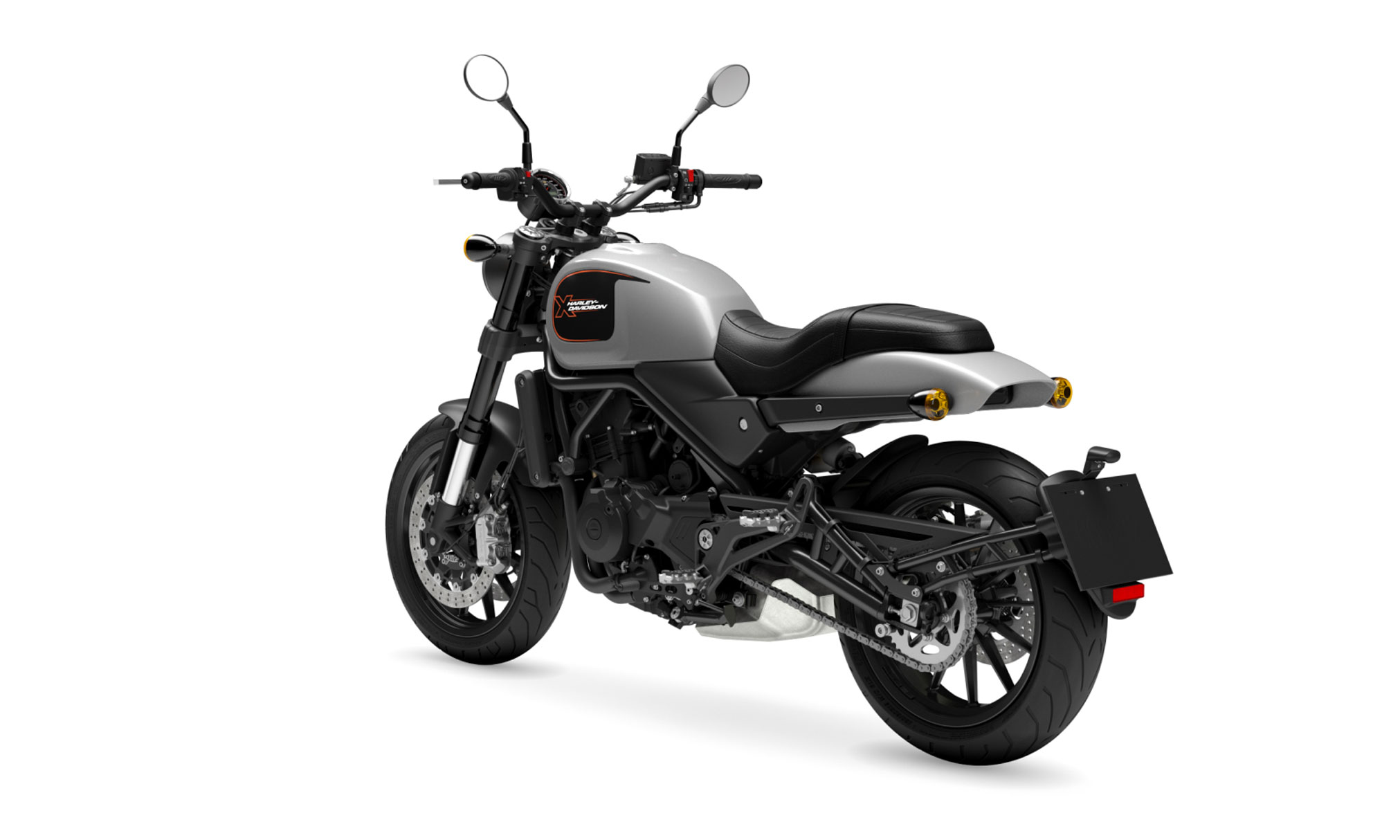

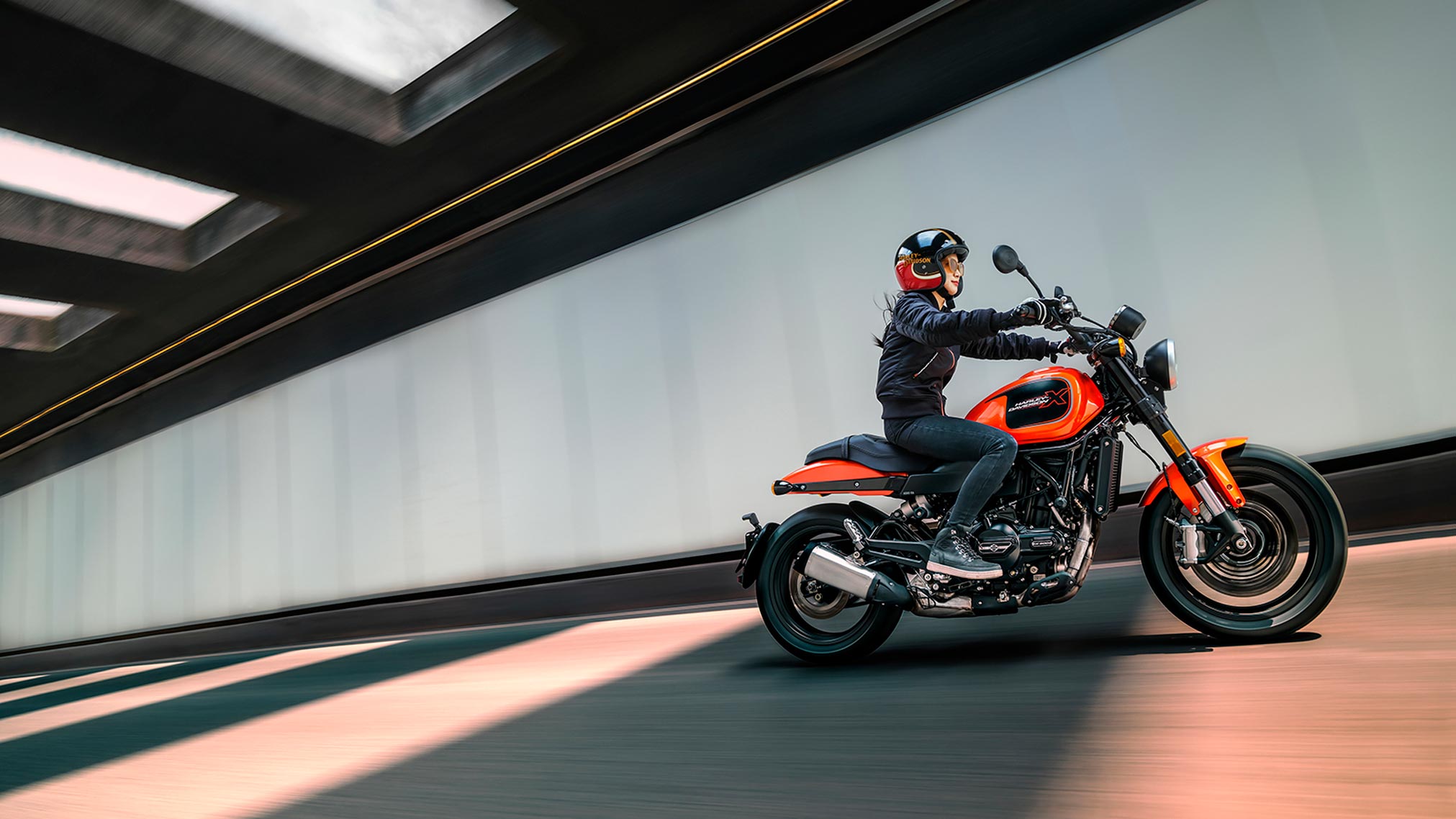

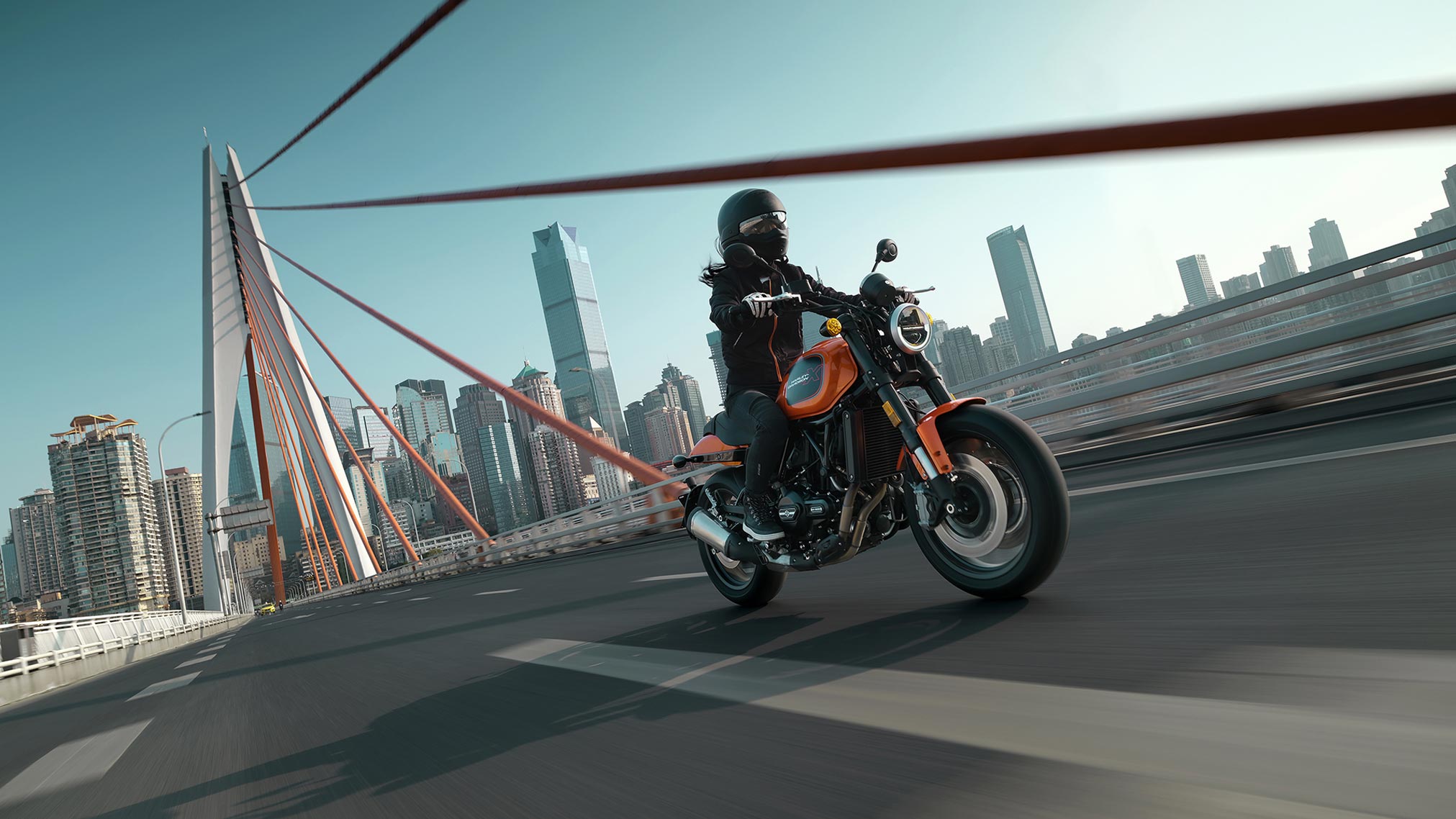

2023 Harley-Davidson X500: YOU CAN HAVE IT ALL WITH H-D.

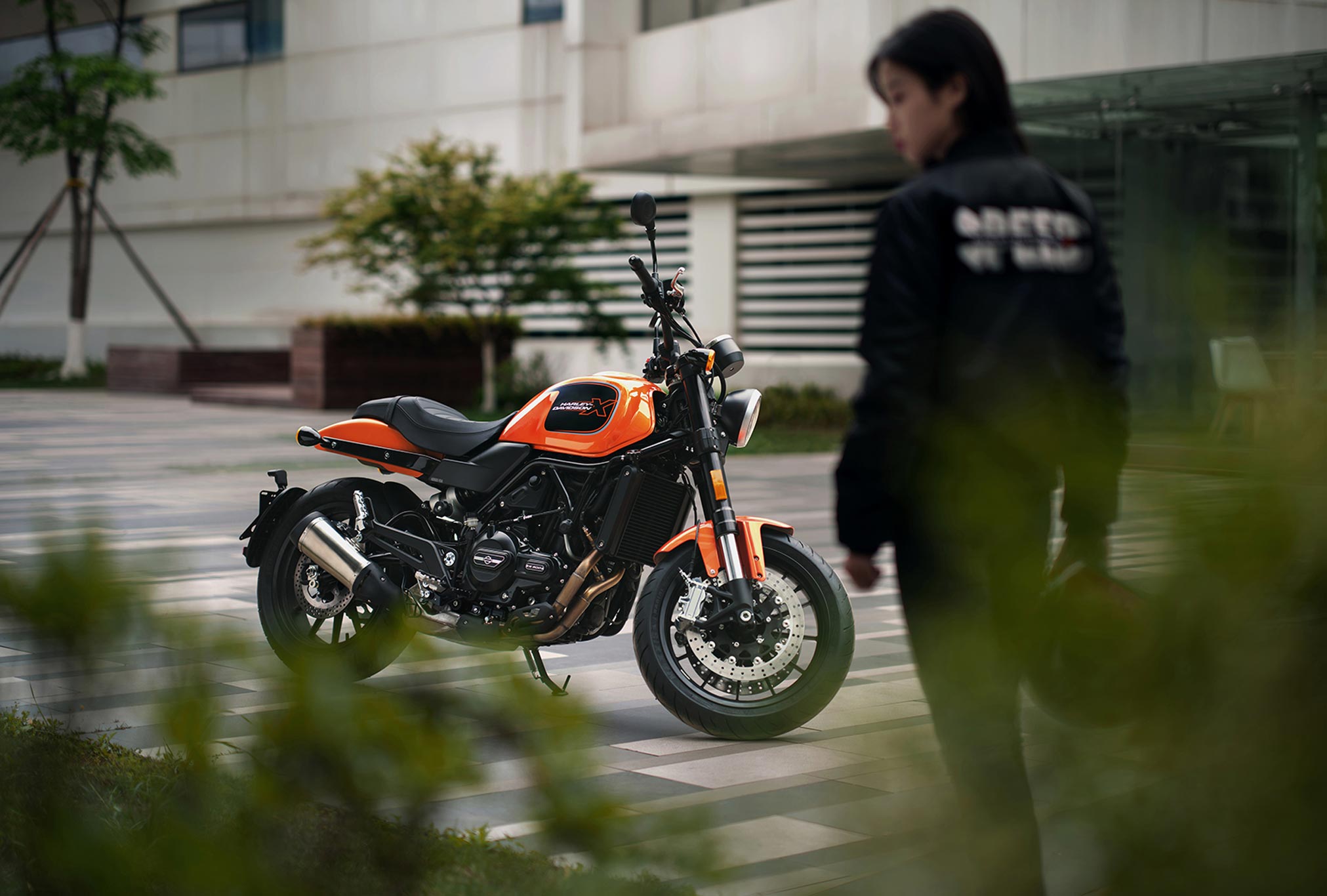

Introducing the 2023 Harley-Davidson X500…
Travel quickly and gallop freely, and the city is under the two wheels.
2023 Harley-Davidson X500 Totalmotorcycle.com Key Features
- upright riding position
- Center foot controls
- Passenger seat
- Safe Riding Enhancements
- Liquid-cooled, strong and reliable 500cc engine
- Pure American street car shape
- Easy-to-handle chassis, suspension and tires for confident driving from start to finish
2023 Harley-Davidson X500 Totalmotorcycle.com Features and Benefits
AMERICAN STREET CAR STYLE
Inspired by the Harley-Davidson Sportster ™ design
THE CITY IS UP TO YOU
Light and agile, the engine is tuned for strong mid-range torque
BORN TO RIDE “SUITABLE”
Mid-mounted foot controls and mid-height handlebars keep the riding position centered and comfortable
SOUND INTO PEOPLE’S HEARTS
2-in-1 exhaust design, enjoy low-frequency roar while riding
RELIABLE 500CC LIQUID-COOLED ENGINE
On any ride, for stability and optimum performance.
WIDE SEAT DESIGN
Improve riding comfort, more suitable for long-distance riding
Both front and rear suspensions are adjustable,
Performance and comfort, you can have it all.
2023 Harley-Davidson X500 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ TBA USD
Canada MSRP Price: $ TBA CDN
Europe/UK MSRP Price: £ TBA GBP (On The Road inc 20% Vat)
TBA
2023 Harley-Davidson X500 – Totalmotorcycle.com Canada Specifications/Technical Details
TBA
2023 Harley-Davidson X500 – Totalmotorcycle.com Europe Specifications/Technical Details
SIZE
LENGTH
2,135 mm
SEAT HEIGHT, LESS THAN FULLY LOADED
820.1mm
GROUND CLEARANCE
153mm
FORWARD TILT
24.5
TRAILING DISTANCE
100.4mm
WHEELBASE
1458 mm
TIRES, FRONT WHEEL SPECIFICATIONS
120/70-ZR17/58W
TIRES, REAR SPECIFICATIONS
160/60-ZR17/69W
TIRE TYPE
Maxxis Supermaxx ST
FUEL CAPACITY
13 liters
OIL CAPACITY (WITH FILTER)
3.2 liters
FACTORY WEIGHT
199 kg
DRIVING WEIGHT
208 kg
ENGINE
Liquid-cooled, parallel twin cylinder, 500cc
BORE
69mm
STROKE
66.8mm
DISPLACEMENT
500 cubic centimeters
COMPRESSION RATIO
11.5:1
FUEL SYSTEM
Electronic Air Intake Fuel Injection (ESPFI)
EXHAUST
2 into 1 short order, 3 catalysts
PERFORMANCE
ENGINE TORQUE TEST METHOD
GB/T20076-2006, GB/T5363-2008
ENGINE TORQUE
46 Nm
ENGINE TORQUE (REV/MIN)
6000
HORSEPOWER
35kW
BODY ROLL, RIGHT LEAN (ANGLE)
49.5
BODY LEAN, LEFT LEAN (ANGLE)
46.9
FUEL ECONOMY TEST METHOD
WMTC
FUEL ECONOMY
4.85 l/100 km
CO2 EMISSIONS TEST METHOD
WMTC
CARBON DIOXIDE EMISSIONS
112 g/km CO2
TRANSMISSION SYSTEM
MAIN DRIVE
chain, 74/38
GEAR RATIO (TOTAL) 1ST GEAR
2.85
GEAR RATIO (OVERALL) 2 GEARS
1.95
GEAR RATIO (TOTAL) 3RD GEAR
1.56
GEAR RATIO (TOTAL) 4TH GEAR
1.33
GEAR RATIO (TOTAL) 5TH GEAR
1.19
GEAR RATIO (TOTAL) 6 GEARS
1.08
FRAME
FRONT FORK
50mm inverted rebound adjustable
REAR SHOCK ABSORBER
Oil-air separation, rebound damping adjustable, preload adjustable shock absorber
FRONT HUB
cast aluminum
REAR HUB
cast aluminum
BRAKES, DISC TYPE
Front floating, rear solid
BRAKE, CALIPER TYPE
4-piston fixed front and 1-piston floating rear
ELECTRICAL SYSTEM
LIGHTS (REQUIRED BY COUNTRY LAW), PILOT LIGHTS
Front Lights: All LED, Low Beam, High Beam and Iconic Position Lights; Tail Lights/Parking Lights: All LED Lights; Front Signal Lights: All LED Lights; Rear Turn Signal Lights: Full LED
METER
Combined electronic instrument Stepper motor indicates vehicle speed, digital indicates speed, hour, total travel, two-way (A+B), km/mile indication
Notes:
- 91 octane (95) or better fuel is recommended (R+M)/2.
- Values shown are nominal values. Product performance may vary in different countries and regions.
- Standard and optional rims may vary in different countries and regions.
*Ride range estimates provided in accordance with WMTC 134/2014 Annex VII Appendix 3.3, based on expected performance of a fully charged battery when driven under specified conditions. Actual mileage will vary based on riding habits, surrounding weather and equipment condition. - The displayed mileage is from maximum power and minimum regeneration.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
