2023 Indian Chieftain Limited: TAKE THE LEAD.
Introducing the 2023 Indian Chieftain Limited…
With an extensive package of premium amenities, the impressive power of the Thunderstroke 116 V-Twin engine and unmatched handling, being out in front comes naturally to the Chieftain Limited.
All the same great features of the Chieftain Dark Horse in a classic package of premium metallic paints and chrome finishes.
Thoroughly modern and entirely capable, the Chieftain is comfortable, compact, and agile—ready to carve turns or take a three-day drive.
2023 Indian Chieftain Limited Totalmotorcycle.com Key Features
2023 LINEUP: A Diverse Range for Any Rider
Touting a wider range of models and options than ever before, the 2023 Indian Motorcycle line offers a model suited for any rider and a host of new upgrades, including:
- All Thunderstroke and PowerPlus models receive a new clutch – improving the overall feel and forgiveness. This new slipper clutch reduces engine drag which provides a smoother down shifting experience and comfortable ride while improving your ability to maintain traction when facing poor road conditions. Lastly, the larger friction zone and decreased lever effort reduces your clutch fatigue, which can be beneficial in urban areas or when riding in traffic.
- Indian Springfield, Chieftain, Indian Challenger, Roadmaster and Indian Pursuit models feature a redesigned LED headlight, which improves reach and spread of light — helping the rider see what lies ahead, while also improving their visibility to other motorists on the road.
- Integrated buttons on the Heated Seats and Heated and Cooled Seats for PowerPlus and heavyweight Thunderstroke models now feature haptics, which allow riders to feel the button’s responsive when wearing gloves.
Indian Pursuit with Premium Package models now offer Lower Fairing Storage compartments as standard.
- Models with the four-inch round touchscreen display can now tie their RIDE COMMAND account from the Indian Motorcycle app or website to their bike, allowing app and web-accessible features like vehicle health, vehicle locator and ride tracking.
Across the line, Indian Motorcycle has introduced an array of new paint colors, including Sagebrush Smoke on Chief Dark Horse and Stryker Red Metallic on Scout Bobber Sixty, Chief Bobber and Roadmaster Limited models. Spirit Blue Metallic is a new color option on Chieftain Limited and Indian Pursuit models, while Titanium Smoke is introduced to Indian Challenger Dark Horse models.
INDIAN MOTORCYCLE ANNOUNCES 2023 MODEL YEAR LINEUP; REVISES FTR LINEUP & DEBUTS INDIAN CHALLENGER ELITE
- FTR Lineup Adds Fresh, Vibrant Colors, While New FTR Sport & FTR R Carbon Upgrade to Four-Inch Round Touchscreen Display with Navigation
- Indian Challenger Elite Delivers the Ultimate in Style & Exclusivity
- New Sapphire Blue Smoke Paint with Black Smoke & Titanium Metallic Smoke Combine Premium Quality with Head-Turning Style
- From Scout to Indian Pursuit, the 2023 Lineup Offers Models & Styles for Any Rider
- New Indian Motorcycle Accessories Further Expand Personalization Options
Indian Motorcycle, America’s First Motorcycle Company, today announced its 2023 model year lineup, featuring the new FTR Sport and Indian Challenger Elite, along with various model updates and new accessories across the line. In addition, the 2023 lineup features a variety of new color options, highlighted by vibrant color schemes for FTR and FTR Sport on newly designed tank covers.
“Fully loaded with models and styles for the widest range of riders, the 2023 lineup is a powerful testament to our team’s relentless effort to build and refine a truly comprehensive product offering over the past nine years,” said Mike Dougherty, President for Indian Motorcycle. “This effort has been focused across the line and within each model lineup, as evidenced by the introduction of the FTR Sport – the addition of which creates four unique FTR offerings, each with its own style and personality.”
For 2023, Indian Motorcycle is introducing an array of functional accessories. First, in partnership with CruzTOOLS®, Indian Motorcycle is launching three accessories, including two tool kits compatible with all models and an axle adapter for FTR models. To add storage to most models, a new All-Weather Vinyl Tailbag attaches to select passenger seats or luggage racks. In addition, a new Syndicate Heated Seat is available for Indian Challenger models, while a Reduced Reach Kickstand is now available for all Indian Challenger and Indian Pursuit models.
For the Chief line, Indian Motorcycle is launching two new bag options. The Chief Fork Bag attaches securely to the front of the handlebars and is perfect for storing smaller items like gloves, glasses, cell phones or water bottles. The new Chief Bobber Saddlebags are water-resistant and add convenient storage without sacrificing style.
For added comfort, Indian Motorcycle is offering Chief riders an upgraded Comfort+ Solo Seat and a two-up Syndicate Seat. The Comfort+ Solo Seat pulls design inspiration from old-school muscle car interiors. The top is more plush than the stock seat and contours to hold the rider securely and comfortably. The new Chief Syndicate Seat complements the bike’s distinct design, while adding comfort and support for both rider and passenger. The Syndicate Seat is made with a durable, weather-resistant black vinyl that won’t fade.
For Chief passengers, Indian Motorcycle is introducing the Low Profile Passenger Backrest, which complements the bike’s style and adds cushioned support to the passenger’s posterior.
Lastly, the new Quick Release Low Profile Trunk for bagger and touring models is expanding its colorway options. The streamlined Low Profile Trunk will now be available in 58 factory colors.
2023 Indian Chieftain Limited Totalmotorcycle.com Features and Benefits
THUNDERSTROKE 116 V-TWIN ENGINE
The air-cooled Thunderstroke 116 engine produces 171 Nm of torque for exceptional power at low RPM and a smooth ride at any speed.
MODERN. AGGRESSIVE.
Premium chrome finishes, a sleek fairing, slammed saddlebags, and gunfighter style seat deliver a streamlined, commanding presence. A lowered stance and LED lighting from nose to tail complete the custom-inspired look.
AGGRESSIVELY STYLED
A bike that looks as aggressive as it performs, the Chieftain Limited features a restyled fairing, slammed saddlebags, a 19” front wheel and new badging.
ADVANCEMENTS THAT KEEP DRIVING FORWARD
When it comes to power and comfort, The Chieftain Limited is in a class of its own.
BEATS FOR THE STREETS
Hear every note with high-output speakers in the fairing that deliver 100-watts of crystal-clear audio. And the dynamic equaliser automatically adjusts for road, wind, and engine noise.
AGILE HANDLING AND CONTROL
Low seat height, ergonomically-designed controls, and a lightweight cast aluminium frame come together for responsive handling and agile cornering – providing a confidence inspiring ride for riders across the board.
RIDE IN COMFORT, YOUR WAY
Choose between three ride modes, Tour, Standard and Sport, for an experience that’s customised to your riding style. Rear Cylinder Deactivation automatically shuts off the rear cylinder when the bike is stopped for enhanced comfort in slow-moving traffic.
EVERYTHING YOU NEED AND MORE
The Chieftain Limited is packed with all of the premium features and easy-to-use technology that take your ride to the next level.
PUSH-BUTTON POWER WINDSHIELD
With the push of a handlebar-mounted button, this flare windshield will raise or lower to your preferred position.
FEATURES FOR THE WIN
The Chieftain Limited comes standard with keyless ignition, cruise control, ABS and tyre pressure monitoring.
68+ LITRES OF CARGO SPACE
Keep your cargo protected from the elements with 68+ Litres of weatherproof storage in power-locking slammed saddlebags.
2023 Indian Chieftain Limited – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $27999 to $28,749 USD
Canada MSRP Price: $34,999 to $35,249 CDN
Europe/UK MSRP Price: £25,595 to 26,095 GBP (On The Road inc 20% Vat)
Engine & Drivetrain
Bore x Stroke
4.063 in x 4.449 in (103.2 mm x 113 mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lbs (628 kg)
Lean Angle
31°
Overall Height
51.6 in (1310 mm)
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in (1023 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (As Shipped / Running Order)
791 lbs (359 kg) / 823 lbs (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color / Graphics
Black Metallic, Silver Quartz Metallic, Spirit Blue Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.

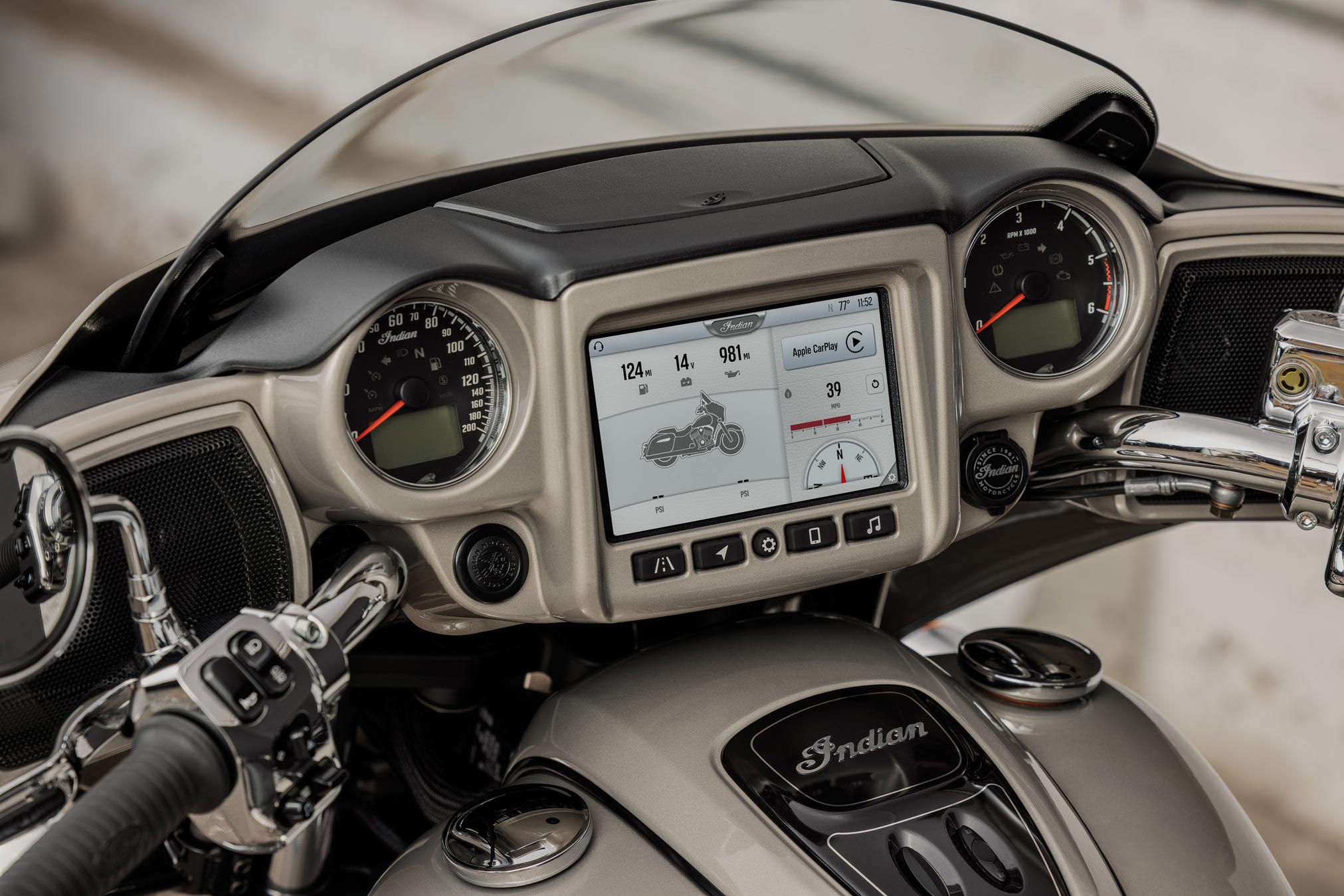

Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2023 bikes include a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic, intuitive destination search, vehicle health and vehicle locator. 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
Pathfinder LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Gunfighter Style Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
2023 Indian Chieftain Limited – Totalmotorcycle.com Canada Specifications/Technical Details
Engine & Drivetrain
Bore x Stroke
4.063 in x 4.449 in (103.2 mm x 113 mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lbs (628 kg)
Lean Angle
31°
Overall Height
51.6 in (1310 mm)
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in (1023 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height (Laden)
25.6 in (650 mm)
Weight (As Shipped / Running Order)
791 lbs (359 kg) / 823 lbs (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color / Graphics
Black Metallic, Silver Quartz Metallic, Spirit Blue Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2023 bikes include a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic, intuitive destination search, vehicle health and vehicle locator. 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
Pathfinder LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Gunfighter Style Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
2023 Indian Chieftain Limited – Totalmotorcycle.com Europe Specifications/Technical Details
Engine
Engine Type Thunderstroke 116
Displacement 1890 cc
Bore x Stroke 103.2mm x 113mm
Compression Ratio 11.0:1
Electronic Fuel Injection System Closed loop fuel Injection / 54mm bore
Performance
Peak Torque RPM 3000 rpm
Peak Torque 171 Nm
Drivetrain
Primary Drive Gear Drive Wet Clutch
Clutch Wet, Multi-Plate, Assist
Gear Ratio (Overall)
1st 9.403 : 1
2nd 6.411 : 1
3rd 4.763 : 1
4th 3.796 : 1
5th 3.243 : 1
6th 2.789 : 1
Final Drive 2.2 : 1
Suspension
Suspension: Front – Type/Travel Telescopic Fork / 119 mm
Suspension: Rear – Type/Travel Single Shock w/ Air Adjust / 114 mm / 63 mm ride in
Chassis
Brakes/Front Dual / 300 mm Floating Rotor / 4 Piston Calliper
Brakes/Rear Single / 300 mm Floating Rotor / 2 Piston Calliper
Front Tyres Metzeler Cruisetec 130/60B19 66H
Rear Tyres Metzeler Cruisetec 180/60R16 80H
Wheels 10 Spoke Contrast Cut 19″ x 3.5″ / 16″ x 5″
Exhaust Split dual exhaust w/ cross-over
Dimensions
Wheelbase 1668 mm
Seat Height 650 mm
Ground Clearance 130 mm
Overall Length 2506 mm
Overall Width 1023 mm
Overall Height 1372 mm
Lean Angle 31°
Rake 25°
Trail 150 mm
Fuel Capacity 20.8 liters
GVWR 628 kg
Weight (Empty tank / full of fuel) 359kg / 373 kg
Features
Colour / Graphics Black Metallic, Silver Quartz Metallic
Standard
Standard Equipment 7″ touchscreen powered by RIDE COMMAND with Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tyre Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input; 12V Charging Port
Lights LED Headlamp/Tail/Brake/Turn Signal
Electrical
Gauges Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment 7″ touchscreen powered by RIDE COMMAND: 7″ touchscreen display with real-time clock; ambient air temperature; heading; audio information display; Bluetooth status for phone and headset; vehicle status (tyre pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
