2024 Polaris Slingshot ROUSH Edition Guide

2024 Polaris Slingshot ROUSH Edition
ReviewKey FeaturesFeatures & BenefitsSpecifications

2024 Polaris Slingshot ROUSH Edition 2024 Polaris Slingshot ROUSH Edition 2024 Polaris Slingshot ROUSH Edition 2024 Polaris Slingshot ROUSH Edition 2024 Polaris Slingshot ROUSH Edition 2024 Polaris Slingshot ROUSH Edition 2024 Polaris Slingshot ROUSH Edition

2024 Polaris Slingshot ROUSH Edition: HIGH-PERFORMANCE R WITH UNMISTAKABLE ROUSH LOOKS.

Introducing the 2024 Polaris Slingshot ROUSH Edition…

The Slingshot ROUSH Edition is a high-performance 203 HP machine equipped with a Slingshot Excursion Top, Brembo Brakes with trim-level exclusive slotted rotors, 305MM Rear Tire, and unmistakable ROUSH style. This rare ride will invite envious stares with its premium ROUSH seats, an iconic ROUSH gauge, and ROUSH Block R on the manual gear shift—plus full-on ROUSH Edition graphics with blacked-out badging. It brings a racetrack attitude to those who want to win over the streets.



Back by popular demand, Polaris is reintroducing the Slingshot ROUSH Edition. Designed at the intersection of head turning looks and performance lifestyle, the Slingshot ROUSH Edition delivers a racetrack attitude with exclusive ROUSH branding.

Built upon the Slingshot R platform, the Slingshot ROUSH Edition packs the 203-horsepower ProStar engine, but adds premium componentry, including Brembo Brakes with exclusive slotted rotors, a Slingshot Excursion Top, Sparco Pedal Covers, and an exclusive race car-inspired steering wheel with color accents. Taking stand-out style to an entirely new level, the Slingshot ROUSH Edition features a special graphics package that enhances Slingshot’s distinctive look and performance with unmistakable ROUSH styling and branding, including seats with an exclusive design, a special edition color-matched design for the instrument cluster, and blacked-out badging. Manual transmission options feature a ROUSH Block “R” branding on the gear shift knob, while AutoDrive offerings are standard with Paddle Shifters.

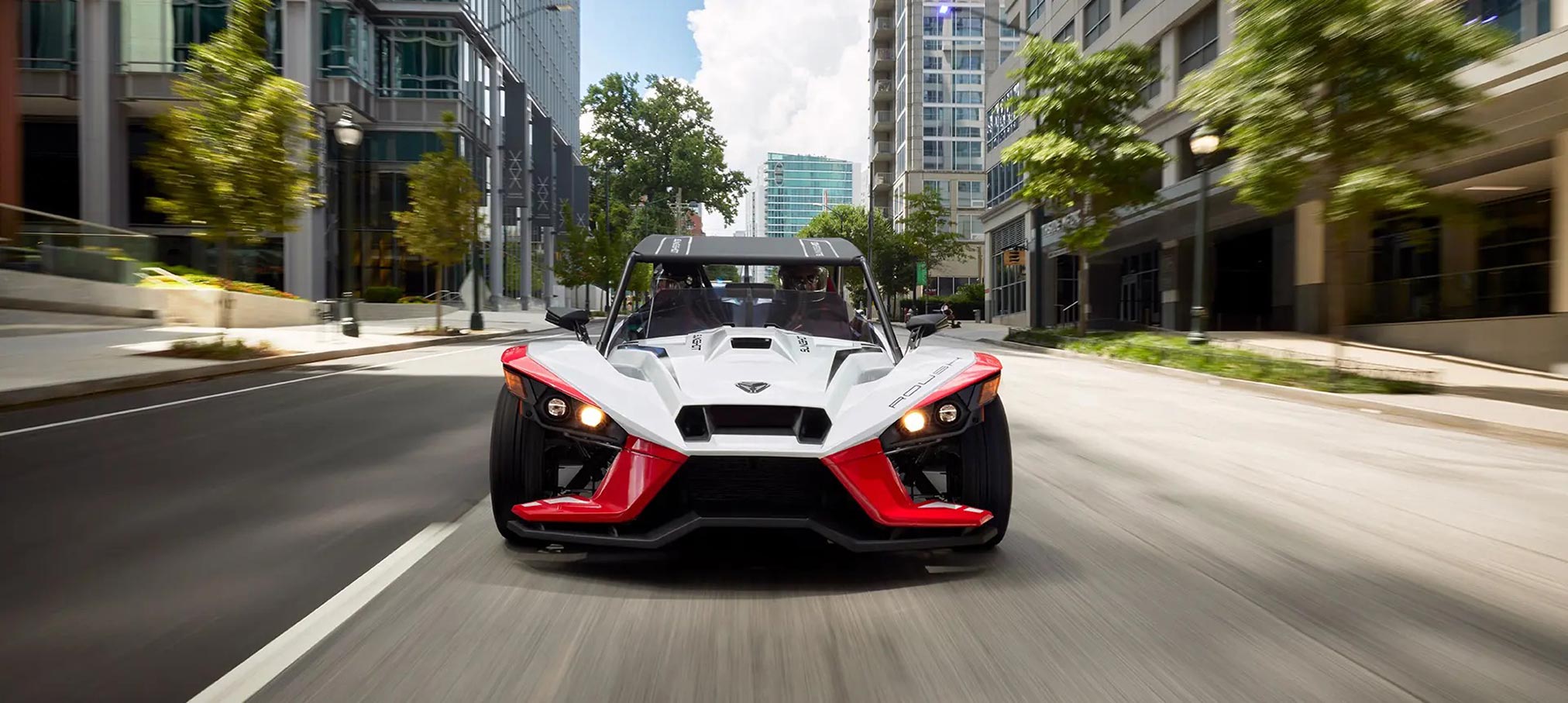

NOTE: The 2024 Polaris Slingshot ROUSH Edition Canadian version is slightly different than the USA 2024 Polaris Slingshot ROUSH Edition version. Please see image above for differences.

2024 Polaris Slingshot ROUSH Edition



2024 Polaris Slingshot ROUSH Edition Guide Totalmotorcycle.com Key Features

Base Features:

  • Single-Tone Color
  • Cruise Control
  • Anti-Lock Braking System
  • LED High & Low Beam Headlights
  • Proximity Key with Keyless Start
  • 2 Year Warranty, Unlimited Miles

All Key Features from Slingshot S, plus:

  • Rockford Fosgate 200W Audio System
  • 7″ RIDE COMMAND Display w/ Multi-Touch & Bluetooth
  • Leather Wrapped Steering Wheel & Integrated Controls
  • Back-Up Camera
  • USB Phone Connectivity
  • 8.5″ Clear Wind Deflector

All Key Features from Slingshot SL, plus:

  • Two-Tone Premium Paint & Full Body Graphics
  • Sport Seats & 7.5″ Tinted Wind Deflector
  • Front Lower Accent Lights
  • Kenda 20″ 305 mm Rear Wheel
  • 203 HP

All Key Features from Slingshot SLR, plus:

  • Tri-Tone Premium Paint & Full Body Graphics
  • Bi-Color Interior LED Accent Lights
  • Apple CarPlay
  • Vented Hood Styling
  • Navigation Included Display
  • 1-Year Complimentary Trial of RIDE COMMAND+ (after which, fees apply)

All Key Features from Slingshot R, plus:

  • Excursion Top Factory Installed
  • Brembo Brakes With Exclusive Slotted Rotors
  • Premium ROUSH Branding
  • Exclusive Red Euro Stitch Steering Wheel Accent







2024 Polaris Slingshot ROUSH Edition Guide Totalmotorcycle.com Features and Benefits

BIG BOLD FEATURES
STYLE THAT OUTPACES

ROUSH branding inside and out reflects a passion for premium performance lifestyle that demands attention.
STYLE AND SHADE IN ONE

The Slingshot Excursion Top adds extra luxury and comfort while providing race-car style cues.
PERFORMANCE DNA

Brembo Brakes and Slotted Rotors for those looking for the ultimate driving performance that inspires confidence.
A BADGE OF HONOR

The ROUSH branded gear shift knob acts as a badge of honor in a high-visibility, high-performance location in the manual model.
RACETRACK READY

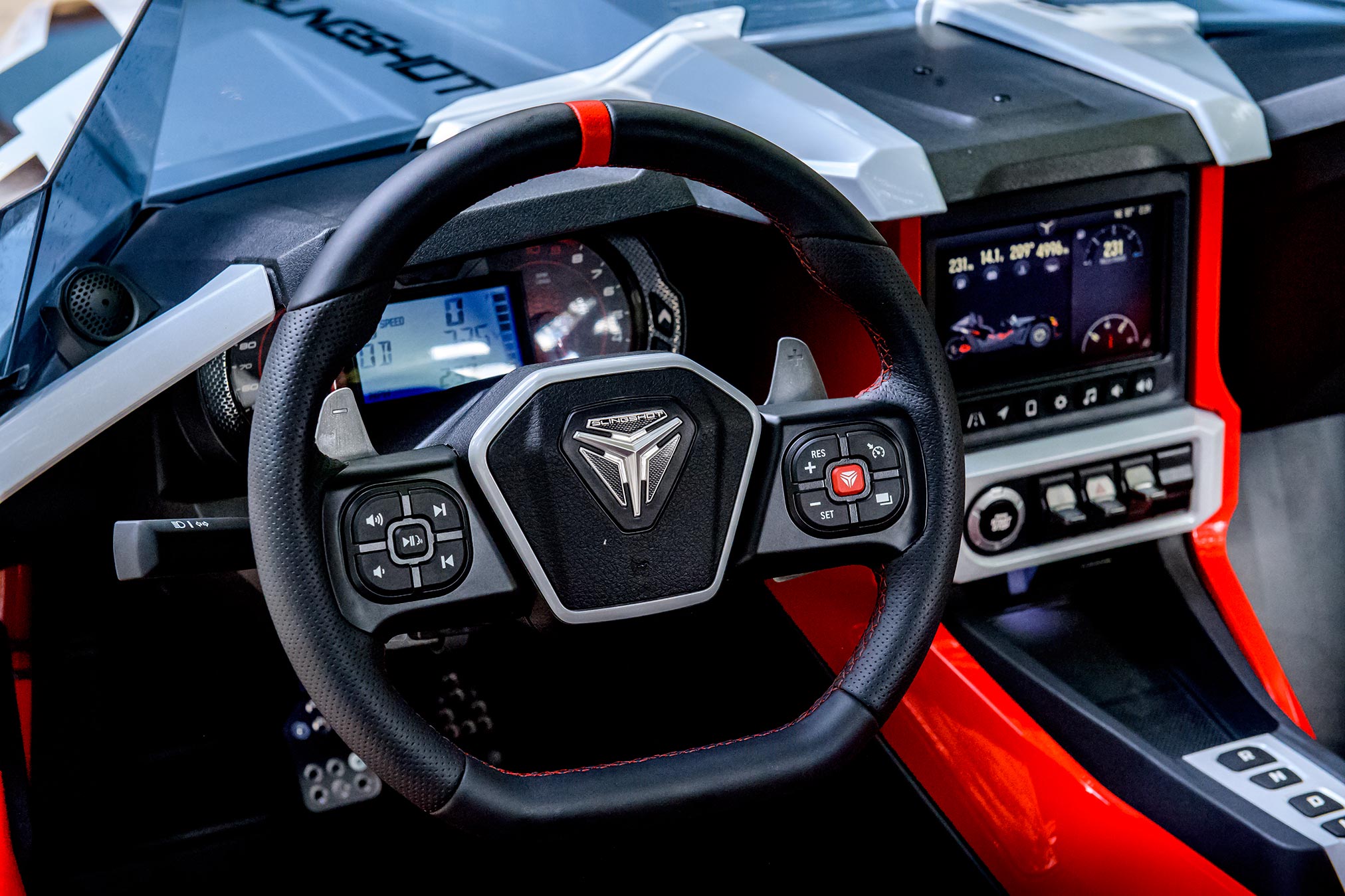

The limited-edition steering wheel with color matched center stripe & stitching gives you confident control, a race-car performance feel, and serves as a symbol of exclusivity.
POWER AND ACCELERATION WHEN YOU NEED IT

203HP provides the thrilling driving experience from behind the wheel of the ROUSH performance inspired cockpit.
IMPROVED FEEL AND PERFORMANCE

Sparco Pedal Covers deliver racing pro-style feel and performance to fit with the race-inspired theme.
MAKE A POWERFUL STATEMENT

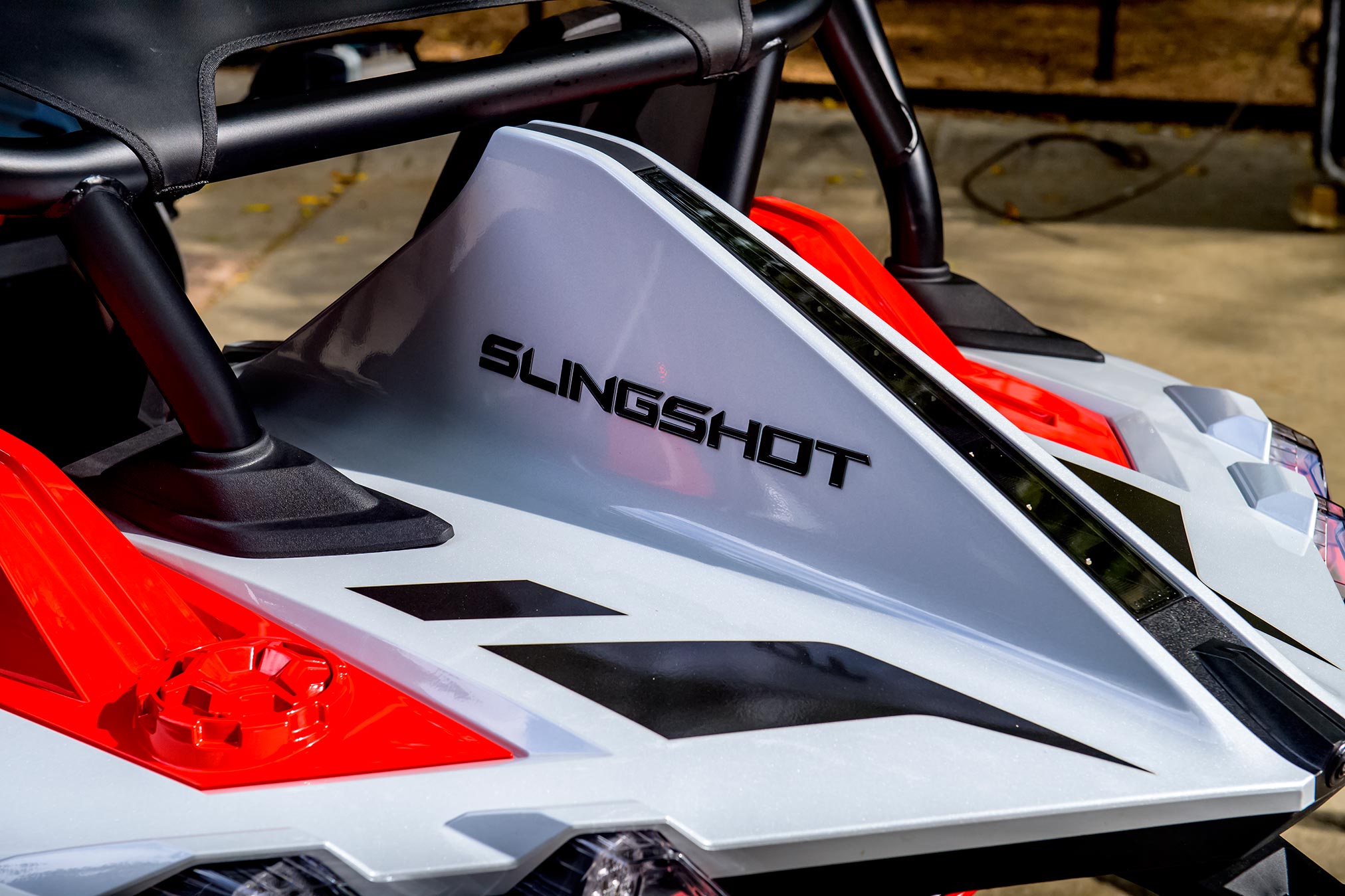

Blacked-out badging brings aggressive good looks with a little bit of a mean streak.
YOU CONTROL THE ACTION

Bring the ride to your fingertips with high-performance, race-inspired paddle shifters, providing you with complete control of your shift points in the AutoDrive model.



Polaris Slingshot’s New 2024 Model Year Lineup Delivers Extraordinary Driving Experiences & One-of-a-Kind On-Road Adventures



  • New 2024 Slingshot Lineup Represents the Ultimate Platform for Self-Expression,
  • Introduces Thoughtful Updates & Refinements, Premium Paint & Head-Turning Graphics



Embraced by those who demand attention and appreciate its one-of-a-kind on-road adventure, the Polaris Slingshot is unlike anything else on the road. With an open cockpit, three-wheels, and bold, head-turning style, Slingshot serves as the ultimate platform for self-expression – driven by a diverse community of riders who dare to be different.

The familiar, automotive-like† driving experience makes Slingshot an exciting, approachable option for those new to powersports. In fact, 85% of new 2023 Slingshot customers had not previously owned a Polaris product. Slingshot’s wide appeal also helps the powersports leader engage a broader spectrum of audiences. In 2023, new Slingshot owners were twice as likely to be multicultural (non-white) and included 90% more women than other Polaris brands.

“We designed and developed the first Slingshot with a spirit of innovation and a drive to create something unlike anything else in the marketplace,” said Chris Sergeant, Polaris Slingshot Vice President. “Over the past several years, it’s been incredible to grow Slingshot into a true lifestyle brand. People from all walks of life, all around the country, are experiencing the thrill of Slingshot ownership. Their Slingshot is a statement of their individuality and they’ve become part of the tight-knit Slingshot community.”

For 2024, Polaris introduces thoughtful refinements and bold, head-turning graphics across its five-model 2024 autocycle lineup, available in both manual and AutoDrive transmissions.



New Paint & Graphics

Paint color and quality are key to creating a head-turning ride. For 2024, Polaris has a wide range of premium paint options and graphics packages across its entire lineup. While paint options like Moonlight White and Jet Black provide a blank canvas for personalization and self-expression, new colors like Radar Blue Fade, Gold Rush, and Purple Lightning deliver a custom-like look straight from the factory. Adding to that, SL and SLR models receive all-new sporty graphics packages set to match the adventurous personality of its driver.



SL Wheels

Keeping with style trends, Polaris updated the SL wheels, and for 2024, all SL models will come standard with a sleek and stylish wheel design in a new midnight charcoal metallic color.  For SL customers who are looking to really make a statement, the new design is available to personalize direct from the factory with an upgraded machine accent finish.



Stage 2 Audio Experience

Driving a Slingshot activates all five senses, and for Slingshot owners, the sound is just as important as the style. New for 2024, Slingshot’s Stage 2 Audio Package has leveled up from 100-watts of in-cockpit audio to a booming 200-watts with all-new Rockford Fosgate integrated speakers. The improved system has never sounded better, featuring new speakers built into the side kick panels within the cockpit along with an adjustment to dash tweeters to amplify sound off the vehicle’s wind deflector. Owners buying straight off the dealership floor will now have the best Stage 2 Audio Package ever offered right from the factory. The new Stage 2 Audio Package is standard on 2024 models SL and above and will be added to S models when drivers level-up with RIDE COMMAND.



Factory Accessories

Whether personalizing the vehicle for longer, adventurous drives with added comfort and more storage, or customizing the style and sound for a personal touch, Polaris offers a wide range of factory accessories. Top selections include Heated and Cooled Seats, Roll Hoop Stage 3 Audio Kit by Rockford Fosgate, hard and soft tops like the Slingshade and Excursion Top, and integrated storage bags that seamlessly fit within the Slingshot cockpit.











2024 Polaris Slingshot ROUSH Edition Guide – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: from $38,149 to $40,299 USD
Canada MSRP Price: from $52,599 – $55,349 CDN
Europe/UK MSRP Price: £NA GBP (On The Road inc 20% Vat)

MANUAL SPECS (AUTODRIVE SPECS BELOW)

POWERTRAIN AND PERFORMANCE

0-60 MPH

4.9 Seconds

Bore x Stroke

93 mm x 73.5 mm

Compression Ratio

11.5:1

Displacement

1,997 cc

Engine Type

Prostar 2.0L 4 Cylinder

Fuel System

Multiport Injected

Fuel Type

91 octane or higher

Peak Lateral Grip

1.02 g

Peak Power

203 HP @ 8,250 RPM

Peak Torque

144 ft-lbs at 6,500 RPM

Power to Weight Ratio

8.1 lb/hp

Rev Limit (RPM)

8,500 RPM

Valve Train

DOHC

DIMENSIONS / CAPACITIES

Curb Weight

1,692 lb

Fuel Capacity

9.77 gal (37.1 L)

Ground Clearance

5.4 in (137.3 mm)

Max Wet Weight

1,749 lb

Overall Vehicle Height

53.25 in (1,318 mm)

Overall Vehicle Length

149.6 in (3,800 mm)

Overall Vehicle Width

77.9 in (1,980 mm)

Track Width

69.1 in (1,755 mm)

Wheelbase

105 in (2,667 mm)

BRAKES

Anti lock Braking System

Standard

Front Brake Rotors

Slotted vented cast iron rotor 339 mm diameter

Front Calipers

Brembo Aluminum 4 piston

Rear Brake Rotors

Vented cast iron, 298 mm diameter

Rear Calipers

Aluminum 1 piston

SPECIFICATIONS

Battery

30AH, 12V, 400 CCA

Center Brake Light

LED

Front Lower Accent Lights

LED

Front Upper Accent Lights

LED

Gauges

Dual Sweep LED Backlit Gauge with Configurable LCD Display

Headlight

LED High & Low Beam

Indicator Lights

LED

Interior LED Accent Lights

Bi-Color LED

License Plate Light

LED

Main Brake Lights

LED

Power Steering System

Variable Speed Sensitive Electronic Power Steering 2.0

Steering Actuation

Rack-and-pinion

Steering Turns

2.5 Turns

Turn Signals

LED

TIRES AND WHEELS

Front Tire Size

225 / 45R18

Front Tire Type

Kenda SS-799

Front Wheel Size

18×7.5

Front Wheel Type

Aluminum

Rear Tire Size

305 / 30R20

Rear Tire Type

Kenda SS-799

Rear Wheel Size

20×9.0

Rear Wheel Type

Aluminum

TRANSMISSION

Bevel Drive Ratio

2.824:1

Clutch Type

Dry, Single Plate, Hydraulically Actuated

Final Drive Ratio

1.771:1

Final Drive Type

Carbon Fiber Reinforced Belt, 30 mm x 145 T

Gear Ratio (1st)

3.251:1

Gear Ratio (2nd)

1.955:1

Gear Ratio (3rd)

1.310:1

Gear Ratio (4th)

1.000:1

Gear Ratio (5th)

0.753:1

Gear Shift Pattern (Manual)

N/A

Reverse Gear Ratio

3.180:1

Shock Absorber

Revised Twin Tube Gas Charged Coil Overs

Suspension Type

Independent, Double Wishbone with Forged Aluminum Control Arms

Transmission Type

Hydraulically Actuated Automated Manual (AutoDrive) 5 Speed Synchromesh w/ Reverse

FEATURES AND WARRANTY

12v DC Outlets

2

Apple CarPlay

Standard

Audio System

Stage 2 Audio: Rockford Fosgate 200w Audio System, Automatic Volume Control, & Plug & Play Expandable Amplifier

Color Options

Racetrack Red

Connected Services

Standard with 1 Year Coverage

Cruise Control

Standard

ESC (Electronic Stability Control)

Standard

Factory Warranty

2 Years, Unlimited Miles

Ignition

Proximity Key with Keyless Start

Infotainment

Technology Package 3: 7” display powered by RIDE COMMAND with Bluetooth, USB Phone Connectivity, Navigation, Apple CarPlay and a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic, intuitive destination search, vehicle health and vehicle locator plus Bluetooth & USB Phone Connectivity, & Back-up Camera

Integrated Steering Wheel Controls

Standard

Interior Trim Color

Gloss Black

Leather Wrapped Steering Wheel

Standard

Main Accent Color

Gloss Black

Paddle Shifters

Standard

Passive Security System

Standard

Steering Wheel Accent Stitching

Red Euro Stitch

Steering Wheel Materials

Smooth & Perforated Full-Grain Leather with red accent

Traction Control

Standard

Turn by Turn Navigation

Standard with 1 Year of Map Updates

USB Ports

2

Vehicle Drive Modes

Standard

Vehicle Hill Hold

Standard

Vehicle Top

Excursion Top Factory Installed

Wind Deflector

7.5 in. Tinted







AUTODRIVE SPECS



0-60 MPH

4.9 Seconds

Bore x Stroke

93 mm x 73.5 mm

Compression Ratio

11.5:1

Displacement

1,997 cc

Engine Type

Prostar 2.0L 4 Cylinder

Fuel System

Multiport Injected

Fuel Type

91 octane or higher

Peak Lateral Grip

1.02 g

Peak Power

203 HP @ 8,250 RPM

Peak Torque

144 ft-lbs at 6,500 RPM

Power to Weight Ratio

8.1 lb/hp

Rev Limit (RPM)

8,500 RPM

Valve Train

DOHC

DIMENSIONS / CAPACITIES

Curb Weight

1,680 lb

Fuel Capacity

9.77 gal (37.1 L)

Ground Clearance

5.4 in (137.3 mm)

Max Wet Weight

1,749 lb

Overall Vehicle Height

53.25 in (1,318 mm)

Overall Vehicle Length

149.6 in (3,800 mm)

Overall Vehicle Width

77.9 in (1,980 mm)

Track Width

69.1 in (1,755 mm)

Wheelbase

105 in (2,667 mm)

BRAKES

Anti lock Braking System

Standard

Front Brake Rotors

Slotted vented cast iron rotor 339 mm diameter

Front Calipers

Brembo Aluminum 4 piston

Rear Brake Rotors

Vented cast iron, 298 mm diameter

Rear Calipers

Aluminum 1 piston

SPECIFICATIONS

Battery

30AH, 12V, 400 CCA

Center Brake Light

LED

Front Lower Accent Lights

LED

Front Upper Accent Lights

LED

Gauges

Dual Sweep LED Backlit Gauge with Configurable LCD Display

Headlight

LED High & Low Beam

Indicator Lights

LED

Interior LED Accent Lights

Bi-Color LED

License Plate Light

LED

Main Brake Lights

LED

Power Steering System

Variable Speed Sensitive Electronic Power Steering 2.0

Steering Actuation

Rack-and-pinion

Steering Turns

2.5 Turns

Turn Signals

LED

TIRES AND WHEELS

Front Tire Size

225 / 45R18

Front Tire Type

Kenda SS-799

Front Wheel Size

18×7.5

Front Wheel Type

Aluminum

Rear Tire Size

305 / 30R20

Rear Tire Type

Kenda SS-799

Rear Wheel Size

20×9.0

Rear Wheel Type

Aluminum

TRANSMISSION

Bevel Drive Ratio

2.824:1

Clutch Type

Dry, Single Plate, Hydraulically Actuated

Final Drive Ratio

1.771:1

Final Drive Type

Carbon Fiber Reinforced Belt, 30 mm x 145 T

Gear Ratio (1st)

3.251:1

Gear Ratio (2nd)

1.955:1

Gear Ratio (3rd)

1.310:1

Gear Ratio (4th)

1.000:1

Gear Ratio (5th)

0.753:1

Gear Shift Pattern (Manual)

H

Reverse Gear Ratio

3.180:1

Shock Absorber

Revised Twin Tube Gas Charged Coil Overs

Suspension Type

Independent, Double Wishbone with Forged Aluminum Control Arms

Transmission Type

5 Speed Manual Synchromesh with Reverse

FEATURES AND WARRANTY

12v DC Outlets

2

Apple CarPlay

Standard

Audio System

Stage 2 Audio: Rockford Fosgate 200w Audio System, Automatic Volume Control, & Plug & Play Expandable Amplifier

Color Options

Racetrack Red

Connected Services

Standard with 1 Year Coverage

Cruise Control

Standard

ESC (Electronic Stability Control)

Standard

Factory Warranty

2 Years, Unlimited Miles

Ignition

Proximity Key with Keyless Start

Infotainment

Technology Package 3: 7” display powered by RIDE COMMAND with Bluetooth, USB Phone Connectivity, Navigation, Apple CarPlay and a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic, intuitive destination search, vehicle health and vehicle locator plus Bluetooth & USB Phone Connectivity, & Back-up Camera

Integrated Steering Wheel Controls

Standard

Interior Trim Color

Gloss Black

Leather Wrapped Steering Wheel

Standard

Main Accent Color

Gloss Black

Paddle Shifters

N/A

Passive Security System

Standard

Steering Wheel Accent Stitching

Red Euro Stitch

Steering Wheel Materials

Smooth & Perforated Full-Grain Leather with red accent

Traction Control

Standard

Turn by Turn Navigation

Standard with 1 Year of Map Updates

USB Ports

2

Vehicle Drive Modes

Standard

Vehicle Hill Hold

Standard

Vehicle Top

Excursion Top Factory Installed

Wind Deflector

7.5 in. Tinted







2024 Polaris Slingshot ROUSH Edition – Totalmotorcycle.com Canada Specifications/Technical Details

MANUAL SPECS (AUTODRIVE SPECS BELOW)

POWERTRAIN AND PERFORMANCE

0-60 MPH

4.9 Seconds

Bore x Stroke

93 mm x 73.5 mm

Compression Ratio

11.5:1

Displacement

1,997 cc

Engine Type

Prostar 2.0L 4 Cylinder

Fuel System

Multiport Injected

Fuel Type

91 octane or higher

Peak Lateral Grip

1.02 g

Peak Power

203 HP @ 8,250 RPM

Peak Torque

144 ft-lbs at 6,500 RPM

Power to Weight Ratio

8.1 lb/hp

Rev Limit (RPM)

8,500 RPM

Valve Train

DOHC

DIMENSIONS / CAPACITIES

Curb Weight

1,680 lb

Fuel Capacity

9.77 gal (37.1 L)

Ground Clearance

5.4 in (137.3 mm)

Max Wet Weight

1,749 lb

Overall Vehicle Height

53.25 in (1,318 mm)

Overall Vehicle Length

149.6 in (3,800 mm)

Overall Vehicle Width

77.9 in (1,980 mm)

Track Width

69.1 in (1,755 mm)

Wheelbase

105 in (2,667 mm)

BRAKES

Anti lock Braking System

Standard

Front Brake Rotors

Slotted vented cast iron rotor 339 mm diameter

Front Calipers

Brembo Aluminum 4 piston

Rear Brake Rotors

Vented cast iron, 298 mm diameter

Rear Calipers

Aluminum 1 piston

SPECIFICATIONS

Battery

30AH, 12V, 400 CCA

Center Brake Light

LED

Front Lower Accent Lights

LED

Front Upper Accent Lights

LED

Gauges

Dual Sweep LED Backlit Gauge with Configurable LCD Display

Headlight

LED High & Low Beam

Indicator Lights

LED

Interior LED Accent Lights

Bi-Color LED

License Plate Light

LED

Main Brake Lights

LED

Power Steering System

Variable Speed Sensitive Electronic Power Steering 2.0

Steering Actuation

Rack-and-pinion

Steering Turns

2.5 Turns

Turn Signals

LED

TIRES AND WHEELS

Front Tire Size

225 / 45R18

Front Tire Type

Kenda SS-799

Front Wheel Size

18×7.5

Front Wheel Type

Aluminum

Rear Tire Size

305 / 30R20

Rear Tire Type

Kenda SS-799

Rear Wheel Size

20×9.0

Rear Wheel Type

Aluminum

TRANSMISSION

Bevel Drive Ratio

2.824:1

Clutch Type

Dry, Single Plate, Hydraulically Actuated

Final Drive Ratio

1.771:1

Final Drive Type

Carbon Fiber Reinforced Belt, 30 mm x 145 T

Gear Ratio (1st)

3.251:1

Gear Ratio (2nd)

1.955:1

Gear Ratio (3rd)

1.310:1

Gear Ratio (4th)

1.000:1

Gear Ratio (5th)

0.753:1

Gear Shift Pattern (Manual)

H

Reverse Gear Ratio

3.180:1

Shock Absorber

Revised Twin Tube Gas Charged Coil Overs

Suspension Type

Independent, Double Wishbone with Forged Aluminum Control Arms

Transmission Type

5 Speed Manual Synchromesh with Reverse

FEATURES AND WARRANTY

12v DC Outlets

2

Apple CarPlay

Standard

Audio System

Stage 2 Audio: Rockford Fosgate 200w Audio System, Automatic Volume Control, & Plug & Play Expandable Amplifier

Color Options

Racetrack Red

Connected Services

Standard with 1 Year Coverage

Cruise Control

Standard

ESC (Electronic Stability Control)

Standard

Factory Warranty

2 Years, Unlimited Miles

Ignition

Proximity Key with Keyless Start

Infotainment

Technology Package 3: 7” display powered by RIDE COMMAND with Bluetooth, USB Phone Connectivity, Navigation, Apple CarPlay and a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic, intuitive destination search, vehicle health and vehicle locator plus Bluetooth & USB Phone Connectivity, & Back-up Camera

Integrated Steering Wheel Controls

Standard

Interior Trim Color

Gloss Black

Leather Wrapped Steering Wheel

Standard

Main Accent Color

Gloss Black

Paddle Shifters

N/A

Passive Security System

Standard

Steering Wheel Accent Stitching

Red Euro Stitch

Steering Wheel Materials

Smooth & Perforated Full-Grain Leather with red accent

Traction Control

Standard

Turn by Turn Navigation

Standard with 1 Year of Map Updates

USB Ports

2

Vehicle Drive Modes

Standard

Vehicle Hill Hold

Standard

Vehicle Top

Excursion Top Factory Installed

Wind Deflector

7.5 in. Tinted











AUTODRIVE SPECS

POWERTRAIN AND PERFORMANCE

POWERTRAIN AND PERFORMANCE

0-60 MPH

4.9 Seconds

Bore x Stroke

93 mm x 73.5 mm

Compression Ratio

11.5:1

Displacement

1,997 cc

Engine Type

Prostar 2.0L 4 Cylinder

Fuel System

Multiport Injected

Fuel Type

91 octane or higher

Peak Lateral Grip

1.02 g

Peak Power

203 HP @ 8,250 RPM

Peak Torque

144 ft-lbs at 6,500 RPM

Power to Weight Ratio

8.1 lb/hp

Rev Limit (RPM)

8,500 RPM

Valve Train

DOHC

DIMENSIONS / CAPACITIES

Curb Weight

1,692 lb

Fuel Capacity

9.77 gal (37.1 L)

Ground Clearance

5.4 in (137.3 mm)

Max Wet Weight

1,749 lb

Overall Vehicle Height

53.25 in (1,318 mm)

Overall Vehicle Length

149.6 in (3,800 mm)

Overall Vehicle Width

77.9 in (1,980 mm)

Track Width

69.1 in (1,755 mm)

Wheelbase

105 in (2,667 mm)

BRAKES

Anti lock Braking System

Standard

Front Brake Rotors

Slotted vented cast iron rotor 339 mm diameter

Front Calipers

Brembo Aluminum 4 piston

Rear Brake Rotors

Vented cast iron, 298 mm diameter

Rear Calipers

Aluminum 1 piston

SPECIFICATIONS

Battery

30AH, 12V, 400 CCA

Center Brake Light

LED

Front Upper Accent Lights

Projector Beam

Gauges

Dual Sweep LED Backlit Gauge with Configurable LCD Display

Headlight

Projector Beam w/ High & Low

Indicator Lights

LED

Interior LED Accent Lights

Bi-Color LED

License Plate Light

LED

Main Brake Lights

LED

Power Steering System

Variable Speed Sensitive Electronic Power Steering 2.0

Steering Actuation

Rack-and-pinion

Steering Turns

2.5 Turns

Turn Signals

LED

TIRES AND WHEELS

Front Tire Size

225 / 45R18

Front Tire Type

Kenda SS-799

Front Wheel Size

18×7.5

Front Wheel Type

Aluminum

Rear Tire Size

305 / 30R20

Rear Tire Type

Kenda SS-799

Rear Wheel Size

20×9.0

Rear Wheel Type

Aluminum

TRANSMISSION

Bevel Drive Ratio

2.824:1

Clutch Type

Dry, Single Plate, Hydraulically Actuated

Final Drive Ratio

1.771:1

Final Drive Type

Carbon Fiber Reinforced Belt, 30 mm x 145 T

Gear Ratio (1st)

3.251:1

Gear Ratio (2nd)

1.955:1

Gear Ratio (3rd)

1.310:1

Gear Ratio (4th)

1.000:1

Gear Ratio (5th)

0.753:1

Gear Shift Pattern (Manual)

N/A

Reverse Gear Ratio

3.180:1

Shock Absorber

Revised Twin Tube Gas Charged Coil Overs

Suspension Type

Independent, Double Wishbone with Forged Aluminum Control Arms

Transmission Type

Hydraulically Actuated Automated Manual (AutoDrive) 5 Speed Synchromesh w/ Reverse

FEATURES AND WARRANTY

12v DC Outlets

2

Apple CarPlay®

Standard

Audio System

Stage 2 Audio: Rockford Fosgate® 200w Audio System, Automatic Volume Control, & Plug & Play Expandable Amplifier

Color Options

Racetrack Red

Connected Services

Standard with 1 Year Coverage

Cruise Control

Standard

ESC (Electronic Stability Control)

Standard

Factory Warranty

2 Years, Unlimited Miles

Ignition

Proximity Key with Keyless Start

Infotainment

Technology Package 3: 7” display powered by RIDE COMMAND with Bluetooth®, USB Phone Connectivity, Navigation, Apple CarPlay® and a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic, intuitive destination search, vehicle health and vehicle locator plus Bluetooth® & USB Phone Connectivity, & Back-up Camera

Integrated Steering Wheel Controls

Standard

Interior Trim Color

Gloss Black

Leather Wrapped Steering Wheel

Standard

Main Accent Color

Gloss Black

Paddle Shifters

Standard

Passive Security System

Standard

Steering Wheel Accent Stitching

Red Euro Stitch

Steering Wheel Materials

Smooth & Perforated Full-Grain Leather with red accent

Traction Control

Standard

Turn by Turn Navigation

Standard with 1 Year of Map Updates

USB Ports

2

Vehicle Drive Modes

Standard

Vehicle Hill Hold

Standard

Vehicle Top

Excursion Top Factory Installed

Wind Deflector

7.5 in. Tinted





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10046 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
