2024 Suzuki DR-Z125: MORE THAN JUST GOOD LOOKS.

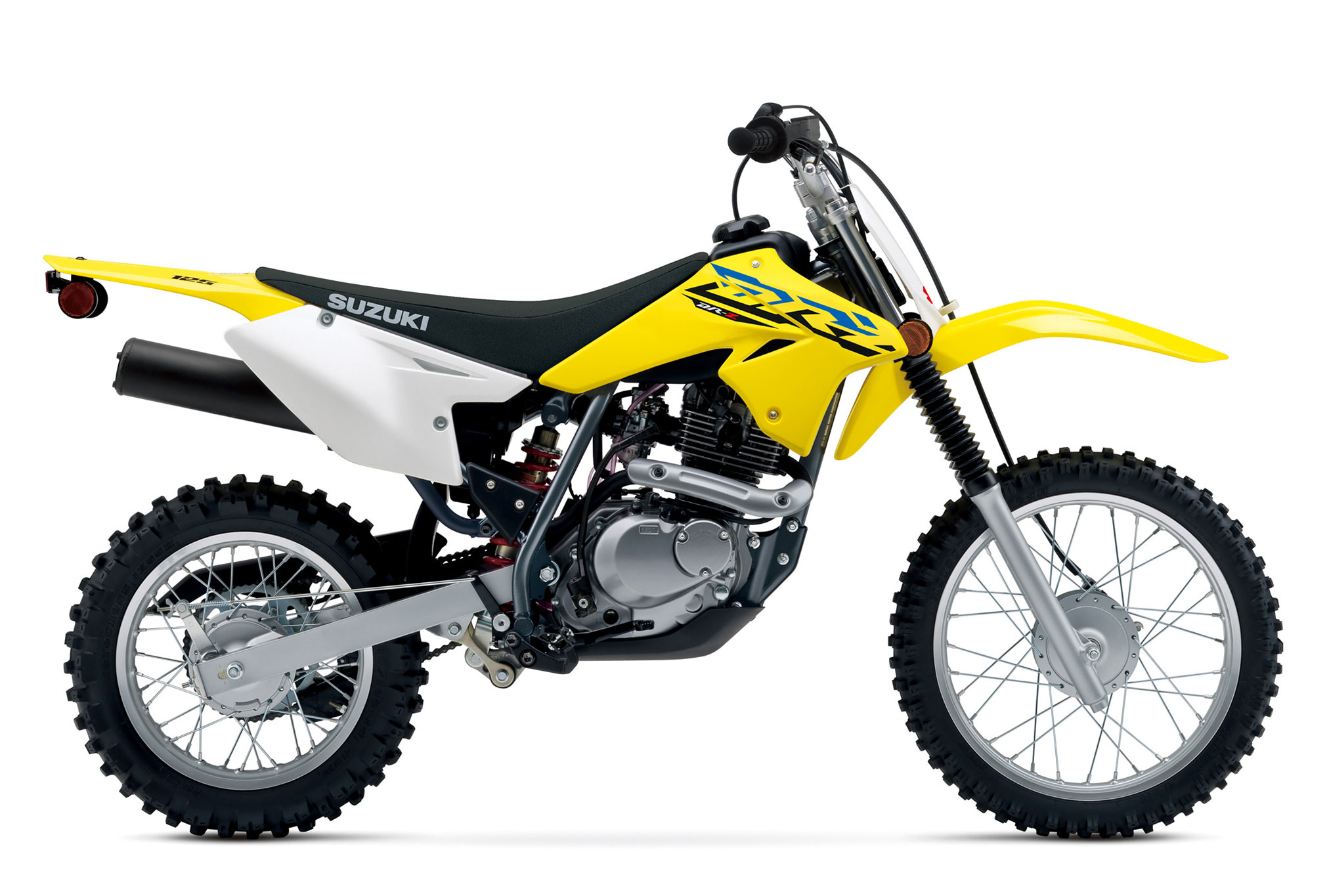

Introducing the 2024 Suzuki DR-Z125…
Blending race-inspired looks along with an exciting entry-level off road package creates the DR-Z. Built around a time-proven chassis and engine package. Inheriting sleek designs from its RM-Z brothers, the DR-Z yields motocross styling that looks good at the local track or a favourite trail.
2024 Suzuki DR-Z125 Totalmotorcycle.com Key Features
SUZUKI PROTECTION PLAN
Suzuki Protection Plan is a comprehensive plan that covers all mechanical, electrical and computer systems on your Suzuki Motorcycle or ATV. Ask your local Authorized Dealer about Suzuki Protection Plan for extra peace of mind.
2024 Suzuki DR-Z125 Totalmotorcycle.com Features and Benefits
TWO FOR THE TRAILS
The DR-Z comes stocked with all the necessities for long, exciting rides. Styled to reflect the RM-Z models, this DR-Z promotes a more race-oriented look while the sharp handling and strong low-to-mid end power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover because the DR-Z is a simple package packed with loads of fun.

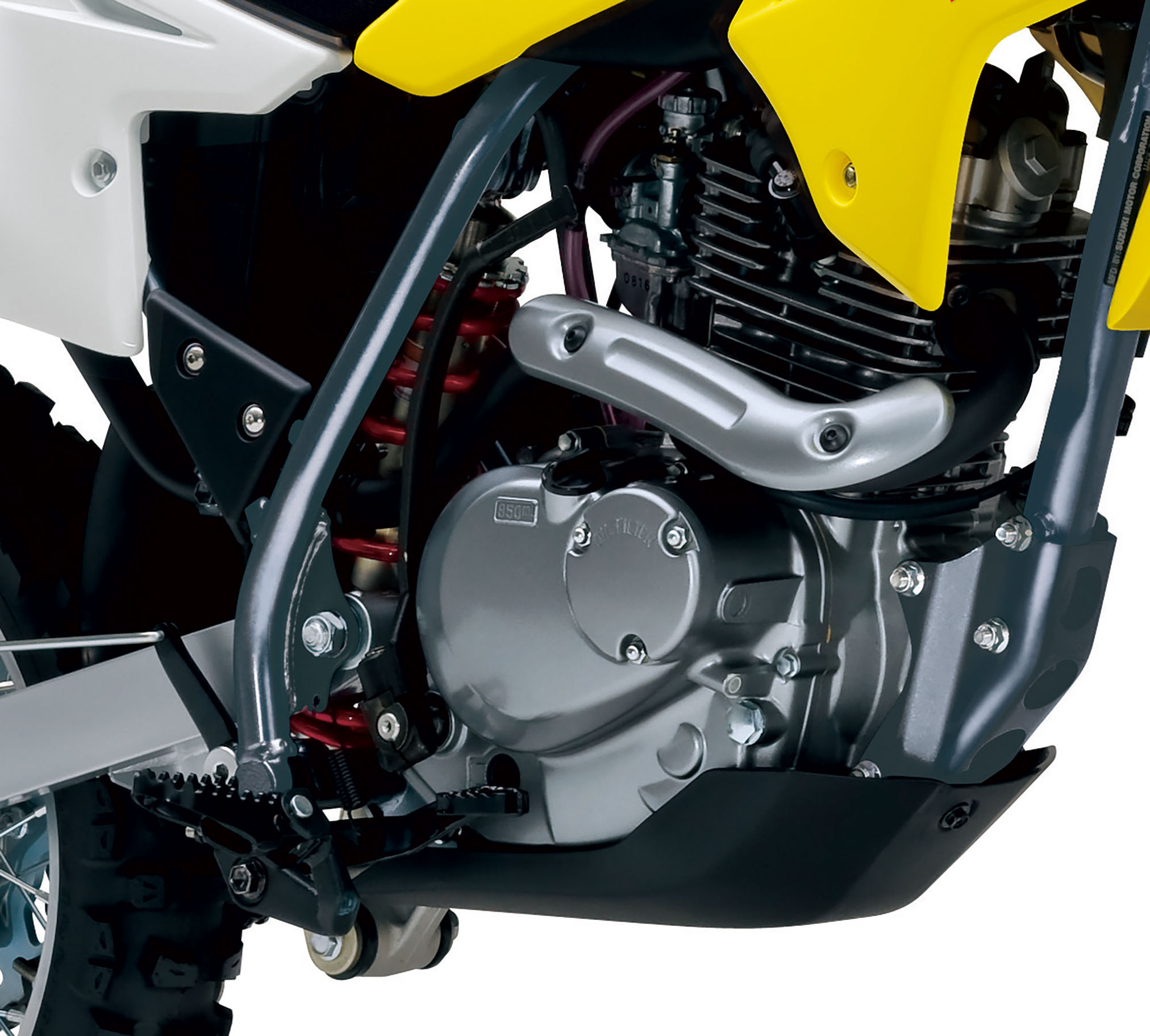

RELIABLE 125CC ENGINE
Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.
LIGHTWEIGHT ENGINE SKID PLATE
A lightweight plastic skid plate helps protect the bottom of the engine.
LINK-TYPE REAR SUSPENSION
Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.
LIGHTWEIGHT ALUMINUM RIMS
Lightweight aluminum rims for reduced weight contribute to agile handling and smooth suspension performance.
STRONG BRAKING PERFORMANCE
Strong braking performance provided by lightweight front and rear drum brakes.
LIGHTWEIGHT FRAME
Lightweight, high-rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, mid-sized off-road machine.
2024 Suzuki DR-Z125 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ NA USD
Canada MSRP Price: $4,099 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
NA
2024 Suzuki DR-Z125 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| Type | 4-stroke, air-cooled, OHC |
| Displacement | 124 cc |
| Bore x Stroke | 2.244.60 in x 1.921 in |
| Compression Ratio | 9.5 : 1 |
| Fuel System | MIKUNI VM20SS |
| Starter | Primary Kick |
| Lubrication | Wet sump |
| Ignition | Electronic ignition (CDI) |
DRIVE TRAIN
| Transmission | 5-speed constant mesh |
| Final Drive | DID 428HG, 130 links |
CHASSIS
| Length | 1835 mm (72.2 in) |
| Width | 770 mm (30.3 in) |
| Height | 1085 mm (42.7 in) |
| Wheelbase | 1245 mm (49.0 in) |
| Seat Height | 775 mm (30.5 in) |
| Curb Mass | 88 kg (194 lbs) |
| Suspension Front | Telescopic, coil spring, oil damped |
| Suspension Rear | Link type, coil spring, oil damped |
| Brakes Front | Drum brake |
| Brakes Rear | Drum brake |
| Tires Front | 70/100-17 40M, tube type |
| Tires Rear | 90/100-14 49M, tube type |
| Fuel Tank | 4.8L (1.3 US gal) |
WARRANTY
6 Months unlimited mileage limited factory warranty
2024 Suzuki DR-Z125 – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
