2006 Ducati ST4S ABS

You are here: HomeNew 2006 Models — 2006 Ducati Motorcycle Models

2006 Ducati ST4S ABS
Back to 2006 Ducati Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

2006 Ducati ST4S ABS
2006 Ducati ST4S ABS

2006 Ducati ST4S ABS
2006 Ducati ST4S ABS

2006 Ducati ST4S ABS
2006 Ducati ST4S ABS

2006 Ducati ST4S ABS
2006 Ducati ST4S ABS

2006 Ducati ST4S ABS
2006 Ducati ST4S ABS

2006 Ducati ST4S ABS
2006 Ducati ST4S ABS



– 2006 Ducati ST4S ABS

2006 Ducati ST4S ABS

Add the confidence of the new ABS system to the unique and beautiful sound of the Ducati big-bore twin and you have the ultimate Sport Touring motorcycle.
The security of ABS – At the core of the Ducati Anti-lock Brake System (ABS) is an advanced electronic processor that senses wheel slip. ABS is a supplemental safety system that assists in preventing tire lock-up in emergency and low traction situations. The Ducati ABS system has been tuned for more aggressive riding to compliment the performance capabilities of the ST4S.

The signature Ducati trellis frame, derived from our World Superbikes, compliments our powerful engines with confident and stable road holding.

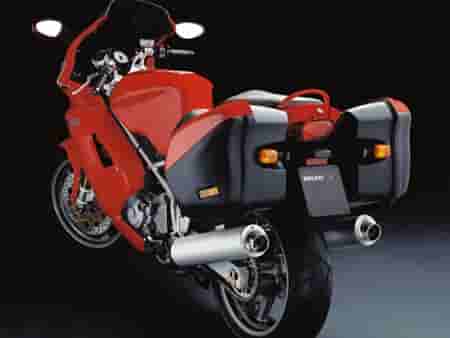

Extend the versatility and comfort of your ST with our most popular Sport Touring accessories – colour matched saddlebags are INCLUDED with U.S. spec STs. Top cases and other accessories are also available for the entire ST family, they will protect your gear from the weather and allow you to comfortably leave most full-face helmets in a safe place.

MSRP $15,995 USD


Chassis:

Frame: Tubular steel trellis
Wheelbase: 1430 mm / 56.3 in
Rake: 24°
Front Suspension: Showa 43 mm upside-down fully adjustable fork with TiN surface treatment
Front Wheel Travel: 130 mm / 5.1 in
Front Brake: 2 x 320 mm semi-floating discs, 4-piston caliper, ABS controlled
Front Wheel: 5-spoke light alloy 3.50 x 17
Front Tire: 120/70 ZR 17
Rear Suspension: Progressive linkage with fully adjustable Öhlins monoshock with remote control preload adjustment. Aluminium swingarm
Rear Wheel Travel: 148 mm / 5.8 in
Rear Brake: 245 mm disc, 2-piston caliper, ABS controlled
Rear Wheel: 5-spoke light alloy 5.50 x 17
Rear Tire: 180/55 ZR 17
Fuel Capacity: 21 L / 5.5 US gal (includes 6 L / 1.5 US gal reserve)
Weight * : 206 kg / 453.7 lbs
Seat Height: 820 mm / 32.3 in

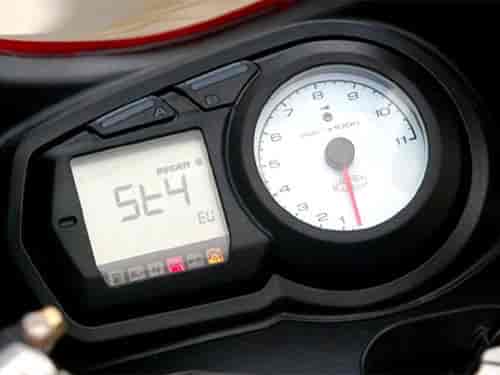

Instruments: Electronic instrument panel using CAN communication protocol with CPU, multifunctional digital display (including speedometer, clock, water temperature, fuel gauge, instant/average consumption, consumed fuel, residual autonomy), analog rev counter, self-adjusting instrument lights (depending on outdoor light), ABS off light, headlight angle adjustment, immobilizer system
Warranty: 2 years unlimited mileage
Tank and Fairing Colours: Red
Frame and Wheel Colours: Metallic Grey
Versions: Two Seat
*=* = The weight excludes battery, lubricants and, where applicable, cooling liquid.


ENGINE
Type: L twin cylinder, 4 valves per cylinder Desmodromic; liquid cooled
Displacement: 996 cc
Bore and stroke: 98 x 66 mm
Compression Ratio: 11.5:1
Power: 89.1 kw – 121 hp @ 8750 rpm
Torque: 10.5 kgm – 76 ft-lbs @ 7250 rpm
Fuel system: Marelli electronic fuel injection, 50 mm throttle body
Exhaust: 2 aluminum mufflers with catalytic converter (non-catalytic on USA version)
Emissions: Euro2 (except USA version)

Transmission
Gearbox: 6 speed
Ratio: 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary drive: Straight cut gears; ratio 1.84
Final drive: Chain; Front sprocket 15; Rear sprocket 38
Clutch: Wet multiplate with hydraulic control




Colors:

Model Tank/Fairing Frame Color Wheels Color
SUPERBIKE
749 Dark Matte Black Metallic Grey Metallic Grey
749 Red, Yellow Red, Metallic Grey Black (on Red fairing), Metallic Grey (on Yellow Fairing)
749S Red Red Black
749R Red Red Black
999 Red, Yellow, Gloss Black Red (on Red fairing), Metallic Grey (on Yellow fairing), Black (on Black fairing) Black (on Red and Black fairing), Metallic Grey (on Yellow fairing)
999S Red, Gloss Black (both with white number plates) Red, Black Black
999R Red (white number plates) Red Black
MONSTER
620 Dark Matte Black Black Black
620 Red, Black Red, Black Black
1000S Red, Black Red, Black Black
S2R Dark Matte Black Black Black
S2R Red w/White stripe, Yellow w/Black stripe, Black w/Tangerine Red stripe Red (on Red fairing), Black (on Yellow and Black fairing) White (on Red fairing), Black (on Yellow and Black fairing)
S4R Red w/White stripe, Blue w/White stripe, Gloss Black Red, Blue, Black White (on Red and Blue fairing), Black
SPORTTOURING
ST3 / ST3S Red, Silver, Gloss Black Metallic Grey (on Red and Silver fairing), Black Metallic Grey
ST4S Red, Gloss Black Metallic Grey (on Red fairing), Black Metallic Grey
ST4S ABS Red Metallic Grey Metallic Grey
SUPERSPORT
1000 DS Metallic Grey Metallic Grey Red
800 Red, Yellow Metallic Grey Metallic Grey
MULTISTRADA
620 Dark Matte Black Black Black
620 Red, Yellow Red, Black Black
1000 DS Red, Silver, Gloss Black Red, Black Metallic Grey
1000S DS Red, Black Red, Black Black
SPORTCLASSIC
GT1000 GT Grey
Smart 1000LE Classic Silver Sea Green Aluminum
Sport 1000 Burnt Yellow, Red, Black Black Aluminum
