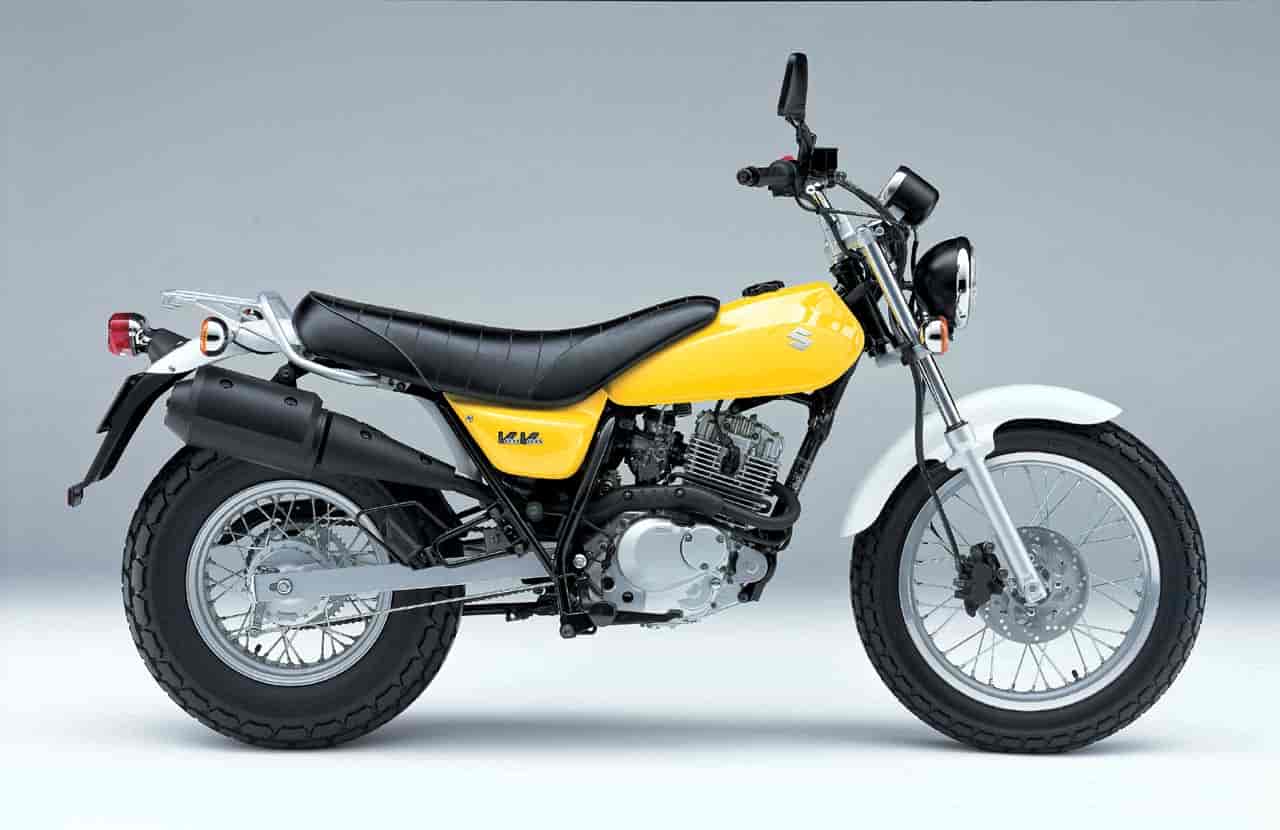

2006 Suzuki Van Van 125 – Europe Model

Funky single-cylinder four-stroke complete with catalytic converter and beefy suspension.

Big tyres, large saddle and wide handlebars combine with stylish rear design to give unique look.



Distinctive design with wide handlebars, widely-spread front fork legs and trim instrument cluster.

Stylish rear design with unique taillight.

Long 1385mm wheelbase provides a relaxed, stretched look and plenty of space for the rider and passenger.

Extra-wide front 18 inch and rear 14 inch tyres, both featuring a dynamic tread pattern.

Generously sized and well-padded, wide and flat shaped seat.

Low 770mm seat height and slim chassis. 2-Piston pin-slide-caliper front disc brake with 220mm disc.

Grab bar with integrated luggage carrier and luggage hooks – for carrying everyday shopping items or weekend outdoor gear.

Responsive 4-stroke, air-cooled, SOHC engine tuned to produce plenty of low-to-mid range power.

Smooth-shifting 6-speed transmission.

Large, distinctly shaped and high positioned muffler.

PAIR (Suzuki Pulsed-secondary AIR) system and catalyzer reduce emissions.


Overall Length: 2,140 mm
Overall Width: 860 mm
Overall Height: 1,120 mm
Wheelbase: 1,385 mm
Ground Clearance: 215 mm
Seat Height: 770 mm
Dry Mass: 117 kg
Fuel Capacity: 7.5 litres

Engine Type: 1-cylinder, air-cooled, SOHC
Bore x Stroke: 57.0 x 48.8 mm
Max Power: 11.8 PS (8.7 Kw) @ 9,500 rpm
Max Torque: 9.8 Nm @ 7,700 rpm
Piston Displacement: 125 cc
Compression Ratio: 9.2 : 1
Carburettor: MIKUNI BS26
Lubrication: Wet sump

Ignition Type: Electronic (Transistorised)
Starter System: Electric

Clutch: Wet multi plate
Transmission: 6-speed
Drive System: Chain

Front Suspension: Telescopic
Rear Suspension: Swingarm, single shock
Rake/Trail: 26.0 degrees / 91mm
Front Brake: 220 mm disc
Rear Brake: 110 mm drum
Front Tyre: 130/80-18
Rear Tyre: 180/80-14
