2006 Yamaha BW’s
Back to 2006 Yamaha Motorcycle Index Page


Click photos to enlarge.
They make great desktop images.

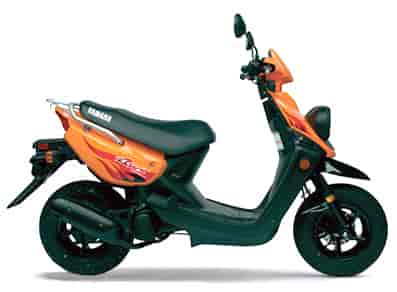

2006 Yamaha BW
2006 Yamaha BW’s

2006 Yamaha BW
2006 Yamaha BW’s


– 2006 Yamaha BW’s

Nothing gets you around town quicker and more efficiently than the decidedly zippy 2005 BW’s sport scooter.

The peppy 49cc reed-valve 2-stroke engine fires up effortlessly at the push of a button, and fully automatic transmission makes for gas it and go operation, so you can just enjoy the ride. There’s plenty of room for two on the comfortable seat, and a large storage compartment under the seat lets you stash your helmet while you grab a bite on a patio somewhere. Wide aggressive tires, front disc brake and rear carrier complete the package. Ride a 2005 BW’s and remind yourself why you choose to live in the city. Make every ride a total hoot!



49cc, air-cooled with fan assist, reed-valve, 2-stroke powerplant produces lots of peppy power while still offering excellent fuel economy.

Top speed is approximately 65 to 70km/hr.

Lightweight crankshaft means less weight for faster throttle response.

V-belt constantly variable transmission… just gas it and go… and it is that simple.

Autolube Oil Injection System automatically mixes oil and gas with no mess. It provides the precise amount of oil required by the engine.

Fan-cooling keeps engine cool even on hot days or when stuck in stop-and-go traffic.

Fan- cooling also extends engine life.

CD ignition provides a strong spark for quick, sure starts. This is a no maintenance ignition system.

Electric starting with kickstarter backup means no-hassle starting… just push the button. In the event of a low battery, there is also a manual kick starter.

Teikei 14mm carburetor is miserly on fuel yet still provides crisp throttle response.

Handlebar-mounted choke lever is conveniently located and easy to use.


Rugged step-through under bone frame design allows easy mounting and excellent durability.

Wide floorboards and fenders enhance rider comfort and provide good splash and wind protection.

Trailing axle, telescopic front fork with 65mm (2.6″) of wheel travel smoothly soaks up what the road throws the rider’s way.

Single shock rear suspension with 60mm (2.4″) of wheel travel ensures a plush ride quality in either solo or two-up mode.

Lightweight yet durable 5-spoke mag wheels fitted with wide, aggressive tires serve up heaps of grip and help create the BW’s unmistakably fun look.

180mm hydraulic front disc brake provides serious stopping power.

Easy-to-use hand-operated brake levers are just like on a bicycle.

Rear drum brake provides excellent stopping power.

Instrumentation includes a speedometer with odometer and fuel gauge.

Large, lockable under seat storage can easily hold a full-face helmet or other items.

Low oil warning light.

Plush dual seat provides ultimate comfort for either solo or two-up outings.


Rugged rear cargo rack lets the rider carry groceries or other small items.

Dual headlights enhance the BW’s sporty styling and maximizes visibility and conspicuity

Under seat fuel and oil filler caps

Flexible turn signals

Extra long rear fender extension

Easy-to-use centre stand

Helmet hook under seat



Engine 2-stroke, air-cooled with fan assist, reed-valve, single
Displacement 49 cc
Bore and Stroke 40 x 39.2 mm
Compression Ratio 7 : 1
Maximum Torque 0.7kg-m(5.1 ft-lb) @ 6,000rpm
Fuel Delivery Teikei Y14P
Ignition CDI
Transmission Automatic
Final Drive Spur gear/belt


Suspension (Front) Telescopic fork
Suspension (Rear) Single shock unit swingarm
Brakes (Front) 180 mm disc
Brakes (Rear) Drum
Tires (Front) 120/90-10
Tires (Rear) 130/90-10


Length 1,890 mm (74.4 ”)
Width 705 mm (27.8 ”)
Height 1,110 mm (43.7 ”)
Wheelbase 1,275 mm (50.2 ”)
Seat Height 765 mm (30.1 ”)
Dry Weight 91kg (202.4lb)
Fuel Capacity 5.7 litres (1.2 Imp. gal.)
Colour(s) Metallic Black with flames; Orange with flames; Yamaha Blue; Vivid Red; Mat Titanium
