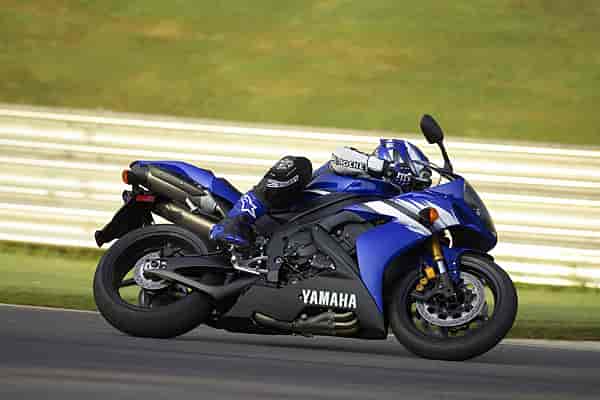

2006 Yamaha YZF-R1

2006 Yamaha YZF-R1 (50th Anniversary Edition Shown)

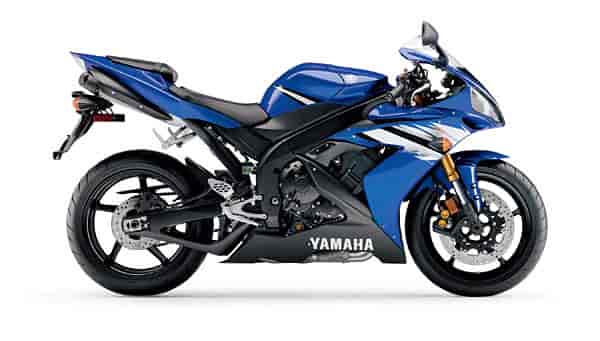

2006 Yamaha YZF-R1

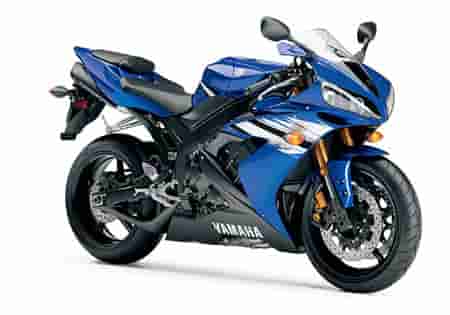

2006 Yamaha YZF-R1

2006 Yamaha YZF-R1

2006 Yamaha YZF-R1



– 2006 Yamaha YZF-R1

YZF-R1 – Open Class Ultra High Performance

Building on the most sought-after sportbike in the industry, the 2006 R1’s modified frame, longer swingarm and revised front forks sharpen handling, traction and responsiveness—while a revised cylinder head unleashes an additional three horsepower. No other motorcycle combines performance, style and ridability like the R1.

Features:

998cc, fuel injected, liquid-cooled, 20-valve, DOHC inline four cylinder

43mm fully adjustable inverted fork

Fully adjustable linkage-mounted rear shock

Dual 320mm fronts discs with radial mounted forged 4-piston calipers

Team Yamaha Blue and Metallic Black (Raven) paint schemes for 2006; 50th Anniversary Yellow/Black

Specifications:

Engine
Type 998cc, liquid-cooled, 20-valve, DOHC, in-line four-cylinder

Bore x Stroke 77 x 53.6mm

Compression Ratio 12.4:1

Carburetion Fuel injection, dual-valve throttle bodies with motor-driven secondary valves

Ignition DC-CDI

Transmission 6-speed w/multi-plate clutch

Final Drive #530 O-ring chain


Chassis
Suspension/Front 43mm inverted telescopic fork w/adjustable preload, seperate high & low-speed compression damping, rebound damping; 4.7″ travel

Suspension/Rear Single shock w/adjustable preload, seperate high & low-speed compression damping, rebound damping; 5.1″ travel

Brakes/Front Dual 320mm discs; radial-mount forged 4-piston calipers

Brakes/Rear 220mm disc w/single-piston pin-slide caliper

Tires/Front 120/70-ZR17

Tires/Rear 190-50-ZR17


Dimensions
Length 82.1″

Width 28.3″

Height 43.5″

Seat Height 32.9”

Wheelbase 55.7”

Rake (Caster Angle) 24.0°

Trail 3.8”

Fuel Capacity 4.75 gallons

Dry Weight N/A


Other
Warranty 1 Year (Limited Factory Warranty)
