2007 Ducati Monster S4R Testastretta

Back to 2007 Ducati Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

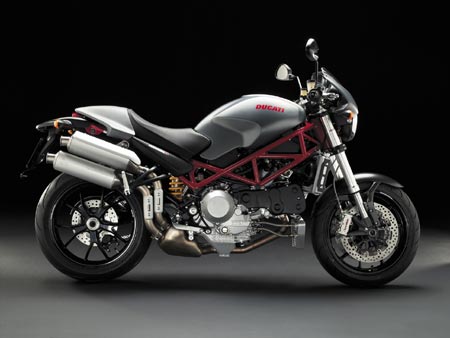

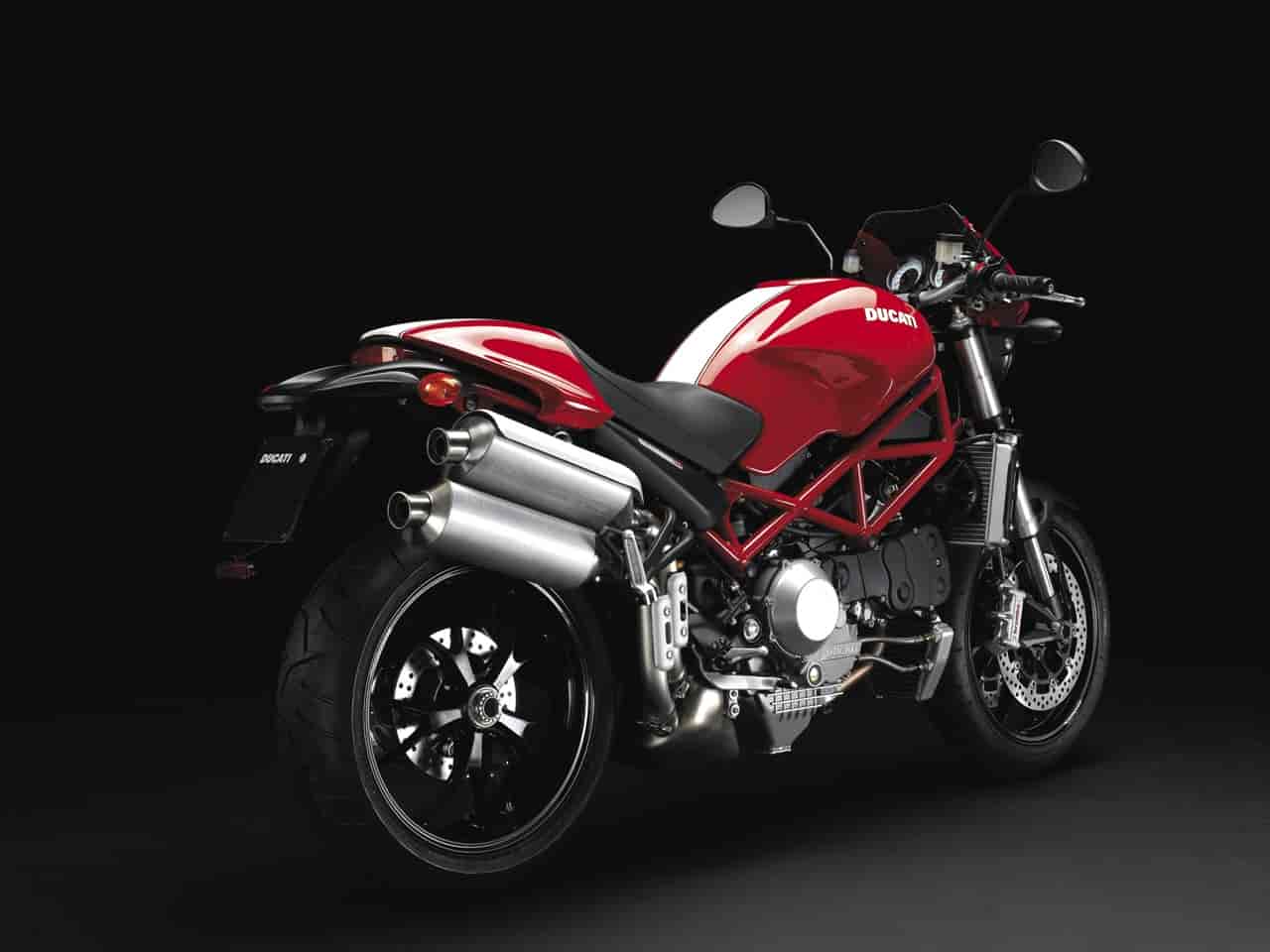

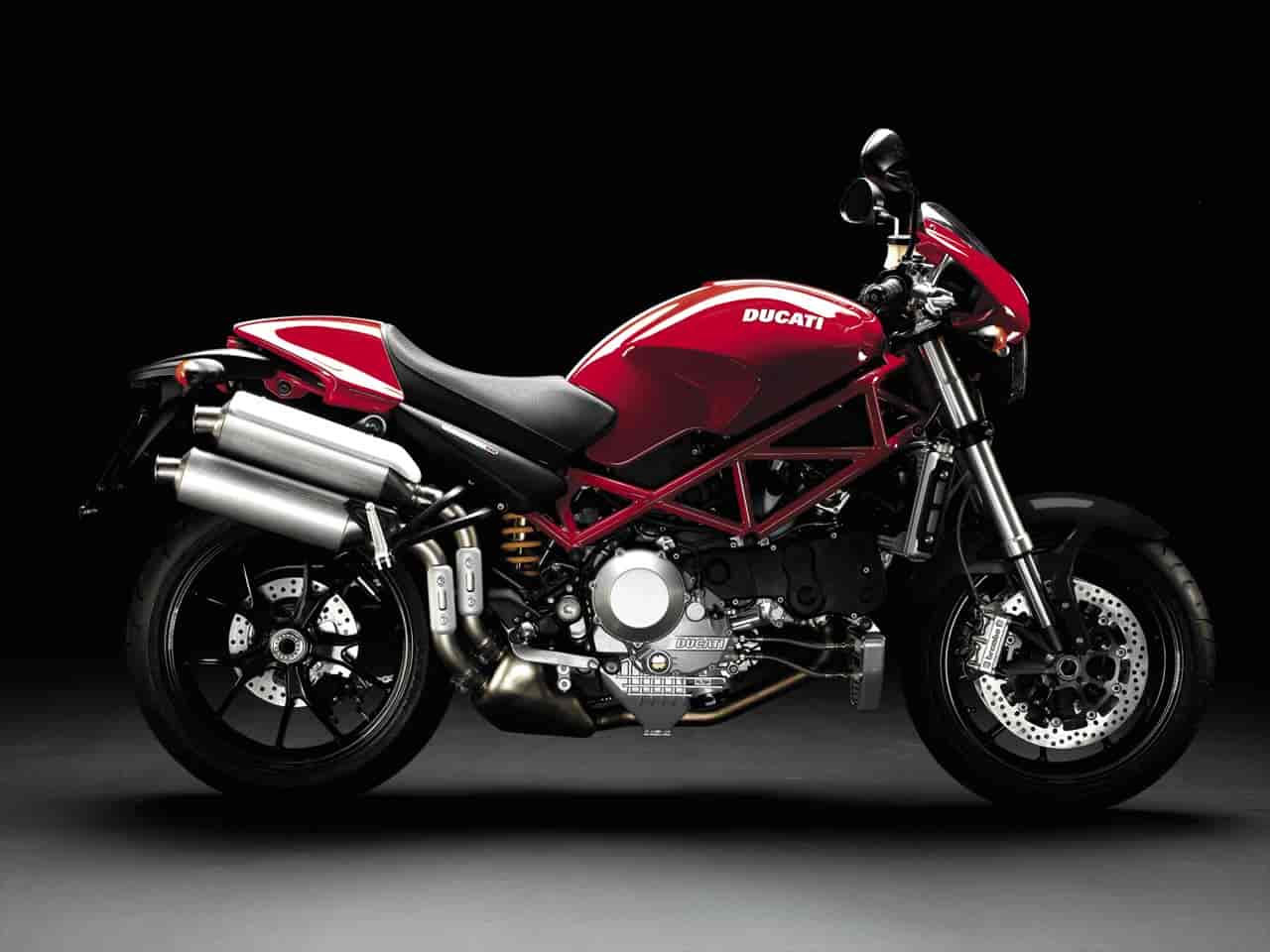

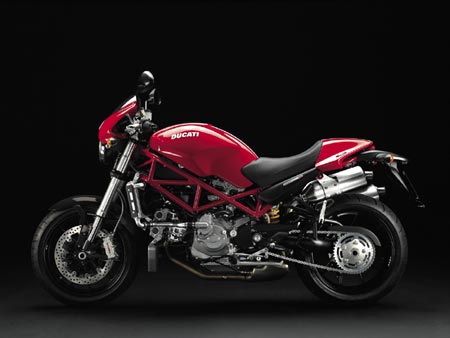

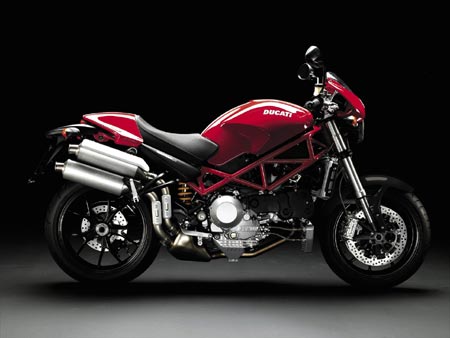

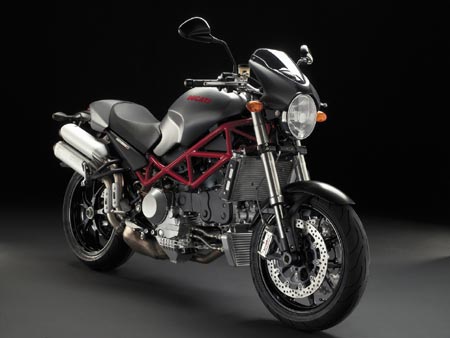

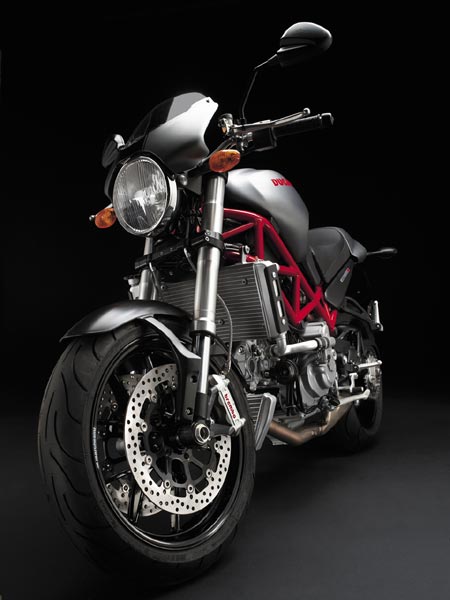

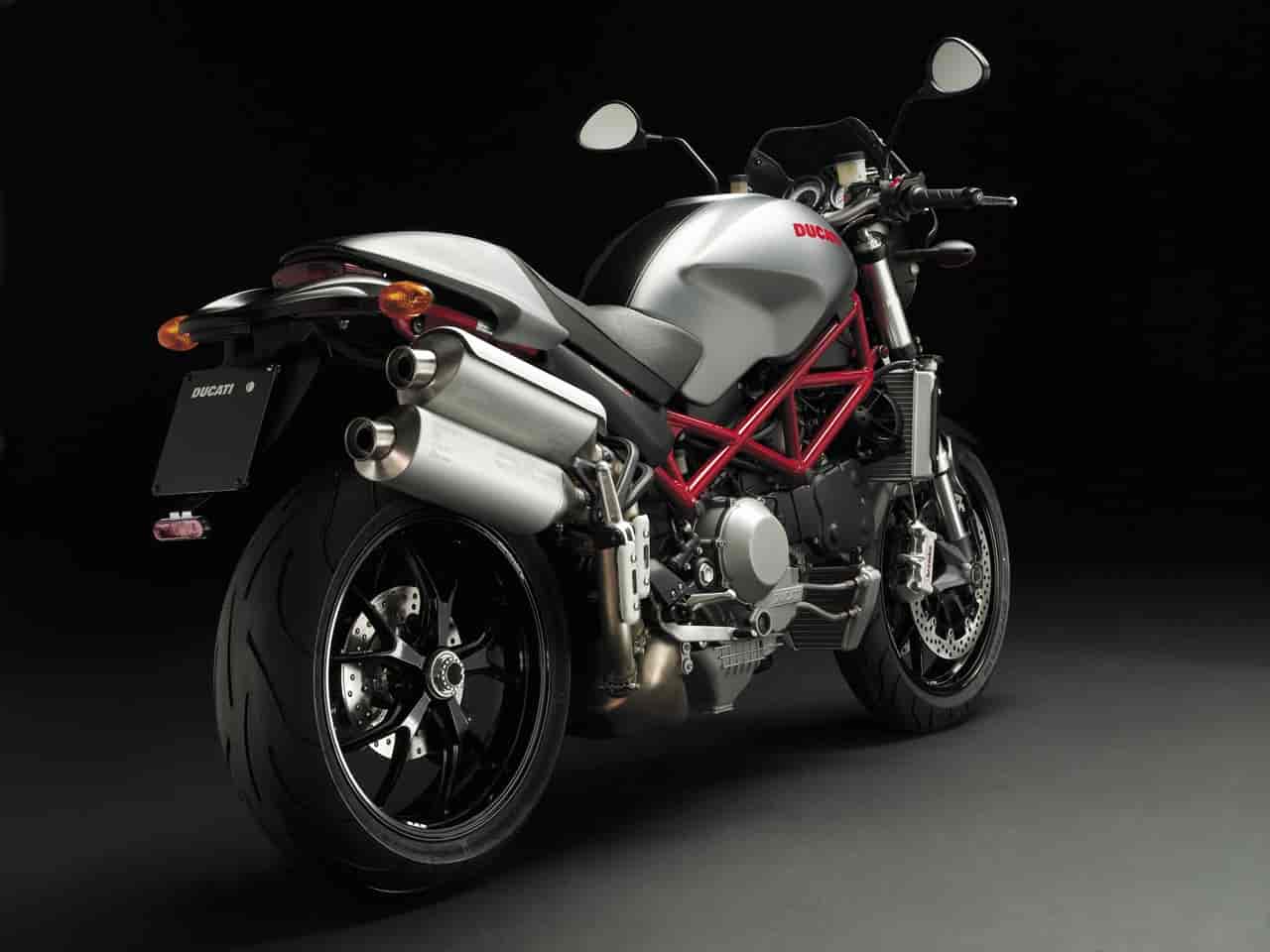

2007 Ducati Monster S4R Testastretta
2007 Ducati Monster S4R Testastretta

2007 Ducati Monster S4R Testastretta
2007 Ducati Monster S4R Testastretta

2007 Ducati Monster S4R Testastretta
2007 Ducati Monster S4R Testastretta

2007 Ducati Monster S4R Testastretta
2007 Ducati Monster S4R Testastretta

2007 Ducati Monster S4R Testastretta
2007 Ducati Monster S4R Testastretta

2007 Ducati Monster S4R Testastretta
2007 Ducati Monster S4R Testastretta

2007 Ducati Monster S4R Testastretta
2007 Ducati Monster S4R Testastretta



– 2007 Ducati Monster S4R Testastretta

The Monster 2007 range is now bigger and better with the new S4R Testastretta

This new bike gains the famous 130 Hp Testastretta low sump L-twin engine, previously mounted only on the top version S4Rs Testastretta.

Founder of the SR family, this bike takes upon a very important role, coming up alongside the S4R s Testastretta which represents the current performance and equipment apotheosis. The S4R develops and increases in power going from 117 Hp of the previous engine, to the 130 Hp of the Testastretta, maintaining its’ very important role in the SR family: its two sided mufflers, the aluminium trellis single-sided swingarm, the small fairing, the exclusive paint schemes, the high quality suspensions, joined together with the powerful low sump Testastretta engine, is a milestone in the development of the Monster S4R Testastretta. A bike that, in the new Ducati 2007 range, has a very important role, catching the attention of the most exigent performance –oriented “ducatista”. The S4R Testastretta is different from the “s” version due to the suspension. The front forks are now fully adjustable upside- down Showa’s, giving the customer the possibility of a perfectly balanced bike. The rear is fully adjustable with piggy back shock absorbers by Sachs, allowing modification of suspension settings. The height of the rear of the bike is adjustable too by the modification of the length of the push rod. Whilst respecting the previous version, the S4R MY ’07, has, like the S4RS, the prestigious Brembo front brake system too. The front has now a prettier look thanks to the new front fork bottom end, purposely created to fit the Brembo radial callipers. The new S4R Testastretta is now available in two new colour schemes Titanium with central black stripe, and in the traditional Ducati red with central white stripe. Both colour versions have the red frame with the black painted swingarm, just like the new Showa front fork bottom end. A lot of the other components are black painted: the headlamp support, the steering plates, the risers, the footrests and the water cooler side covers. The bike will be available in the early October.



NEW FOR 2007

S4R gets more power, less weight and a new front end for 2007

Cupertino, CA – When first introduced in 2002, the Ducati S4R set the highest performance standard for a modern naked bike. The success of this model led to the birth of an entire Ducati Monster SR range, including the unprecedented new S4Rs, which was highly anticipated and introduced to the public last year.

For 2007, Ducati North America proudly announces a brand new version of the Monster S4R Testastretta, powered by the same Testastretta deep sump L-twin engine that can be found as standard equipment in the 999 Superbike and winning Superbike races around the world.

The performance of the 2007 Monster S4R Testastretta is impressive: the motor boasts a 23 HP gain over its predecessor, increasing from 117 HP to a total of 130 HP. The front end has been redesigned, with radial mount Brembo calipers and fully adjustable inverted Showa forks. The rear suspension boasts a fully adjustable Sachs shock with integrated reservoir and full rear ride height adjustability. In addition, the motorcycle has shed almost 10 pounds of dry weight, which all combine to make the S4R Testastretta an incredibly versatile and agile street fighter.

The S4R Testastretta has the traditional clean lines that define the Monster family, and retains the twin vertically stacked shotgun style silencers and aluminum alloy single-sided swing-arm. New for 2007 are Y-shaped 5 spoke rims that improve the rigidity/weight ratio and reduce unsprung weight, which result in better handling. The motorcycle is available in a stunning titanium/red color scheme that is unique to this model.

The 2007 Monster S4R Testastretta is available now in dealerships and has a MSRP of $12,995 USD ($15,995 CND).



TECHNICAL ADVANCEMENTS

Chassis

Frame: Tubular steel trellis
Wheelbase: 1440 mm / 56.7 in
Rake & Trail: 24° / 96 mm
Front Suspension: Showa 43 mm inverted fully adjustable fork with TiN surface treatment
Front Wheel Travel: 130 mm / 5.1 in
Front Brake: 2 x 320 mm discs, 4-piston 4-pad radial caliper
Front Wheel: Y-shaped, 5-spoke in light alloy 3.50 x 17
Front Tire: 120/70 ZR 17
Rear Suspension: Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear Wheel Travel: 148 mm / 5.8 in
Rear Brake: 245 mm disc, 2-piston caliper
Rear Wheel: Y-shaped, 5-spoke in light alloy 5.50 x 17
Rear Tire: 180/55 ZR 17
Fuel Capacity: 14 L (11L / 3 L reserve) / 3.6 US gal (2.8 US gal / 0.8 US gal reserve)
Dry Weight*: 178 kg / 390 lbs
Seat Height: 800 mm / 31.5 in (Max Height 1222mm / 48.1in)
Instruments: Electronic panel: speedometer, rev counter, warning light for low oil pressure, indicators for high beam, fuel reserve, turn signals, LCD clock, immobilizer
Warranty: 2 years unlimited mileage
Color combinations (Tank-Frame-Wheels): Titanium with black center stripe
Red frame with black wheels
Versions: Dual seat



Engine

Type: L-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
Displacement: 998cc
Bore and stroke: 100 x 63.5 mm
Compression Ratio: 11.4:1
Power: 95.7kw – 130hp @ 9500rpm
Torque: 103.9Nm – 10.6kgm @ 7500rpm
Fuel system: Marelli electronic fuel injection, 50mm throttle body
Exhaust: 2 aluminum mufflers
Emissions: Euro 3
Transmission
Gearbox: 6 speed
Ratio: 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary drive: Straight cut gears; ratio 1.84:1
Final drive: Chain; Front sprocket 15; Rear sprocket 43
Clutch: Dry multiplate with hydraulic control



COLORS:

Model Tank/Fairing Frame Color Wheels Color

S4R S Testastretta Red w/white stripe, Pearl white w/red stripe, Black w/grey stripe Red Wheels (on Red and White fairing), Black Wheels (on Black fairing) Black Wheels (on Red and Black fairing), White Wheels (on White fairing)

S4R Testastretta Titanium w/black stripe, Red w/white stripe, Red frame, Black Wheels


SPECIFICATIONS: – 2007 Ducati Monster S4R Testastretta

Engine
Type L-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
Displacement 998cc
Bore x Stroke 100 x 63,5mm
Compression Ratio 11,4:1
Power 95.7kw – 130hp @ 9500rpm
Torque 103.9Nm – 10.6kgm @ 7500rpm
Fuel injection Marelli electronic fuel injection, 50mm throttle body
Exhaust 2 aluminium mufflers
Emissions Euro 3

Transmission
Gearbox 6 speed
Ratio 1a 37/15, 2a 30/17, 3a 27/20, 4a 24/22, 5a 23/24, 6a 24/28
Primary drive Straight cut gears; Ratio 1.84:1
Final drive Chain; Front sprocket 15; Rear sprocket 43
Clutch Dry multiplate with hydraulic control

Chassis
Frame Tubular steel Trellis frame
Wheelbase 1440mm / 56.7in
Rake 24°
Front suspension Showa 43mm fully adjustable upside-down fork
Front wheel travel 130mm / 5.1in
Front wheel Y-shaped, 5-spoke in light alloy 3.50 x 17
Front tyre 120/70 ZR17
Rear suspension Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear wheel travel 148mm / 5.8in
Rear wheel Y-shaped, 5-spoke in light alloy 5.50 x 17
Rear tyre 180/55 ZR17
Front brake 2 x 320mm discs, 4-piston 4-pad radial caliper
Rear brake 245mm disc, 2-piston caliper
Fuel tank capacity 14 l (of which 3 l reserve) / 3.6 US gal (of which 0.8 US gal reserve)
* Dry weight 390lbs
Seat height 800mm / 31.5in
Max height 1222mm / 48.1in
Max length 2121mm / 83.5in
Instruments Electronic panel: speedometer, rev counter, warning light for low oil pressure, indicators for high beam, fuel reserve, turn signals, LCD clock, immobilizer

** Warranty 2 years unlimited mileage
Versions Dual seat
