2007 FLHX Street Glide™ Model Overview
The FLHX Street Glide has proved to be every bit the dresser with an edge for riders interested in considerable custom and comfort. Taking its key styling cues directly from design trends in the custom marketplace, the Street Glide presents full touring capability in style and comfort. It comes equipped with the traditional “bat wing” fairing, the 40-watt Advanced Audio System by Harman/Kardon, durable GTX nylon saddlebags, air-adjustable rear suspension and triple-disc brakes.

By adding the Twin Cam 96 engine, 6-speed Cruise Drive transmission and ESPFI, while reducing clutch lever effort, the Street Glide becomes even more capable of cruising the streets or touring the country. Also new this year is a redesigned football shape air cleaner.

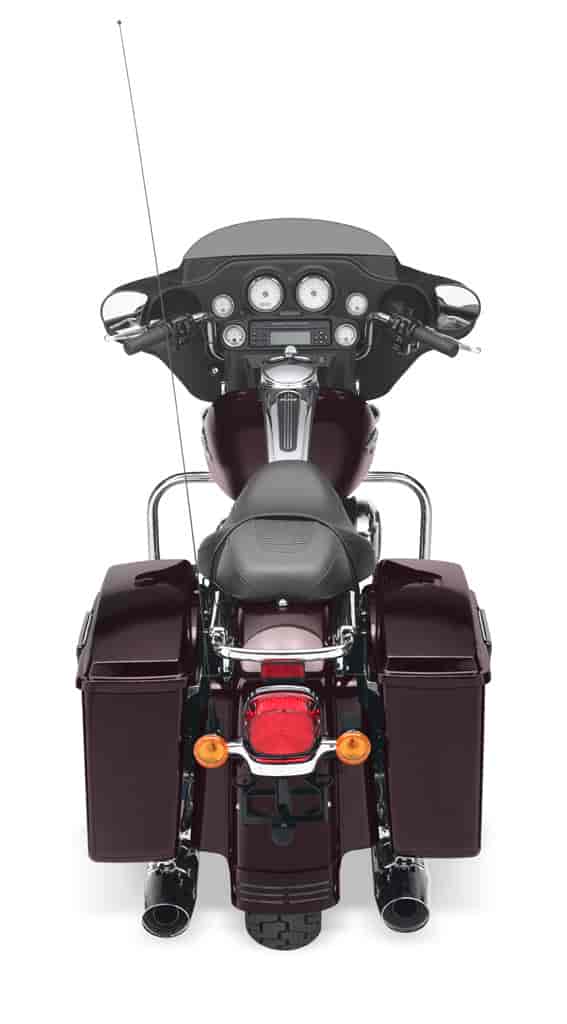

A smoked mini-wind deflector sits above a batwing fairing with mounted mirrors. Low rear suspension puts the Street Glide close to the road with a seat height of 26.3 inches. The rear fender is filled between the saddlebags with Tri-line LED lighting to the bottom of the fender. Black, Slotted Disc Cast Aluminum wheels and slash-cut mufflers further emphasize the low profile.

Streamliner footboards, brake pedal and passenger pegs add to the Street Glide custom styling. A stretched, chrome fuel tank console features a special smoked-chrome emblem. The style and performance combines for a lower, lighter and cleaner touring motorcycle that rides proudly with its Electra Glide heritage. The Street Glide is available in six solid colors: Vivid Black, Black Cherry Pearl, Black Pearl, Deep Cobalt Pearl, Pacific Blue Denim and Pewter Denim.

FLHX Features:

New rubber mount 1584cc Twin Cam 96 engine
Black powder-coated engine with chrome covers
New 6-speed Cruise Drive transmission
Standard Electronic Sequential Port Fuel Injection (ESPFI)
New redesigned football shape air cleaner
40-watt CD/AM/FM/WB/MP3 Advanced Audio System by Harman/Kardon
Silver face gauges
Batwing fork-mounted fairing with smoked mini wind deflector
Fairing-mounted rear view mirrors
Clean front fender
Black, Slotted Disc Cast Aluminum wheels
Smoked chrome 3-D tank emblem
Custom bucket seat with perforated insert
Streamliner footboards, brake pedal and passenger pegs
Low Profile rear suspension
Rear fender ground effects
Low-hung license plate mount and hidden plate illuminator
Lockable GTX Nylon hard saddlebags with color-matched latches

SPECIFICATIONS:

Dimensions
Length 94.5 in. (2400.3 mm)
Overall Width 39.0 in. (990.6 mm)
Overall Height 52.2 in. (1325.9 mm)
Seat Height:
– Laden2
– Unladen
26.3 in. (668.0 mm)
27.3 in. (693.4 mm)
Ground Clearance 4.7 in. (119.4 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.2 in. (157.5 mm)
Wheelbase 63.5 in. (1612.9 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
– Front – D402F
– Rear – D402
MT90B16 72H
MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (with filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts. (0.95 L)
Primary Chain Case
Capacity10
1.4 qts. (1.3 L)
Weight:
– As Shipped
– In Running Order
– Gross Vehicle Weight
Rating
– Gross Axle Weight Rating:
– Front
– Rear
733 lbs. (333 kg)
770 lbs. (350 kg)
1259 lbs. (571 kg)
500 lbs. (227 kg)
827 lbs. (375 kg)

Engine
Engine Air-cooled, Twin Cam 96®
Valve Train Pushrod-operated, overhead valves
with hydraulic, self-adjusting lifters;
two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.18 mm x 111.13 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System3 Electronic Sequential Port Fuel Injection
(ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 46/34 ratio
Final Drive9 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-speed Cruise DriveTM
Gear Ratios (overall):
– 1st
– 2nd
– 3rd
– 4th
– 5th
– 6th
U.S. HDI JPN
9.321 9.321 9.030
6.421 6.421 6.226
4.774 4.774 4.630
3.926 3.926 3.807
3.279 3.279 3.179
2.790 2.790 2.706

Chassis
Frame Mild steel, square-section backbone with
twin downtubes
Swingarm Mild steel, rectangular tube sections,
stamped junctions; MIG welded
Front Forks 41.3 mm telescopic, cartridge-style damping
Rear Shocks Short, air-adjustable
Wheels4 (Chrome, Profile Laced
Aluminum Option):
Black, Slotted Disc Cast Aluminum
– Front
– Rear
16 in. x 3.0 in. (406.4 mm x 76.2 mm)
16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Brakes:
– Caliper Type
– Rotor Type (diameter x width):
– Front (dual)
– Rear
4-piston front and rear
Patented, uniform expansion rotors
11.5 in. x .20 in. (292.1 mm x 5.08 mm)
11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
– Front Wheel
– Rear Wheel
4.6 in. (116.8 mm)
2.0 in. (50.8 mm)

Performance
Engine Torque (per SAE J1349)5:
– North America 92.6 ft. lbs. @ 3500 rpm (125.5 NM @ 3500 rpm)
Lean Angle (per SAE J1168):
– Right
– Left
31°
28°
Fuel Economy
(EPA urban/highway test)11 32.5/45.0 mpg (7.24/5.23 L/100 km)

Electric
Battery (per Battery Council
International Rating)
Sealed, maintenance-free, 12V,
28-amp/hour, 270 cca
Charging Three-phase, 50-amp system
(585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter
motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen)
– Auxiliary Lamps
– Tail/Stop Lights
– Turn Signal Lights
– Indicator Lamps
55-watt low beam, 60-watt high beam
Two @ 35W each (except where prohibited by law)
8W/28W (5W/21W)
28W (21W) self-canceling
High beam, running lights, front fender
lights, directional light bar, neutral, low oil
pressure, engine diagnostics, turn signals,
security system, 6-speed low fuel warning

Styling / Convenience
Engine Trim Black powder-coated with chrome treatment
Exhaust System Chrome, Touring cross-over duals with
slash-down end caps
Handlebars Stainless steel, classic Touring
Seat One-piece, two-up Street Glide™ Classic
Foot Supports
and Controls
Full-length, height-adjustable rider and
passenger footboards; rider footbards with
heel/toe shift levers
Fairing Fort-mounted “bat-wing” with integrated
side-view mirrors
Windshield Smoked mini Lexan® wind deflector
Instruments Electronic speedometer (fairing-mounted) with
odometer, resettable tripmeter, tachometer,
fuel gauge with low fuel warning light,
voltmeter, low oil pressure indicator light,
engine diagnostics readout, LED lights,
6-speed indicator light, cigarette lighter,
ambient air temperature gauge, clock
integrated into CD player/stereo, sound
system with handlebar controls
Stereo Premium sound system (40W per speaker) with
AM/FM/CD MP3 player; fairing-mounted
speakers, weather band, digital clock, bidirectional
seek and scan, track search and
scan, eight presets and automatic volume
control with adjustable sensitivity
Antenna Single AM/FM antenna
Cruise Control Wired to accept electronic cruise control
Hand Conrols
Start, engine cutoff, left/right turn signals,
horn, hi/low beam, stereo system, and
channel controls
Hazard Warning Integrated into turn signal controls
Electric Power Outlet Cigarette lighter, accessory connector
under seat
Saddlebags Injection-molded GTX®12;
Volume: 2.26 cu. ft. (64.0 L)
Luggage Locks Saddlebags, barrel key; common with
ignition key
Fork Lock Integrated with ignition key

Colors12
Vivid Black, Black Cherry Pearl, Black Pearl, Deep Cobalt Pearl, Pacific
Blue Denim (new), Pewter Denim (new)

Warranty
Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km),
every 5,000 miles (8,000 km) thereafter8

1 Harley-Davidson reserves the right to discontinue models or change specifications at
any time without incurring any obligations. Vehicle specifications may vary by country
and region depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL 883
models). Standard and optional fuel systems may vary by country and region.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 North America security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
7 See motorcycle owner’s manual for complete details.
8 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
9 U.S. and HDI markets except Japan: Belt 32/64 ratio.
10 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm spring.
11 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary
among motorcycle models within a family. Your Mileage may vary depending on your
personal riding habits, weather conditions, trip length, vehicle condition and vehicle
configuration and other conditions. Break-in mileage may vary.
12 GTX® is a registered trademark of General Electric Company.
13 Availability may vary from dealer to dealer, and is subject to change without notice.
