2008 Ducati S4R Testastretta
Back to 2008 Ducati Motorcycle Index Page

Click photos to enlarge for detail.
They make great desktop images.

2008 Ducati S4R Testastretta
2008 Ducati S4R Testastretta

2008 Ducati S4R Testastretta
2008 Ducati S4R Testastretta

2008 Ducati S4R Testastretta
2008 Ducati S4R Testastretta

2008 Ducati S4R Testastretta
2008 Ducati S4R Testastretta

2008 Ducati S4R Testastretta
2008 Ducati S4R Testastretta


– 2008 Ducati S4R Testastretta

2008 Ducati S4R Testastretta

EXHILARATING POWER AND SUPERIOR HANDLING

With the choice of S4R, you step up to Testastretta performance and race-worthy handling. The S4R Testastretta engine’s world-beating Superbike power and technology, and a Superbike-derived chassis featuring the lightweight Trellis frame combine in an exhilarating marriage of power and handling.

The liquid-cooled, 4-valve per cylinder, 998 Testastretta L-Twin engine delivers an incredible 130 hp and arm-yanking torque, making every twist of the throttle exciting.

Impressive, race-like ground clearance enables extreme lean angles to exploit the full capabilities of the S4R, a performance thoroughbred created to fully experience the thrills of sports riding.





2008 Ducati S4R Testastretta Specifications:

CHASSIS
Frame Tubular steel trellis frame
Wheelbase 1440 mm / 56.7 in
Rake 24°
Front suspension Showa 43 mm fully adjustable upside-down fork
Front wheel travel 130 mm / 5.1 in
Front brake 2 x 320 mm discs, 4-piston 4-pad radial caliper
Front wheel Y-shaped, 5-spoke in light alloy 3.50 x 17
Front tyre 120/70 ZR 17
Rear suspension Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear wheel travel 148 mm / 5.8 in
Rear brake 245 mm disc, 2-piston caliper
Rear wheel Y-shaped, 5-spoke in light alloy 5.50 x 17
Rear tyre 180/55 ZR 17
Fuel tank capacity 14 L (of which 3 L reserve)/ 3.6 US gal (of which 0.8 US gal reserve)
Weight * 177 kg / 390 lbs
Seat height 800 mm / 31.5 in

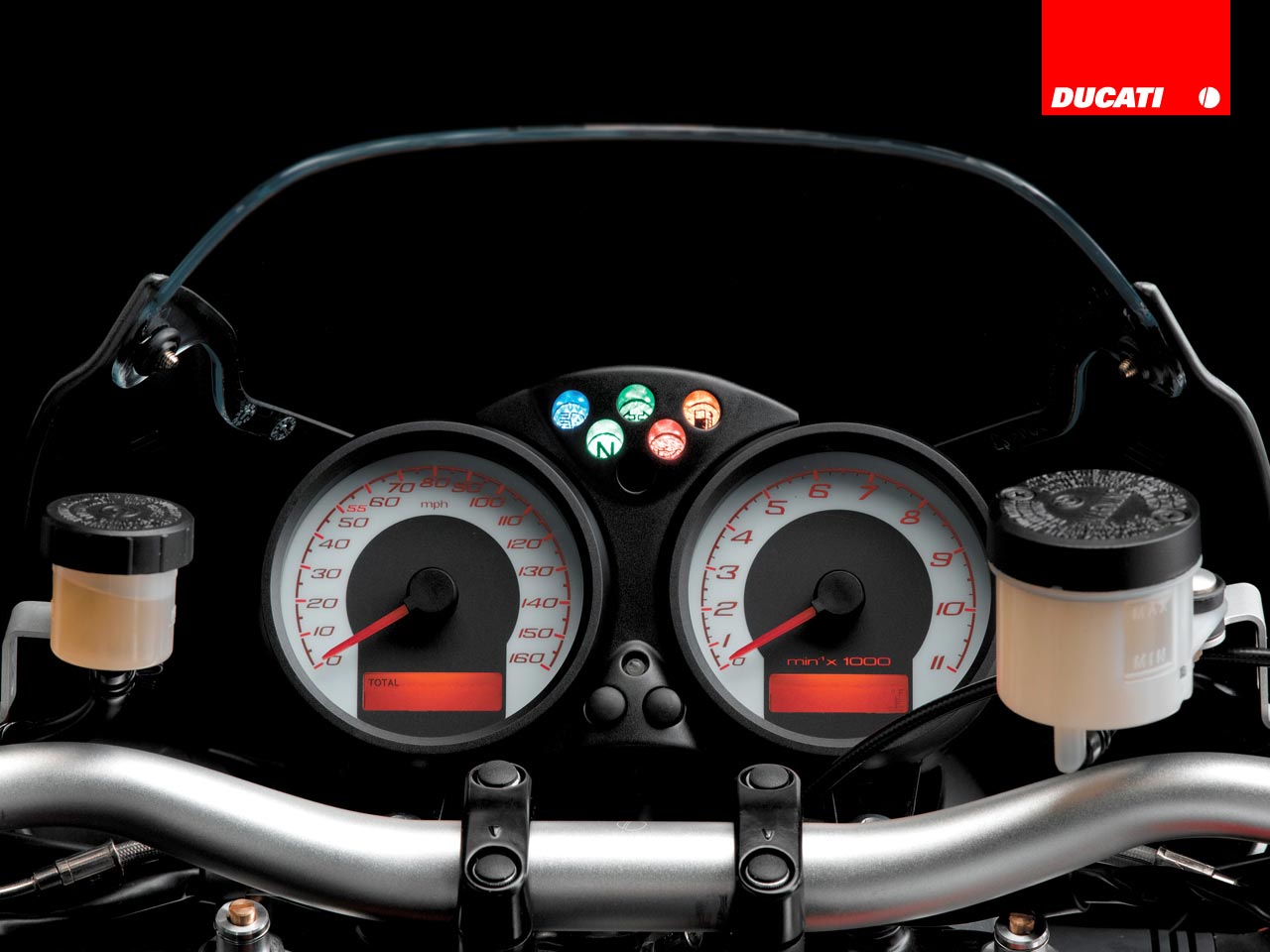

Instruments Electronic panel: speedometer, rev counter, warning light for low oil pressure, indicators for high beam, fuel reserve, turn signals, LCD clock, immobilizer
Warranty 2 years unlimited mileage
Body colours (frame/wheels) (red with white stripe – red – black) (titanium with black stripe – red – black)
Versions Dual seat
* = The weight excludes battery, lubricants and, where applicable, cooling liquid.

ENGINE
Type L-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
Displacement 998 cc
Bore x Stroke 100 x 63,5 mm
Compression Ratio 11.4:1
Power* 95.7 kw – 130 hp @ 9500 rpm
Torque* 103.9 Nm – 10.6 kgm @ 7500rpm
Fuel injection Marelli electronic fuel injection, 50mm throttle body
Exhaust 2 aluminium mufflers
Emissions Euro3

TRANSMISSION
Gearbox 6 speed
Ratios 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary drive Straight cut gears; Ratio 1.84:1
Final drive Chain; Front sprocket 15; Rear sprocket 43
Clutch Dry multiplate with hydraulic control
* = Data calculated using an inertia dynamometer

Specifications and features are subject to change.
