2009 Victory Vegas Low
Back to 2009 Victory Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

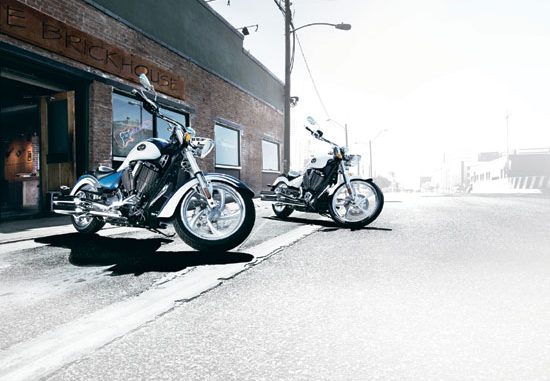

2009 Victory Vegas Low

2009 Victory Vegas Low

2009 Victory Vegas Low

2009 Victory Vegas Low

• 2009 Victory Vegas Low

2009 Victory Vegas Low

Riders who seek a low seat height and easily accessible controls will feel like these Low Cruisers have been custom-sized just for them. The ergonomics deliver comfort and inspire confidence.



New for 2009
New Stingray cast wheels that are 15.7 lbs lighter
New LED tail light is twice as bright
New Headlight lighter and better pattern

Key Features
Lowered Custom Cruiser introduced in 2008
Narrower and lower 25.2” seat height
Foot and hand controls moved back

Features & Benefits

• 2 inch Pull back bars

• Foot pegs moved 2.25″ rearward

• Split-Tail fuel tank integrated with solo seat

• Mutli LED Tail light

• Raised tip to tail spine

• Lower seat height and narrower side covers

• Freedom 100 Cubic Inch V-Twin Engine

• Custom-inspired headlight

• 21 inch custom front wheel

• Stingray wheels





2009 Victory Vegas Low – USA Specifications

MSRP $16,299.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 100 ci (1,634 cc)

Bore x Stroke 101 x 102 mm

Compression Ratio 8.7:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 96 in. (2,439 mm)

Weight Dry: 635 lbs. (288 kg)

GVWR: 1,134 lbs. (514 kg)

Ground Clearance 5.3 in. (135 mm)

Wheelbase 66.3 in. (1,684 mm)

Fuel Capacity 4.5 gal. (17 l)

Oil Capacity 5 qt. (4.75 l)

Seat Height 25.2 in. (640 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Final Drive Carbon fiber reinforced belt

Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel

Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3 in. (75 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper

Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 90/90 21 Dunlop Elite 3

Rear: 180 55-B18 Dunlop D417

Rake 32.9°

Trail 4.9 in. (126 mm)

Colors Black, Blue Ice, Pearl White, Sunset Red, Two-tone Midnight Cherry / Pearl White with Carbon stripe, Two-tone Blue Ice / Pearl White with Carbon stripe





2009 Victory Vegas Low – Canada Specifications
MSRP C$18,173.00

ENGINE
Engine 4-stroke, 50° V-twin, single overhead camshafts with 4-valves per cylinder, self-adjusting cam chains, hydraulic lifters

Displacement 100 ci (1,634 cc)

Bore x Stroke 101 x 102 mm

Compression Ratio 8.7:1

Fuel System Electronic Fuel Injection with dual 45 mm throttle bodies

Clutch Wet, multi-plate

Cooling Air / oil

Exhaust Staggered slash-cut dual exhaust with crossover

DIMENSIONS
Length 96 in. (2,439 mm)

Weight Dry: 635 lbs. (288 kg)

GVWR: 1,134 lbs. (514 kg)

Ground Clearance 5.3 in. (135 mm)

Wheelbase 66.3 in. (1,684 mm)

Fuel Capacity 4.5 gal. (17 l)

Oil Capacity 5 qt. (4.75 l)

Seat Height 25.2 in. (640 mm)

DRIVETRAIN
Transmission 6-speed overdrive constant mesh

Final Drive Carbon fiber reinforced belt

Suspension Front: Conventional telescopic fork, 43 mm fork tube; 5.1 in. (130 mm) travel

Rear: Single, mono-tube gas shock, cast aluminum with rising rate linkage swingarm, preload adjustable spring; 3 in. (75 mm) travel

BRAKES/WHEELS/TIRES
Brakes Front: 300 mm floating rotor with 4-piston caliper

Rear: 300 mm floating rotor with 2-piston caliper

Tires Front: 90/90 21 Dunlop Elite 3

Rear: 180 55-B18 Dunlop D417

Rake 32.9°

Trail 4.9 in. (126 mm)

Colors Black, Blue Ice, Pearl White, Sunset Red, Two-tone Midnight Cherry / Pearl White with Carbon stripe, Two-tone Blue Ice / Pearl White with Carbon stripe
