2009 Yamaha Zuma

You are here: Index2009 Models — 2009 Yamaha Motorcycle Models

2009 Yamaha Zuma
Back to 2009 Yamaha Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

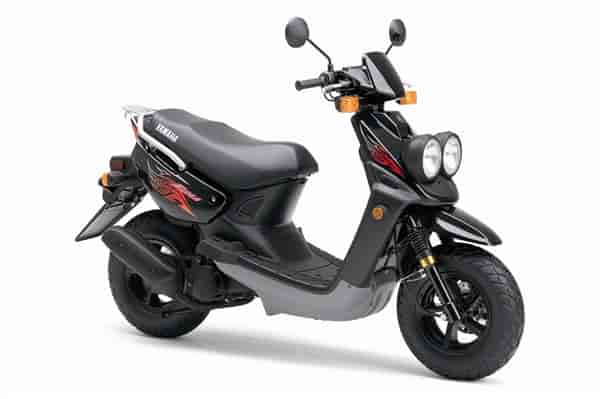

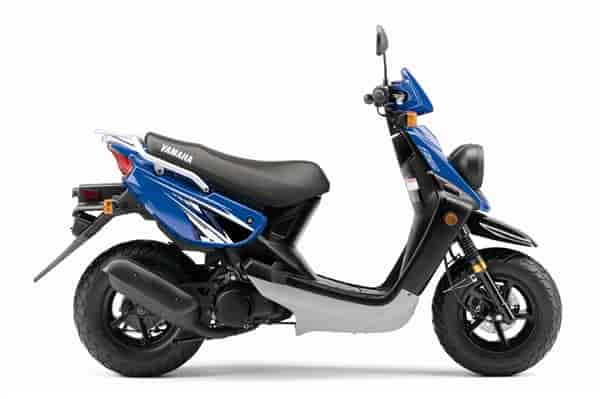

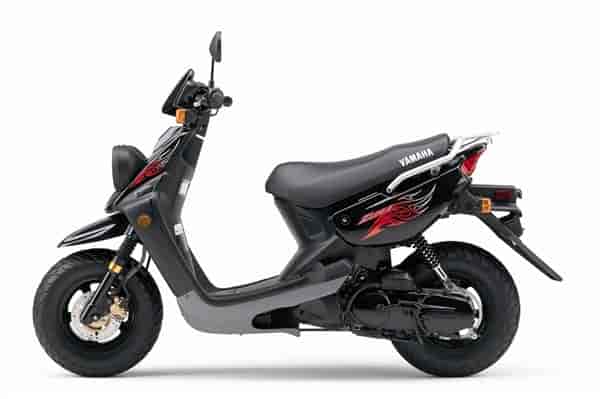

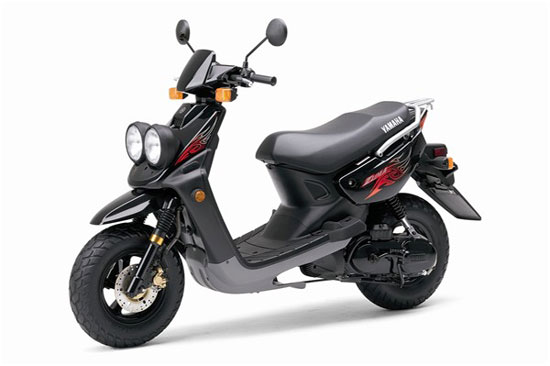

2009 Yamaha Zuma
2009 Yamaha Zuma

2009 Yamaha Zuma
2009 Yamaha Zuma

2009 Yamaha Zuma
2009 Yamaha Zuma

2009 Yamaha Zuma
2009 Yamaha Zuma


• 2009 Yamaha Zuma

2009 Yamaha Zuma

Good things come in small packages.

The sporty Zuma is a fantastic combination of fun and practicality.

Back by popular demand, the sporty Zuma is a fantastic combination of fun and practicality. Think of it as a very trick scooter or a very small sport-utility vehicle, the Zuma’s up for anything.



Key Features:


– The sporty Zuma is a fantastic combination of fun and practicality.

– Carburetor settings and exhaust catalyzer technology reduce exhaust emissions.
49cc of reed-valve-inducted, Autolube-injected, two-stroke performance keeps the Zuma at the head of the 50cc pack.

– Fully automatic transmission and pushbutton electric starting make the Zuma super-convenient.

– There’s room for two atop the Zuma’s seat and lots of locking storage beneath it.


Engine:

– Feisty 49cc, air-cooled two-stroke engine features a high 7.0:1 compression ratio for strong, usable power—perfect for around-town performance.

– Reed-valve induction provides excellent throttle response and power delivery.

– 14mm Teikei carburetor ensures seamless fuel delivery and crisp throttle response.

– Fan-assisted cooling system keeps engine temperatures reliably under control, even while idling at stoplights—for maximum efficiency and longer engine life.

– Exclusive Autolube Oil Injection System ensures no mess or hassle of premixing fuel and oil.

– Easy-to-read indicator light located on instrument panel alerts rider when oil level gets low.

– Easy, dependable electric starting with backup kickstarter.

– Fully automatic, V-belt transmission ensures easy, twist-the-throttle-and-go operation.

– DC-CDI system provides precise, high-voltage spark for seamless engine performance and excellent reliability.

– Automatic choke makes cold starting a cinch.

Chassis/Suspension:

– Step-through frame design allows easy mounting.

– Long wheelbase (50.2 inches) and large dimensions (74.4”L x 27.8”W x 43.7”H) enhance rider comfort with roomier ergonomics.

– Five-spoke cast wheels wear fat, low-profile 120/90-10 front and 130/90-10 rear tires that deliver tons of grip and attitude.

– Telescopic fork features beefy outer tubes for strength, while slider shrouds help protect inner tubes from debris.

– Telescopic front fork with 2.6 inches of travel smoothly soaks up what the road throws the rider’s way.

– Single rear shock with 2.4 inches of travel ensures plush ride quality in either solo or two-up mode.

– 155mm hydraulic front disc and rear drum brakes combine for serious stopping power.


Additional Features:

– Super-sporty styling and bodywork create a racy package with an aggressive profile and riding position.

– Wide front apron and floorboards enhance Zuma’s sporty profile while providing exceptional wind/weather protection and all-day comfort.

– Headlight system features dual bulbs with housings mounted atop the apron (vs. recessed) for great visibility and a sporty finish.

– Huge underseat storage compartment, perfect for hauling schoolbooks or groceries.

– Plush dual seat is long and wide for improved rider and passenger comfort.

– Sturdy rear cargo rack boasts stainless finish and features extensions that double as passenger grabrails.

– Electronic fuel gauge lets rider easily keep track of gas level.

– Easy-to-read instrument panel features turn signal, high-beam and low-oil indicator lights.






2009 Yamaha Zuma – USA Specifications
MSRP* $2,199 (Team Yamaha Blue/White) Available from October 2008
$2,199 (Raven) Available from October 2008


Engine
Type 49cc air-cooled 2-stroke single reed-valve inducted

Bore x Stroke 40.0mm x 39.2mm

Compression Ratio 7.0:1

Carburetion 14mm Teikei

Ignition DC CDI

Transmission V-belt automatic


Chassis
Suspension/Front Telescopic fork; 2.6-in travel

Suspension/Rear Single shock; 2.4-in travel

Brakes/Front 155mm disc

Brakes/Rear Drum

Tires/Front 120/90-10

Tires/Rear 130/90-10


Dimensions
Length 74.4 in

Width 27.8 in

Height 43.7 in

Seat Height 30.1 in

Wheelbase 50.2 in

Fuel Capacity 1.5 gal

Fuel Economy** 123 mpg

Wet Weight 207 lb


Other
Warranty 1 Year (Limited Factory Warranty)

*Prices and specifications subject to change without notice.
