Mount it here, mount it there, mount it anywhere!
GoPro Roll Bar Mount Review
The GoPro Roll bar tube mount can mount to any bar (round, square or otherwise) that is from 1.4 inches to 2.5 inches. That’s a pretty big starting size considering a motorcycle doesn’t really use a diameter larger than the handlebars (.75″ to 1″) unless it’s to the chassis of the bike. But that’s fine as GoPro does sell the GoPro Handlebar Mount (also reviewed by Total Motorcycle) for sizes of 0.75″ to 1.4″ which is perfect for most motorcycles. For the GoPro Roll bar tube mount you will be mostly mounting it to the motorcycle’s frame and there can be some great video opportunities here not to be missed.
The GoPro Roll bar tube mount mounted on the motorbike’s chassis is a unique opportunity to present a view not normally seen (the most seen view is the handlebars) in a video. You can have it facing forward or backwards, below the frame or even at knee height depending on mount locations. We found it was easy to mount on even odd shaped bars and the “vibration dampener” on the inside of the mount was a really nice touch. The large black plastic screws helped fix the mount even with motorcycle gloves on, although the length of the plastic screws can be an issue depending on mount location. The only minor issue we had was the nut (see pictured below) would fall out of its plastic hole when securing the camera to the mount, this is the same with all GoPro mounts, not just this one and we would like to see GoPro use a “lock-tite” or other product to secure the nut in place.
Total Motorcycle mounted it on the bike’s frame both in the front and rear positions and have included video below for your judgement on what view you like best.
Overall, we were very impressed with the mount and awarded it our coveted Total Motorcycle Editor’s Choice Award, 5 out of 5.
1. GoPro Roll Bar Mount can mount on a variety of diameters from 1.4 to 2.5 inches, even square or odd-shaped items.
2. GoPro uses a rubber “vibration dampener” on the inside of the mount.
3. Easy to screw and unscrew the clamp from the bar.
4. Easy to mount the GoPro HD camera on the mount.
1. Use of “Lock-tite” or other adhesive to keep the nut in place so it doesn’t fall out on occasion.

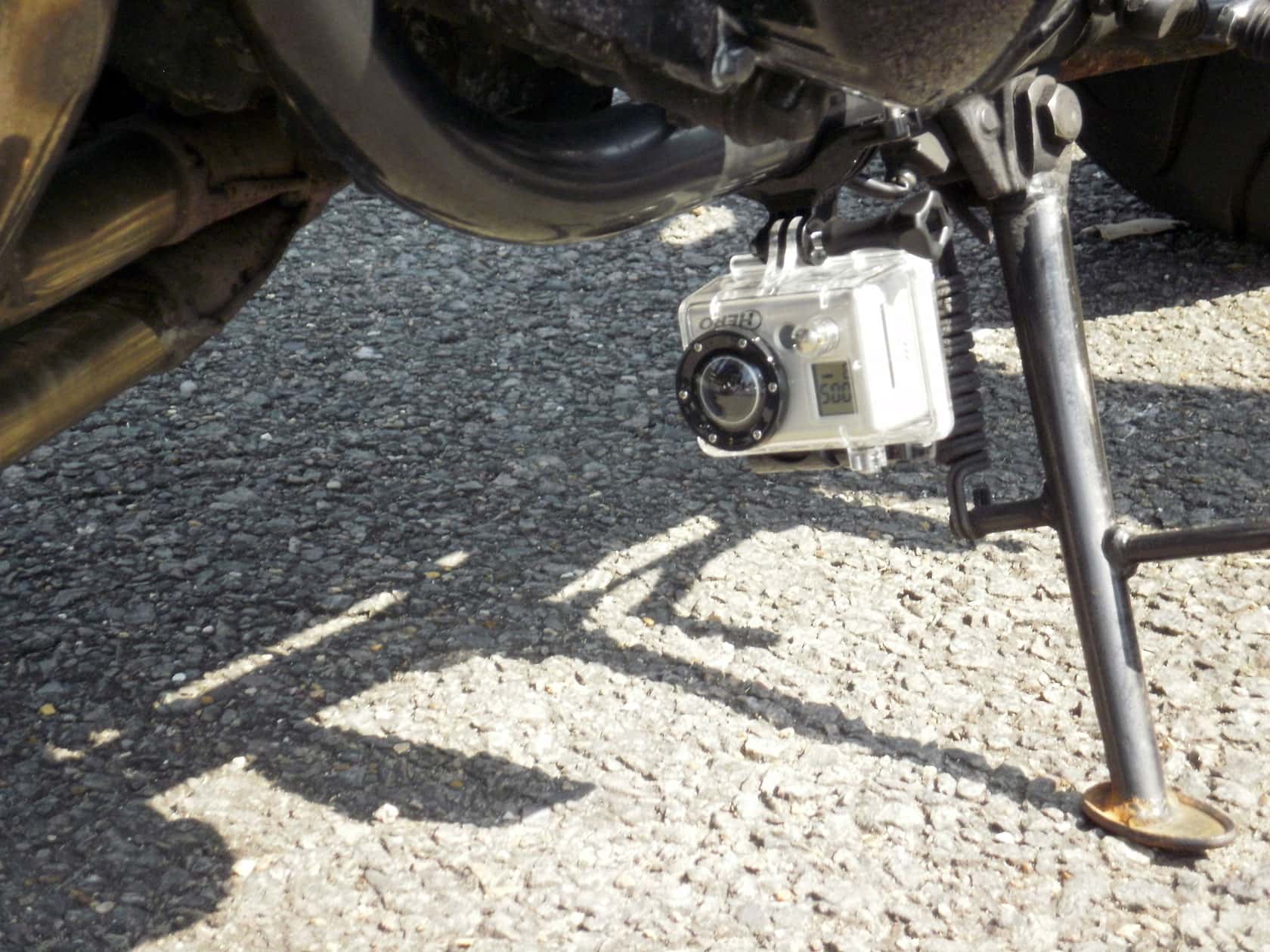

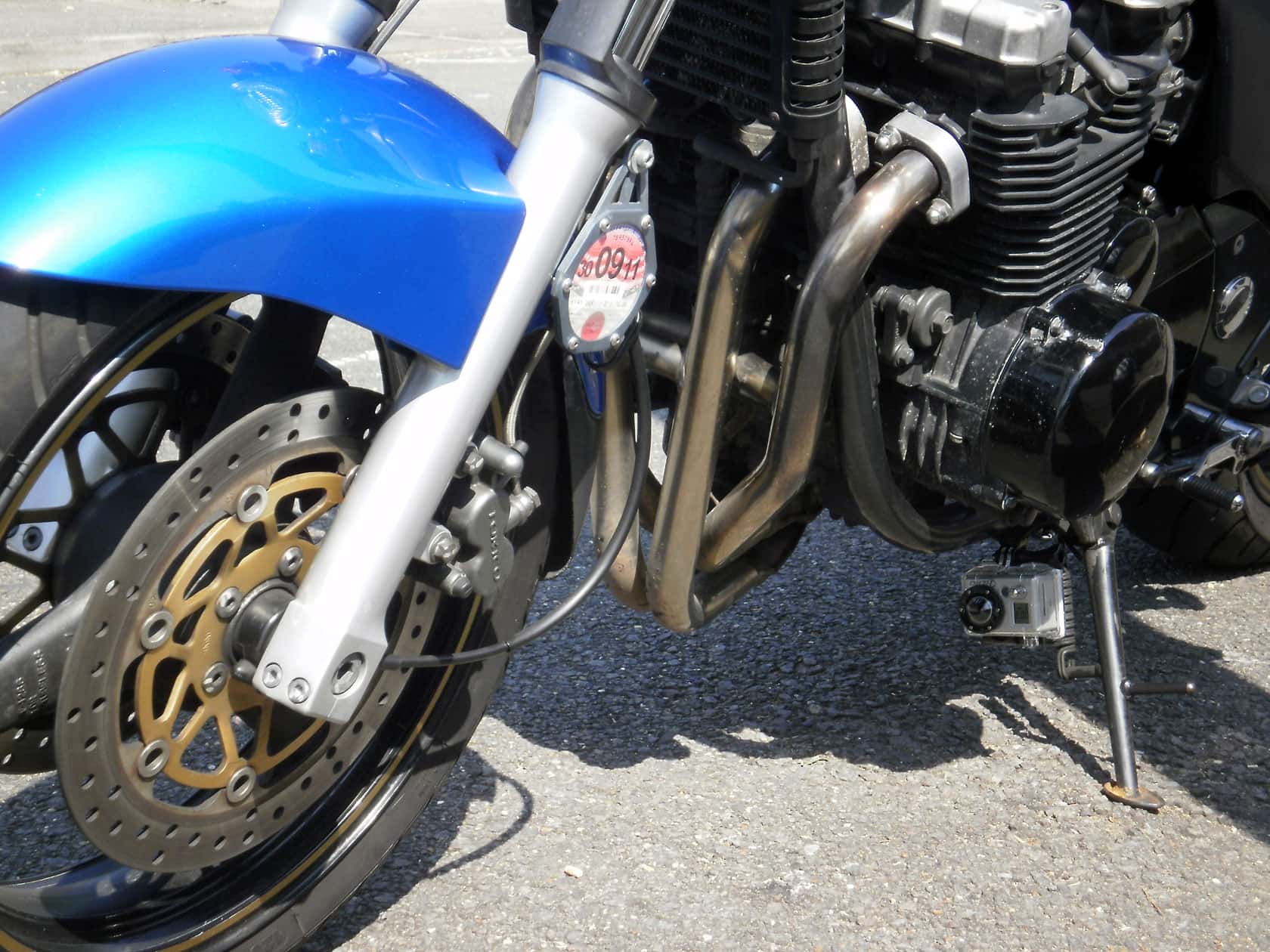

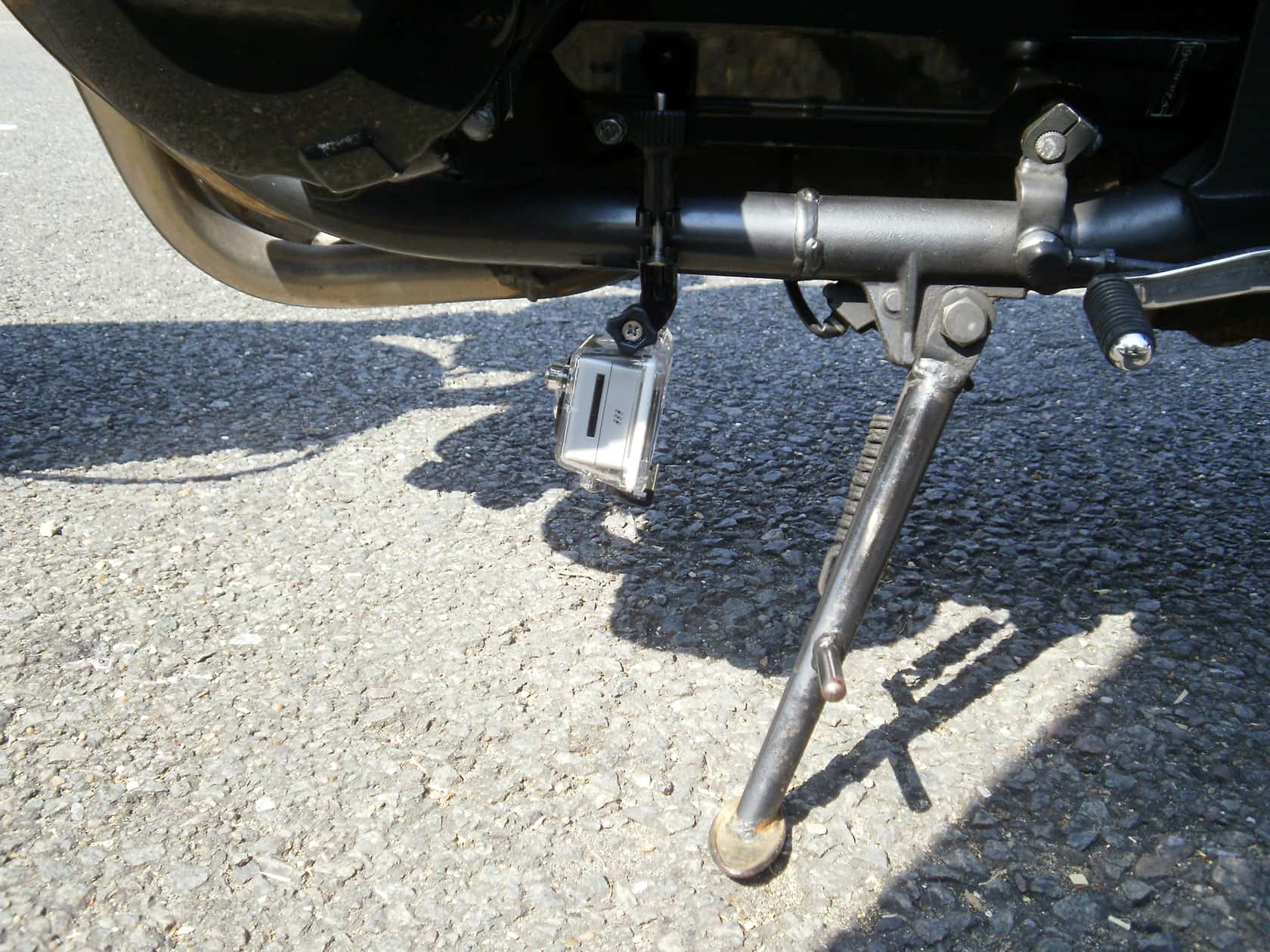

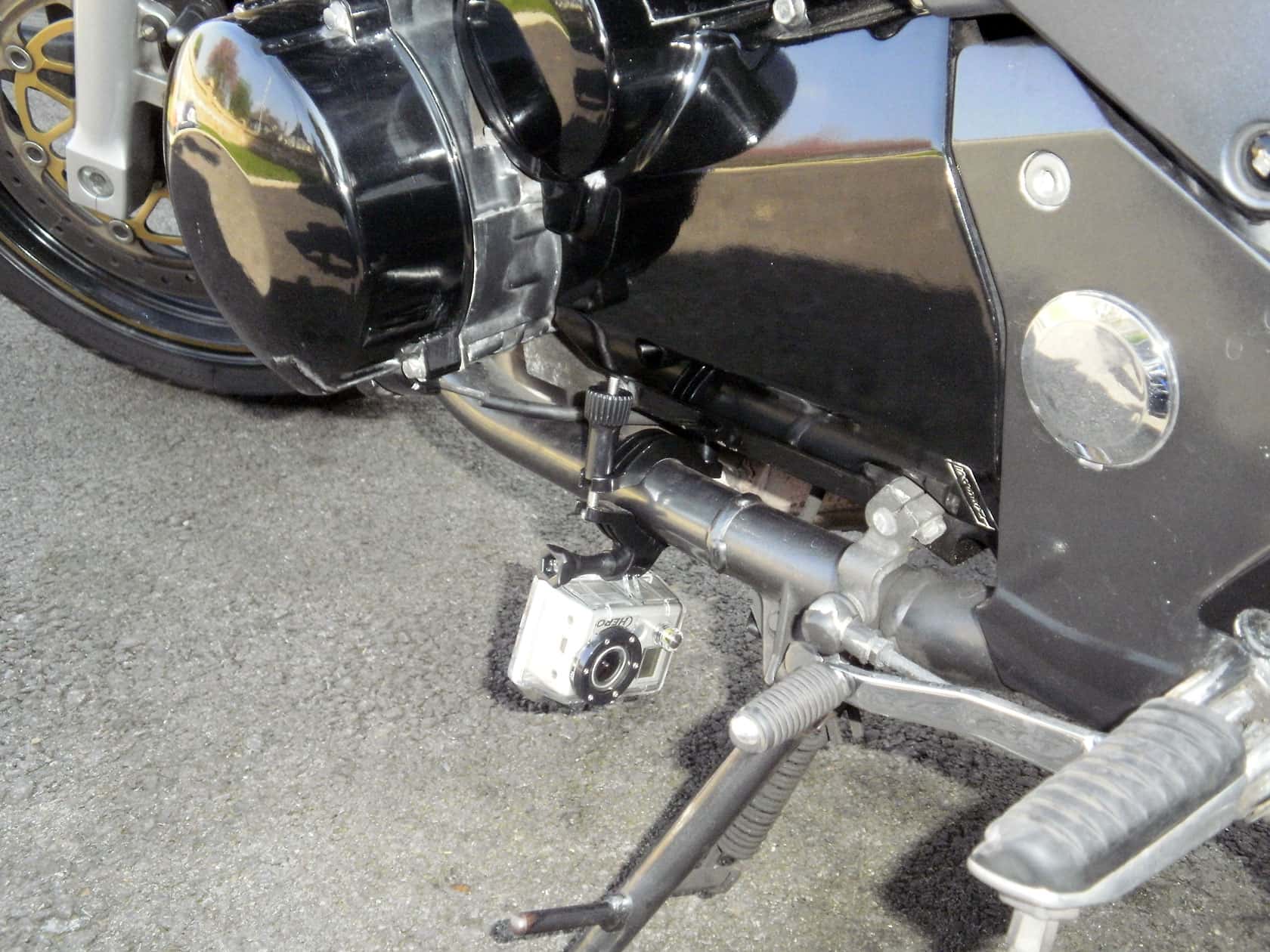

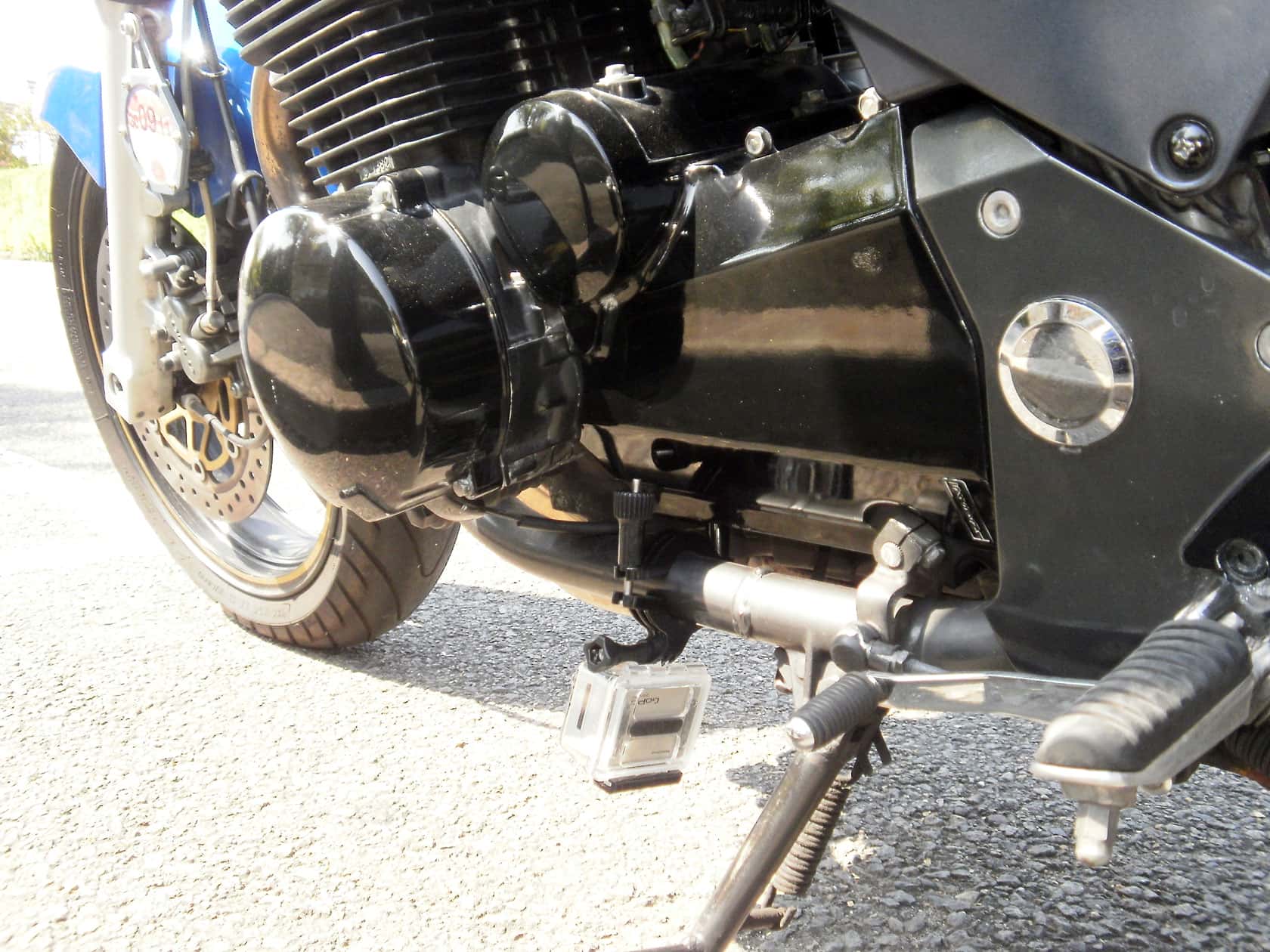

GoPro Roll Bar Mount Field Photos

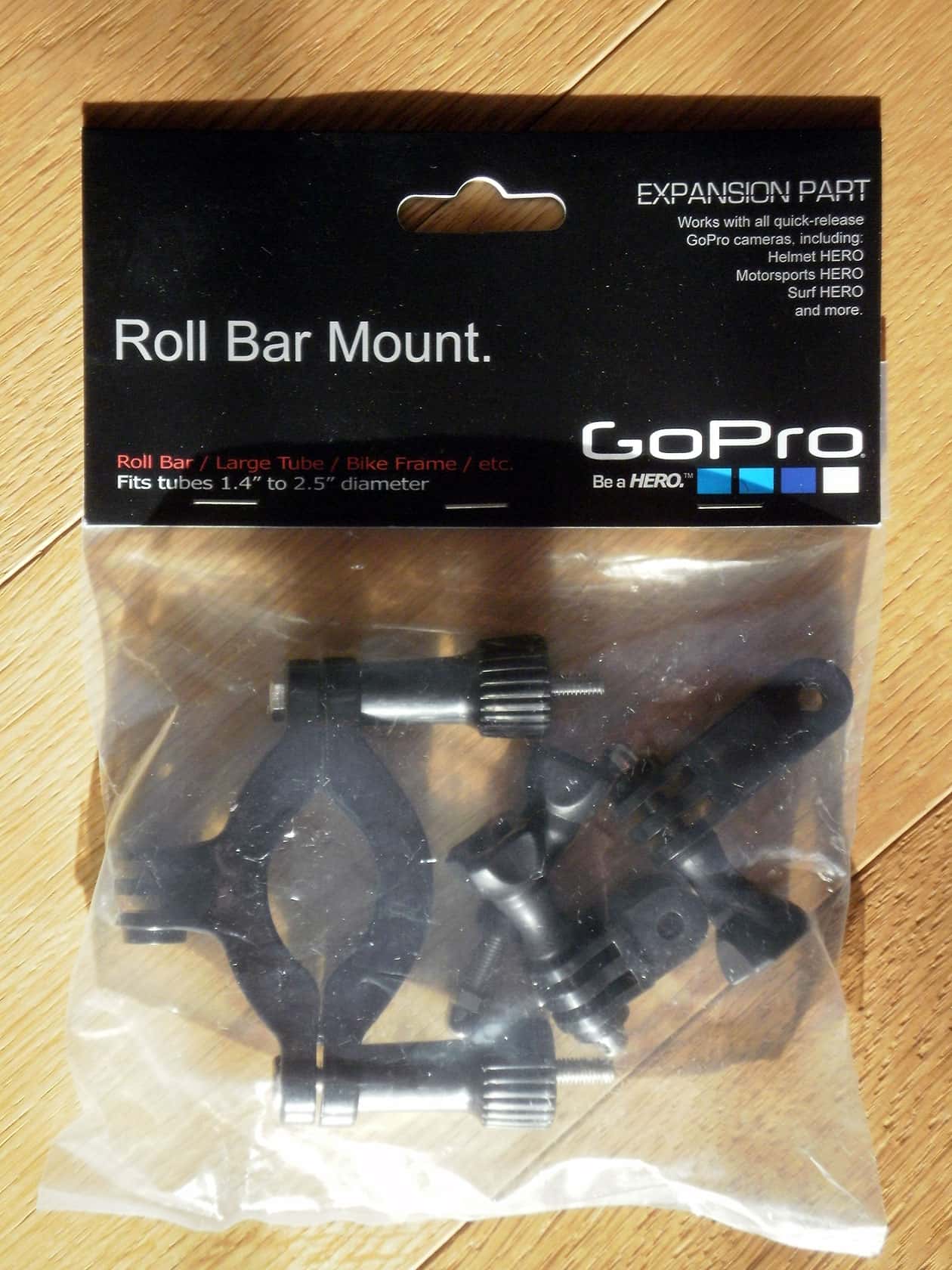

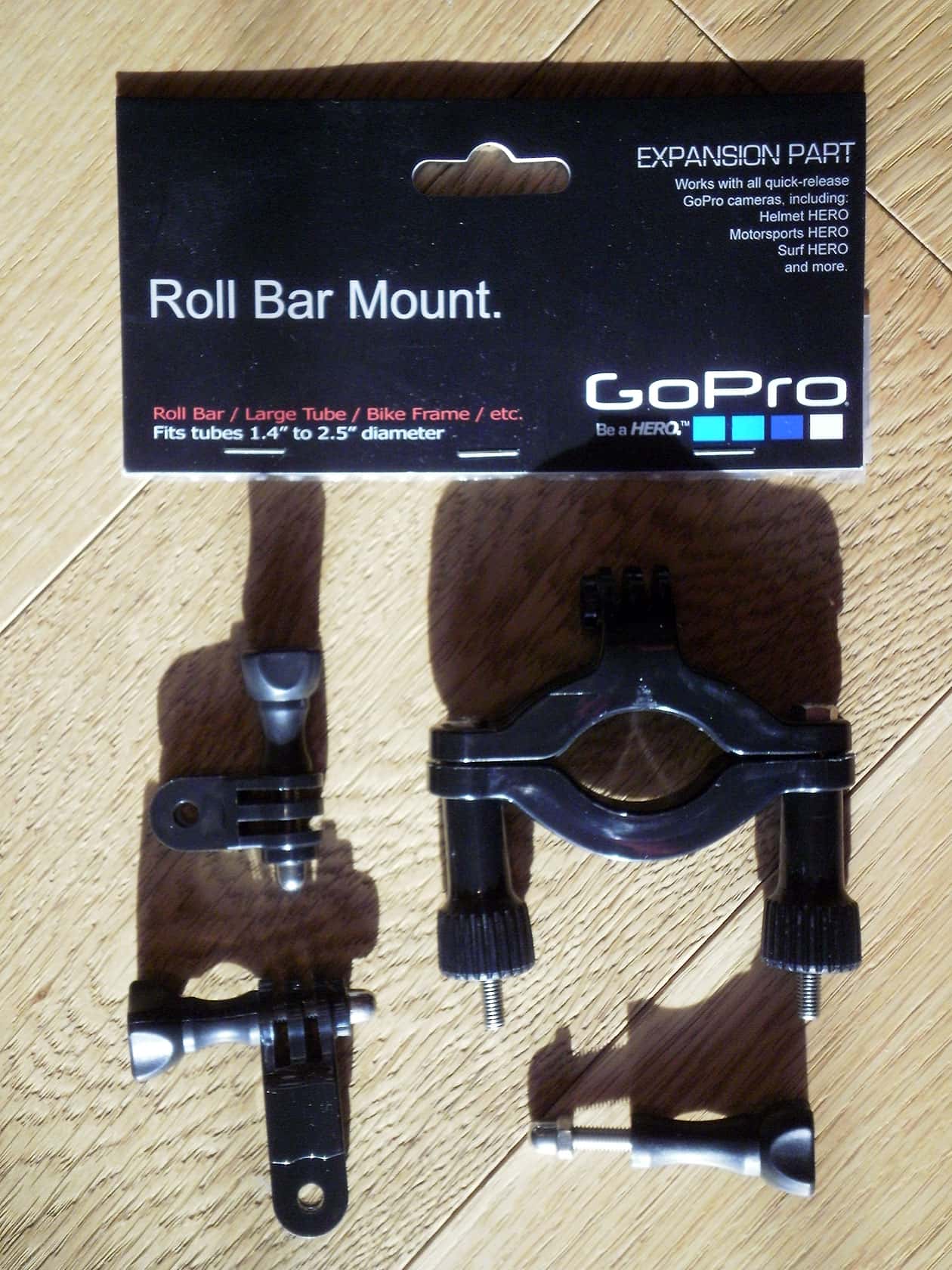

GoPro Roll Bar Mount Specifications
Roll bar tube clamp for mounting your quick-release GoPro camera on to tubes & frames ranging from 1.4 to 2.5 inches (3.5cm – 6.35cm) in diameter.
Perfect for clamping your camera to the radiator cap (both metal and plastic caps) on karts.
You can also clamp to bike frames, bumper bars, ski/surfboard racks, or anything else that is in the size range above.
Comes with pivoting orientation arms allowing for 3-way adjustability, ensuring you can get the angle you want.
Compatible with all GoPro quick-release cameras including the Helmet HERO Wide, Motorsports HERO Wide, Motorsports HERO, Surf HERO, and WIDE HERO cameras. Not compatible with the Digital HERO 5 Wrist Camera.
– 1 Roll Bar/Tube Clamp
– 1 Three-way Adjustable Pivot Arm (three piece assembly)
– Warranty: One Year
Model Number: GRBM30
Hardware: stainless steel nuts and bolts
Clamp Diameter: 1.4″ to 2.5″ (3.5cm – 6.35cm)
Total Motorcycle GoPro Roll Bar Mount review video – Front
Total Motorcycle GoPro Roll Bar Mount review video – Rear
Total Motorcycle GoPro HD Hero review video
Overall, we give the GoPro Roll Bar Mount 5 out of 5 stars.
