2010 Kawasaki KVF 360
2010 Kawasaki KVF 360
2010 Kawasaki KVF 360
– 2010 Kawasaki KVF 360
2010 Kawasaki KVF 360
The KVF360 4×4 features selectable four-wheel drive with variable locking differential control, the Kawasaki Automatic Power-Drive System (KAPS), dual front disc brakes and the Kawasakiexclusive sealed rear brake system.
2010 Kawasaki KVF 360 Details & Features
Engine
633cc Liquid-Cooled, Four-Stroke V-Twin Engine
o Kawasaki’s original V-twin engine
o 90-degree, V-twin engine with four-valves per cylinder produces massive torque yet is exceptionally smooth running
o Electronically managed Kawasaki Engine Brake Control system helps to slow the ATV under certain conditions
Transmission and Powertrain
o Fully automatic Kawasaki Automatic Powerdrive System (KAPS) continuously variable transmission (CVT) has high and low forward gears plus reverse
o Selectable four-wheel or two-wheel drive
o The limited-slip front differential permits tight and easy turning
o Rider can utilize the Variable Front Differential Control for maximum traction on difficult terrain
Brakes
o Dual-piston caliper front disc brakes provide aggressive stopping power
o The industry’s original sealed, oil-bathed, multi-disc rear braking system
o An integrated part of the shaft drive, the virtually maintenance-free rear braking system is protected from mud, dust and debris
Chassis
o Tough and rugged body style
o Aluminum swingarm is sturdy and lightweight, and the shock absorber has adjustable preload
o MacPherson strut front suspension provides a smooth, comfortable ride
o Full-size floorboards are comfortable and help protect the rider’s feet from mud and debris
Amenities
o Cat-eye headlights add to its clean and aggressive look
o A digital instrument panel provides the rider important information at a glance
o Front and rear steel cargo racks can carry a combined weight of 264 pounds
o 1,250 pound towing capacity
o Standard winch-mount can accommodate a 3000-pound capacity winch from Warn or Superwinch
o A digital instrument panel provides the rider important information at a glance
o Front and rear steel cargo racks can carry a combined weight of 264 pounds
o It can tow 1,250 pounds
o Standard winch-mount can accommodate a 3000-pound capacity winch from Warn or Superwinch
2010 Kawasaki KVF 360 Technology
Engine
The engine is a light, simple, air/oil cooled, 362cc single-cylinder unit with overhead cam valve train. The cylinder head is slanted forward to lower the center of gravity.
CVK-34 carburetor delivers smooth throttle response and efficient fuel consumption.
Carburetor mounted automatic electric heater prevents carb icing ensuring smooth running in cool weather.
A large oil cooler with thermostatically controlled fan keeps the engine temperature under control.
The Kawasaki’s electric engine brake control system provides additional slowing power when descending hills by using the braking effect of the engine’s compression. Braking control is applied automatically under certain conditions when the throttle is released.
The engine can be started in any gear if any brake is applied.
Back-up pull starter is included just in case. Engine decompressor makes manual starting easier.
The air box is located under the seat for easy access for air cleaner maintenance. A snorkel air intake near the handlebars minimizes the entry of water, dirt and foreign objects.
Transmission
Mono-shifter mechanism makes for quick shifting between High, Low, and Reverse. Unique transmission design makes for a lightweight transmission assembly.
Third-generation KAPS (Kawasaki Automatic Power-Drive System) CVT automatic belt drive system features quick response and great reliability.
Belt Failure Detection System lets the operator know if the double cog KAPS drive belt is excessively worn or frayed. Under such conditions, the drive belt trips a switch mounted atop the CVT cover that limits engine speed, prevents the machine from being shifted into 4WD and signals the operator with a light on the instrument panel.
Air intake passage located under the handlebars routes cooling air to the CVT unit.
Electrically “selectable” 2WD/4WD system allows the rider to choose between 2WD or 4WD. A switch on the right side of the handlebar lets the rider easily change between drive systems to suit the terrain and applications.
The internal wet brake is completely sealed from mud and dust, etc. while its compact design allows ample ground clearance.
The variable front differential control helps to pull the rider through when extra traction is needed while allowing better directional control.
Override pushbutton switch allows the rider to increase power when riding in reverse gear.
Chassis
MacPherson strut front suspension provides nearly seven inches of wheel travel and enhances the wheels’ ground-following ability for a smooth ride.
Dual hydraulic disc front brakes deliver powerful, progressive braking.
Highly rigid and very lightweight aluminum swingarm features a built-in, oil-bathed, multi-plate rear brake. The sealed, internal wet brake used at the rear is completely isolated from mud, dust and debris, while its compact design allows more ground clearance.
Uni-trak rear suspension features a large shock for stable damping characteristics. Five-position adjustable for preload, it comes with a dual-rate spring and delivers more than seven inches of wheel travel.
Convenient 12V accessory outlets are provided near the steering head and rear fender areas; each rated for ten amps.
Rubber mounted floorboards feature adjustable footpegs and provide great grip.
Bright, multi-reflector headlights throw plenty of light for late nights on the job.
The front guard is designed to accommodate an optional winch bracket, protected nicely behind the bumper.
Standard equipment brake light lets the group know when to slow down.
Instrumentation includes electric (no cable) analog speedometer, odometer, tripmeter, and hour meter and indicator lamps for neutral, reverse gear, 2WD/4WD, belt warning and oil warning.
Included trailer hitch is rated for 500kg (1100 lb).
Sturdy steel racks provide large surface area for carrying the big loads. Racks are rated 40kg front and 70kg rear.
Colours
Woodsman Green

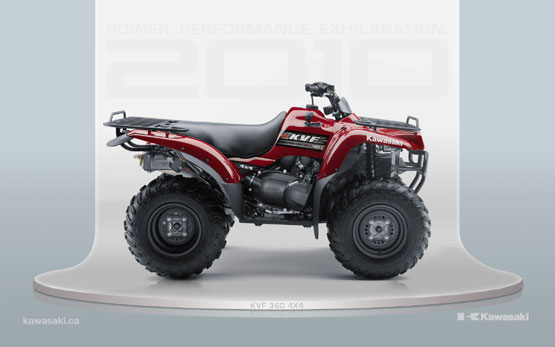

Dark Royal Red

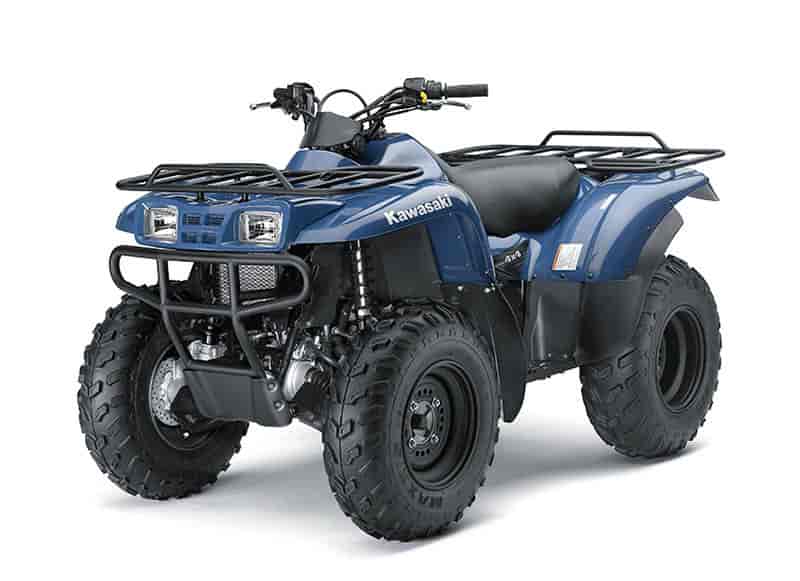

Smoky Blue

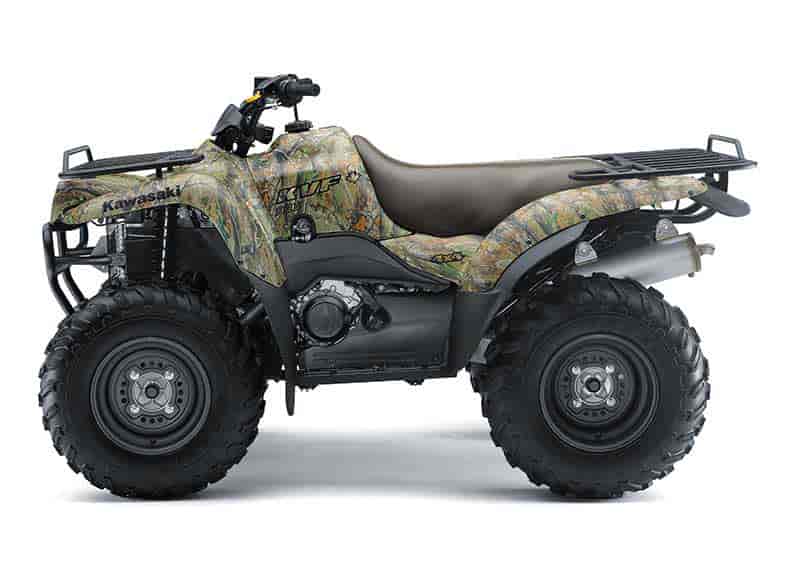

Camouflage Realtree APG (KVF360CAF)
2010 Kawasaki KVF 360 – USA Specifications
US MSRP* $NA USD
Model not available in the USA
2010 Kawasaki KVF 360 – Canada Specifications
Canadian MSRP* $8,199 ($8,599 – Camo) CDN
ENGINE
Type 4-stroke Single with balancer
Displacement 362 cc
Bore and Stroke 80 x 72mm
Compression Ratio 8.3:1
Valve System SOHC, 2 valves
Carburetor Keihin CVK 34
Ignition DC-CDI
Starting Electric with recoil back-up
Cooling Air, large oil cooler with thermostatically controlled fan
Lubrication Forced lubrication, wet sump
Charging Output 24 A, 14 V @ 4000 rpm
DRIVETRAIN
Transmission Dual range CVT with reverse
Primary Drive Belt converter
Final Drive Shaft, Electric 2WD/4WD, rider controlled locking front differential
Primary Reduction Ratio 3.122 ~ 0.635 (belt converter)
Overall Drive Ratio: Forward (High) 48.474 ~ 9.859
Overall Drive Ratio: Forward (Low) 75.619 ~ 15.380
Overall Drive Ratio: Reverse 63.016 ~ 12.817
FRAME
Type Double cradle, tubular steel
Suspension: Front MacPherson strut
Suspension: Rear Uni-Trak Swingarm, single shock with stepped preload adjuster
Wheel Travel: Front 170 mm
Wheel Travel: Rear 180 mm
Tires: Front AT 25 x 8-12
Tires: Rear AT 25 x 10-12
Tread (Front/Rear) 890 mm / 895 mm
BRAKES
Front Brakes Dual hydraulic drilled discs with single piston calipers
Rear Brake Enclosed wet multi-plate
Parking Brake Enclosed wet multi-plate
ELECTRICAL EQUIPMENT
Battery 12 V, 14 Ah
Headlights (High/Low) 12 V, 30/30 W x 2
Tail/Brake Light 12 V, 5/18 W
DIMENSIONS
Overall Length 2,065 mm
Overall Width 1,205 mm
Overall Height 1,175 mm
Wheelbase 1,250 mm
Seat Height 910 mm
Curb Mass 290 kg
Fuel Capacity 13.5 litres
DETAILS
MSRP* $8,199 ($8,599 – Camo)
Colours Dark Royal Red, Smokey Blue, Camouflage Realtree APG
Warranty 12 months
ADDITIONAL COST OPTIONS
Good Times Protection Plan 24 or 36 months (Kawasaki GTPP coverage begins after the standard limited warranty expires)
* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.
The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.
