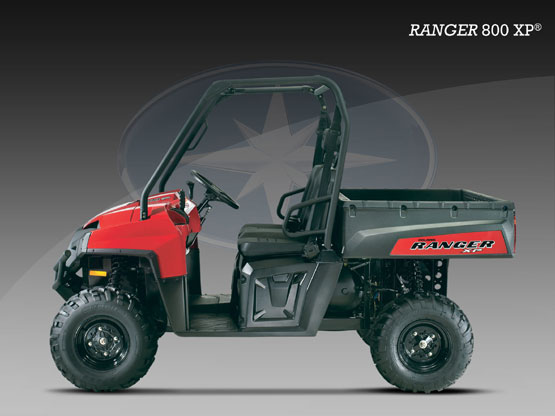

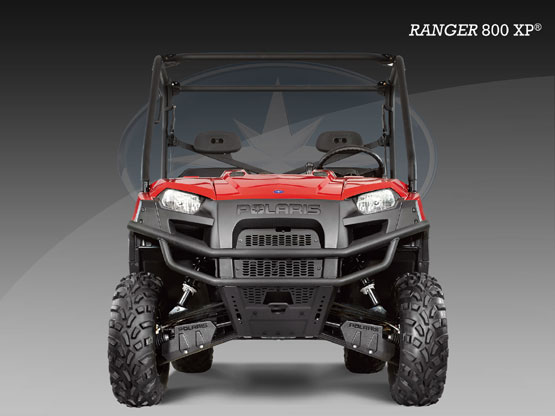

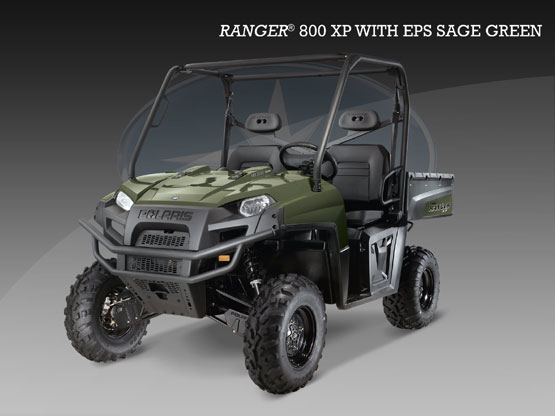

2010 Polaris Ranger 800 XP
2010 Polaris Ranger 800 XP
2010 Polaris Ranger 800 XP
– 2010 Polaris Ranger 800 XP
2010 Polaris Ranger 800 XP
New! 2010 RANGER 800 XP® Side-By-Side
The definition of Xtreme Performance changes with every innovation. The RANGER 800 XP® is primarily intended for recreational use and this year we powered up the RANGER XP® with 15% more horsepower and a top speed of 53 mph (85.3 kph). Both the horsepower and the speed continue to be best in class. Key Xtreme Performance features are:
46 HP 760cc Twin Cylinder EFI Engine
Smooth Independent Rear Suspension (IRS)
Dual A-Arm Front Suspension
1,000 lb. (453.6 kg) Rear Cargo Box Capacity
2,000 lb. (907.2 kg) Towing Capacity
Find out more about its features, specifications, pricing, comparisons, reviews, accessories, videos, images, 360 views, custom brochures, downloads, and locate your nearest dealer.
*Mossy Oak Camo Additional Cost
2010 Polaris Ranger 800 XP – USA Specifications
US MSRP* $11,199 USD
Engine Type 4-Stroke Twin Cylinder
Displacement/HP 760cc
Fuel System Electronic Fuel Injection
Cooling Type Liquid
Fuel Capacity 9 gal. (34.1 ltr.)
Final Drive Shaft
Transmission Automatic PVT H/L/N/R
Drive System On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System N/A
Front Suspension Dual A-Arm 9.6 in. (24.4 cm) Travel
Rear Suspension Dual A-Arm, IRS 9 in. (22.9 cm) Travel
Front Brake Hydraulic Disc with Dual-Bore Front Calipers
Rear Brake Hydraulic Disc with Dual-Bore Front Calipers
Front Tires 25 x 10-12; AT 489
Rear Tires 25 x 11-12; AT 489
Wheels Stamped Steel
Parking Brake Hand-Actuated
Wheelbase 76 in. (193 cm)
Dry Weight 1,237 lb. (561 kg.)
Length/Width/Height 114 in./60 in./76 in. (290 cm/152 cm/193 cm)
Seat Height N/A
Ground Clearance 12 in. (30.5 cm)
Bed Box Dimension/Capacity 54 x 36.5 x 11.5 in. (137 x 93 x 29 cm) / 1000 lbs. (453.6 kg)
Front Rack N/A
Rear Rack/Box Capacity N/A
Hitch Towing Rating 2,000 lb. (907.2 kg)
Unbraked Trailer Towing Capacity
*Based on EU Directive 76/432/EC N/A
Cargo System Lock & Ride
Hitch / Type Std / Receiver
Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (2)
Colors Solar Red, Sage Green, Mossy Oak Break-Up
MSRP: US $11,199
Mossy Oak Camo Additional Cost
* Price shown is the manufacturer’s suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.
2010 Polaris Ranger 800 XP – Canada Specifications
Canadian MSRP* $13,399 CDN
Engine Type 4-Stroke Twin Cylinder
Displacement/HP 760cc
Fuel System Electronic Fuel Injection
Cooling Type Liquid
Fuel Capacity 9 gal. (34.1 ltr.)
Final Drive Shaft
Transmission Automatic PVT H/L/N/R
Drive System On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System N/A
Front Suspension Dual A-Arm 9.6 in. (24.4 cm) Travel
Rear Suspension Dual A-Arm, IRS 9 in. (22.9 cm) Travel
Front Brake Hydraulic Disc with Dual-Bore Front Calipers
Rear Brake Hydraulic Disc with Dual-Bore Front Calipers
Front Tires 25 x 10-12; AT 489
Rear Tires 25 x 11-12; AT 489
Wheels Stamped Steel
Parking Brake Hand-Actuated
Wheelbase 76 in. (193 cm)
Dry Weight 1,237 lb. (561 kg.)
Length/Width/Height 114 in./60 in./76 in. (290 cm/152 cm/193 cm)
Seat Height N/A
Ground Clearance 12 in. (30.5 cm)
Bed Box Dimension/Capacity 54 x 36.5 x 11.5 in. (137 x 93 x 29 cm) / 1000 lbs. (453.6 kg)
Front Rack N/A
Rear Rack/Box Capacity N/A
Hitch Towing Rating 2,000 lb. (907.2 kg)
Unbraked Trailer Towing Capacity
*Based on EU Directive 76/432/EC N/A
Cargo System Lock & Ride
Hitch / Type Std / Receiver
Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (2)
Colors Solar Red, Sage Green, Mossy Oak Break-Up
MSRP: CAN $13,399
Mossy Oak Camo Additional Cost
* Price shown is the manufacturer’s suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.
