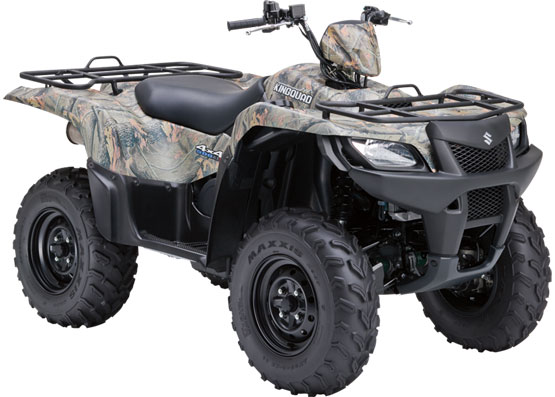

2011 Suzuki KingQuad 500AXi Power Steering Camo
– 2011 Suzuki KingQuad 500AXi Power Steering Camo
2011 Suzuki KingQuad 500AXi Power Steering Camo
Boasting the same advanced technology as the extraordinary KingQuad 750AXi, the 2011 Suzuki KingQuad 500AXi Power Steering is engineered to help you cut the work day down to size – or conquer the toughest trails. The 500AXi offers plenty of class-leading features: advanced power steering provides lighter steering and more responsive handling, while its fuel-injected 493cc engine gives the 500AXi exceptional performance. Independent rear suspension, a locking front differential and a host of other valuable features place the KingQuad 500AXi at the front of the pack.
2011 Suzuki KingQuad 500AXi Power Steering Camo Features:
Key Features
Suzuki fuel injection system featuring high-performance motorcycle technology provides excellent throttle response, fuel efficiency and quick engine starts under all operating conditions
Engine Freatures
Powerful 493cc, SOHC, single-cylinder, liquid-cooled engine designed for a wide powerband and strong performance
Lightweight aluminum cylinder bore is electro-plated with Suzuki’s own race proven SCEM (Suzuki Composite Electrochemical Material) for improved heat transfer and tighter piston clearance.
Uses a cylinder canted forward for lower center of gravity, reduced engine height and lower seat height.
Compact 4-valve cylinder head with large intake valves and straight intake ports for increased cylinder charging efficiency
Engine counterbalancer shaft for smooth operation.
High capacity aluminum radiator with large diameter cooling fan for stable engine operating temperature.
Transmission Features
QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience – fender-mounted gate-type shifter operation for high/low.
Compact torque-sensing limited-slip front differential offers more powerful traction plus light steering effort, including a differential-lock system that provides serious four-wheel-drive traction.
Convenient handlebar-mounted push-button controls allow the rider to easily select between 2WD, 4WD and differential-lock 4WD to get the right setting for any traction condition.
Advanced engine brake system minimizes free-wheeling to reduce downhill speed.
Independent double A-arm front suspension with 6.7 inches of wheel travel – includes large diameter shock absorbers with 5-way spring preload adjustment
Fully independent, I-beam rear suspension with long suspension travel (7.7 inches) – includes 5-way preload adjustable shock absorbers and large diameter rear sway-bar
Sealed, multi-plate rear brake system, sealed, clutch-type design provides high durability, reduced unsprung weight and low-maintenance
Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support.
Winch-ready chassis with flexible tube routing for wiring from winch mounting space to under the seat.
Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.
Digital instrumentation includes LCD readouts for speedometer, odometer, twin tripmeters, hour meter, clock, fuel gauge, driving range position and drive mode. LED indicator lamps for high, low, neutral, reverse and drive – 2WD/4WD and differential-locked 4WD.
LED indicator lamps for fuel injection and engine temperature.
Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light.
High output magneto generator system and large 18-amp maintenance-free battery provides extra power.
Large 17.5L ( 3.8 imp gal. ) fuel tank positioned for a low center-of-gravity – includes ratchet-style fuel cap and bar-type fuel gauge
Large 2.8 liter water resistant front storage compartment includes new easy-to-open/close screw-on cap.
2011 Suzuki KingQuad 500AXi Power Steering Camo – Specifications
American MSRP: Model not available in the USA
Canadian MSRP: See your local Suzuki dealer for details.
Chassis:
Overall Length 2115 mm (83.3 in)
Overall Width 1210 mm (47.6 in)
Wheelbase 1285 mm (50.6in)
Ground Clearance 280 mm (11.0 in)
Seat Height 920 mm (36.2 in)
300 kg (661 lbs)
Curb Weight
Transmission Automatic variable ratio (V-belt), with high-/low-range, and reverse
Final Drive Shaft drive
Suspension Front Independent, double wishbone, coil spring, oil damped
Suspension Rear Independent, double wishbone, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Sealed oil-bathed multi-disc
Tires Front AT25 x 8-12, tubeless
Tires Rear AT25 x 10-12, tubeless
Fuel Tank Capacity 17.5 L (4.6/3.8 US/Imp gal)
Color White,Red, Blue
Engine:
Bore Stroke 87.5 mm x 82.0 mm (3.228 in)
Engine 493cc (30 cu. in.), 4-stroke, liquid-cooled, SOHC
Compression Ratio 10.0 : 1
Fuel System Fuel injection
Starter Electric
Lubrication Wet Sump
Ignition Electronic ignition (CDI)
Warranty:
Warranty 12 month limited warranty.
American Suzuki Motor Corporation makes every effort to present the most current specifications and product features. Because of our policy of continual improvement, changes may be made in equipment, availability, specifications and features without notice or obligation.
