Suzuki Motorcycle Dyno Charts
Performance, Tuning, Horsepower, Torque, Racing, Speed…

2000 – 2004+ Suzuki DRZ400S

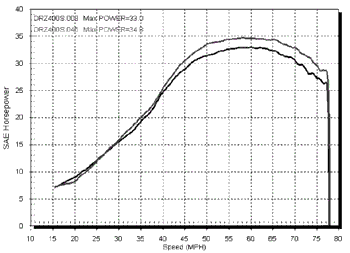

Click to Enlarge

2003 Suzuki DRZ400S


General Suzuki DRZ400S specifications

Engine: 398cc, four-stroke, single cylinder, DOHC, 4-valve, liquid cooled
Bore & Stroke: 90 x 62.6mm
Compression Ratio: 11.3:1
Carburetor: Mikuni™ BSR36
Lubrication: Wet-sump
Ignition: Digital/DC-CDI
Starter: Electric
DR-Z400S Transmission: 5-speed
DR-Z400S Final Drive: #520 chain

Suzuki DR-Z400S Dimensions:
Overall Length: 2310mm (90.9 in.)
Overall Width: 875mm (34.4 in.)
Overall Height: 1240mm (48.8 in.)
Seat Height: 935mm (36.8 in.)
Ground Clearance: 300mm (11.8 in.)
DR-Z400S Wheelbase: 1485mm (58.5 in.)
DR-Z400S Dry Weight: 132kg (291 lbs.)

Suzuki DR-Z400S Suspension:
Front: Telescopic, oil-damped, adjustable compression and rebound damping
Rear: Link-type, fully-adjustable spring preload, adjustable compression and rebound damping
Suzuki DR-Z400S Brakes:
Front: Single hydraulic disc
Rear: Single hydraulic disc
Suzuki DR-Z400S Tires:
Front: 80/100-21
Rear: 120/90-18
DR-Z400S Fuel Tank Capacity: 10 liter (2.64 gal.)
DR-Z400S Colors: Blue, Yellow
