2012 Hyosung ST-E3 EVA Scooter

Back to 2012 Hyosung Motorcycle Model Review Page

Click photos to enlarge.
They make great desktop images.

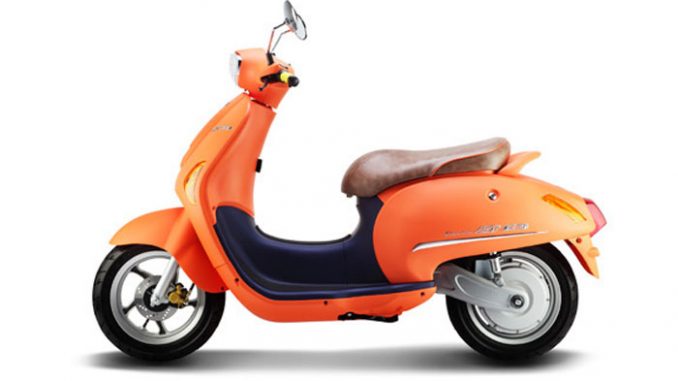

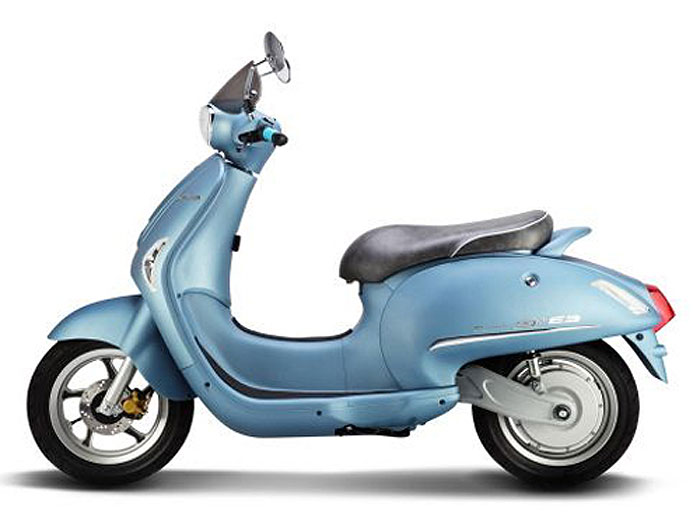

2012 Hyosung ST-E3 EVA Scooter

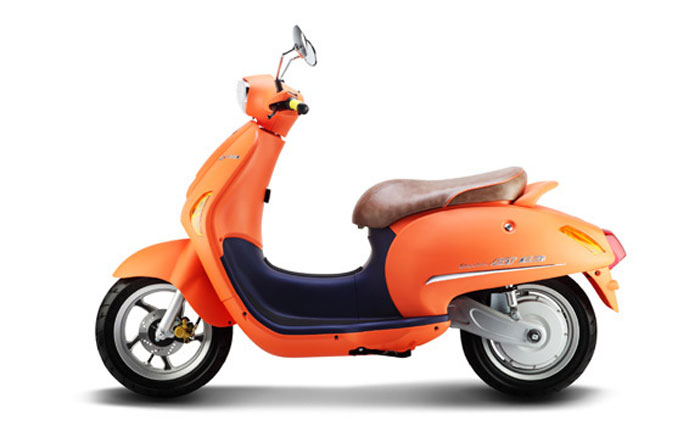

2012 Hyosung ST-E3 EVA Scooter

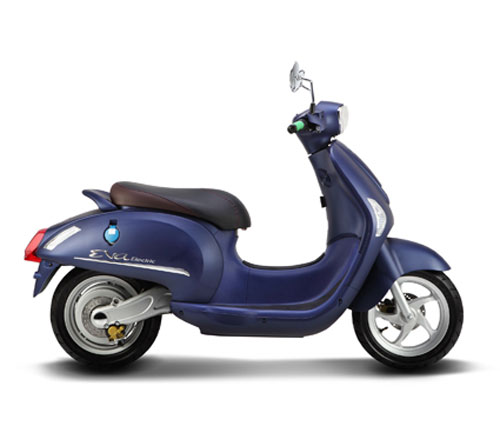

2012 Hyosung ST-E3 EVA Scooter

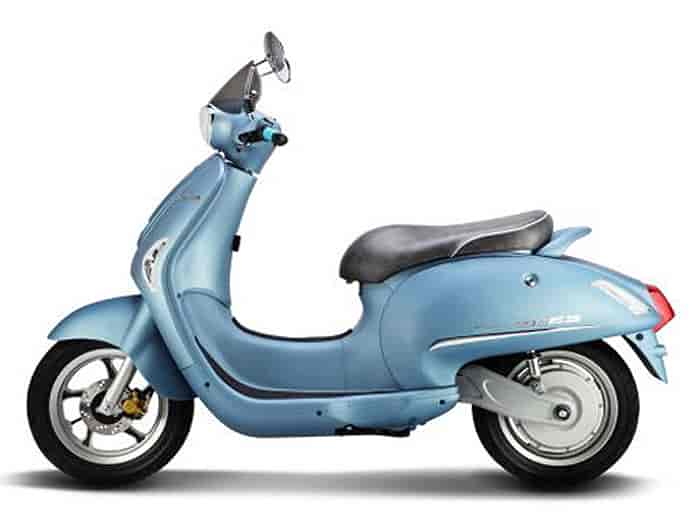

2012 Hyosung ST-E3 EVA Scooter

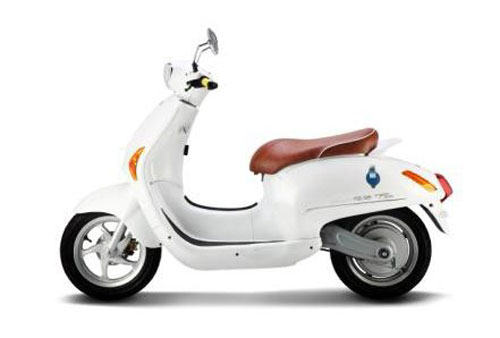

2012 Hyosung ST-E3 EVA Scooter

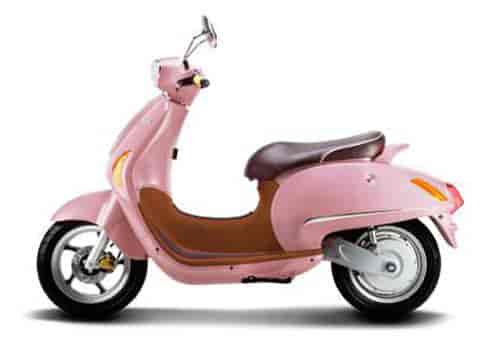

2012 Hyosung ST-E3 EVA Scooter

2012 Hyosung ST-E3 EVA Scooter
2012 Hyosung ST-E3 EVA Scooter

2012 Hyosung ST-E3 EVA Scooter
2012 Hyosung ST-E3 EVA Scooter

2012 Hyosung ST-E3 EVA Scooter
2012 Hyosung ST-E3 EVA Scooter

2012 Hyosung ST-E3 EVA Scooter
2012 Hyosung ST-E3 EVA Scooter


– 2012 Hyosung ST-E3 EVA Scooter

2012 Hyosung ST-E3 EVA Scooter

Electric.

Coming soon.




2012 Hyosung ST-E3 EVA Scooter Features and Benefits

TBA








2012 Hyosung ST-E3 EVA Scooter – US Specifications/Technical Details
USA MSRP Price: $4,099 – 4,299 USD

Engine type: Electric
Power: 3.81 HP (2.8 kW) @ 700 rpm
Throttle: Ride by wire
Engine mounting: Transverse
Gear box: Automatic
Starter: Electric

Dimensions
Physical measures
Length: 1815 mm
Width: 635 mm
Height: 1095mm
Wheel base: 1255mm
Ground clearance: 115mm
Seat height: 725mm
Weight
Curb weight: 115 kg
Chassis and suspension
Frame type: steel
Front
Brake: Single Disk, Ø162 mm
Tire: 110 / 70 R12
Rear
Brake: Drum
Tire: 110 / 70 R12
Other
ABS available: No
Power-to-weight ratio: 0.02 HP/kg(41.07 kg/HP)
Top speed: 60 km/h
Number of riders: 2 persons











2012 Hyosung ST-E3 EVA Scooter – Canada Specifications/Technical Details
Canadian MSRP Price: TBA

TBA

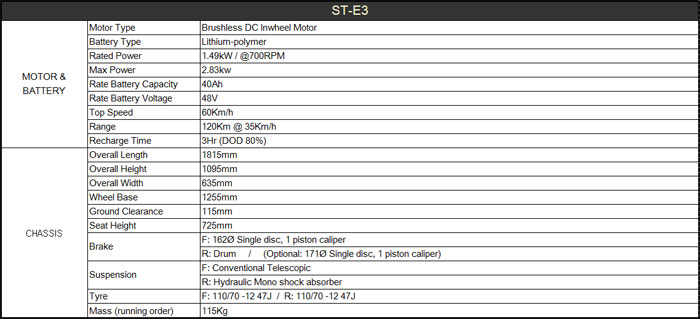

2012 Hyosung ST-E3 EVA Scooter – International Specifications/Technical Details
MSRP Price: See Dealer in specific country for pricing.

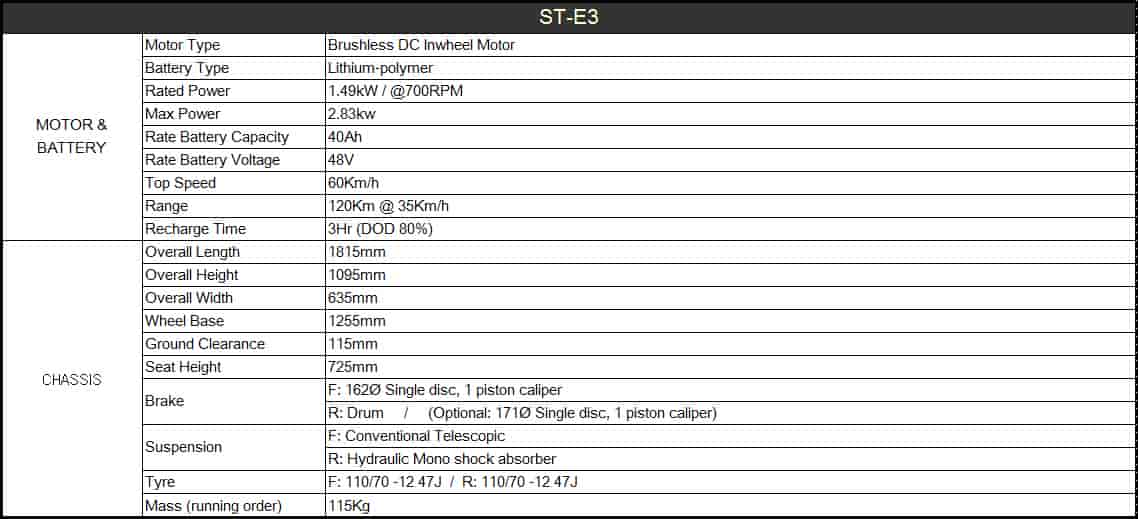

MOTOR & BATTERY Motor Type Brushless DC Inwheel Motor
Battery Type .Lithium-Ion
Rated Power 1.49kW / @700RPM
Max Power 2.83kw
Rate Battery Capacity 40Ah
Rate Battery Voltage 48V
Top Speed 60Km/h
Range 100Km @ 35Km/h

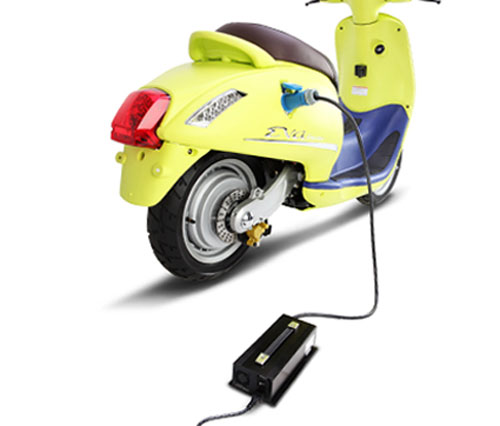

Recharge Time 3Hr (DOD 80%)


CHASSIS Overall Length 1815mm
Overall Height 1095mm
Overall Width 635mm
Wheel Base 1255mm
Ground Clearance 115mm
Seat Height 725mm

Brake
F: 162Ø Single disc, 1 piston caliper
R: 171Ø Single disc, 1 piston caliper
Suspension F: Conventional Telescopic
R: Hydraulic Mono shock absorber
Tyre F: 110/70 -12 47J / R: 110/70 -12 47J
Mass (running order) 115Kg
