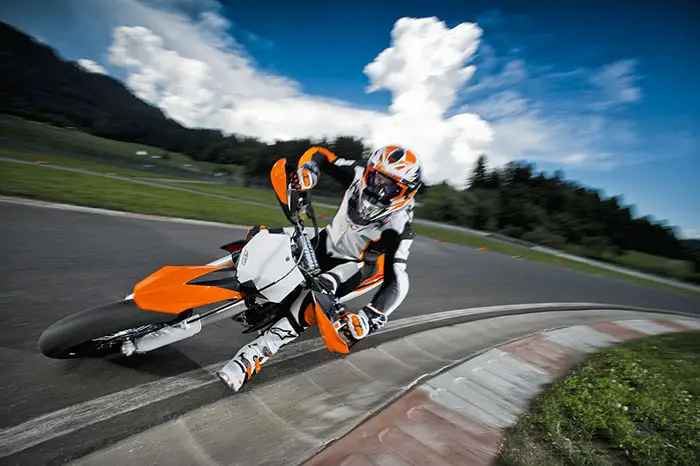

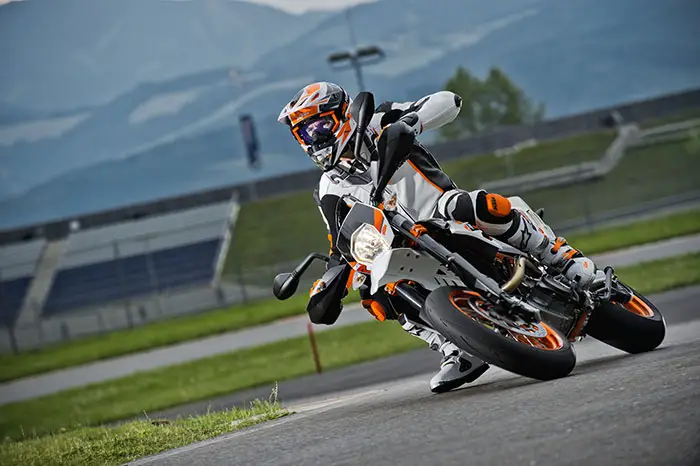

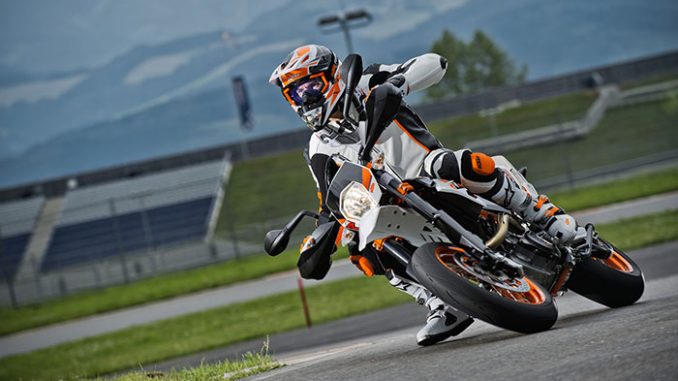

2014 KTM 690 SMC R
2014 KTM 690 SMC R

2014 KTM 690 SMC R
2014 KTM 690 SMC R

2014 KTM 690 SMC R
2014 KTM 690 SMC R

2014 KTM 690 SMC R
2014 KTM 690 SMC R



2014 KTM 690 SMC R Review

2014 KTM 690 SMC R on Totalmotorcycle.com

Not a single gram of fat; only muscle…

What isn’t there doesn’t weigh anything either – the 690 SMC R is designed according to this motto. It arrives at the starting line in peak condition in 2014 with twin plug ignition, ride-by-wire, new ABS and a revamped chassis. Powerful, sports-oriented, yet still very comfortable – what could make a drifter happier? The KTM 690 SMC R: the unrivalled Supermoto for the most demanding requirements, which leaves all others in its wake: suitable for racing or everyday use, potent design, state-of-the-art.


2014 KTM 690 SMC R Totalmotorcycle.com Key Features

Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled

Displacement 690 cm³

Performance 49 kW (66 hp)

Weight without fuel approx. 140.5 kg





2014 KTM 690 SMC R Totalmotorcycle.com Features and Benefits

ENGINE

Modernised once again for 2014 with twin plug ignition and ride-by-wire, the state-of-the-art, water-cooled LC4 single-cylinder on the 690 Enduro R delivers an impressive 49 kW (67 hp) from 690 cc of displacement. It combines powerful acceleration from the very lowest revs with an outstanding free-revving nature and refined engine running. It’s extremely economical with fuel and saves its owner even more money thanks to long service intervals of 10,000 km. Annoying rear wheel chatter? Prevented reliably by its slipper clutch that’s fitted as standard. New for 2014: A twin plug ignition system now controls two differently sized spark plugs in each cylinder head independently of each other in such a way that more efficient combustion and a smoother, optimally controlled combustion sequence are achieved at all times. The result: even more and even better controlled power, lower fuel consumption, and less emissions.

INJECTION / ENGINE MANAGEMENT / RIDE-BY-WIRE

The guarantee for smooth throttle response, not just no throttle control cable: The 690 Enduro R is equipped in 2014 with a cable-free ride-by-wire system for opening the throttle valve. This significantly improves the power delivery, making the potent single-cylinder’s throttle response and ride quality even smoother. It also electronically translates the throttle commands of the rider into throttle valve positions perfectly suited to the riding conditions. As before the rider has the choice between three different mappings for influencing the engine characteristics.

BALANCER SHAFT

The finely balanced crank drive of the 690 single-cylinder converts terrific combustion pressure into unrivalled single-power – thanks to its balancer shaft, which eliminates vibration without having any detrimental effect on the super-single.

INJECTION / ENGINE MANAGEMENT / RIDE-BY-WIRE

The guarantee for smooth throttle response, not just no throttle control cable: The 690 Enduro R is equipped in 2014 with a cable-free ride-by-wire system for opening the throttle valve. This significantly improves the power delivery, making the potent single-cylinder’s throttle response and ride quality even smoother. It also electronically translates the throttle commands of the rider into throttle valve positions perfectly suited to the riding conditions. As before the rider has the choice between three different mappings for influencing the engine characteristics.

INJECTION / ENGINE MANAGEMENT

The 690 Enduro R has always been amazingly economical with fuel and it runs even more efficiently in 2014. Why? Thanks to its low weight, its highly efficient engine management system with twin plug ignition and electronic injection with ride-by-wire. And also to its state-of-the-art OHC single-cylinder engine.

SUSPENSION COMPONENTS

By professionals for everyone: The 2014 KTM 690 SMC R’s WP upside-down fork, with a whole 250 mm of suspension travel and 48 mm outer tubes, is adjustable in many ways and masters the balancing act between everyday use and attack with the greatest of ease. In 2014, it is designed as a split fork with separate damping circuits (compression damping on the left fork tube, rebound damping on the right) that can be adjusted independently of each other. This means that they cannot interact as they do in conventional open bleed systems – thus guaranteeing even sportier, more purposeful and rider-optimised ride characteristics. The pivot-arm articulated WP pressurised-gas monoshock with 250 mm of travel even features high-speed and low-speed compression adjustment.

BRAKES

The 690 SMC R’s extremely powerful and easily applied Brembo® brakes impress with outstanding controllability. On the front wheel, a radially-mounted, four-piston, fixed brake calliper bites onto a floating 320 mm brake disc.

ABS

The 690 SMC R enters the fray in 2014 with Bosch 9M+ABS – highly effective, disengageable and optionally with Supermoto ABS (PowerParts dongle) for real Supermoto drifting: Freely lockable rear wheel with a sharp ABS function up front.

FRAME AND SWINGARM

The 690 SMC R ranks among the most powerful curve-bandits on the road. Alongside the outstandingly tuned suspension, two major contributors to its excellent tracking stability are the lightweight tubular space frame made from chrome-molybdenum steel and the high-quality die-cast swingarm – both of them extremely torsion-resistant.

WHEELS (PATENTED, TUBELESS, SPOKED WHEELS)

Thanks to specially designed, air-tight rim profiles on tubeless, wire-spoked wheels, the 2013 KTM 690 SMC R rolls on Conti AttackSM tubeless tyres. The lightweight wheels reduce unsprung masses and gyroscopic forces, making the suspension even more effective and the steering even lighter. They also increase the grip of what are already the best Supermoto tyres on the market.

ERGONOMICS

The self-supporting rear end/fuel tank unit made from robust plastic bears an equally comfortable and low seat. This is augmented by the tank fairings and the ideally angled, wide aluminium handlebar to form a perfect arrangement that makes controlling the 690 SMC R extremely simple – both on the road and on the track. Superb handling, remarkable versatility, perfect vehicle control both on the road and on the track, plus excellent contact points and maximum freedom of movement for hitting the gas with commitment – 690 SMC R.

GREATER RIDING PLEASURE YET EVEN MORE SAFETY – KTM 390 DUKE AND LC4 MODELS ABSOLUTELY A2-COMPLIANT!

Due to ambiguous or even incorrect press reports, confusion currently prevails in the KTM community throughout the EU regarding the A2-compliancy of the following models:

• 390 Duke

• 690 Duke

• 690 Duke R

• 690 SMC R

• 690 Enduro R

The corresponding press reports convey the impression that the mentioned models are too light and hence not approved for A2 beginners. This impression is inconsistent with the truth. The A2 driving licence prescribes a minimum power-to-weight ratio of 0.2 kW/kg, which is why KTM has homologated performance mappings for all the aforementioned models to make them A2-compliant. Thanks to the mappings, all the listed models achieve the minimum power-to-weight ratio precisely – quite the contrary to most of the overweight competition. Assisted by the mappings, every A2 beginner can benefit from the dynamic advantage of the models being so light – whether it be due to increased riding pleasure when accelerating, when riding demanding trails or due to the much more significant safety factor when braking, in general vehicle control or when evading sudden hazards. The models are therefore not only A2-compliant, but also highly recommendable for novice riders, since they guarantee greater riding pleasure yet even more safety.









2014 KTM 690 SMC R – Totalmotorcycle.com Europe Specifications/Technical Details
European MSRP Price: £7.899,00 GBP/EUR
*

ENGINE
Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
Displacement 690 cm³
Bore 102 mm
Stroke 84.5 mm
Performance 49 kW (66 hp)
Starting aid Electric starter, automatic decompressor
Transmission 6-speed, claw shifted
Engine lubrication Pressure circulation lubrication with two rotor pumps
Primary gear ratio 36:79
Secondary gear ratio 16:42
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch APTC™ Anti-hopping clutch in oil bath / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Tubular space frame made from chrome molybdenum steel, powder-coated
Fork WP Suspension Up Side Down 4860 ROMA
Shock absorber WP Suspension 4618 with Pro Lever linkage
Suspension travel front 250 mm
Suspension travel rear 250 mm
Brake system front Disc brake with radially mounted four-piston brake caliper
Brake system rear Disc brake with single-piston brake caliper, floating
Brake discs – diameter front 320 mm
Brake discs – diameter rear 240 mm
Chain 5/8 x 1/4″ X Ring
Steering head angle 63°
Wheel base 1,480±15 mm
Ground clearance (unloaded) 270 mm
Seat height (unloaded) 890 mm
Total fuel tank capacity approx. 12 l
Unleaded premium fuel (95 RON)
Weight without fuel approx. 140.5 kg

* Manufacturer’s suggested retail price (MSRP), the actual sale prices can vary.








2014 KTM 690 SMC R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $NA USD

Model not available at press time








2014 KTM 690 SMC R – Totalmotorcycle.com Canada Specifications/Technical Details
Canadian MSRP Price: $NA CDN

Model not available at press time

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
