2020 Honda CB500F ABS Guide

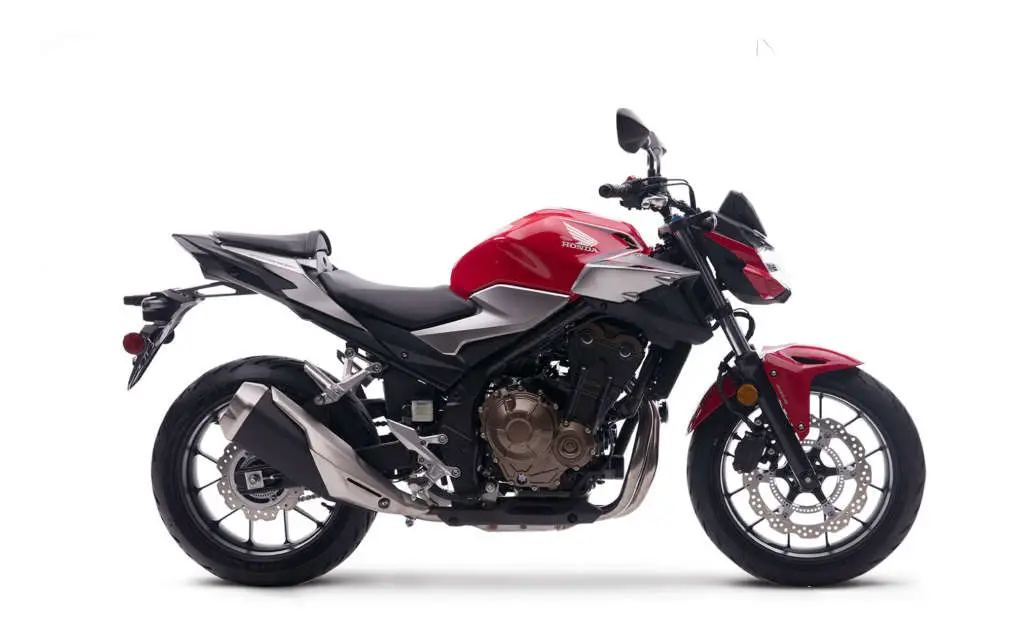

2020 Honda CB500F ABS

2020 Honda CB500F ABS 2020 Honda CB500F ABS 2020 Honda CB500F ABS


2020 Honda CB500F ABS:

The modern and mid-sized Honda CB500F represents the shape of today’s naked style motorcycles, with its terrific middleweight performance and bold personality.

The CB500F has the advanced technology, practical features and user- friendly character you expect from a Honda motorcycle, while the LED headlight and taillight, and stunning bodywork uncovers more of the bike’s high-tech engine and chassis components.

twist the throttle, thanks to a powerband specially tuned for beefy low-end and midrange performance. Ideal for dicing in the city or slicing through a twisting backroad, you’ll ride with confidence and control provided by standard ABS brakes.

When you’re ready for a ride that’s anything but ordinary, the CB500F is ready to provide a thrilling experience.





2020 Honda CB500F ABS Totalmotorcycle.com Key Features





2020 Honda CB500F ABS Totalmotorcycle.com Features and Benefits

The Pro-Link® rear suspension with five stage preload-adjustable shock and the improved front 41 mm fork with new preload adjustment are calibrated for a comfortable but sporty ride.

PGM-FI electronic fuel injection helps to keep the engine running efficiently in practically all conditions and helps to ensure crisp throttle response.

The 471 cc DOHC liquid-cooled parallel-twin engine uses a square bore & stroke of 67 mm x 66.8 mm for an optimum combination of strong low-end torque and excellent top-end power. A 4% boost in power and torque for 2019 results in even sportier performance.

Not only does the new slipper clutch help to prevent rear-wheel lockup on downshifts, it also reduces effort at the lever by almost half, helping to reduce rider fatigue particularly in city traffic or on long rides.

A dual-piston brake caliper up front and a single-piston caliper at the back are designed to provide strong but easily controlled stopping power. Plus, two- channel ABS gives you extra peace of mind on reduced-traction road surfaces.




2020 Honda CB500F ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: starting from $
Canada MSRP Price: $ See Dealer for pricing in CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)


*Includes all standard equipment, required fluids and full tank of fuel—ready to ride Meets current EPA standards

Models sold in California meet current CARB standards and may differ slightly due to emissions equipment Specifications subject to change


2020 Honda CB500F ABS – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Engine Type

Liquid-cooled parallel twin


471 cc

Bore & Stroke

67 mm x 66.8 mm

Compression Ratio


Valve Train

Chain-driven DOHC, 4 valves per cylinder

Fuel Delivery

PGM-FI electronic fuel injection



Final Drive

#520 O-ring sealed chain

Chassis & Suspension

Front Suspension

41 mm telescopic fork with spring preload adjustment: 108 mm (4.3 in.) travel

Rear Suspension

Pro-Link® single shock with 5-stage spring preload adjustment; 119 mm ( 4.7 in.) travel

Additional Information


Front: 120/70ZR-17
Rear: 160/60ZR-17


Front: 320 mm single wave disc with two-piston caliper
Rear: 240 mm single wave disc with single-piston caliper 2-channel ABS

Seat Height

785 mm (30.9 in.)


1,410 mm (55.5 in.)

Curb Weight

189 kg (417 lb.) including required fluids and full tank of gas—ready to ride

Fuel Capacity

17.1 litres


Grand Prix Red, Mat Gunpowder Black Metallic


12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus





2020 Honda CB500F ABS – Totalmotorcycle.com European Specifications/Technical Details




Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
