2020 Honda Super Cub C125 ABS Guide

2020 Honda Super Cub C125 ABS

2020 Honda Super Cub C125 ABS 2020 Honda Super Cub C125 ABS 2020 Honda Super Cub C125 ABS 2020 Honda Super Cub C125 ABS 2020 Honda Super Cub C125 ABS

OPEN THE DOOR TO RIDING ADVENTURE.

2020 Honda Super Cub C125 ABS:

Last year’s U.S. return of the celebrated Super Cub—the model behind American Honda’s transformative “You Meet the Nicest People” ad campaign of the 1960s—proved to be a hit, with customers drawn to its nostalgic look and friendly performance. For 2020, the highest-selling motor vehicle of all time is back for more, now in a new Pearl Nebula Red color.

HISTORY
The year is 1956. Honda president Soichiro Honda and managing director Takeo Fujisawa have just returned from Europe, where they had traveled in search of inspiration for the next major Honda product. They realize that it should be a commuter bike—a stylish, fun, inexpensive motorcycle that can be ridden by anyone, and designed around just four key features:

  1. A high-powered four-stroke engine that is quiet and fuel efficient but has strong, reliable performance
  2. Chassis and bodywork with a size and shape that enables even women to easily get on and off, and ride
  3. A gear-shift system that doesn’t require operation of a clutch lever
  4. An advanced design that is also friendly, fresh, and timeless

Two years later, the first Super Cub C100 is wheeled out of Honda’s production plant. A star is born, and Americans will only have to wait one year to get their hands on it, with the first Super Cub C100 crossing the Pacific following the June 1959 launch of Honda’s first overseas subsidiary, American Honda Motor Company. California students and trendsetters, hitherto experienced with small, inexpensive motorcycles, are early adopters. Instead of the loud, oversized models that had dominated public eye up until this point, the Honda 50 looks friendly and stylish. It’s wildly convenient and fun too, offering not only excellent mobility to and around college campuses, but also enjoyable transportation to work and the local hangout. The door to an all-new world has been opened, and the Honda 50 is the key to it all.

Following the launch of the 1962 CA100, specifically designed for the U.S. market with tandem seat and no turn signals, Honda launches the aforementioned award-winning advertising campaign featuring the “You Meet the Nicest People on a Honda” tagline. Combine the CA100’s friendly, stylish nature with a feature in the Beach Boys’ international hit, “Little Honda” and a Life magazine story examining the ways Americans have fallen in love with the brand, and it’s not long before the Cub becomes a social phenomenon, with U.S. model sales peaking in 1965. There are even seasonal booms, with teenagers often waking up Christmas morning to find a Cub parked beside the tree.

Stylish, fun, and inexpensive, the Super Cub changes people’s understanding of not only motorcycles, but also mobility and the enjoyment available through riding. Discontinued in the U.S. in 1974, 15 years after the Honda 50 was first introduced, the Super Cub continues to be offered worldwide, with the little motorcycle surpassing a production milestone of 100 million units in 2017, making it the highest-selling motor vehicle in the world.

Now, for the 2019 model year, American Honda celebrated the 60th anniversary of the Super Cub’s debut by bringing the iconic model back to the U.S. market, and for 2020, it is available in a new Pearl Nebula Red color.







2020 Honda Super Cub C125 ABS Totalmotorcycle.com Key Features
  • Classic Super Cub styling celebrates the model’s legendary heritage
  • High-density urethane seat with thick foam is narrow at the front for rider confidence
  • Engine features a helical primary gear and high-quality crank journal bearing for reduced running noise
  • Smooth shifts through use of high-quality shift drum bearing, shift arm rubber, and optimized clutch damper rubber material
  • Front and rear suspension with 3.9 inches and 3.3 inches of travel, respectively, provide a combination of stability and on-road comfort
  • LED lighting adds modern touch, durability, and energy saving while helping match the headlight shape of first-generation Super Cub
  • One-channel ABS standard (front only)
  • Unit has two smart keys





2020 Honda Super Cub C125 ABS Totalmotorcycle.com Features and Benefits

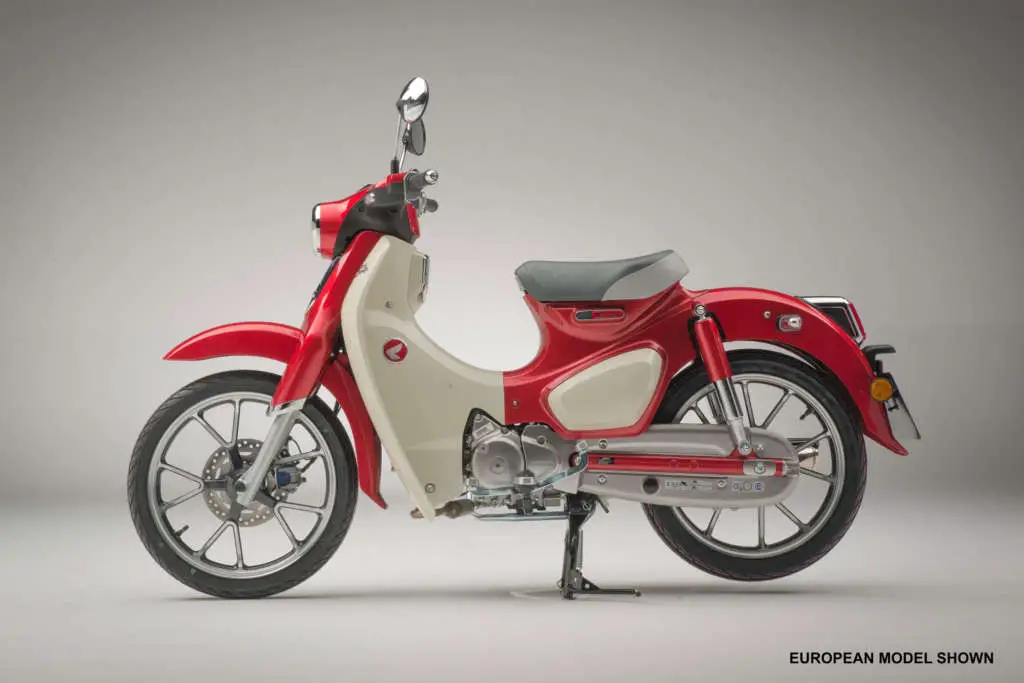

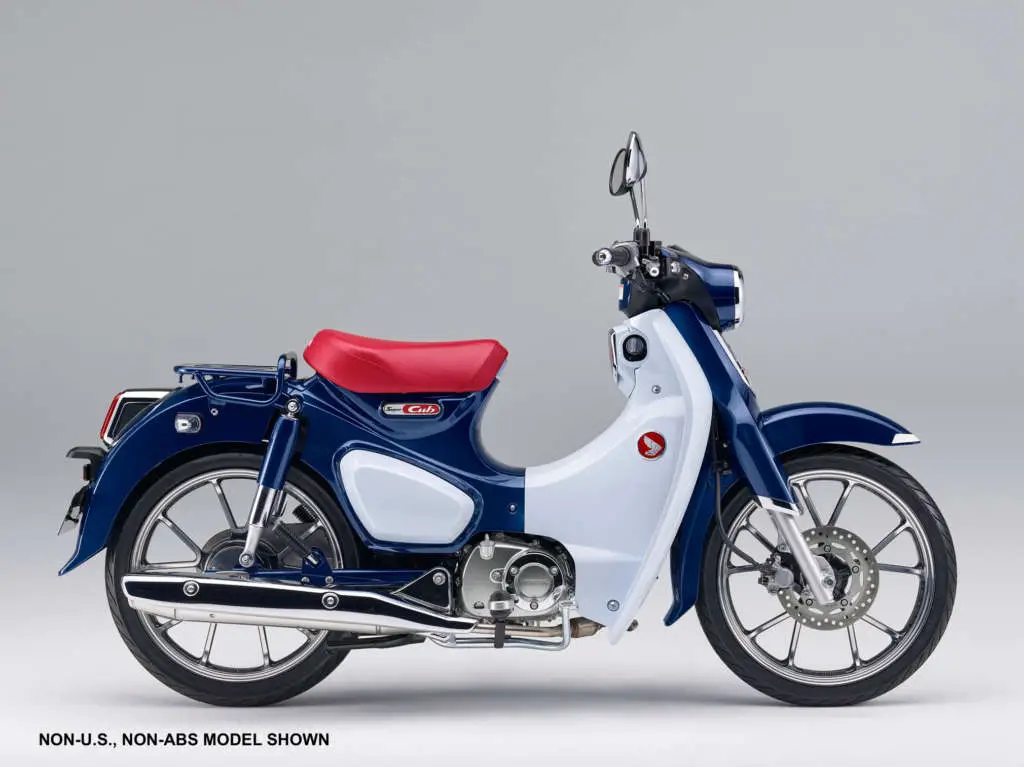

Honda’s classic Super Cub styling provides the cues for the new model, the 2020 Super Cub C125, featuring an S-letter silhouette that reaches from the steal rear fender to the step-through space. There is significant wind protection, with the rider positioned upright and close to the lower fairing, yet the Super Cub C125 is still easy to mount and dismount. An open cockpit provides the rider with optimum visibility on crowded city streets, while a side cover pocket on the right side offers storage for essential items.

As with the very first Super Cub, the Super Cub C125 features an air-cooled single-cylinder four-stroke engine that is designed to offer great power for around-town riding but also be fuel efficient and quiet. Bore and stroke for the 125cc, SOHC two-valve engine is 52.4 x 57.9mm, while the compression ratio measures 9.3:1. Fed by PGM-FI, it produces strong, enjoyable power all the way through the rev range.

For noise reduction, the newest version of this engine features a helical primary gear and high-quality crank-journal bearing. Meanwhile, for optimum shift feel and reduced shift noise, the engine has a high-quality shift-drum bearing, shift-arm rubber, and optimized clutch-damper rubber material. A semiautomatic automatic centrifugal clutch makes it easy for new riders to adapt to riding, while still enabling experienced motorcyclists to have fun.

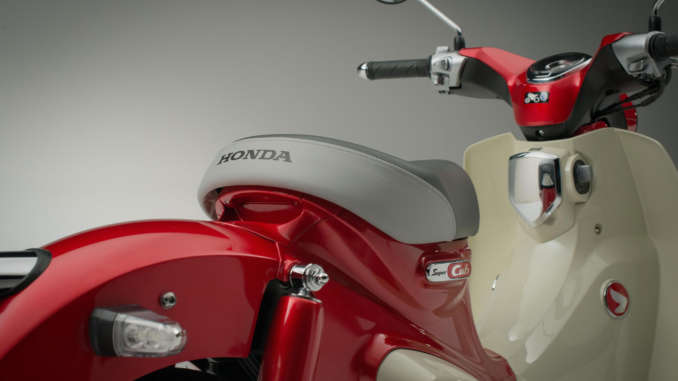

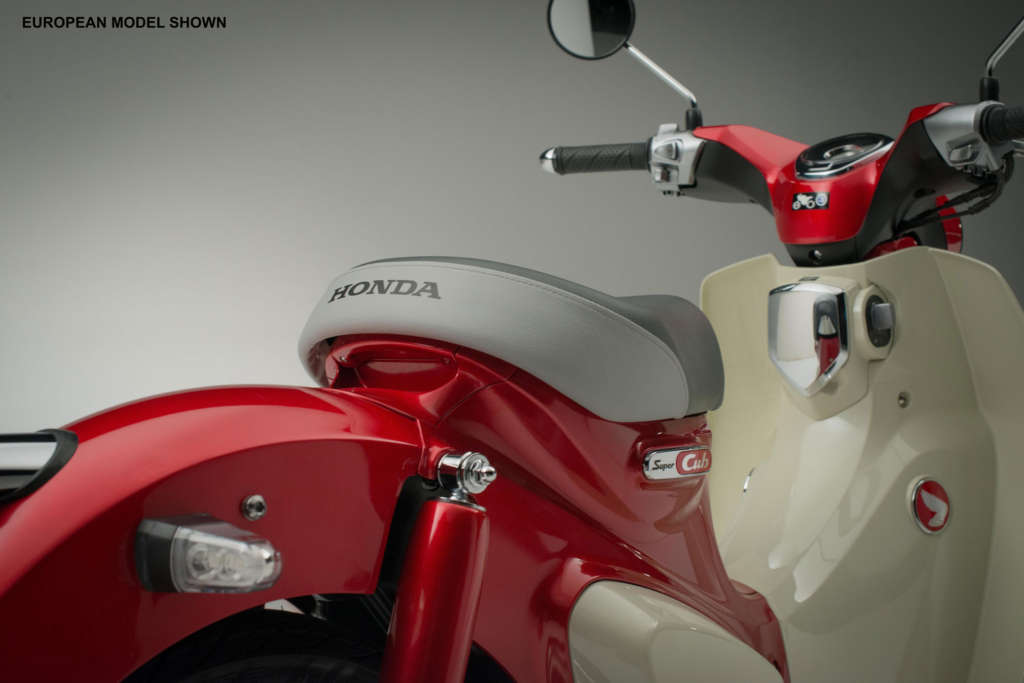

A steel frame with dedicated stiffness characteristics for the engine hanger and head pipe offers a nice balance of comfort and on-road performance, while a rubber handlebar mount, seat mount, and step surface reduce vibration. The high-density urethane seat with thick seat foam is narrow at the front.

Front suspension stroke is up when compared to previous C100 models, measuring 3.9 inches, and the twin shocks have 3.3 inches of travel. Stopping power comes courtesy of a 220mm front disc and 110mm rear drum, while the cast aluminum wheels are produced using a special cutting process to enable the use of a tubeless tire; front and rear wheels are 70/90-17 and 80/90-17, respectively.

Wheelbase is 48.9 inches, while rake and trail are 26.5° and 2.8 inches for predictable handling. Wet weight is 240 pounds, and the seat height is 30.7 inches, making the Super Cub both easy to get on and confidence-inspiring in around-town riding.

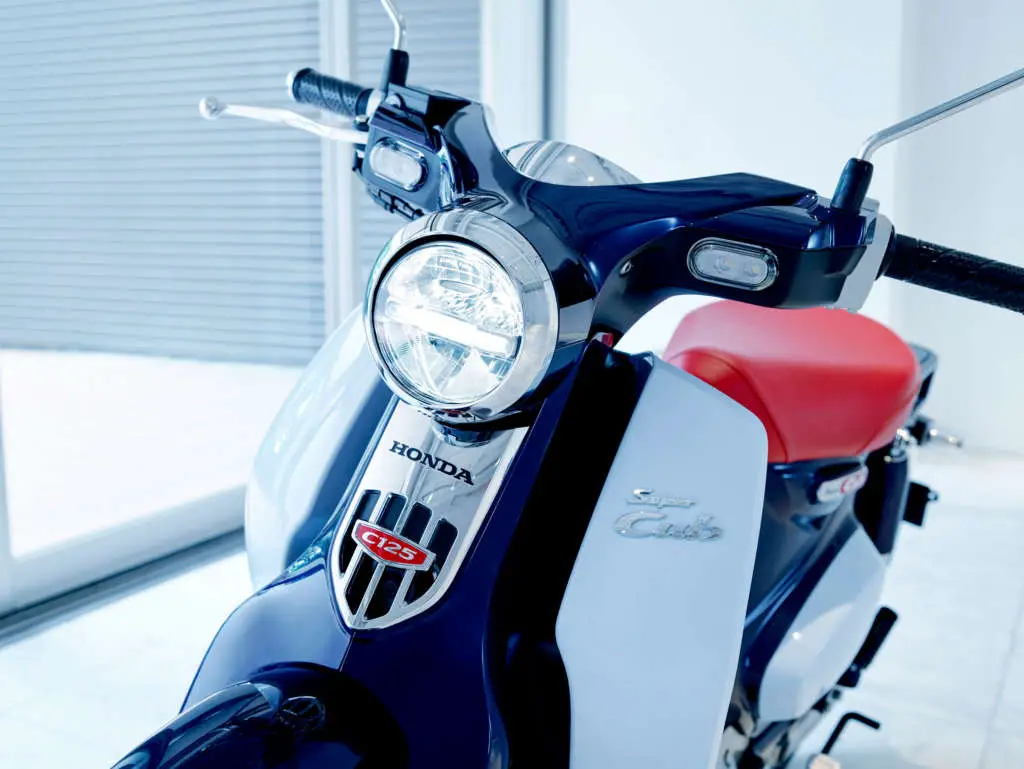

Through the incorporation of LED lights, which require minimum space, the Super Cub C125’s headlight shape matches that of the first-generation Super Cub. The meter includes a digital center screen showing two trip meters and six-segment fuel-level indicator, with an outer analog display showing speed. A smart key allows users to lock the seat electronically.







2020 Honda Super Cub C125 ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: starting from $
 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
ENGINE
Type124.9cc air-cooled single-cylinder four-stroke
Valve TrainSOHC; two-valve
Bore x Stroke52.4mm x 57.9mm
Compression Ratio9.3:1
InductionPGM-FI w/ 24mm bore, automatic enrichment
IgnitionFull transistorized
StarterElectric
TransmissionManual; four speeds
ClutchSemiautomatic centrifugal
Final DriveChain final drive; 14T/36T
SUSPENSION
Front26mm hydraulic telescopic inverted fork; 3.9 in. travel
RearTwin shocks; 3.3 in. travel
BRAKES
FrontHydraulic; single 220mm disc w/ two-piston caliper; ABS
RearMechanical leading trailing; single 110mm drum
TIRES
Front70/90-17
Rear80/90-17
MEASUREMENTS
Rake (Caster Angle)26.5o
Trail71mm (2.8 in.)
Length75.2 in.
Width28.3 in.
Height39.4 in.
Ground Clearance5.4 in.
Seat Height30.7 in.
Wheelbase48.9 in.
Fuel Capacity1 gal.
ColorsPearl Nebula Red
Curb Weight*240 lbs.

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride Meets current CARB and EPA emissions standards





2020 Honda Super Cub C125 ABS – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE
Type124.9cc air-cooled single-cylinder four-stroke
Valve TrainSOHC; two-valve
Bore x Stroke52.4mm x 57.9mm
Compression Ratio9.3:1
InductionPGM-FI w/ 24mm bore, automatic enrichment
IgnitionFull transistorized
StarterElectric
TransmissionManual; four speeds
ClutchSemiautomatic centrifugal
Final DriveChain final drive; 14T/36T
SUSPENSION
Front26mm hydraulic telescopic inverted fork; 3.9 in. travel
RearTwin shocks; 3.3 in. travel
BRAKES
FrontHydraulic; single 220mm disc w/ two-piston caliper; ABS
RearMechanical leading trailing; single 110mm drum
TIRES
Front70/90-17
Rear80/90-17
MEASUREMENTS
Rake (Caster Angle)26.5o
Trail71mm (2.8 in.)
Length75.2 in.
Width28.3 in.
Height39.4 in.
Ground Clearance5.4 in.
Seat Height30.7 in.
Wheelbase48.9 in.
Fuel Capacity1 gal.
ColorsPearl Nebula Red
Curb Weight*240 lbs.

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride Meets current CARB and EPA emissions standards





2020 Honda Super Cub C125 ABS – Totalmotorcycle.com European Specifications/Technical Details

NA
