2020 Honda XR650L Guide

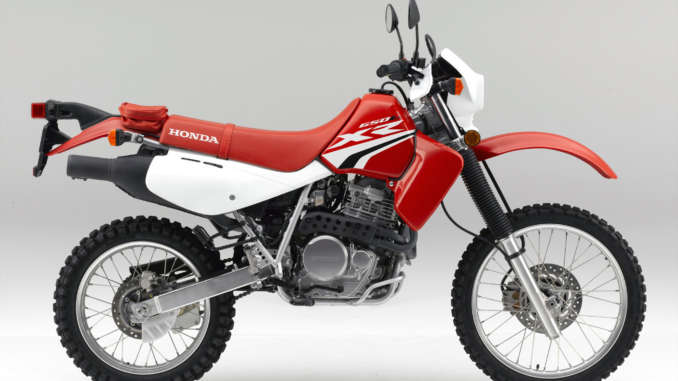

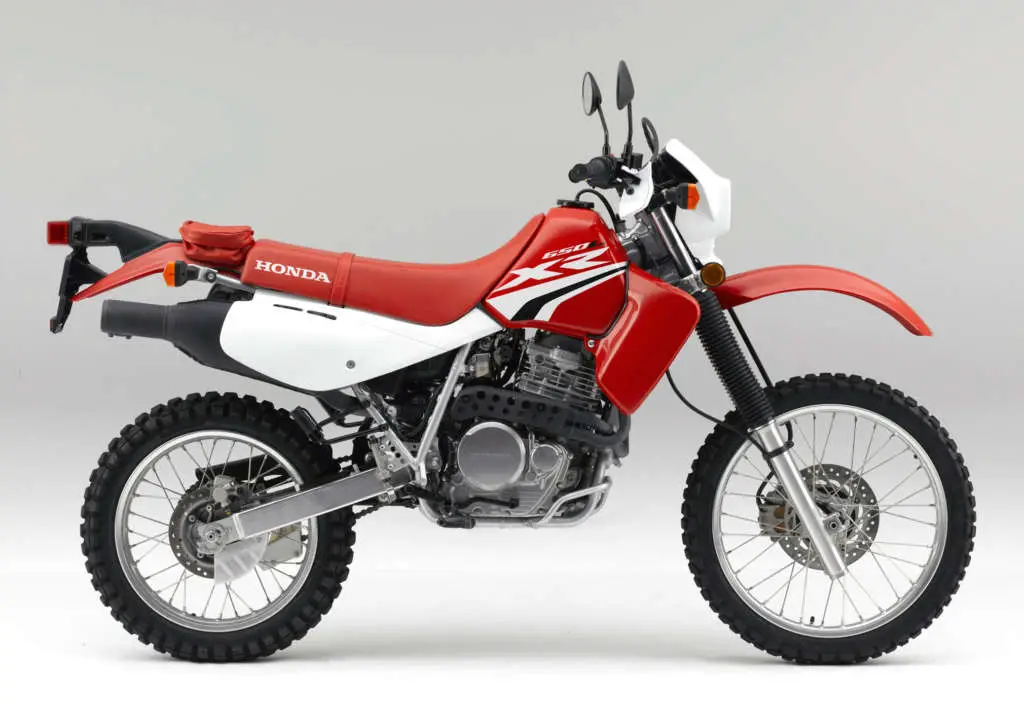

2020 Honda XR650L

2020 Honda XR650L

OPEN THE DOOR TO RIDING ADVENTURE.

2020 Honda XR650L:

The legendary XR650L boasts truly broadband dual-sport performance, Baja heritage and a long record of reliability, all of which have garnered it a diehard following of riders. Equally at home on dirt roads, single-track trails, highways and byways, the versatile dual-sport model opens the door to riding adventure like few motorcycles ever have.





2020 Honda XR650L Totalmotorcycle.com Key Features

The Honda XR650L is a legendary bike. Not for the way it looks or because of how many races it’s won, but because of how brutally perfect it is for serious off-road adventures. Fully street legal, thousands of riders use it as a commuter. But when the road ends, that’s when things really start to get interesting. The XR650L is equipped with an ultra-tough 644cc overhead-cam air-cooled engine, a gear-driven counterbalancer to reduce vibrations, plus proven long-travel suspension — so you have a dual-sport that rolls up its sleeves and gets the job done on any road or trail.





2020 Honda XR650L Totalmotorcycle.com Features and Benefits

Engine/Drivetrain

  • Bulletproof 644cc SOHC four-stroke engine produces power and torque ideally suited for both on- and off-road riding.
  • Radial Four-Valve Combustion Chamber (RFVC) allows excellent combustion efficiency and high power output.
  • 42.5mm constant-velocity (CV) carburetor offers crisp throttle response, excellent rideability and maximum power.
  • Reliable electric starter system allows easy push-button starting.
  • Gear-driven counterbalancer minimizes bothersome and tiring vibration.
  • Free-flowing, 2-into-1 exhaust system with quiet, USDA-qualified spark arrester/muffler.
  • Maintenance-free automatic cam-chain tensioner and maintenance-free CD ignition with electronic advance keep you out of the shop and on the road.
  • Dry-sump engine maximizes power by minimizing crankshaft windage and engine temperature.
  • Durable five-speed transmission offers a gear for every on- or off-road situation.
  • Heavy-duty, multi-plate clutch.
  • Heavy-duty, low-maintenance #520 O-ring-sealed drive chain.

Chassis/Suspension

  • Honda Racing-inspired colors and graphics.
  • Semi-double-cradle steel frame is lightweight, strong and offers precise handling manners.
  • 43mm Showa cartridge fork features 16-position compression damping adjustability and superb off-road performance.
  • Pro-Link® rear suspension.
  • Lightweight, strong and durable aluminum box-section swingarm with quick-detach rear wheel.
  • Front and rear disc brakes offer superb stopping power.
  • Lightweight yet super-strong wheels.
  • Frame-mounted passenger footrests for two-up riding capability.
  • Aggressive, dual-purpose front and rear tires offer excellent performance both on- and off-road.
  • 18-inch rear wheel for greater tire selection.
  • Lightweight rims and hubs feature straight-pull spokes.
  • Combination headlight/number plate and dual airflow shrouds direct cool air to the engine.
  • Enduro-style headlight features high/low beams.
  • Motocross-style seat is comfortable and allows maximum rider movement.
  • Large, durable fenders keep debris off the rider.
  • Lightweight tubular engine guard.
  • Wide-section, folding, cleated foot pegs are comfortable and self-cleaning.
  • Flex-mounted turn signals resist breakage.
  • Compact speedometer features tripmeter/odometer, a neutral light as well as high-beam, turn-signal and side-stand indicators.
  • High-quality controls include comfortable grips and brush guards.

Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

  • Meets current CARB and EPA standards.
  • California version differs slightly due to emissions equipment









2020 Honda XR650L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: starting from $
 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
ENGINE
Type644cc air-cooled, dry-sump, single-cylinder four-stroke
Valve TrainSOHC; four valve RFVC
Bore x Stroke100.0mm x 82.0mm
Compression Ratio8.3:1
Induction42.5mm diaphragm-type CV carburetor
IgnitionCD w/ electronic advance
StarterElectric
TransmissionFive-speed
ClutchMultiplate wet
Final Drive#520 O-ring sealed chain; 15T/45T
SUSPENSION
Front43mm air-adjustable leading-axle Showa cartridge telescopic fork w/ 16-position compression damping adjustability; 11.6 in. travel
RearPro-Link Showa single shock w/ spring preload, 20-position compression damping and 20-position rebound damping adjustability; 11.0 in. travel
BRAKES
FrontSingle 256mm disc w/ twin-piston caliper
RearSingle 220mm disc w/ single-piston caliper
TIRES
Front3.00-21
Rear4.60-18
MEASUREMENTS
Rake (Caster Angle)27°
Trail102mm (4.0 in.)
Length86.2 in.
Width33.7 in.
Height49 in.
Seat Height37.0 in.
Ground Clearance13.0 in.
Wheelbase57.3 in.
Fuel Capacity2.8 gal., incl. 0.6-gal. reserve
ColorRed
Curb Weight*346 lbs.

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride Meets current EPA and CARB emissions standards





2020 Honda XR650L – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE
Type644cc air-cooled, dry-sump, single-cylinder four-stroke
Valve TrainSOHC; four valve RFVC
Bore x Stroke100.0mm x 82.0mm
Compression Ratio8.3:1
Induction42.5mm diaphragm-type CV carburetor
IgnitionCD w/ electronic advance
StarterElectric
TransmissionFive-speed
ClutchMultiplate wet
Final Drive#520 O-ring sealed chain; 15T/45T
SUSPENSION
Front43mm air-adjustable leading-axle Showa cartridge telescopic fork w/ 16-position compression damping adjustability; 11.6 in. travel
RearPro-Link Showa single shock w/ spring preload, 20-position compression damping and 20-position rebound damping adjustability; 11.0 in. travel
BRAKES
FrontSingle 256mm disc w/ twin-piston caliper
RearSingle 220mm disc w/ single-piston caliper
TIRES
Front3.00-21
Rear4.60-18
MEASUREMENTS
Rake (Caster Angle)27°
Trail102mm (4.0 in.)
Length86.2 in.
Width33.7 in.
Height49 in.
Seat Height37.0 in.
Ground Clearance13.0 in.
Wheelbase57.3 in.
Fuel Capacity2.8 gal., incl. 0.6-gal. reserve
ColorRed
Curb Weight*346 lbs.



*Includes all standard equipment, required fluids and full tank of fuel—ready to ride Meets current EPA and CARB emissions standards





2020 Honda XR650L – Totalmotorcycle.com European Specifications/Technical Details

NA



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
