2020 Suzuki GSX-S750Z ABS Guide

2020 Suzuki GSX-S750Z ABS

2020 Suzuki GSX-S750Z ABS 2020 Suzuki GSX-S750Z ABS

LEGENDARY GSX-R POWER.

2020 Suzuki GSX-S750Z ABS:

The GSX-S750Z ABS blends GSX-R750-derived engine performance with an ergonomically sound chassis to fashion a naked sportbike that gathers attention everywhere you ride it, thanks to its unique appearance. The GSX-S750Z ABS’s stunning red and white bodywork is complemented by a blacked-out engine and chassis components that set it apart from other middleweight sportbikes.

The GSX-S750Z ABS’s aggressive styling really stands out, as its bright Glass Sparkle Black/Pearl Glacier White bodywork and sparkling red wheels are complemented by the blacked-out engine and chassis components. The bike’s special appearance, strong performance, and comfortable riding posture set it apart from other middleweight sportbikes, and many of those competitors cost considerably more to purchase and own.

As with the GSX-S1000, this GSX-S750Z ABS inherits its heart and soul from Suzuki’s MotoGP race experience and the 30-year heritage of the GSX-R750. With strong, torque-rich engine power and a suite of rider-assist features, this GSX-S750Z ABS is ready to capture hearts and turn heads as the performance leader in its class.

This is the perfect sportbike response to the craving of today’s discriminating riders, as the GSX-S750Z ABS looks great and outperforms other entries in the class. It is nimble, comfortable, and an exhilarating, fun ride that retains Suzuki’s heritage of quality and reliability



Legendary GSX-R Power

GSX-S750 a true apex predator. Hear the wild induction roar strike your soul. Feel genuine GSX-R power stir your spirit. Own the apex of every corner.

A True Apex Predator

Powered by a legendary supersport engine. Armed with the latest technologies. Tuned to command the streets. Built to reign supreme over naked sport bikes. The GSX-S750 is a true apex predator.



Tuned for the Streets

Inherited directly from a GSX-R supersport machine, the powerful 749cc four-cylinder fuel-injected engine is specially tuned and refined to maximise its potential on the streets and on winding roads. Cutting-edge technologies from the legendary GSX-R series control engine management.

Z EXTRAS

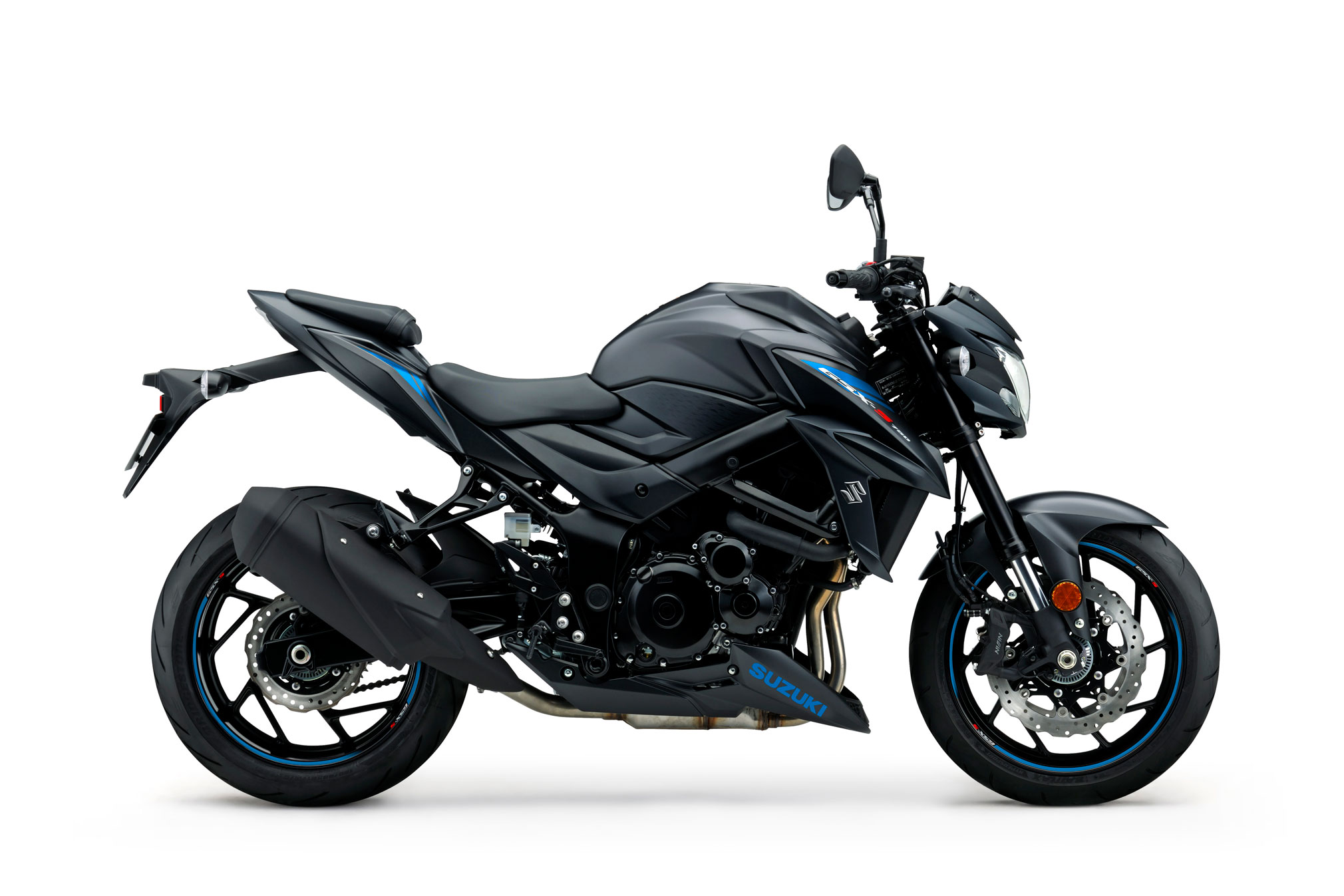

The GSX-S750Z Phantom is the stealthy blacked out alternative to the standard GSX-S750, it comes complete with matt black bodywork throughout, a black silencer and heatshield, finished off with contrasting decals and wheel stripes.

Sure Footed, Nimble and Highly Responsive

Top predators evolved to dominate the environment and the GSX-S750 is just such an animal. Every component is designed and tuned to deliver maximum performance and to look good doing it. Sure footed, nimble and highly responsive, the GSX-S750 is comfortable, smooth and more than ready to carry you wherever you want to ride, in style.

KYB Front Forks

Inverted front forks featuring 41mm stanchion tubes and bold looking anodised upper tubes provide a sporty ride that is also smooth and comfortable. Spring preload can be adjusted to match the conditions and your riding preferences.

Radial Calipers with Petal Discs

The radial mount design provides a positive feeling when applying the brakes and maximises braking control. Each of the Nissin front calipers has four opposed pistons acting on a 310mm floating-mount disc to provide abundant stopping power when you need it. Adopting a petal type design for the 310mm floating mount front discs adds an even sportier look to the GSX-S750’s bold styling.

Sporty, lightweight wheels and Tyres

Newly designed lightweight 10-spoke cast aluminium wheels enhance the aggressive looks of the GSX-S750 from almost every angle. The GSX-S750 uses Bridgestone BATTLAX HYPERSPORT S21 tyres, which feature a high level of controllability and a planted feeling.

Sharp Swingarm Design

With tapered lines that speak of performance and sporty good looks, this new swing arm design is a perfect fit for the GSX-S750. It also features a clean and stylish new chain adjuster.



Advanced Rider Technology

The GSX-S750 comes equipped with some of the most advanced rider technology available, including Traction Control², Low RPM Assist and Suzuki Easy Start System.

Aggressively Styled

From the bold, upswept lines of its crouched stance to the aggressive styling of its new headlight, fuel tank and body trim designs, every aspect of the GSX-S750 speaks of the raw power, predictable performance and functional beauty inherit to a true apex predator. It invites you to climb on and make it your own, while you dominate the roads.

LCD Instruments

The GSX-S750 features a lightweight, brightness adjustable LCD instrument panel. Readouts include the speedometer, tachometer, traction control mode status, gear position, odometer, dual trip meters, coolant temperatures, driving range, fuel consumption, and a clock. You can personalise the tachometer readout from a choice of five display patterns.







2020 Suzuki GSX-S750Z ABS Totalmotorcycle.com Key Features
Key Features
The fuel-injected, 749cc, four-cylinder engine uses GSX-R architecture to deliver a torque-rich sportbike experience.
Suzuki Advanced Traction Control* lets the rider select sensitivity to match road conditions.
The unique chassis integrates the best qualities of a tubular girder streetbike frame and a twin-spar sportbike frame, and is fitted with KYB suspension to provide precise handling.
Equipped with a compact, smooth-operating Anti-lock Braking System (ABS)**, the GSX-S750Z ABS has front Nissin Monobloc four-piston brake calipers, and twin, wave-style brake rotors supply strong and consistent braking performance.
Brilliant black, white, and red paint covers the GSX-S1000–inspired street-fighter bodywork that helps create an ergonomically comfortable, yet sporty riding position.







2020 Suzuki GSX-S750Z ABS Totalmotorcycle.com Features and Benefits
Engine Features
Potent, 749cc, four-cylinder, fuel-injected engine uses over-square GSX-R750 architecture so the power delivery is an excellent blend of strong low end and a muscular top end.
Using the K5-generation GSX-R engine architecture also permits a shorter chassis, which greatly enhances handling. This also makes the GSX-S750Z ABS the only motorcycle in its class with an engine with SuperSport lineage.
Ventilation holes are machined into the bottom side of each cylinder in the GSX-S750Z ABS crankcase. The holes reduce pumping loss to help produce power and gain fuel economy.
Camshafts tuned specifically for the GSX-S750Z ABS deliver a dynamic wave of smooth torque and strong acceleration.
Throttle bodies with Suzuki Dual Throttle Valve (SDTV) system contribute to better throttle response and torque at the low- to mid-rpm range while still producing peak performance.
Ten-hole, long-nose fuel injectors deliver finer atomized fuel to increase combustion efficiency.
Suzuki’s patented, Throttle-body Integrated Idle Speed Control (TI-ISC) stabilizes the engine idle speed and helps lower emissions. The system is compact and lightweight.
The TI-ISC on the GSX-S750Z ABS has Suzuki’s Low RPM Assist feature that seamlessly adjusts engine speed during takeoff and low-speed riding to smooth the power delivery and to help reduce the possibility of the rider stalling the motorcycle.
1A large-capacity airbox is used to match the higher engine output. The air inlets have been designed to provide an exciting auditory experience.
The Engine Control Module (ECM) provides state-of-the-art engine management and has carefully developed settings to suit the intake and exhaust systems, resulting in linear throttle response and class-leading fuel economy.
Suzuki’s Advanced Traction Control System* lets the GSX-S750Z ABS rider control the throttle with more confidence in various riding conditions. As a result, the rider can enjoy sport riding with less anxiety. There are four traction control modes (1, 2, 3, and OFF) that the rider can easily adjust at rest or on the fly via a handlebar-mounted control. The difference between the modes are their sensitivity to road conditions.

• Mode 1 is the lowest sensitivity level – most suitable for skilled riders or in conditions that have good road surface grip (sport riding on good, smooth roads).

• Mode 2 is a moderate sensitivity level – suitable for most riders or in conditions that have varied road surface grip (city riding, regular road conditions).

• Mode 3 is the highest sensitivity level – suitable for road conditions where the grip may be limited (wet or cold surfaces).

• OFF disengages all traction control features.

The digital ignition fires iridium type spark plugs that increase spark strength and combustion efficiency, contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle. These quality components also last longer than conventional spark plugs.
The blacked-out stainless steel, 4-2-1 exhaust system helps the engine deliver a strong low- to mid-range punch with an exciting rush to redline. A larger catalyzer is in the mid-pipe to assist in emissions control without sacrificing performance.
Angular radiator shrouds efficiently guide cooling air to the high-capacity radiator. Additional heat is removed from the engine via the use of a lightweight and compact liquid-cooled oil cooler (like those used on GSX-R600 and 750 models).
Transmission Features
The race-proven, six-speed, close-ratio transmission features vertically staggered shafts to reduce overall engine length.
The shorter final gear ratio enables the GSX-S750Z ABS to accelerate quicker than the prior model while the additional engine power maintains the same top speed potential.
Large-diameter, wet multi-plate clutch is derived from a GSX-R750 design to easily transmit power, while the rack-and-pinion clutch release provides the rider with superb friction-point feel.
The ingenious shift linkage helps the rider easily and quickly select the best gear for the riding conditions.
The strong drive chain uses O-rings to preserve internal lubrication so power is transmitted smoothly and quietly.
Chassis Features
With styling influenced by the GSX-S1000, but with its own aggressive turn, the GSX-S750Z ABS bodywork looks wild and forceful, yet keeps the rider comfortable at all times.
2The headlight nacelle provides a visual focal point while the under-cowl connects the chassis styling to the engine and new exhaust system.
Frame design combines the advantages of a compact tubular-style street bike frame and a twin-spar sportbike frame to deliver a dynamic ride. A reasonable sport riding position is created by a carefully crafted relationship between the handlebars, footrests, and seat.
Large-diameter, matte black, tapered handlebars damp vibration while adding style and good control leverage for the rider.
The low seat height of 820mm (32.2 inches) contributes to the sporty, yet upright riding position and aids rider confidence at stops.
Four-piston Nissin Monobloc brake calipers squeeze twin, 310mm, wave-style brake rotors up front with a single-piston rear caliper out back to help deliver controlled stops.
Both the front and rear brakes can be modulated by a compact Anti-lock Brake System (ABS)** controller to match stopping force to the available traction.
Inverted, black-anodized KYB fork features a spring preload adjustment and provides a solid foundation for the Nissin radial-mount brake calipers.
The trapezoidal, beam-type swingarm tapers down to precise chain adjusters that add strength and style.
Link-type rear suspension, with a single shock absorber working through a progressive linkage, has seven-way adjustable spring preload.
Developed directly for Suzuki’s GSX-S750 models, the 10-spoke, cast aluminum wheels from TPR hold Bridgestone Battlax Hypersport S21 radial tires that deliver high grip and stability.
The black finish, aluminum hand and foot controls provide excellent action and contribute to the motorcycle’s sporty style.
Electrical Features
This GSX-S750Z ABS has the Suzuki’s Easy Start System that requires just a simple touch of the starter button to fire up the engine (without pulling the clutch lever if the transmission is in neutral).
Distinctively shaped headlight nacelle contains a bright 60/55-watt H4 halogen bulb. The tail section houses an integrated LED tail light with a dual-pane, red/clear lens.
Similar to the GSX-S1000, the new lightweight and compact instrument panel uses an LCD display that includes speedometer, tachometer, odometer, dual trip meters, gear position, coolant temperatures, driving range, average fuel consumption, instantaneous fuel consumption, traction control, ABS alert, and a clock function.
The display has an adjustable-intensity, white color backlight for great nighttime visibility, and is flanked by LED indicators for the turn signals, high beam, malfunction, and traction control, plus coolant temperature and oil pressure alerts.
A three-phase charging system, with an oil-cooled stator, keeps the maintenance-free battery up to charge for trouble-free operation.
Additional Features
A variety of Genuine Suzuki Accessories are available for the GSX-S750Z ABS, such as a solo seat cowl and sport screen, plus a large selection of logo apparel.
12-month unlimited mileage limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).
*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.
**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.







2020 Suzuki GSX-S750Z ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8,899 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £7999 GBP (On The Road inc 20% Vat)
Engine
Engine749cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC
Bore x Stroke72.0 mm x 46.0 mm (2.834 in. x 1.811 in.)
Compression Ratio12.3:1
Fuel SystemFuel injection with SDTV
StarterElectric
LubricationWet sump
Drivetrain
ClutchWet, multi-plate type
Transmission6-speed constant mesh
Final DriveChain, RK 525, 114 links
Chassis
Suspension FrontInverted telescopic, coil spring, oil damped
Suspension RearLink type, single shock, coil spring, oil damped
Brakes FrontNissin, 4-piston, twin disc, ABS-equipped
Brakes RearNissin, 1-piston, single disc, ABS-equipped
Tires Front120/70ZR17M/C (58W), tubeless
Tires Rear180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity16.0 L (4.22 US gal.)
ColorGlass Sparkle Black/Pearl Glacier White
Electrical
IgnitionElectronic ignition (transistorized)
Spark PlugsNGK CR9EIA-9 or DENSO IU27D (x 4)
Headlight12V 60/55W (H4)
Tail LightLED
Dimensions
Overall Length2125 mm (83.7 in.)
Overall Width785 mm (30.9 in.)
Overall Height1055 mm (41.5 in.)
Wheelbase1455 mm (57.3 in.)
Ground Clearance135 mm (5.3 in.)
Seat Height820 mm (32.3 in.)
Curb Weight213 kg (470 lb.)
Warranty
Warranty12-month unlimited mileage limited warranty
ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP).





Manufacturer’s Suggested Retail Price (also referred to as “MSRP”, “Base MSRP” or the “Starting At” price), excludes taxes, title, license and registration fees, destination freight and delivery charges, dealer fees, and optional equipment.







2020 Suzuki GSX-S750Z ABS – Totalmotorcycle.com Canada Specifications/Technical Details

TBA







2020 Suzuki GSX-S750Z ABS – Totalmotorcycle.com European Specifications/Technical Details

Dimensions and Weights

Overall length2125mm (83.66in)Overall width785mm (30.91in)
Overall height1055mm (41.54in)Wheelbase1455mm (57.28in)
Ground clearance135mm (5.31in)Seat height820mm (32.28in)
Kerb mass213.0kg (469.58lbs)Fuel capacity16.0 litres (3.5UK gallons)

Engine Specifications

Engine capacity749ccEngine4-stroke, liquid-cooled, DOHC, in-line four
Bore72.0 mm x 46.0 mm (2.83in x 1.81in)Compression ratio12.3 : 1
LubricationWet-sumpIgnitionElectronic ignition
Fuel systemFuel injectionTransmission6-speed constant mesh
DriveChainStarterElectric
MPG*57.65CO2114 g/km
Power84.0kW @ 10500rpm (114PS)Torque81.00Nm @ 9000rpm (59.74lb.ft)†

Chassis Specification

Front suspensionInverted telescopic, coil spring oil dampedRear suspensionLink type, coil spring, oil damped
Front brakesDisc brake, twinRear brakesDisc brake
Front tyres120/70ZR17M/C (58W)Rear tyres180/55ZR17M/C (73W)







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
