Review – Key Features – Features & Benefits – Specifications

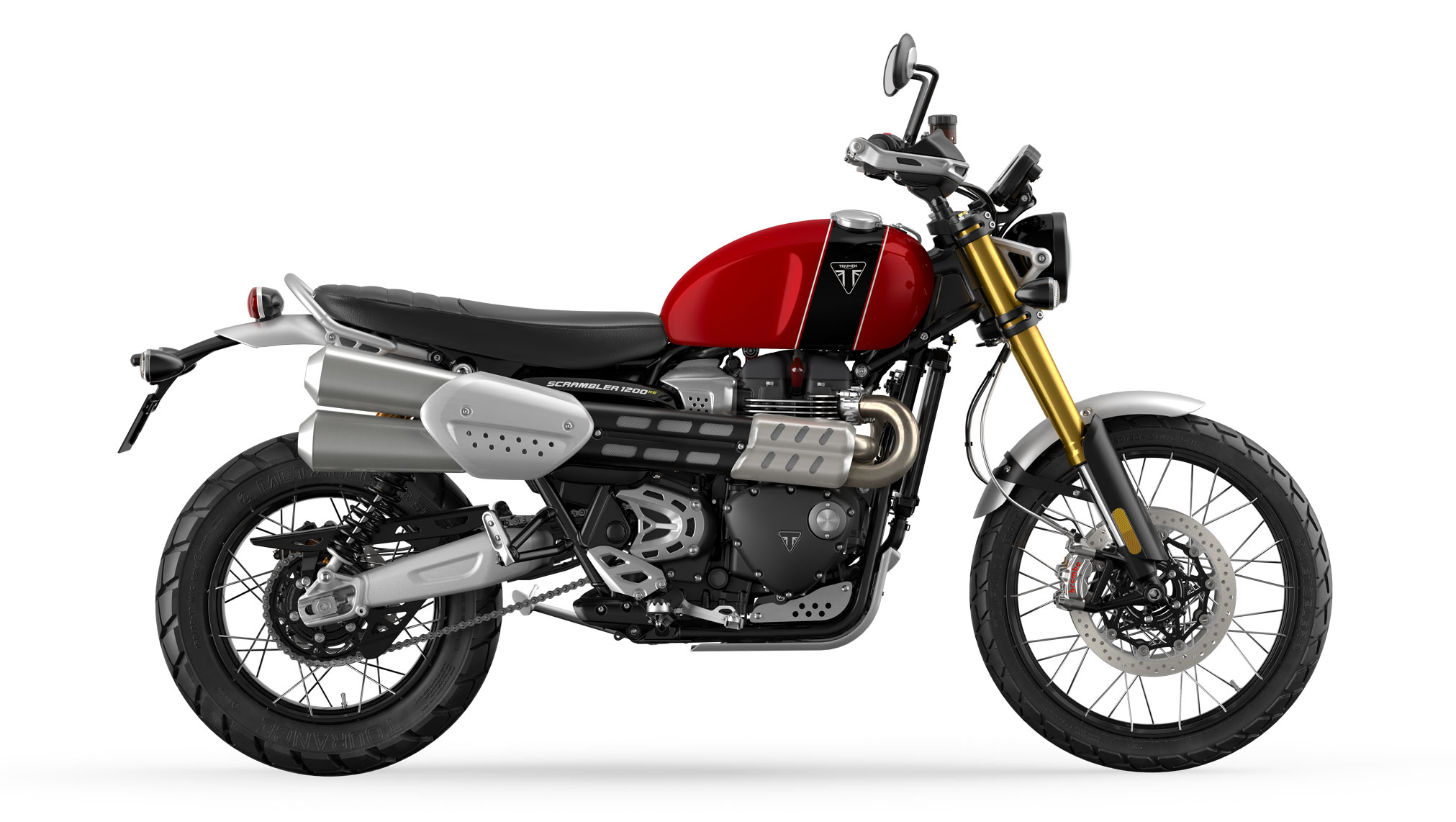

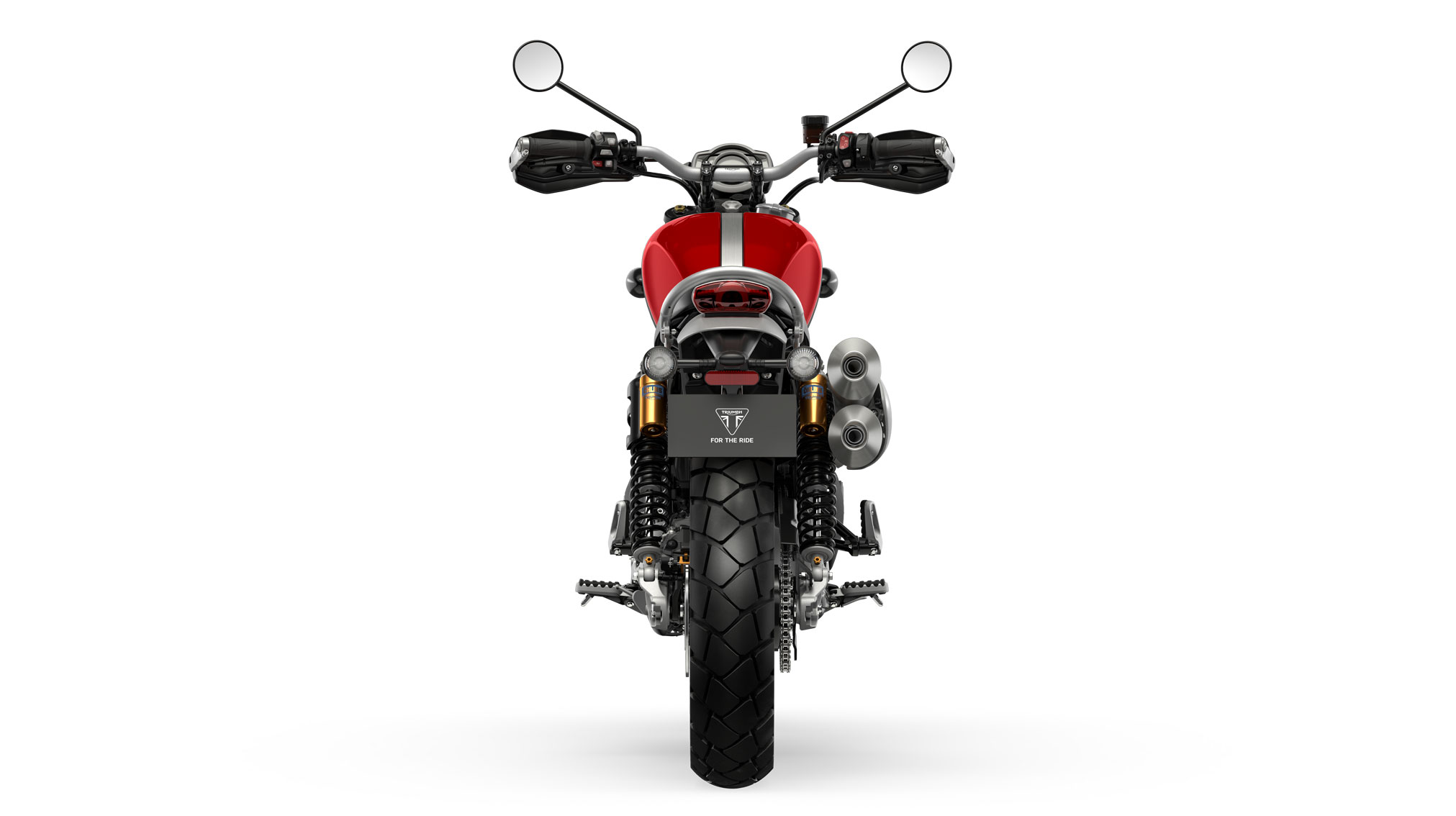

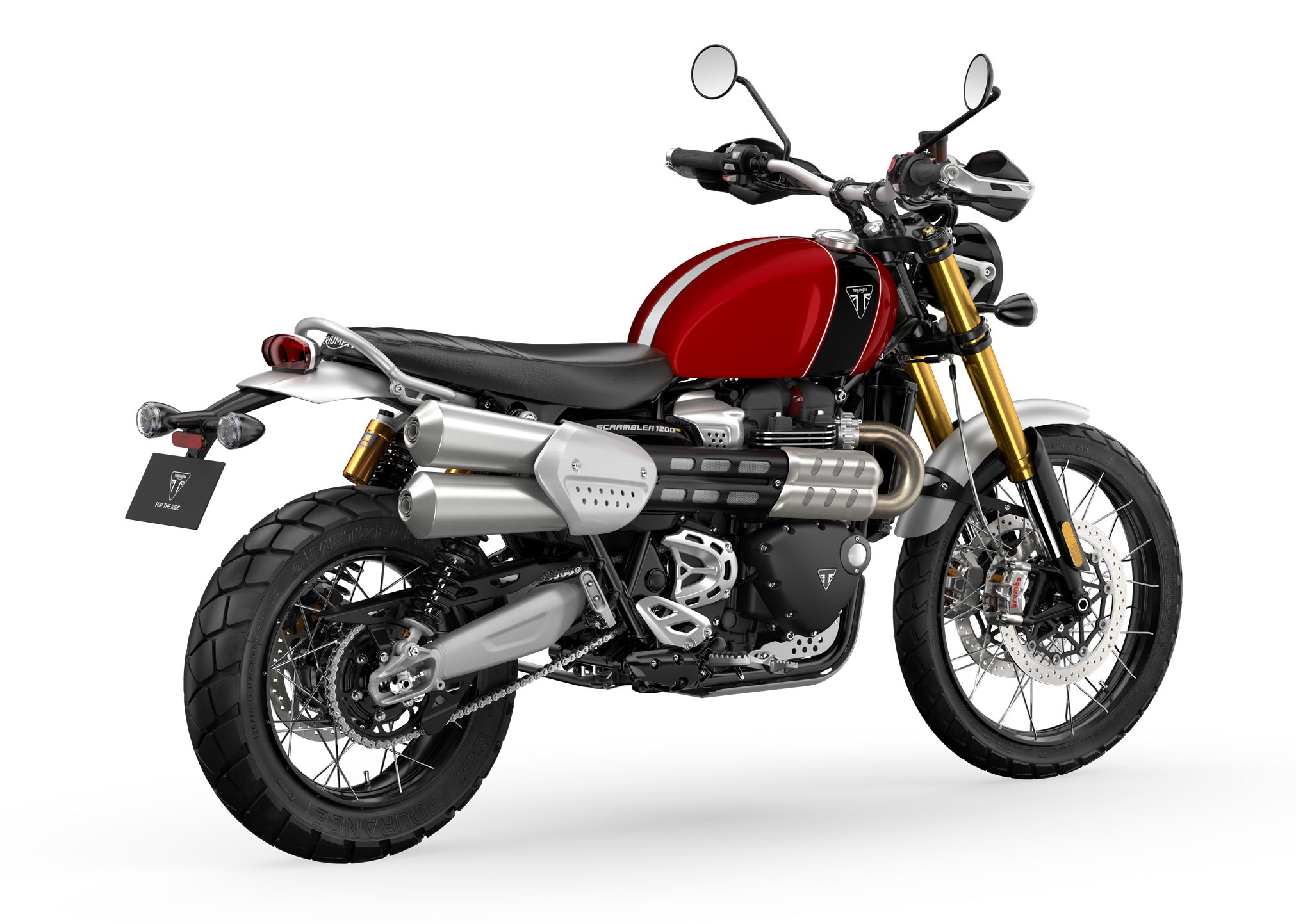

2023 Triumph Scrambler 1200XE: BEYOND ADVENTURE.
Introducing the 2023 Triumph Scrambler 1200XE…
With incredible all-road capability and performance, plus class-defining looks, the new 1200 XE is the ultimate Scrambler.
The ultimate Scrambler, and the real deal for road and full-on off-road adventures. The new 1200 XE has the capability to take the rough with the smooth.
ICONIC SCRAMBLER STYLE
Stunning modern classic scrambler styling with category-leading finish and detailing. Crafted aluminum parts and brushed badges are highlighted against the deep, lustrous paint.
DUAL PURPOSE
The Scrambler’s natural feel on the tarmac and controllability on the dirt sets it aside as the benchmark crossover adventure motorcycle with unparalleled road and off-road capability.
THE REAL DEAL
The ground breaking Scrambler 1200 is now more refined than ever.
Scrambler 1200 XE and Scrambler 1200 XC
Triumph’s class-defining Scrambler 1200 line-up, for model year 2023, comes in three colours – the sophisticated Sapphire Black, a classic Matt Khaki Green and Matt Jet Black scheme, and a stunning new Carnival Red and Jet Black scheme that features a Carnival Red fuel tank with Jet Black tank stripe design, plus Jet Black side panel and headlight bowl.
2023 Triumph Scrambler 1200XE Totalmotorcycle.com Key Features
- Carnival Red & Jet Black NEW
- Matt Khaki Green & Matt Jet Black
- Sapphire Black
EXCITING NEW COLOURS AND NEW NAMES FOR TRIUMPH’S MODERN CLASSICS RANGE
Introducing for model year 2023, a new and exciting range of colour options for the entire Bonneville range, building on the great success of last year’s Gold Line Editions, which responded to customer requests for brighter, more distinctive, and more elegant colour options across the legendary Modern Classics line-up.
These new colours come hand-in-hand with new names for two of the class-defining 900cc models, chosen to better represent the family connections across Triumph’s iconic Bonneville line-up, and their specific engine capacities. From model year 2023, the Street Twin is re-named Speed Twin 900, and the Street Scrambler is re-named the Scrambler 900.
2023 Triumph Scrambler 1200XE Totalmotorcycle.com Features and Benefits
1200CC ENGINE
Updated with a dedicated scrambler tune, for a smooth, torque-rich delivery from the iconic 1200 cc Bonneville twin.
ENHANCED TWIN HIGH LEVEL EXHAUST
The deep, scrambler tune from the signature twin high-level exhaust now features improved heat distribution for enhanced rider comfort.
CLASS LEADING TECHNOLOGY
Cruise control, ride-by-wire, Scrambler-specific riding modes, ABS and easy-to-read TFT instruments bring class-leading technology to this modern classic.
RIDING MODES
In addition to the Road, Rain, Sport, Off-Road and Rider-Configurable riding modes, the XE features ‘Off-Road Pro’ for full on Scrambler fun.
FULL COLOR TFT
Easy to read in all light conditions, the Scrambler’s advanced full-color TFT display can be configured to suit you and your riding needs.
ILLUMATED SWITCHES
Intuitively designed, the Scrambler’s switches are backlit for easy, at-a-glance rider control, perfect for even the darkest adventures.
SPECIFICATION & CAPABILITY
The Scrambler’s category-dominating specification and high-end equipment deliver all-road capability for an adventure riding experience like no other.
DEDICATED SCRAMBLER FRAME
The dedicated frame and long travel aluminum swing arm are designed for pure scrambler performance when the going gets tough.
OPTIMIZED CORNERING
Optimized cornering traction control and ABS, supported by an IMU, deliver the optimum performance at all lean angles, for a class-leading and confidence-inspiring ride.
CLASS LEADING SUSPENSION
Premium Showa forks and twin spring Öhlins RSUs give 7.87 inches of wheel travel (9.84 inches on the XE) for precise, comfortable and confident riding on all surfaces.
PREMIUM BRAKING
Category-leading Brembo Monobloc M50 front calipers with twin 320mm floating discs and ABS deliver assured braking power in all conditions.
2023 Triumph Scrambler 1200XE – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $15,845 USD
Canada MSRP Price: from $16,795 CDN
Europe/UK MSRP Price: from £13,195 (On The Road inc 20% Vat)
ENGINE & TRANSMISSION
| Engine | 1200cc twin engine (Euro 5 compliant) |
| Suspension | Fully-adjustable Showa upside-down forks and Öhlins long travel rear suspension units |
| Brakes | Brembo M50 brakes with optimized cornering switchable ABS |
| Clutch | Torque assist clutch |
| Riding Modes | 6 riding modes (Road, Rain, Sport, Rider Configurable, Off-Road and Off-Road Pro) |
| Traction Control | Ride-by-wire throttle with optimized cornering switchable traction control |
| Instruments | Multi-functional instruments with personalizable TFT display |
| Connectivity | My Triumph Connectivity System (Accessory fit) |
| Service | 10,000 miles/12 months service interval, whichever comes first |
| Keyless | Keyless ignition system, single button cruise control, under seat USB charging and illuminated switches |
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Type | Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin |
| Capacity | 1200 cc |
| Bore | 3.84 in (97.6 mm) |
| Stroke | 3.15 in (80 mm) |
| Compression | 11.0:1 |
| Max Power EC | 89Hp (66.2kW) @7,400rpm |
| Max Torque EC | 81.1 FT-lbs (110Nm) @ 3,950 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed 2 into 2 exhaust system with brushed high level silencers |
| Final Drive | X ring chain |
| Clutch | Wet, multi-plate assist clutch |
| Gearbox | 6-speed |
CHASSIS
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Frame | Tubular steel with aluminum cradle |
| Swingarm | Twin-sided, aluminum |
| Front Wheel | Tubeless 36-spoke 21 x 2.15in, aluminum rims |
| Rear Wheel | Tubeless 32-spoke 17 x 4.25in, aluminum rims |
| Front Tire | 90/90-21 |
| Rear Tire | 150/70 R17 |
| Front Suspension | Showa 47mm fully adjustable upside down forks, 250mm travel |
| Rear Suspension | Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel |
| Front Brakes | Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS |
| Rear Brakes | Single 255mm disc, Brembo 2-piston floating caliper, ABS |
| Instrument Display and Functions | TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-road/Rider-Customisable) |
DIMENSIONS & WEIGHTS
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Width Handlebars | 35.6 in (905mm) |
| Height Without Mirror | 49.2 in (1250mm) |
| Seat Height | 34.2 in (870mm) |
| Wheelbase | 61.8 in (1570mm) |
| Rake | 26.9 º |
| Trail | 5.09 in (129.2mm) |
| Dry Weight | 456 lbs (207kg) |
| Tank Capacity | 4.2 US gal (16l) |
FUEL CONSUMPTION
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Fuel Consumption | 51.1 mpg (4.6 L / 100km) |
2023 Triumph Scrambler 1200XE – Totalmotorcycle.com Canada Specifications/Technical Details
| ENGINE & TRANSMISSION | |
| Type | Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin |
| Capacity | 1200 cc |
| Bore | 3.84 in (97.6 mm) |
| Stroke | 3.15 in (80 mm) |
| Compression | 11.0:1 |
| Max Power EC | 89Hp (66.2kW) @7,400rpm |
| Max Torque EC | 81.1 FT-lbs (110Nm) @ 3,950 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed 2 into 2 exhaust system with brushed high level silencers |
| Final Drive | X ring chain |
| Clutch | Wet, multi-plate assist clutch |
| Gearbox | 6-speed |
| CHASSIS | |
| Frame | Tubular steel with aluminum cradle |
| Swingarm | Twin-sided, aluminum |
| Front Wheel | Tubeless 36-spoke 21 x 2.15in, aluminum rims |
| Rear Wheel | Tubeless 32-spoke 17 x 4.25in, aluminum rims |
| Front Tire | 90/90-21 |
| Rear Tire | 150/70 R17 |
| Front Suspension | Showa 47mm fully adjustable upside down forks, 250mm travel |
| Rear Suspension | Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel |
| Front Brakes | Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS |
| Rear Brakes | Single 255mm disc, Brembo 2-piston floating caliper, ABS |
| Instrument Display and Functions | TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-road/Rider-Customisable) |
| DIMENSIONS & WEIGHTS | |
| Width Handlebars | 35.6 in (905mm) |
| Height Without Mirror | 49.2 in (1250mm) |
| Seat Height | 34.2 in (870mm) |
| Wheelbase | 61.8 in (1570mm) |
| Rake | 26.9 º |
| Trail | 5.09 in (129.2mm) |
| Dry Weight | 456 lbs (207kg) |
| Tank Capacity | 4.2 US gal (16l) |
| FUEL CONSUMPTION | |
| Fuel Consumption | 51.1 mpg (4.6 L / 100km) |
| SERVICE | |
| Service Interval | 10,000 miles/12 months service interval, whichever comes first |
2023 Triumph Scrambler 1200XE – Totalmotorcycle.com European Specifications/Technical Details
ENGINE & TRANSMISSION
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Type | Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin |
| Capacity | 1200 cc |
| Bore | 97.6 mm |
| Stroke | 80 mm |
| Compression | 11 :1 |
| Max Power EC | 90PS/ 89bhp (66.2kW) @7,250rpm |
| Max Torque EC | 110 Nm @ 4500 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed 2 into 2 exhaust system with brushed high level silencers |
| Final Drive | X ring chain |
| Clutch | Wet, multi-plate assist clutch |
| Gearbox | 6-speed |
CHASSIS
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Frame | Tubular steel |
| Swingarm | Twin-sided, aluminium, 579mm long |
| Front Wheel | Tubeless 36-spoke 21 x 2.15in, aluminium rims |
| Rear Wheel | Tubeless 32-spoke 17 x 4.25in, aluminium rims |
| Front Tyre | 90/90-21 |
| Rear Tyre | 150/70 R17 |
| Front Suspension | Showa 47mm fully adjustable upside down forks, 250mm travel |
| Rear Suspension | Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel |
| Front Brakes | Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS |
| Rear Brakes | Single 255mm disc, Brembo 2-piston floating caliper, ABS |
| Instrument Display and Functions | TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-road/Rider-Customisable) |
DIMENSIONS & WEIGHTS
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Width Handlebars | 905 mm |
| Height Without Mirror | 1250 mm |
| Seat Height | 870 mm |
| Wheelbase | 1570 mm |
| Rake | 26.9 º |
| Trail | 129.2 mm |
| Tank Capacity | 16 L |
| Wet Weight | 230 kg |
FUEL CONSUMPTION
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Fuel Consumption | 4.6 litres / 100 km |
| CO2 Figures | 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
SERVICE
| SCRAMBLER 1200 XE Specifications | |
| Feature | Details |
| Service Interval | 10,000 miles/16,000 Km or 12 Months, whichever comes first |
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
