2024 BMW F900XR Guide

2024 BMW F900XR
ReviewKey FeaturesFeatures & BenefitsSpecifications

2024 BMW F900XR 2024 BMW F900XR 2024 BMW F900XR 2024 BMW F900XR 2024 BMW F900XR

2024 BMW F900XR: HIGHER, FASTER, FURTHER.

Introducing the 2024 BMW F900XR…

XR stands for the uncompromising combination of athleticism and long-distance performance: Adrenaline for days, curve for curve. On the F900XR, you can keep hunting these curves without stopping – mile after mile. Even its thrilling design promises pure performance. While the upright, relaxed sitting position and the wind and weather protector show: Only one person decides when your ride is over – you.

Thanks to the full assortment of equipment, you are just as well-equipped for sport riding and travel as you are for the city. The F900XR is the bike that matches you and your attitude. #NeverStopChallenging

The F900XR combines athleticism and long-distance performance without compromise. Even its exciting design demonstrates how much fun curve hunters will have on it. Thanks to the full assortment of equipment, you can also enjoy this unique riding experience every day. Learn all about the technical data and standard equipment here.





2024 BMW F900XR Totalmotorcycle.com Key Features

Colors

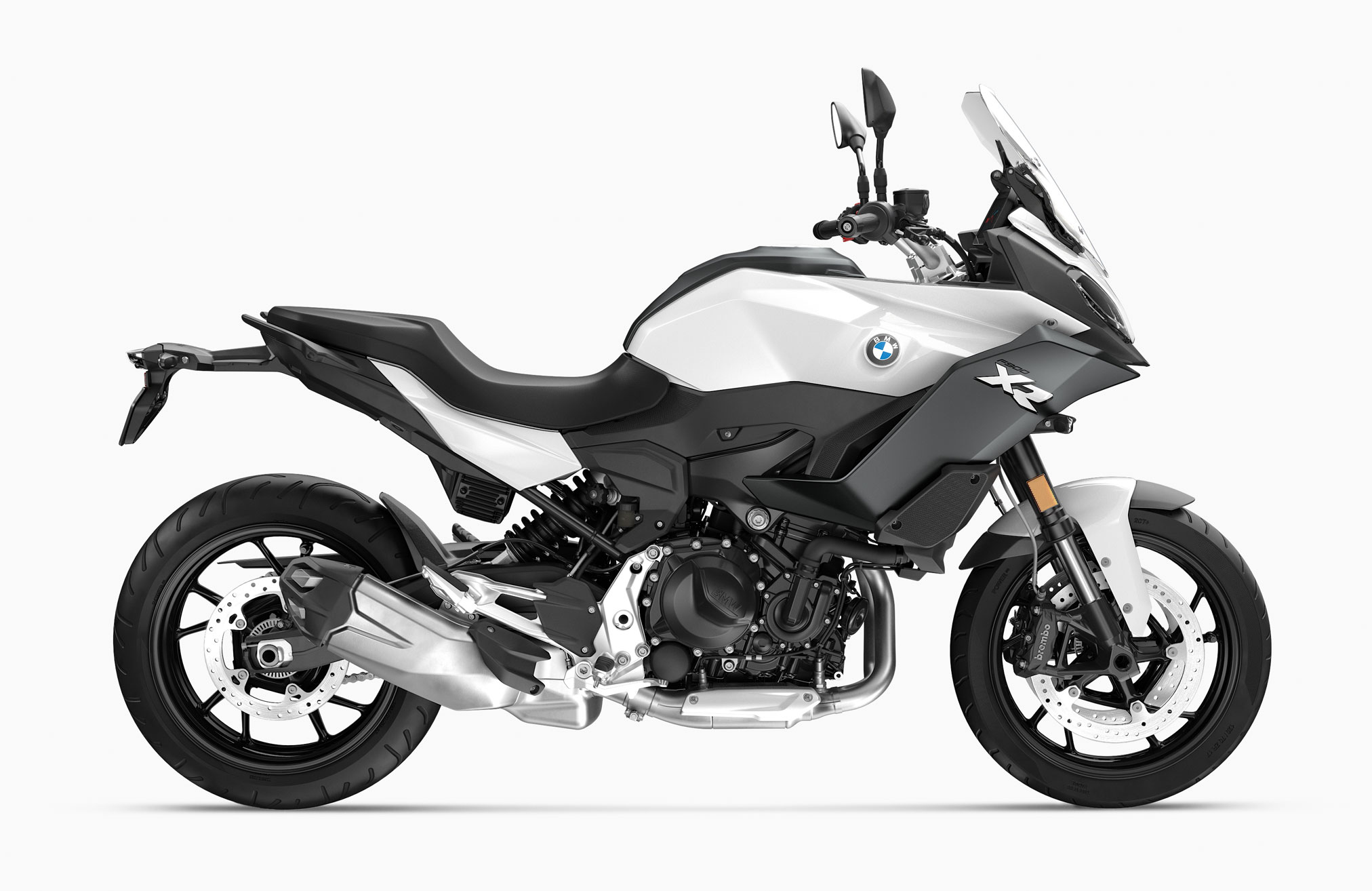

Light White. Updated graphics (standard)
Style Sport: Racing Blue Metallic 2 replaces Racing Blue Metallic (optional)

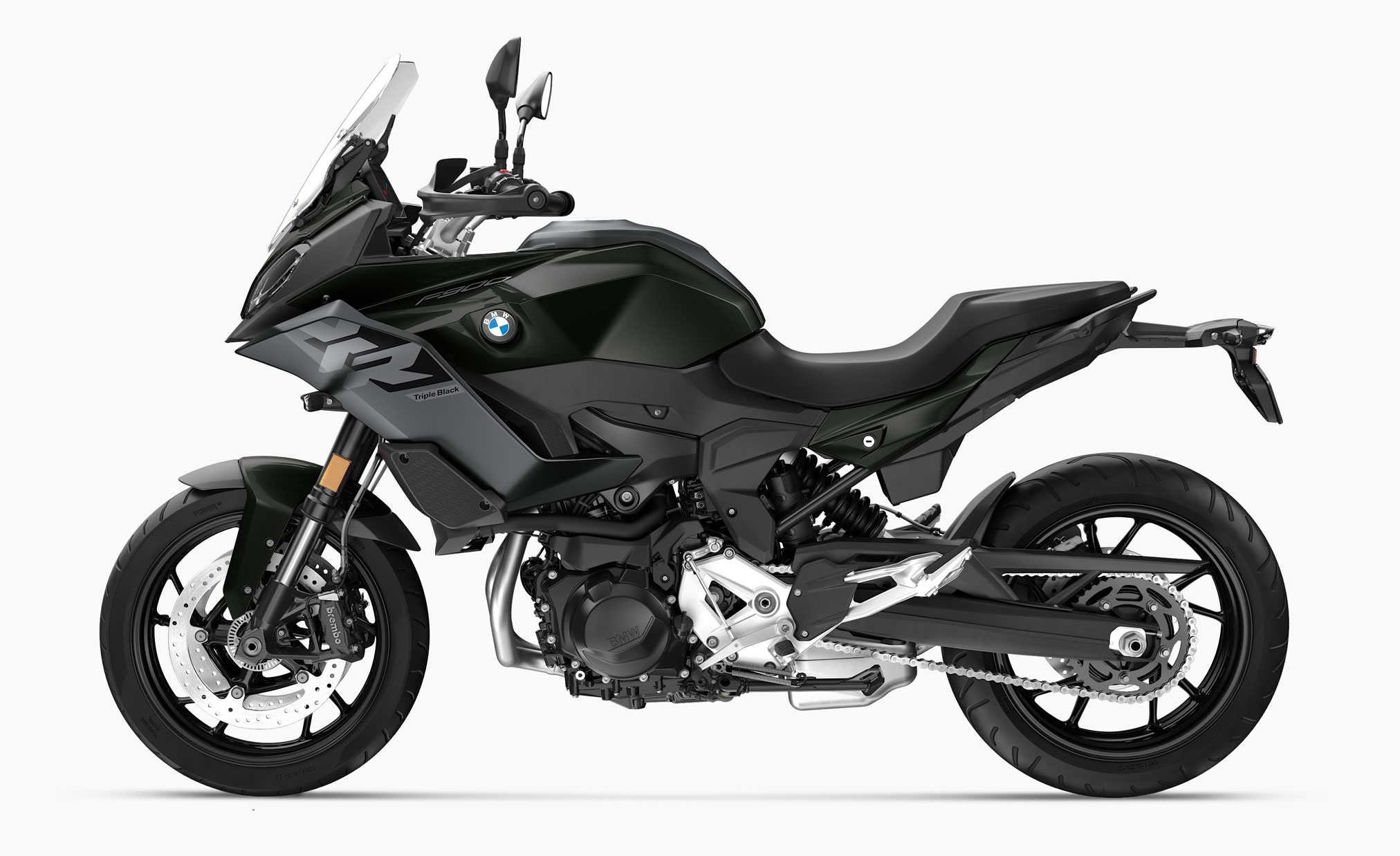

Style Triple Black. Updated graphics (optional)



Intelligent Emergency Call is available as standard or as an option for the following models and series in the USA and Canada for model year 2024: F 900 R and XR (optional) K 1600x (standard), R 1250x (standard), R 18 B and Transcontinental (standard), S 1000 R / RR (standard), CE 04 (standard). Intelligent Emergency Call adds a covered SOS button, loudspeaker and microphone to the right-side handlebar controls.

The eCall system uses BMW Motorrad Connected Services which can be activated during new vehicle delivery to the customer. When pressed, the SOS button connects the rider to an agent who can be advised verbally of the general situation, of the level of injury, if one exists and who can contact emergency services, if required. If a motorcycle fall or crash is detected, an eCall is automatically placed.

For model year 2024, all new BMW M motorcycles include the 600-mile Ultimate Care Break-In Service. The BMW Ultimate Care service programs were launched in 2021.











2024 BMW F900XR Totalmotorcycle.com Features and Benefits

Options and Packages

Intelligent Emergency Call added as a stand-alone option.
F900XR Standard Equipment









2024 BMW F900XR – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11,695 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (total selling price)

Engine Type

Water-cooled 4-stroke in-line two-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke

86 mm x 77 mm

Capacity

895 cc

Rated output

99 hp at 8,500 rpm

Max. torque

68 lb-ft at 6,750 rpm

Compression ratio

13.1 : 1

Mixture control / engine management

Electronic injection

Emission control

Closed-loop 3-way catalytic converter

Performance / fuel consumption

Maximum speed

Over 124 mph

Fuel type

Premium Unleaded

Electrical system

Alternator

Permanent magnetic alternator 416 W (nominal power)

Battery

12 V / 12 Ah

Power transmission

Clutch

Multiple-disc wet clutch (anti hopping), mechanically operated

Gearbox

Constant mesh 6-speed gearbox integrated in crankcase

Drive

Endless O-ring chain with shock damping in rear wheel hub

Chassis / brakes

Frame

Bridge-type frame, steel shell construction



Front wheel location / suspension

Upside-down telescopic fork, Ø 43 mm

Rear wheel location / suspension

Cast aluminum dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable

Suspension travel front / rear

6.7”/ 6.8” (170 mm / 172 mm)
OE suspension lowering kit: 5.9” / 6.0” (150 mm / 152 mm)

Wheelbase

60” (1,521 mm)

Caster

4.1” (105.2 mm)

Steering head angle

60.5°

Wheels

Cast aluminum wheels

Rim, front

3.50″ x 17″

Rim, rear

5.50″ x 17”

Tires, front

120/70 ZR 17

Tires, rear

180/55 ZR 17

Brake, front

Dual disc brake, floating brake discs, Ø 320 mm, 4-piston radial brake calipers

Brake, rear

Single disc brake, Ø 265 mm, single-piston floating caliper

ABS

BMW Motorrad ABS

Dimensions / weights

Length

85.0” (2,160 mm)

Width (incl. mirrors)

33.9” (860 mm)

Height (excl. mirrors)

52.0” – 55.9” (1,320 mm – 1,420 mm)

Seat height, unladen weight

32.5”

Inner leg curve, unladen weight

Standard Seat: 72.4”, High Seat: 73.6”, Low Seat: 70.7”

Unladen weight, road ready, fully fueled

482 lbs (219 kg)

1)

Permitted total weight

966 lbs (438 kg)

Payload (with standard equipment)

483 lbs (219 kg)

Usable tank volume

4.1 gal (15.5 L)

Reserve

Approx. 1 gal (3.5 L)

1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fuelled with at least 90% of usable tank volume.







2024 BMW F900XR – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Rated output

77 kW (105 hp) at 8,500 rpm, A2: 70 kW (95 hp) at 8,000 rpm, power reduction available as optional equipment: 35 kW (48 hp) at 6,500 rpm

Emission control

Closed-loop 3-way catalytic converter

Type

Water-cooled, 2-cylinder, four-stroke engine with four cam-operated valves per cylinder, two overhead camshafts and dry-sump lubrication

Bore x stroke

86 mm x 77 mm

Capacity

895 cc

Max. torque

67.9 lbs-ft at 6,500 rpm

Compression ratio

13.1 : 1

Mixture control

Electronic intake pipe injection / digital engine management system: BMS-X with throttle-by-wire

Exhaust emission standards

EU 5

Performance / fuel consumption

Maximum speed

over 200 km/h (OE output reduction 35 kW: 170 km/h)

Fuel consumption per 100 km based on WMTC

4.2 l

Fuel type

Super unleaded (max. 15% ethanol, E15), 95 ROZ/RON, 90 AKI

CO2 emission based on WMTC

99 g/km

Electrical system

Alternator

Permanent magnet alternator with 416 W (nominal power)

Battery

12 V / 12 Ah, maintenance-free

Power transmission

Clutch

Multiplate clutch in oil bath, anti-hopping clutch, mechanically operated

Gearbox

Claw-shifted 6-speed gearbox integrated in the transmission housing

Drive

Endless O-ring chain with shock damping in rear wheel hub

Chassis / brakes

Frame

Bridge-type frame, steel shell construction

Front wheel location / suspension

Upside-down telescopic fork, diameter 43 mm

Rear wheel location / suspension

Aluminum twin-sided swingarm, central shock absorber, spring pre-load hydraulically adjustable, rebound damping adjustable

Suspension travel, front / rear

170 mm / 172 mm (OE suspension lowering kit 150 mm / 152 mm)

Wheelbase

1,521 mm

Castor

105.2 mm

Steering head angle

60.5°

Wheels

Aluminium cast wheels

Rim, front

3.50 x 17″

Rim, rear

5.50 x 17”

Tire, front

120/70 ZR17

Tire, rear

180/55 ZR17

Brake, front

Twin disc brake, floating brake discs, diameter 320 mm, 4-piston radial brake caliper

Brake, rear

Single disc brake, diameter 265 mm, 1-piston floating caliper

ABS

BMW Motorrad ABS

Dimensions / weights

Seat height at unladen weight

32.5″ (lowering: 30.5″; double seat low: 31.3″; seat high: 33.0″; comfort seat: 32.3″; seat extra high: 34.2″)

Inner leg curve at unladen weight

72.4″ (lowering: 69.5″; double seat low: 70.7″; seat high: 73.6″; comfort seat: 74″; seat extra high: 75″)

Usable tank volume

15.5 l

Reserve

approx. 3.5 l

Length

2,160 mm

Height

1,320 – 1,420 mm (above windshield, at DIN unladen weight)

Width

860 mm (without mirror)

Unladen weight, road ready, fully fuelled

219 kg

1)

Permitted total weight

438 kg

Payload (with standard equipment)

219 kg

1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.







2024 BMW F900XR – Totalmotorcycle.com European Specifications/Technical Details

Engine

Type

Water-cooled 4-stroke in-line two-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore / stroke

86 mm x 77 mm

Capacity

895 cc

Rated output

77 kW / (105 hp) at 8,500 rpm

Rated output (A2)

70 kW (95 hp) at 8,000 rpm
OE output reduction:
35 kW (48 hp) at 6,500 rpm

Max. torque

92 Nm at 6,500 rpm

Max. torque (A2)

88 Nm at 6,750 rpm
OE output reduction: 66 Nm at 4,500 rpm

Compression ratio

13.1 :1

Mixture control

Electronic injection

Emission control

Closed-loop 3-way catalytic converter, emission standard EU-5

Performance / fuel consumption

Maximum speed

over 200 km/h

Maximum speed (A2)

over 200 km/h
OE output reduction: 170 km/h

Fuel consumption per 100 km based on WMTC

4.2 l

CO2 emission based on WMTC

99 g/km

Fuel type

Unleaded super, minimum octane number 95 (RON)

Fuel type (A2)

unleaded regular fuel, minimum octane number 91 (RON)

Electrical system

Alternator

permanent magnetic alternator 416 W (nominal power)

Battery

12 V / 12 Ah, maintenance-free

Power transmission

Clutch

Multiple-disc wet clutch (anti hopping), mechanically operated

Gearbox

Constant mesh 6-speed gearbox integrated in crankcase

Drive

Endless O-ring chain with shock damping in rear wheel hub

Chassis / brakes

Frame

Bridge-type frame, steel shell construction



Front wheel location / suspension

Upside-down telescopic fork, Ø 43 mm

Rear wheel location / suspension

Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable

Suspension travel, front / rear

170 mm / 172 mm
(OE suspension lowering kit: 150 mm / 152 mm)

Wheelbase

1,521 mm

Castor

105.2 mm

Steering head angle

60,5°

Wheels

Cast aluminium wheels

Rim, front

3.50″ x 17″

Rim, rear

5.50″ x 17”

Tyre, front

120/70 ZR 17

Tyre, rear

180/55 ZR 17

Brake, front

Dual disc brake, floating brake discs, Ø 320 mm, 4-piston radial brake calipers

Brake, rear

Single disc brake, Ø 265 mm, single-piston floating caliper

ABS

BMW Motorrad ABS

Dimensions / weights

Seat height

825 mm (OE suspension lowering kit: 775 mm, OE low seat: 795 mm, OA high seat: 840 mm, OA comfort seat: 845 mm, OA extra high seat: 870 mm)

Inner leg curve

1,840 mm (OE suspension lowering kit: 1,765 mm, OE low seat: 1,795 mm, OA high seat: 1,870 mm, OA comfort seat: 1,880 mm, OA extra high seat: 1,900 mm)

Usable tank volume

15.5 l

Reserve

  1. 3.5 l

Length

2,160 mm

Height (excl. mirrors)

1,320-1,420 mm

Width (excl. mirrors)

860 mm

Unladen weight, road ready, fully fuelled

219 kg

1)

Permitted total weight

438 kg

Payload (with standard equipment)

219 kg

1) According to guideline VO (EU) 168/2013 with all fluids, with standard equipment and fuelled with at least 90% of usable tank volume.







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
