2024 Harley-Davidson Sportster S Guide

Review – Key Features – Features & Benefits – Specifications

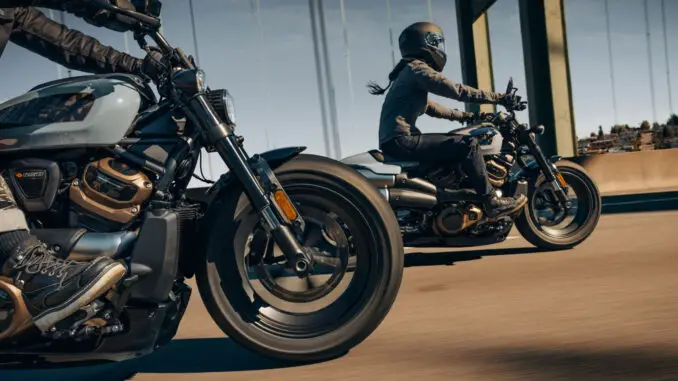

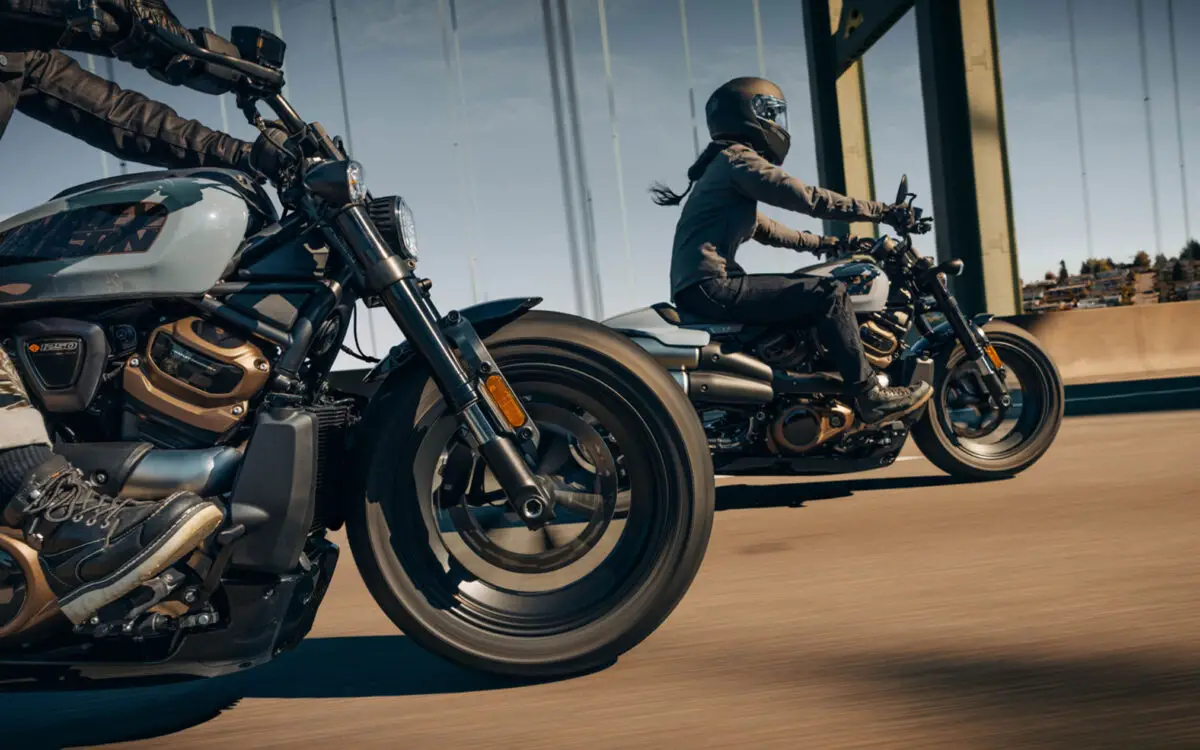

2024 Harley-Davidson Sportster S: ALWAYS PERFORM, NEVER CONFORM.

Introducing the 2024 Harley-Davidson Sportster S…

Building on a legacy born in 1957, the sophisticatedly brutish Harley-Davidson Sportster  S advances traits that everyone loved in its predecessors: wickedly quick, impressively nimble, and way too much fun to ride.

Sportster^® S is the first chapter of a whole new book of the Sportster saga. A legacy born in 1957 that outperformed the competition is now rebuilt to blow away the standards of today.







2024 Harley-Davidson Sportster S Totalmotorcycle.com Key Features

• Forward riding position
• Forward foot controls
• Low
• Infotainment
• Rider safety enhancements available



AMERICAN DREAMIN’ – The dawn of a new era has arrived for Harley-Davidson.



2024 SPORT MOTORCYCLES

A category created by the venerable Sportster. Iconic design, authentic sound. These are bikes built for carving mountain roads and blasting through city streets.



HARLEY-DAVIDSON REVEALS 2024 MODEL MOTORCYCLES AVAILABLE NOW AT WORLDWIDE AUTHORIZED DEALERSHIPS

Additional New Models to Premier January 24

MILWAUKEE (January 2, 2024) – Harley-Davidson today revealed a portion of its 2024 motorcycle line and announced these bikes are now available at authorized Harley-Davidson dealerships globally, with additional new motorcycle models to be unveiled soon. The limited-production 2024 models from Harley-Davidson Custom Vehicle Operations (CVO) and more new Harley-Davidson motorcycle models will be revealed at 10 a.m. CST on January 24.

The 2024 returning models represent the following categories in the Harley-Davidson motorcycle portfolio, a collection of the sport’s most desirable motorcycles.



Grand American Touring: For riders responding to the call of the open road. Grand American Touring models take riders beyond the horizon with the comfort and community that makes the journey spectacular, from the company that started the cross-country experience.

Cruiser: Iconic and diverse styling – from nostalgic to very modern – is paired with the ability to customize and make the ultimate personal statement.

Sport: Industry-leading performance and advanced technology offer an exhilarating riding experience combined with styling inspired by Harley-Davidson heritage.

Trike: Harley-Davidson Trike models offer an appealing option for those who appreciate the confidence of a three-wheel platform.

Adventure Touring: For riders who want the ability to go anywhere, those who see touring as detouring. The award-winning Pan America motorcycle is a versatile and inspirational machine that makes any surface a road.







2024 Harley-Davidson Sportster S Totalmotorcycle.com Features and Benefits

REVOLUTION MAX 1250T ENGINE
Featuring double-overhead camshafts and variable valve timing, the Revolution Max 1250T is a liquid-cooled powertrain designed to give you a strong burst of power when you want it and help you stay in control while riding.

RIDER TECHNOLOGY
Choose from three pre-programmed Ride Modes—Sport, Road, or Rain—or create your own custom mode with specific settings for power delivery, engine braking, and cornering.

HIGH-MOUNTED EXHAUST
Inspired by the glory days of H-D flat-track racing, the pipes are crafted from corrosion-resistant, 304-series stainless steel and engineered to deflect exhaust heat away from the rider’s legs and the bike’s tail section.

INSTRUMENTATION
A Bluetooth-equipped, four-inch-round, thin-film transistor display shows digital gauges, indicators, ride modes, and turn-by-turn navigation when paired with the Harley-Davidson mobile app.

CHASSIS
The Revolution Max 1250T is a structural component of the motorcycle chassis, which significantly reduces overall weight, lowers the center of gravity, and improves handling.









2024 Harley-Davidson Sportster S – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: Starting at $16,999 USD
Canada MSRP Price: Starting at $19,999 CDN
Europe/UK MSRP Price: Starting at £15,145 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

89.4 in.

SEAT HEIGHT, LADEN ⁷

28.9 in.

GROUND CLEARANCE

3.5 in.

RAKE

30

TRAIL

5.8 in.

WHEELBASE

59.8 in.

TIRE, TYPE

Dunlop Harley-Davidson Series, radial

TIRES, FRONT SPECIFICATION

160/70R17 73V

TIRES, REAR SPECIFICATION

180/70R16 77V

FUEL CAPACITY

3.1 gal.

OIL CAPACITY (W/FILTER)

4.75 qt.

WEIGHT, AS SHIPPED

487 lb.

WEIGHT, IN RUNNING ORDER

502 lb.

ENGINE

ENGINE ¹

Revolution Max 1250T

BORE

4.134 in.

STROKE

2.846 in.

DISPLACEMENT

76.4 cu in

COMPRESSION RATIO

12.0:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1-into-2; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

93 ft-lb

ENGINE TORQUE (RPM)

6000

HORSEPOWER

121 HP / 90 kW @ 7500 rpm

LEAN ANGLE, RIGHT (DEG.)

34

LEAN ANGLE, LEFT (DEG.)

34

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

49 mpg

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

12.21

GEAR RATIOS (OVERALL) 2ND

9.022

GEAR RATIOS (OVERALL) 3RD

6.994

GEAR RATIOS (OVERALL) 4TH

5.641

GEAR RATIOS (OVERALL) 5TH

4.731

GEAR RATIOS (OVERALL) 6TH

4.131

CHASSIS

FRONT FORK

43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.

REAR SHOCKS

Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability

WHEELS, FRONT TYPE ⁹

Aluminum cast, satin black

WHEELS, REAR TYPE ⁹

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper

BRAKES, ROTOR TYPE

Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals

GAUGES

4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)

INFOTAINMENT

SCREEN SIZE

4 in

TYPE

Color TFT

HEADSET SPECIFICATIONS (IF EQUIPPED)

Bluetooth

LANGUAGES

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

RIDER/PASSENGER INTERCOM

Headset function only

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

TPMS, Engine temp, Battery Voltage, Ambient Air Temp

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

USB

Charging and Instrument update, USB-C, 5V, 3A

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

WHEEL LIFT MITIGATION

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included

ENHANCED LIFT MITIGATION

Included



1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.









2024 Harley-Davidson Sportster S – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,270 mm

SEAT HEIGHT, UNLADEN

765 mm

GROUND CLEARANCE

90 mm

RAKE

30

TRAIL

148 mm

WHEELBASE

1,520 mm

TIRE, TYPE

Dunlop^™ Harley-Davidson Series, radial

TIRES, FRONT SPECIFICATION

160/70R17 73V

TIRES, REAR SPECIFICATION

180/70R16 77V

FUEL CAPACITY

11.8 l

OIL CAPACITY (W/FILTER)

4.5 l

WEIGHT, AS SHIPPED

221 kg

WEIGHT, IN RUNNING ORDER

228 kg

ENGINE

ENGINE ²

Revolution^™ Max 1250T

BORE

105 mm

STROKE

72.3 mm

DISPLACEMENT

1,252 cc

COMPRESSION RATIO

12.0:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1-into-2; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

126 Nm

ENGINE TORQUE (RPM)

6,000

HORSEPOWER

121 HP / 90 kW @ 7500 rpm

LEAN ANGLE, RIGHT (DEG.)

34

LEAN ANGLE, LEFT (DEG.)

34

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

4.8 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

12.21

GEAR RATIOS (OVERALL) 2ND

9.022

GEAR RATIOS (OVERALL) 3RD

6.994

GEAR RATIOS (OVERALL) 4TH

5.641

GEAR RATIOS (OVERALL) 5TH

4.731

GEAR RATIOS (OVERALL) 6TH

4.131

CHASSIS

FRONT FORK

43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.

REAR SHOCKS

Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability

WHEELS, FRONT TYPE ⁴

Aluminum cast, satin black

WHEELS, REAR TYPE ⁴

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper

BRAKES, ROTOR TYPE

Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS

All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals

GAUGES

4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)

INFOTAINMENT

SCREEN SIZE

102 mm

TYPE

Color TFT

HEADSET SPECIFICATIONS (IF EQUIPPED)

Bluetooth

LANGUAGES

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

RIDER/PASSENGER INTERCOM

Headset function only

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

TPMS, Engine temp, Battery Voltage, Ambient Air Temp

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

USB

Charging and Instrument update, USB-C, 5V, 3A

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

WHEEL LIFT MITIGATION

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included

ENHANCED LIFT MITIGATION

Included



1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.









2024 Harley-Davidson Sportster S – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,270 mm

SEAT HEIGHT, UNLADEN

765 mm

GROUND CLEARANCE

90 mm

RAKE

30

TRAIL

148 mm

WHEELBASE

1,520 mm

TIRE, TYPE

Dunlop^™ Harley-Davidson Series, radial

TIRES, FRONT SPECIFICATION

160/70R17 73V

TIRES, REAR SPECIFICATION

180/70R16 77V

FUEL CAPACITY

11.8 l

OIL CAPACITY (W/FILTER)

4.5 l

WEIGHT, AS SHIPPED

221 kg

WEIGHT, IN RUNNING ORDER

228 kg

ENGINE

ENGINE ²

Revolution^™ Max 1250T

BORE

105 mm

STROKE

72.3 mm

DISPLACEMENT

1,252 cc

COMPRESSION RATIO

12.0:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-1-into-2; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

125 Nm

ENGINE TORQUE (RPM)

6000

HORSEPOWER

121 HP / 90 kW @ 7500 rpm

LEAN ANGLE, RIGHT (DEG.)

34

LEAN ANGLE, LEFT (DEG.)

34

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.1 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

126 g/km CO²

DRIVE TRAIN

PRIMARY DRIVE

Gear, 49/89 ratio

GEAR RATIOS (OVERALL) 1ST

12.21

GEAR RATIOS (OVERALL) 2ND

9.022

GEAR RATIOS (OVERALL) 3RD

6.994

GEAR RATIOS (OVERALL) 4TH

5.641

GEAR RATIOS (OVERALL) 5TH

4.731

GEAR RATIOS (OVERALL) 6TH

4.131

CHASSIS

FRONT FORK

43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.

REAR SHOCKS

Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability

WHEELS, FRONT TYPE ⁴

Aluminum cast, satin black

WHEELS, REAR TYPE ⁴

Aluminum cast, satin black

BRAKES, CALIPER TYPE

Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper

BRAKES, ROTOR TYPE

Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS

All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals

GAUGES

4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)

INFOTAINMENT

SCREEN SIZE

102 mm

TYPE

Color TFT

HEADSET SPECIFICATIONS (IF EQUIPPED)

Bluetooth

LANGUAGES

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

RIDER/PASSENGER INTERCOM

Headset function only

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

TPMS, Engine temp, Battery Voltage, Ambient Air Temp

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

USB

Charging and Instrument update, USB-C, 5V, 3A

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

TRACTION CONTROL SYSTEM (TCS)

Included

DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

WHEEL LIFT MITIGATION

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included

ENHANCED LIFT MITIGATION

Included



1. All prices shown are suggested retail prices only. Please speak with the dealership team for further details and to obtain a final on the road price.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
