2024 Triumph Scrambler 1200XE Guide

2024 Triumph Scrambler 1200XE
ReviewKey FeaturesFeatures & BenefitsSpecifications

2024 Triumph Scrambler 1200XE 2024 Triumph Scrambler 1200XE 2024 Triumph Scrambler 1200XE

2024 Triumph Scrambler 1200XE: THE REAL DEAL.

Introducing the 2024 Triumph Scrambler 1200XE…

ICONIC SCRAMBLER STYLE
Stunning modern classic scrambler styling with category-leading finish and detailing. Crafted aluminum parts and brushed badges are highlighted against the deep, lustrous paint.

DUAL PURPOSE
The Scrambler’s natural feel on the tarmac and controllability on the dirt sets it aside as the benchmark crossover adventure motorcycle with unparalleled road and off-road capability.

THE REAL DEAL
The ground breaking Scrambler 1200 is now more refined than ever.

With incredible all-road capability and performance, plus class-defining looks, the new 1200 XE is the ultimate Scrambler.

The ultimate Scrambler, and the real deal for road and full-on off-road adventures. The new 1200 XE has the capability to take the rough with the smooth.





2024 Triumph Scrambler 1200XE Totalmotorcycle.com Key Features

Scrambler 1200 XE and Scrambler 1200 XC

The class-defining Scrambler 1200 line-up will come in three colourways for model year 2024, with a sophisticated Sapphire Black or signature Matt Khaki and Matt Jet Black, being joined by a stylish new Matt Sandstorm fuel tank with Jet Black stripe, Jet Black headlight bowl and side panels and a brown bench seat.

Matt Sandstorm & Matt Jet Black – NEW
Matt Khaki Green & Matt Jet Black
Sapphire Black



EXCITING NEW COLOURS AND NEW NAMES FOR TRIUMPH’S MODERN CLASSICS RANGE

Introducing for model year 2024, a new and exciting range of colour options for the entire Bonneville range, building on the great success of last year’s Gold Line Editions, which responded to customer requests for brighter, more distinctive, and more elegant colour options across the legendary Modern Classics line-up.

These new colours come hand-in-hand with new names for two of the class-defining 900cc models, chosen to better represent the family connections across Triumph’s iconic Bonneville line-up, and their specific engine capacities. From model year 2024, the Street Twin is re-named Speed Twin 900, and the Street Scrambler is re-named the Scrambler 900.









2024 Triumph Scrambler 1200XE Totalmotorcycle.com Features and Benefits

1200CC ENGINE

Updated with a dedicated scrambler tune, for a smooth, torque-rich delivery from the iconic 1200 cc Bonneville twin.

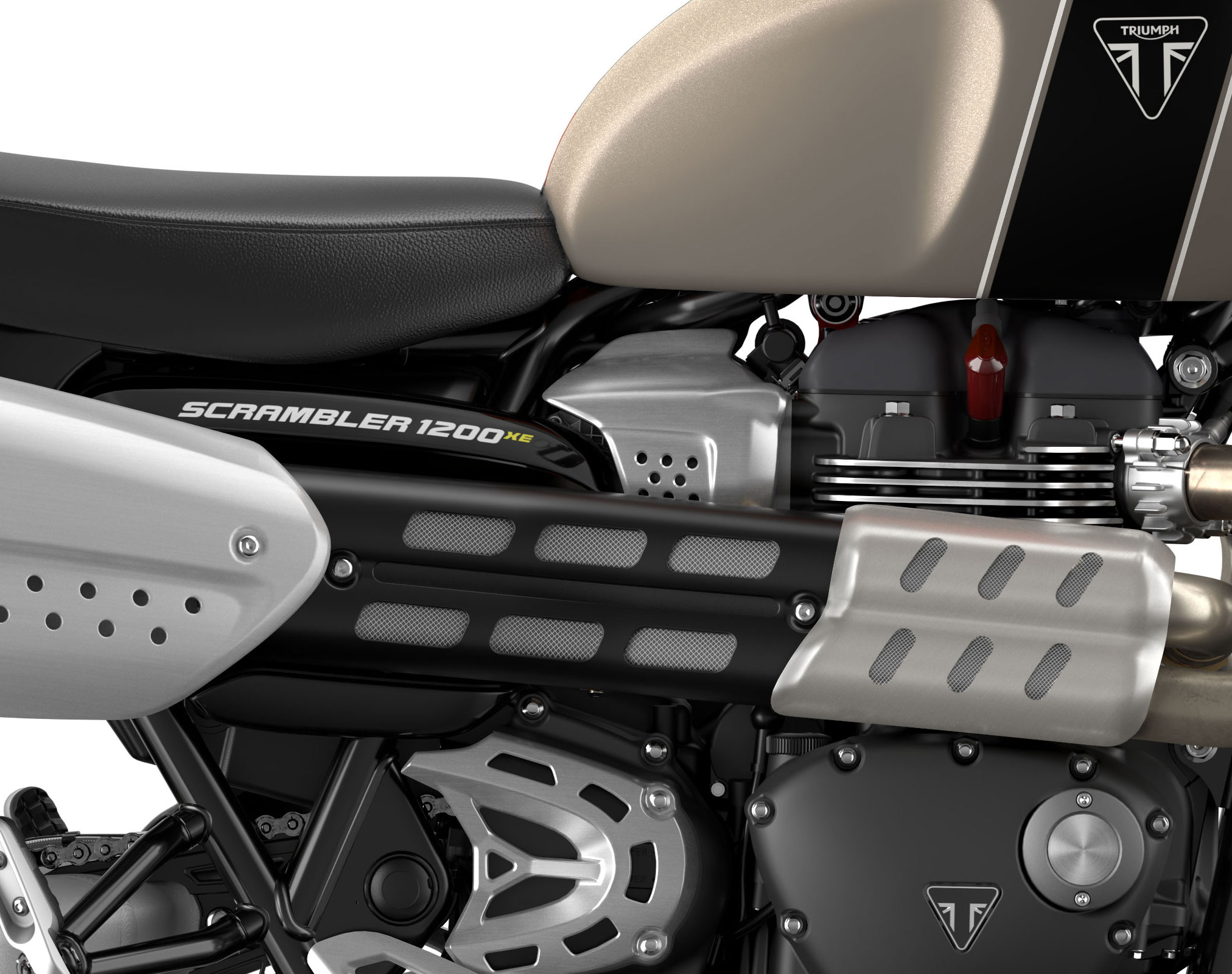

ENHANCED TWIN HIGH LEVEL EXHAUST

The deep, scrambler tune from the signature twin high-level exhaust now features improved heat distribution for enhanced rider comfort.

CLASS LEADING TECHNOLOGY

Cruise control, ride-by-wire, Scrambler-specific riding modes, ABS and easy-to-read TFT instruments bring class-leading technology to this modern classic.

RIDING MODES

In addition to the Road, Rain, Sport, Off-Road and Rider-Configurable riding modes, the XE features ‘Off-Road Pro’ for full on Scrambler fun.

FULL COLOR TFT

Easy to read in all light conditions, the Scrambler’s advanced full-color TFT display can be configured to suit you and your riding needs.

ILLUMATED SWITCHES

Intuitively designed, the Scrambler’s switches are backlit for easy, at-a-glance rider control, perfect for even the darkest adventures.

SPECIFICATION & CAPABILITY

The Scrambler’s category-dominating specification and high-end equipment deliver all-road capability for an adventure riding experience like no other.

DEDICATED SCRAMBLER FRAME

The dedicated frame and long travel aluminum swing arm are designed for pure scrambler performance when the going gets tough.

OPTIMIZED CORNERING

Optimized cornering traction control and ABS, supported by an IMU, deliver the optimum performance at all lean angles, for a class-leading and confidence-inspiring ride.

CLASS LEADING SUSPENSION

Premium Showa forks and twin spring Öhlins RSUs give 7.87 inches of wheel travel (9.84 inches on the XE) for precise, comfortable and confident riding on all surfaces.

PREMIUM BRAKING

Category-leading Brembo Monobloc M50 front calipers with twin 320mm floating discs and ABS deliver assured braking power in all conditions.









2024 Triumph Scrambler 1200XE – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $16195  USD
Canada MSRP Price: from $17,095 CDN
Europe/UK MSRP Price: from £13,695 (On The Road inc 20% Vat)

ENGINE & TRANSMISSION

Engine 1200cc twin engine (Euro 5 compliant)
Suspension Fully-adjustable Showa upside-down forks and Öhlins long travel rear suspension units
Brakes Brembo M50 brakes with optimized cornering switchable ABS
Clutch Torque assist clutch
Riding Modes 6 riding modes (Road, Rain, Sport, Rider Configurable, Off-Road and Off-Road Pro)
Traction Control Ride-by-wire throttle with optimized cornering switchable traction control
Instruments Multi-functional instruments with personalizable TFT display
Connectivity My Triumph Connectivity System (Accessory fit)
Service 10,000 miles/12 months service interval, whichever comes first
Keyless Keyless ignition system, single button cruise control, under seat USB charging and illuminated switches



SCRAMBLER 1200 XE Specifications
Feature Details
Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 3.84 in (97.6 mm)
Stroke 3.15 in (80 mm)
Compression 11.0:1
Max Power EC 89Hp (66.2kW) @7,400rpm
Max Torque EC 81.1 FT-lbs (110Nm) @ 3,950 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed

CHASSIS

SCRAMBLER 1200 XE Specifications
Feature Details
Frame Tubular steel with aluminum cradle
Swingarm Twin-sided, aluminum
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminum rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminum rims
Front Tire 90/90-21
Rear Tire 150/70 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-­road/Rider-Customisable)

DIMENSIONS & WEIGHTS

SCRAMBLER 1200 XE Specifications
Feature Details
Width Handlebars 35.6 in (905mm)
Height Without Mirror 49.2 in (1250mm)
Seat Height 34.2 in (870mm)
Wheelbase 61.8 in (1570mm)
Rake 26.9 º
Trail 5.09 in (129.2mm)
Dry Weight 456 lbs (207kg)
Tank Capacity 4.2 US gal (16l)

FUEL CONSUMPTION

SCRAMBLER 1200 XE Specifications
Feature Details
Fuel Consumption 51.1 mpg (4.6 L / 100km)







2024 Triumph Scrambler 1200XE – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE & TRANSMISSION
Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 3.84 in (97.6 mm)
Stroke 3.15 in (80 mm)
Compression 11.0:1
Max Power EC 89Hp (66.2kW) @7,400rpm
Max Torque EC 81.1 FT-lbs (110Nm) @ 3,950 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed
CHASSIS
Frame Tubular steel with aluminum cradle
Swingarm Twin-sided, aluminum
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminum rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminum rims
Front Tire 90/90-21
Rear Tire 150/70 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-­road/Rider-Customisable)
DIMENSIONS & WEIGHTS
Width Handlebars 35.6 in (905mm)
Height Without Mirror 49.2 in (1250mm)
Seat Height 34.2 in (870mm)
Wheelbase 61.8 in (1570mm)
Rake 26.9 º
Trail 5.09 in (129.2mm)
Dry Weight 456 lbs (207kg)
Tank Capacity 4.2 US gal (16l)
FUEL CONSUMPTION
Fuel Consumption 51.1 mpg (4.6 L / 100km)
SERVICE
Service Interval 10,000 miles/12 months service interval, whichever comes first







2024 Triumph Scrambler 1200XE – Totalmotorcycle.com European Specifications/Technical Details

ENGINE & TRANSMISSION

SCRAMBLER 1200 XE Specifications
Feature Details
Type Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Capacity 1200 cc
Bore 97.6 mm
Stroke 80 mm
Compression 11 :1
Max Power EC 90PS/ 89bhp (66.2kW) @7,250rpm
Max Torque EC 110 Nm @ 4500 rpm
System Multipoint sequential electronic fuel injection
Exhaust Brushed 2 into 2 exhaust system with brushed high level silencers
Final Drive X ring chain
Clutch Wet, multi-plate assist clutch
Gearbox 6-speed

CHASSIS

SCRAMBLER 1200 XE Specifications
Feature Details
Frame Tubular steel
Swingarm Twin-sided, aluminium, 579mm long
Front Wheel Tubeless 36-spoke 21 x 2.15in, aluminium rims
Rear Wheel Tubeless 32-spoke 17 x 4.25in, aluminium rims
Front Tyre 90/90-21
Rear Tyre 150/70 R17
Front Suspension Showa 47mm fully adjustable upside down forks, 250mm travel
Rear Suspension Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel
Front Brakes Twin 320mm Brembo discs, Brembo M50 4-piston radial monobloc calipers, ABS
Rear Brakes Single 255mm disc, Brembo 2-piston floating caliper, ABS
Instrument Display and Functions TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-­road/Rider-Customisable)

DIMENSIONS & WEIGHTS

SCRAMBLER 1200 XE Specifications
Feature Details
Width Handlebars 905 mm
Height Without Mirror 1250 mm
Seat Height 870 mm
Wheelbase 1570 mm
Rake 26.9 º
Trail 129.2 mm
Tank Capacity 16 L
Wet Weight 230 kg

FUEL CONSUMPTION

SCRAMBLER 1200 XE Specifications
Feature Details
Fuel Consumption 4.6 litres / 100 km
CO2 Figures 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.

SERVICE

SCRAMBLER 1200 XE Specifications
Feature Details
Service Interval 10,000 miles/16,000 Km or 12 Months, whichever comes first
