2024 Yamaha FJR1300ES: PUTTING THE SPORT IN SPORT TOURING.
Introducing the new 2024 Yamaha FJR1300ES…
Experience superb power and torque for unequaled muscular acceleration across the RPM range.
Famous for outstanding performance and reliability, the FJR1300 has developed a reputation over the past 20 years that is second to none in the sport touring world. With electronic suspension, an adjustable windscreen and smooth, reliable shaft drive, the FJR1300ES continues to offer the same comfort, performance and value that can only be expected from an FJR.
2024 Yamaha FJR1300ES Totalmotorcycle.com Key Features
- 1298cc, DOHC, 16-valve (4/cyl), liquid-cooled inline-four engine delivers serious power & torque
- 4-valve cylinder head design
- One-piece cylinder & upper crankcase assembly
- High lift intake & exhaust cams
- “Liner-less” ceramic composite plated cylinder bores
- High performance, short skirt, forged aluminum pistons
-
Putting the “Sport” in Supersport Touring
The FJR1300ES features a smooth-running, 1,298cc, DOHC, 16 valve, liquid-cooled inline four-cylinder engine that delivers superb power and torque for unequaled muscular acceleration across the rpm range.
-
Six-Speed Transmission
The FJR1300ES features a compact six-speed transmission, with ratios that provide evenly spaced gearing for sporty riding, including a tall sixth gear for relaxed highway riding. Additionally, the transmission gears are designed to offer smooth, quiet running making it ideal for long distance riding.
-
Advanced YCC-T Engine Control & Rider Aids
Yamaha’s exclusive Chip Controlled Throttle (YCC-T) is a ride-by-wire system that provides crisp, seamless throttle response. YCC-T also allows for other advanced systems that are ideal for Supersport Touring such as traction control, cruise control and D-Mode adjustable engine mapping.
-
Lean Angle-Sensitive LED Lighting System
The FJR1300ES utilizes Yamaha’s advanced LED lean-angle sensitive lighting system that allows riders to ‘see through’ corners for incredible illumination and improved low-light vision. The FJR1300ES is the first Yamaha motorcycle to feature this technology.
-
Adjustability for Rider & Passenger Comfort
A range of features make the FJR1300ES the ideal travel companion, including adjustable ergonomics, a push-button adjustable windscreen, a plush seat designed for rider and passenger, integrated hard luggage and a large 6.6 gallon fuel tank.
2024 Yamaha FJR1300ES Totalmotorcycle.com Features and Benefits
ENGINE
Six-Speed Transmission
The FJR1300ES features a compact six-speed transmission, with ratios providing evenly spaced gearing for sporty riding, including a tall sixth gear for relaxed highway riding. Additionally, the transmission gears are helically cut for smooth, quiet running with separated gear dogs for excellent transmission performance.
Assist & Slipper Clutch
The FJR1300ES features an Assist and Slipper clutch unit that provides additional clutch plate clamping force under engine torque, as well as reduced force under back-torque from the rear wheel. This allows for the use of lighter clutch springs—reducing clutch lever effort by approximately 20%—as well as smoother, more refined downshifting.
Effortless, Big-Bore Thrust
The FJR1300ES features a compact 1,298cc, DOHC, 16-valve, liquid-cooled inline four-cylinder engine that delivers superb power and torque for an unequaled spread of muscle over a wide rpm range. The engine is always ready to respond with strong passing power, even with a passenger and full load of luggage aboard.
Advanced Engine Design
The slant-block motor design uses stacked, tri-axis gearbox shafts to minimize engine size while optimizing chassis geometry for balanced weight distribution and great handling. Inside, lightweight forged pistons with carburized connecting rods provide superb strength and reduced reciprocating mass for outstanding durability and performance.
Traction Control
The FJR1300ES’s Traction Control System detects tire slip and adjusts ignition timing, fuel injection volume, and throttle valve opening to help prevent uncontrolled wheelspin. The system is designed to let the operator ride on roads that have limited traction with greater confidence.
Cruise Control
Cruise control makes touring a breeze, adjusting a set speed via a single push to the switch or, for larger adjustments, by continuously pushing the switch. A resume function returns the cruise control to the most recent setting, while activating the brakes, clutch or throttle return releases the cruise control.
Advanced Ride-by-Wire Fuel Injection
The FJR1300ES makes use of Yamaha’s Chip Controlled Throttle (YCCT), a ride-by-wire system that provides crisp, seamless throttle response in a variety of altitude and weather conditions—ideally matched to the refined and sporty nature of the FJR.
Adjustable D-Mode Throttle
Thanks to the flexibility provided by YCC-T, the FJR1300ES gives riders a choice of two throttle response modes to best suit preferences and riding conditions. T-Mode provides a smooth throttle response which is ideal for touring while the S-Mode maximizes performance response for a sportier, more aggressive character.
Compact & Efficient Shaft Drive
The FJR1300ES features a clean, quiet running and extremely durable shaft drive to the rear wheel. Built to handle the big mileage numbers touring riders rack up, the shaft drive system require minimal maintenance and lets the rider focus on the journey.
High Efficiency Dual Exhaust
The four-into-one-into-two stainless-steel exhaust optimizes engine performance across the powerband, with a clean-running catalyst for reduced emissions.
CHASSIS/SUSPENSION
Lean Angle-Sensitive LED Cornering Headlights
The bold face of the FJR1300ES uses bright, high-efficiency LED lighting, featuring Yamaha’s advanced cornering headlight system. Above the quad-element LED headlight assembly, six LED units illuminate sequentially to shine through turns, controlled by Yamaha’s IMU technology. The headlights also feature toolless adjustment of headlight angle to account for vehicle loads. Finally, the LED tail lamp assembly combines visibility, style and quality.
Aerodynamic Bodywork
Headlined by the LED headlight system, the FJR1300ES’s stylish, supersport-inspired bodywork with integrated airflow management keeps the rider comfortable. A central vent beneath the instrument panel reduces negative pressure for less buffeting, and adjustable fairing side panels let the rider direct lower body airflow.
Adjustable Everything
A good touring machine adapts to the rider, and the FJR1300ES does just that. The plush, thick saddle offers plenty of comfort and is adjustable over 0.8 inches without tools. The handlebars can be set to one of three positions to fine-tune rider ergonomics, and the windscreen is electronically adjustable for a range over 5.1 inches.
Electronically Adjustable Suspension
The electronically adjusted suspension makes finding the right setting as easy as pushing a button. With four pre-load settings, three damping presets, and an additional seven damping fine-tuning adjustments, the FJR1300ES suspension can be dialed-in to meet the needs of the rider, passenger and riding conditions.
Powerful, Secure Braking
The advanced front and rear brakes provide exceptional braking power and control and are linked via Yamaha’s Unified Braking System, for balanced braking power. ABS further boosts rider confidence by preventing wheel lock-ups in reduced-traction conditions.
High-Strength Aluminum Frame
Similar to Yamaha’s supersport machines, the FJR1300ES features a beefy aluminum frame which provides an ideal balance of chassis stiffness and feedback, with a long swingarm to enhance traction and improve rear suspension action.
Large Fuel Tank
The ergonomically-shaped, large-capacity, 6.6-gallon fuel tank offers excellent comfort, generous range and is constructed from steel, allowing for the use of magnetic tank bags.

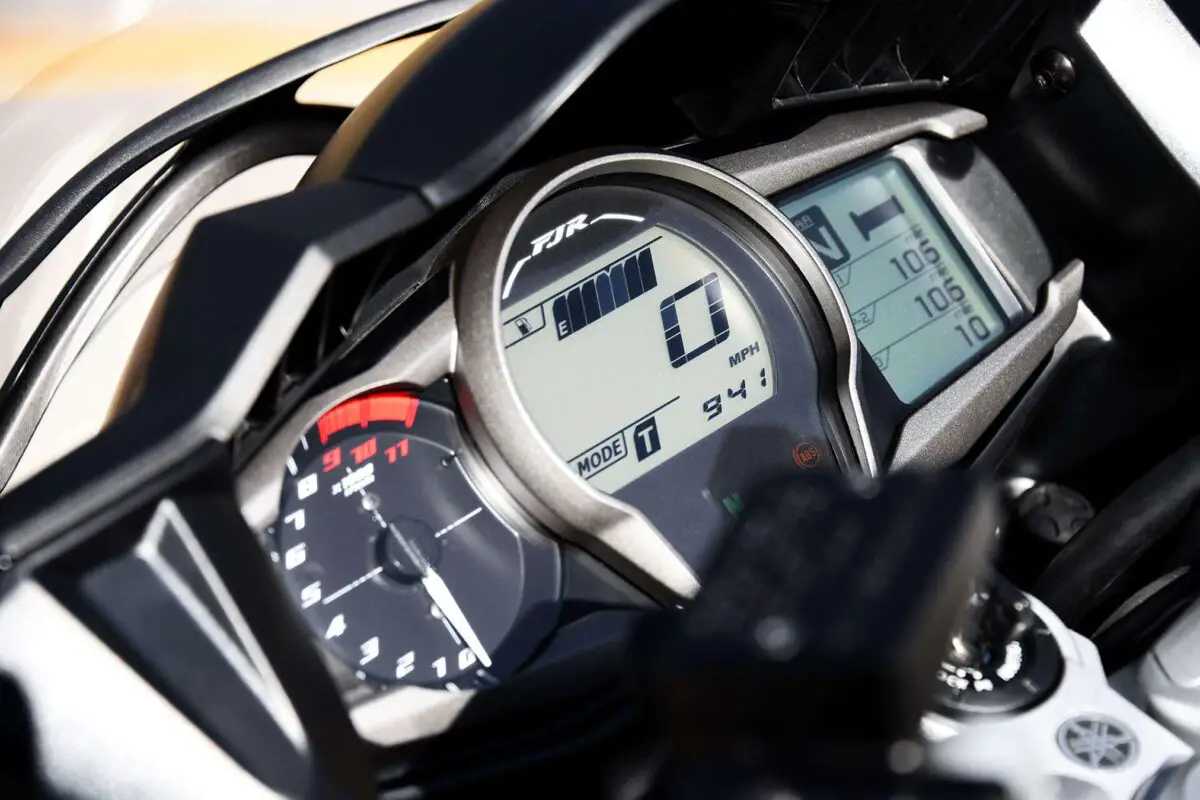

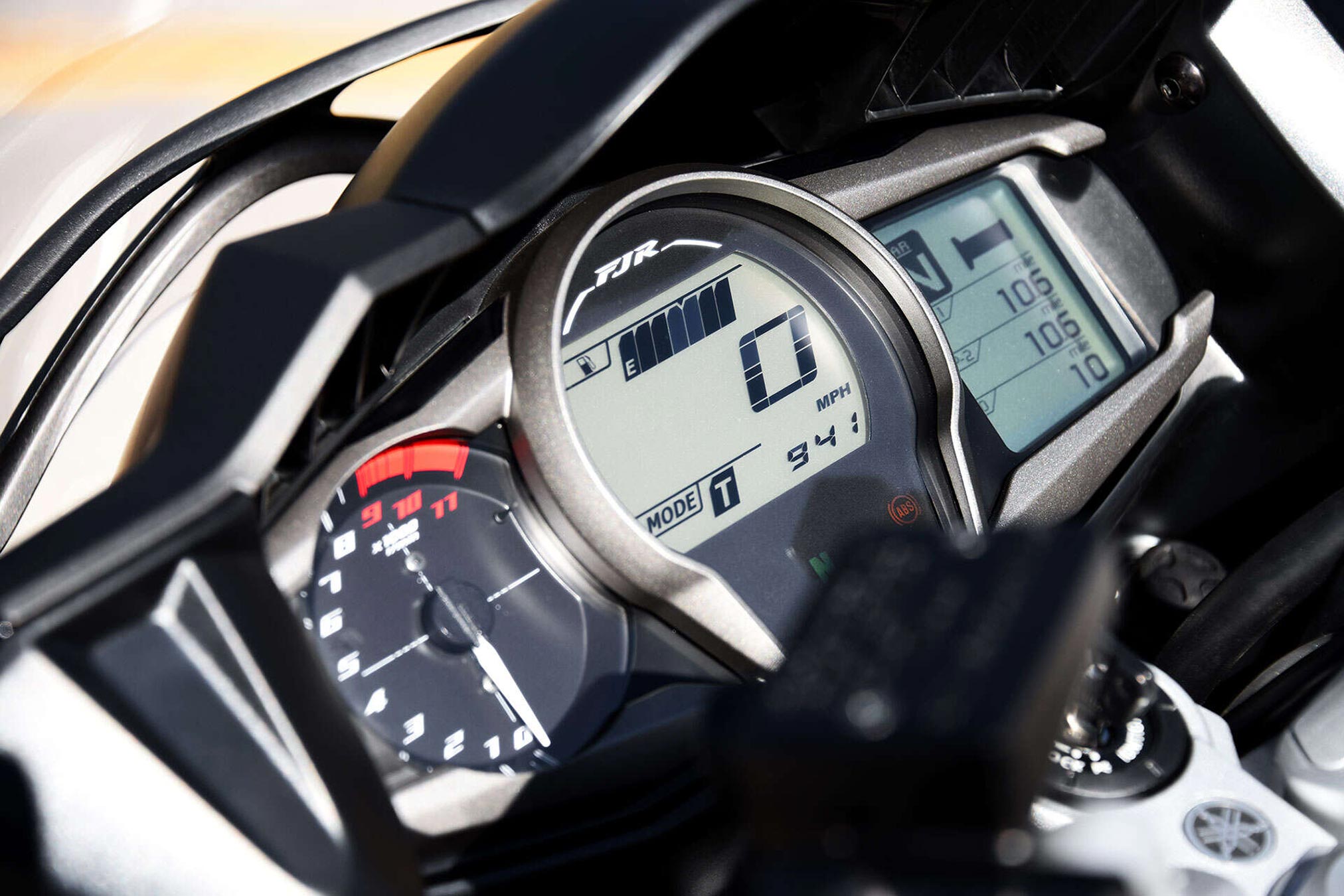

Thorough Instrumentation
The three-part instrument panel provides riders with all the information they need while enjoying the road, including trip computer functions, riding modes and more. Riders can easily customize the dot-matrix multi-function display to show the information they want with a flick of the bar-mounted switchgear, too.
ADDITIONAL FEATURES
Integrated Luggage
Subframe-fitted, quick-release luggage mounts allow easy use of the standard fitted hard side cases, which are conveniently matched to the ignition key. Each case is designed to match the lines of the FJR1300ES, provide plenty of storage space, and thanks to the compact mounting system, overall vehicle width is minimized for in-town maneuverability.
Standard Heated Grips
The FJR1300ES includes heated grips straight from factory, adjustable through the multi-function instrumentation, and with four settings (three settings plus off) of available heat for cooler conditions and foul weather.
Fairing-Mounted Storage
A glove box is built into the upper fairing and includes a 12V outlet to charge phones, GPS units, electric vests and other compact electrical devices.
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha FJR1300ES – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $18299 USD
Canada MSRP Price: $20999 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
ENGINE
Engine Type 1,298cc liquid-cooled DOHC inline 4-cylinder; 16 valves
Bore x Stroke 79.0mm x 66.2mm
Compression Ratio 10.8:1
Fuel Delivery Fuel injection with YCC-T
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed; multiplate assist-and-slipper wet clutch
Final Drive Shaft
Fuel Capacity 6.6 gal
CHASSIS
Suspension/Front 43mm inverted fork with electronically adjustable rebound and compression damping; 5.3-in travel
Suspension/Rear Single shock with electronically adjustable spring preload, rebound and compression damping; 4.9-in travel
Brakes/Front Dual 320mm discs; Unified Brake System and ABS
Brakes/Rear 282mm disc; Unified Brake System and ABS
Tires/Front 120/70ZR17
Tires/Rear 180/55ZR17
DIMENSIONS
LxWxH 87.8 in x 29.5 in x 52.2 – 57.3 in
Seat Height 31.7 or 32.5 in
Wheelbase 60.8 in
Rake (Caster Angle) 26.0°
Trail 4.3 in
Max. Ground Clearance 4.9 in
Fuel Capacity 6.6 gal
Fuel Economy** 36 mpg
Wet Weight*** 642 lbs (CA model 644 lb
OTHER
Warranty 1 Year (Limited Factory Warranty)
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha FJR1300ES – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| ENGINE | Liquid cooled, DOHC, 16 valves (4-valves/cyl), in-line four |
| DISPLACEMENT | 1298cc |
| BORE AND STROKE | 79 x 66.2mm |
| COMPRESSION RATIO | 10.8:1 |
| MAXIMUM TORQUE | 14.1kg-m (102 ft-lb) @ 7,000 rpm |
| ENGINE MANAGEMENT | YCC-T, D-Mode, Traction Control, Cruise Control |
| FUEL DELIVERY | Mikuni 42mm throttle body F.I. |
| ESTIMATED FUEL CONSUMPTION± | 15.2kpl / 42.9mpg (Imp.) |
| IGNITION / STARTING | TCI / Electric |
| TRANSMISSION | 6-speed |
| FINAL DRIVE | Shaft |
CHASSIS
| SUSPENSION (FRONT) | Electronically adjustable KYB inverted 43mm fork / 135mm (5.4″) wheel travel |
| SUSPENSION (REAR) | Electronically adjustable link Monocross / 125mm (4.8″) wheel travel |
| BRAKES (FRONT) | Dual 320mm discs with 4-piston calipers, ABS & UBS |
| BRAKES (REAR) | 282mm disc with single piston caliper, ABS & UBS |
| TIRES (FRONT) | 120/70ZR17 |
| TIRES (REAR) | 180/55ZR17 |
CRITICAL DATA
| LENGTH | 2,230mm (87.8 “) |
| WIDTH | 750mm (29.5″) |
| HEIGHT | 1,325mm (52.2″) to 1,455mm (57.3) |
| WHEELBASE | 1,545mm (60.8″) |
| RAKE / TRAIL | 26° / 109mm (4.3″) |
| GROUND CLEARANCE | 125mm (4.9″) |
| SEAT HEIGHT | 805mm (31.7″) or 825mm (32.5″) |
| FUEL CAPACITY | 25 litres (5.5 imp.gal.) |
| WET WEIGHT | 291 kg (642 lb) |
| COLOUR(S) | FJR 20th Anniversary Edition |
2024 Yamaha FJR1300ES – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
